Outdoor lighting, Tetra Urban lighting

The outdoor lamp Tetra Urban lighting is designed for parks and pedestrian areas, focusing on order, continuity and a measured visual presence. In an outdoor project and an outdoor lighting design project, it supports large-scale, readable systems with consistent points of light and controlled outdoor lighting.
The Tetra Parco family by Platek features a “double” and effective light output, intended to illuminate the surroundings with precision while keeping an integrated, discreet urban presence.

Technical features

• Extruded aluminium alloy body
• Die-cast flange and base in aluminium alloy EN 44300 with very low copper content
• A4 stainless steel screws
• Galvanic anodizing treatment (mechanical satin finishing, surface degreasing, anodic oxidation, final sealing)
• Continuous two-step paint process (epoxy-based primer + polyester-based colour finish) creating a thick protective barrier
• Protective barrier against atmospheric agents and UV rays; declared salt-spray corrosion resistance higher than market standards
• Glass bonding with atmospheric-pressure plasma pre-treatment, silicone application and automated assembly for sealing
• IP66, IK09

Dimensions

• Tetra Parco 2270 Urban lighting

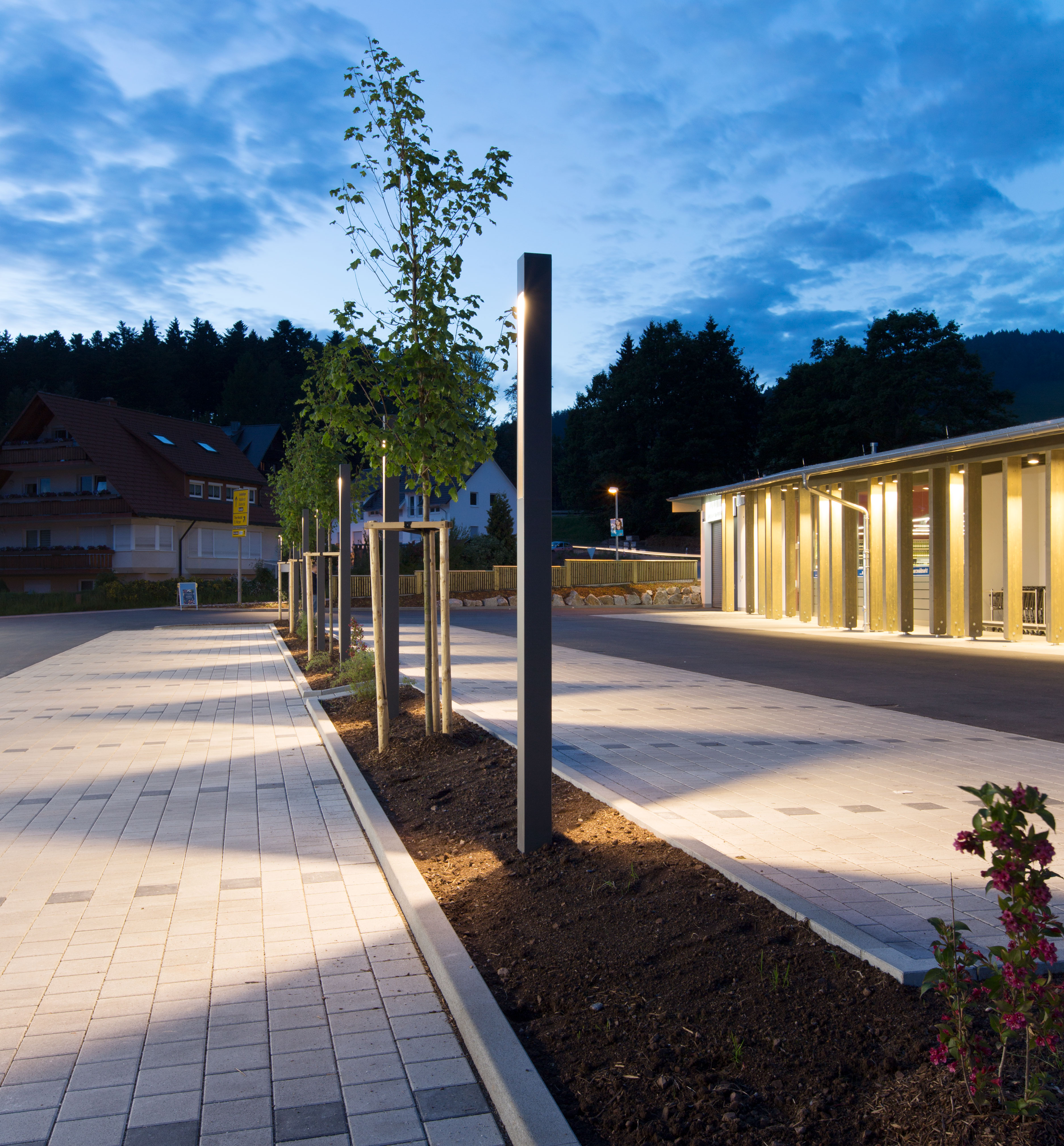

• Tetra Parco 2600 Urban lighting

Ready to place it in your model? From the download section get the free 3D files and BIM models of the Tetra Urban lighting by Platek. Along with the BIM download, catalogues, datasheets and images are available to complete documentation and present a clear, verifiable outdoor lighting proposal to your client.
