Recessed spotlights, Mini In-ground StS

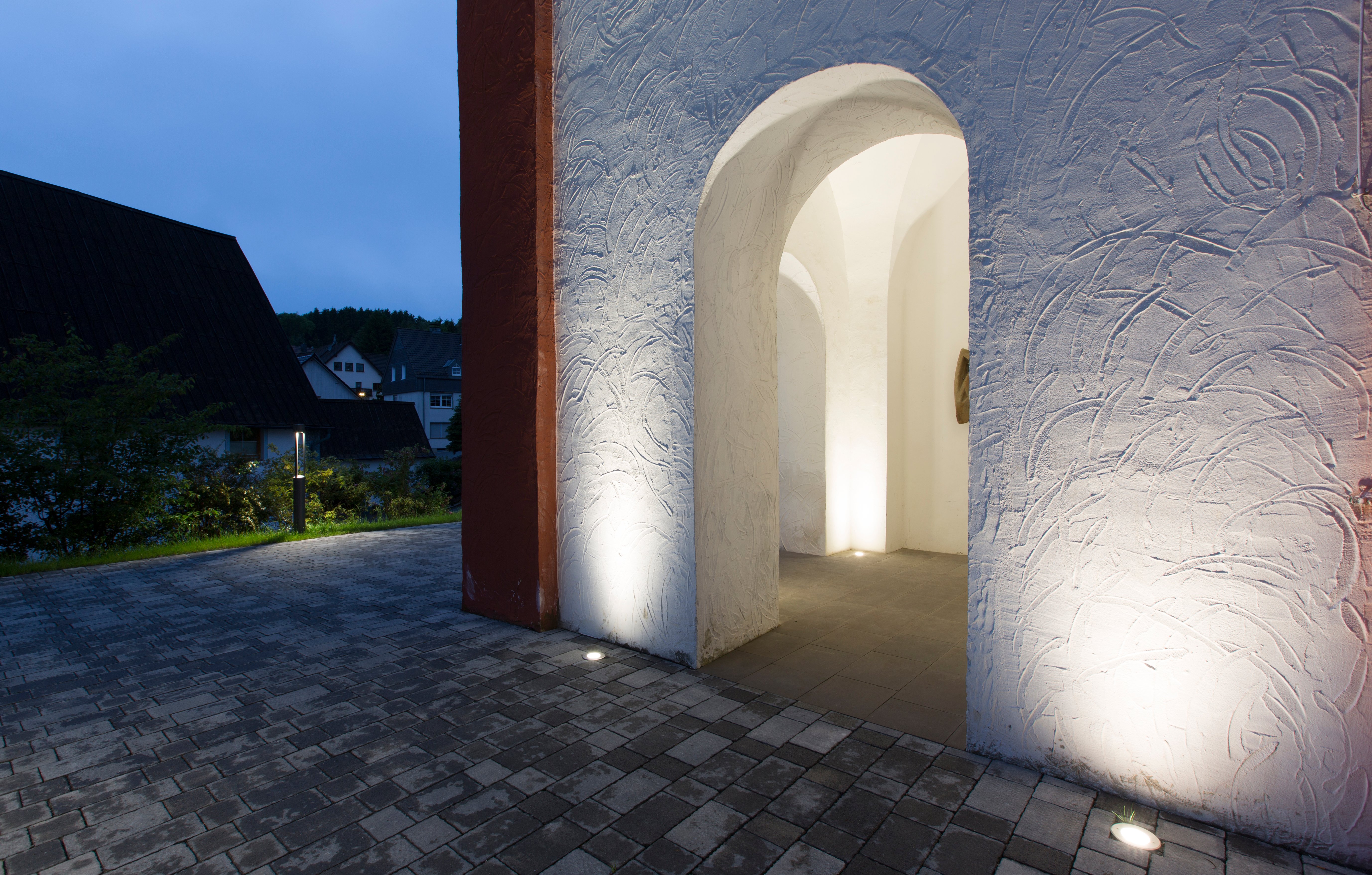

Mini In-ground StS is a compact and discreet in-ground recessed fitting designed to blend into architecture and deliver precise, controlled, uniform light. In an outdoor project, it can enhance paths, façades and construction details naturally, keeping minimal visual impact while letting light guide perception.

The Mini collection by Platek is one of Platek’s first series of ground recessed luminaires. The collection was renewed through light sources of latest generation and by means of surface treatments that have increased reliability even in particularly demanding conditions of use. High performance and lighting technical efficiency make Mini suitable for lighting large surfaces and tall trees with large foliage. The thickness is very low and the product has a minimum projection from the floor or from wall. The family was enriched with Full Inox versions that guarantee extreme resistance against scratches and footsteps.

Technical features

• Body and head in AISI 316L stainless steel
• Fixing with o rings
• No visible screws and fixed to the outer housing with a clip on system
• IP68 protection with Full Dry system which avoids condensation inside the product
• Installation of the recessed housing in cast concrete with a 20–30 cm gravel soakaway
• Only an IP68 connection to the power supply can guarantee the same protection to the fixture
• Outer housing and connector to be ordered separately
• IP66/IP68 Full Dry, IK10

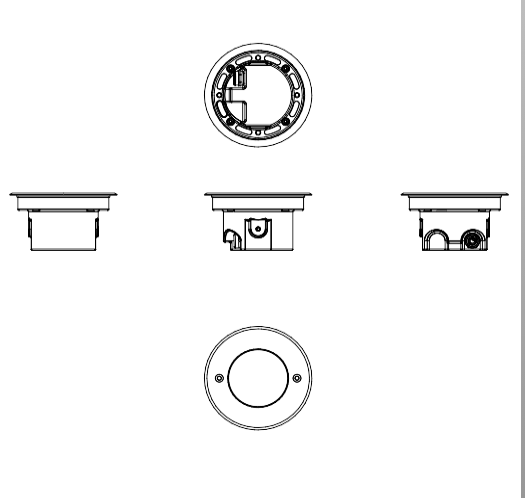

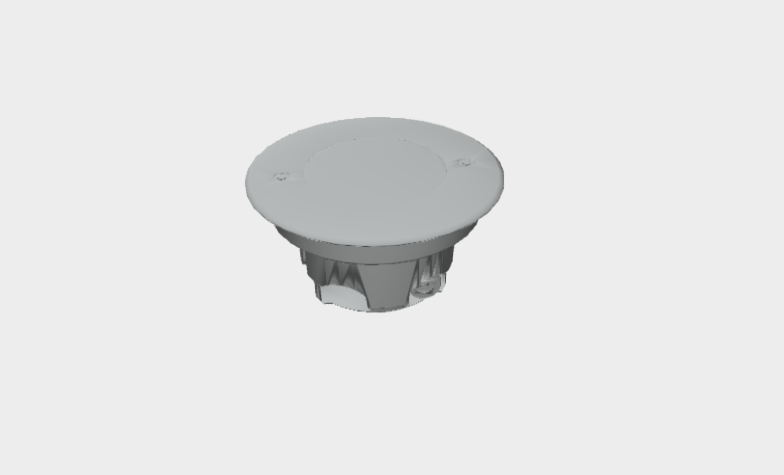

Download the free 3D and BIM models of Mini In-ground StS by Platek from this page to integrate it into your model and coordinate outdoor lighting in your project. Along with the BIM download, catalogues, datasheets and images are available for drawings and documentation.
