Ceiling inspection hatch, JT-XXL System - Large-sized inspection access panel for ceiling
Share on:
If you have used this product in your project. Click here to publish you project on SYNCRONIA!
Description

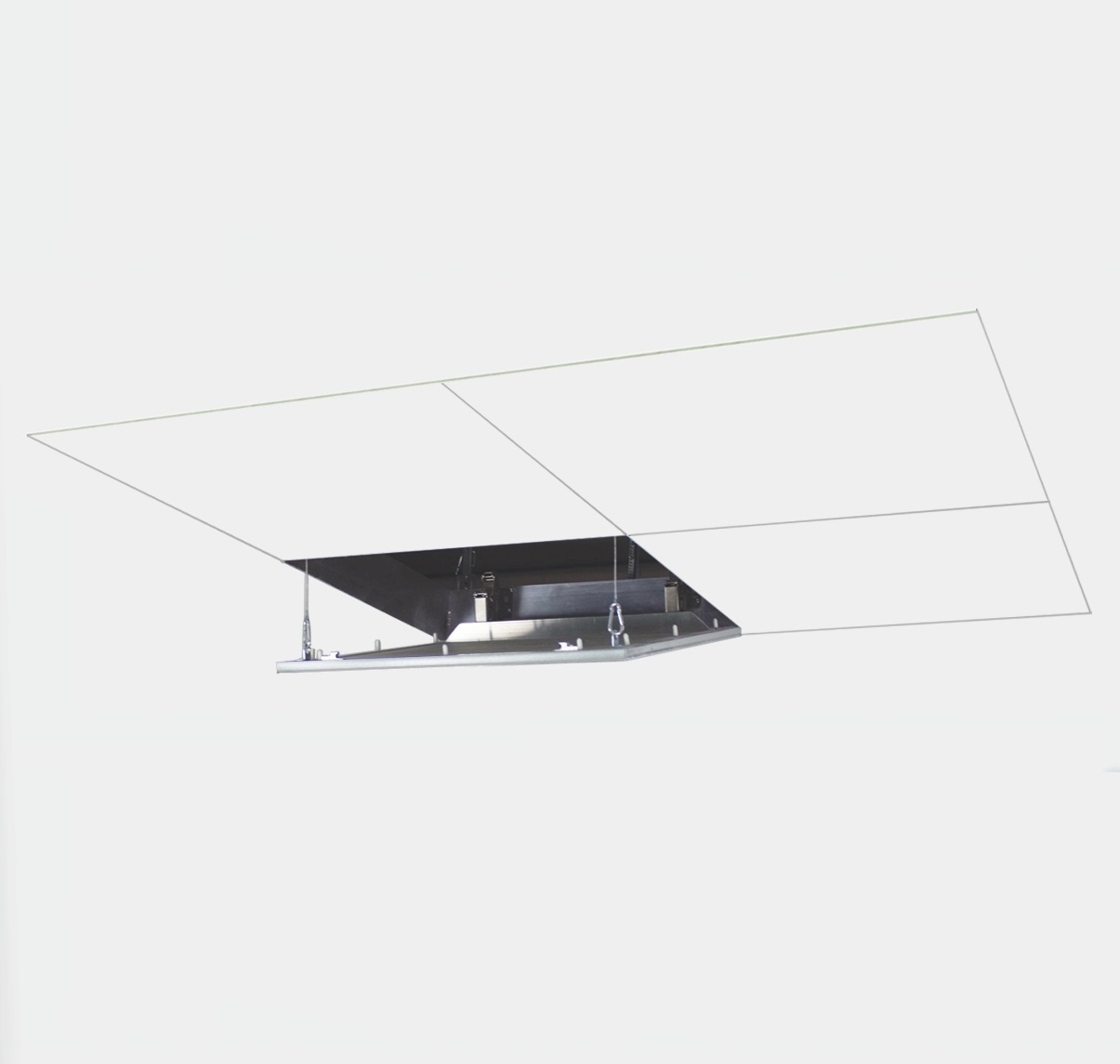

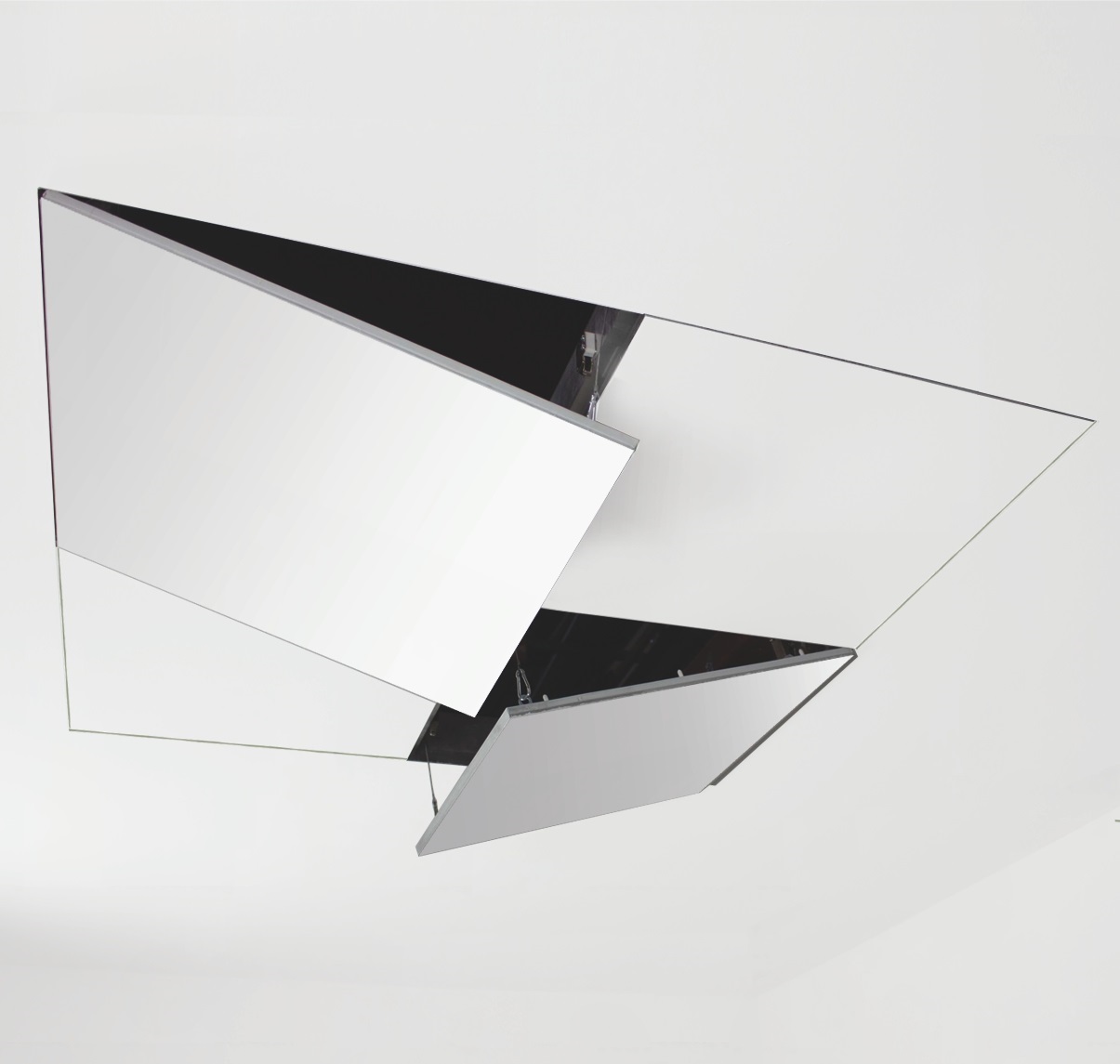

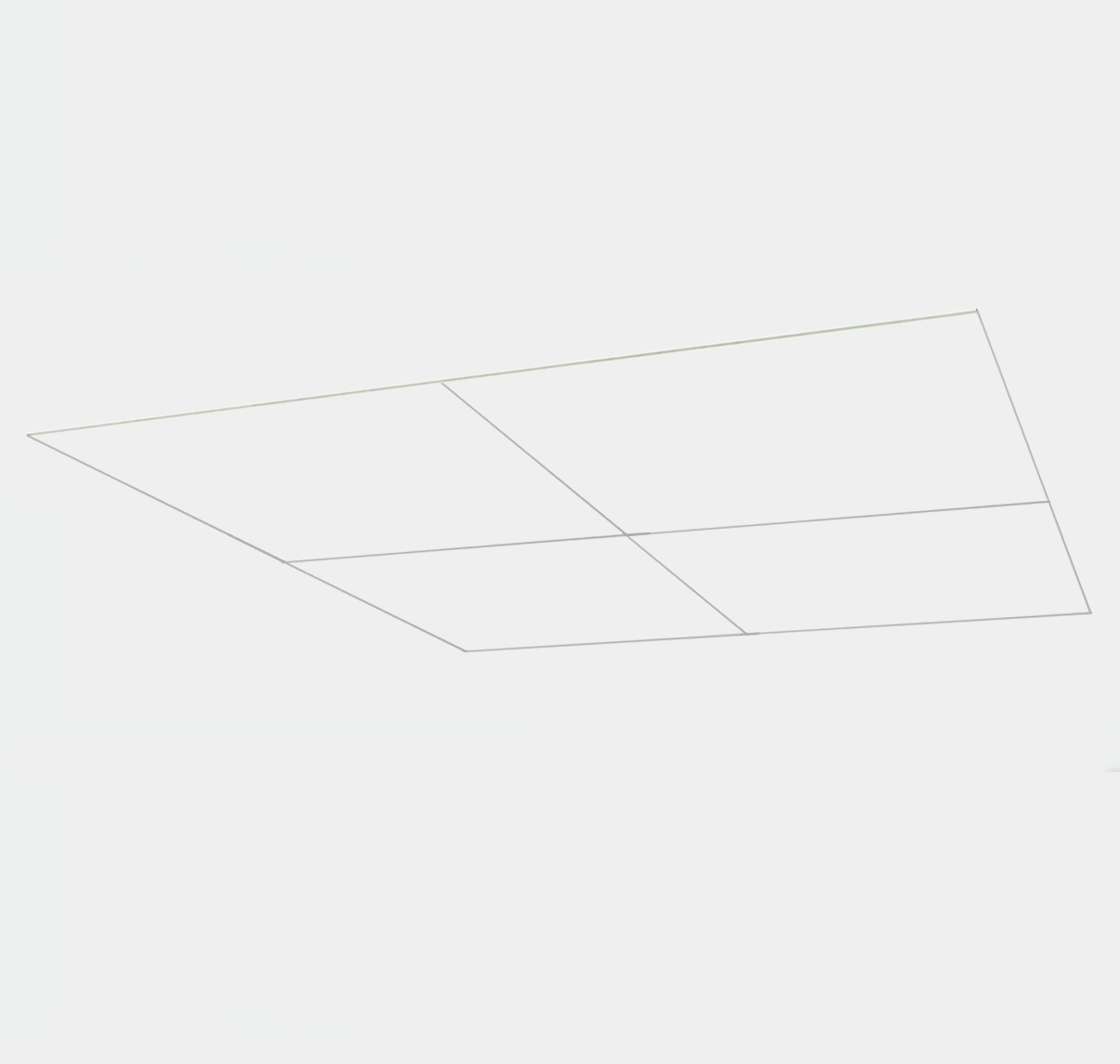

Jumbo-XXL is a ceiling inspection hatch manufactured by FF Systems which, depending on its size, is produced with two or more panels; in the latter case, the panels are supported by a removable central support.
...Read moreJumbo-XXL is a ceiling inspection hatch manufactured by FF Systems which, depending on its size, is produced with two or more panels; in the latter case, the panels are supported by a removable central support.
Between the frame and the panel, a 1.75 mm gap is provided, fitted with a profiled gasket that prevents the perception of light leakage between the frame and the panel. The ceiling hatch is completed with invisible snap closures that allow the hatch to be opened with a simple press. The outer frame is made of a robust tubular aluminum profile. Special, extremely durable hinges ensure smooth and easy opening.

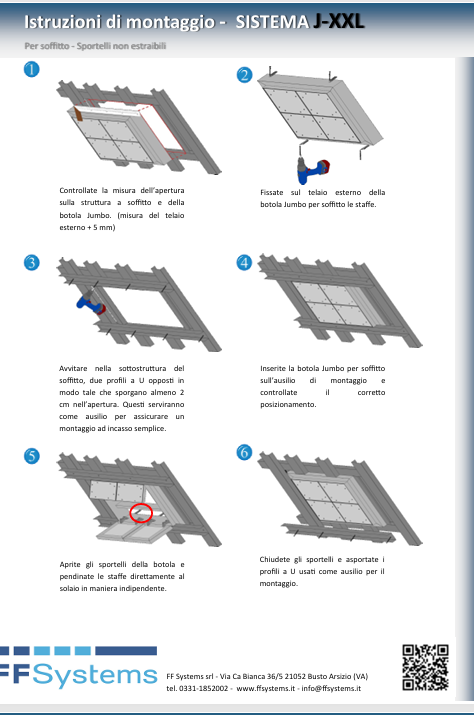

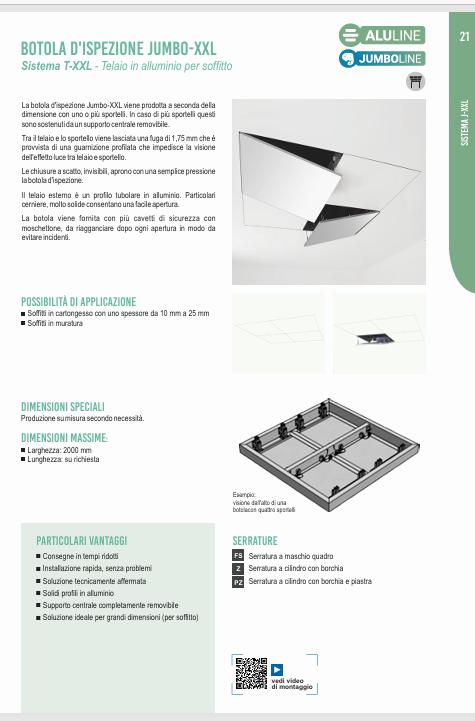

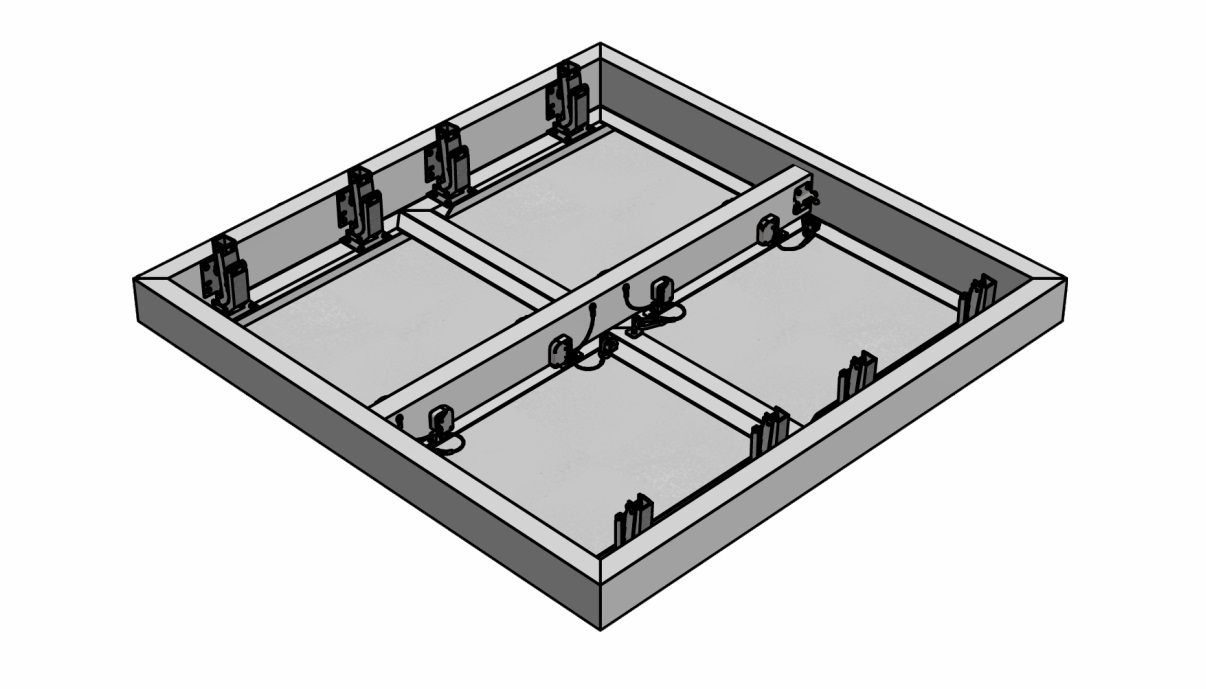

On this page, FF Systems provides dedicated Syncronia brochures, technical drawings, and representative images of the product.
