Fire resistance solutions, Jumbo BS System - Fire-resistant Door-type Inspection access panel with Door Opening

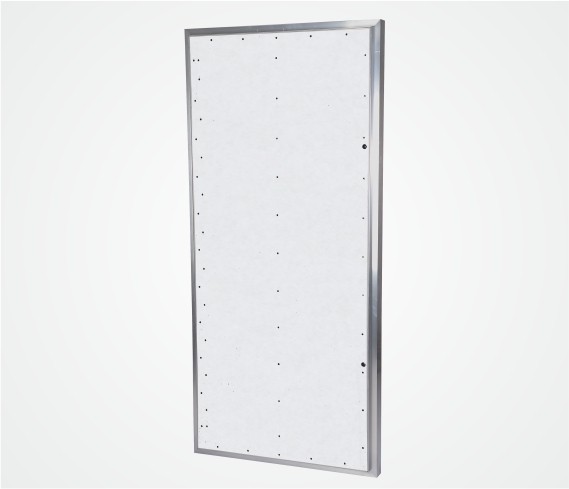

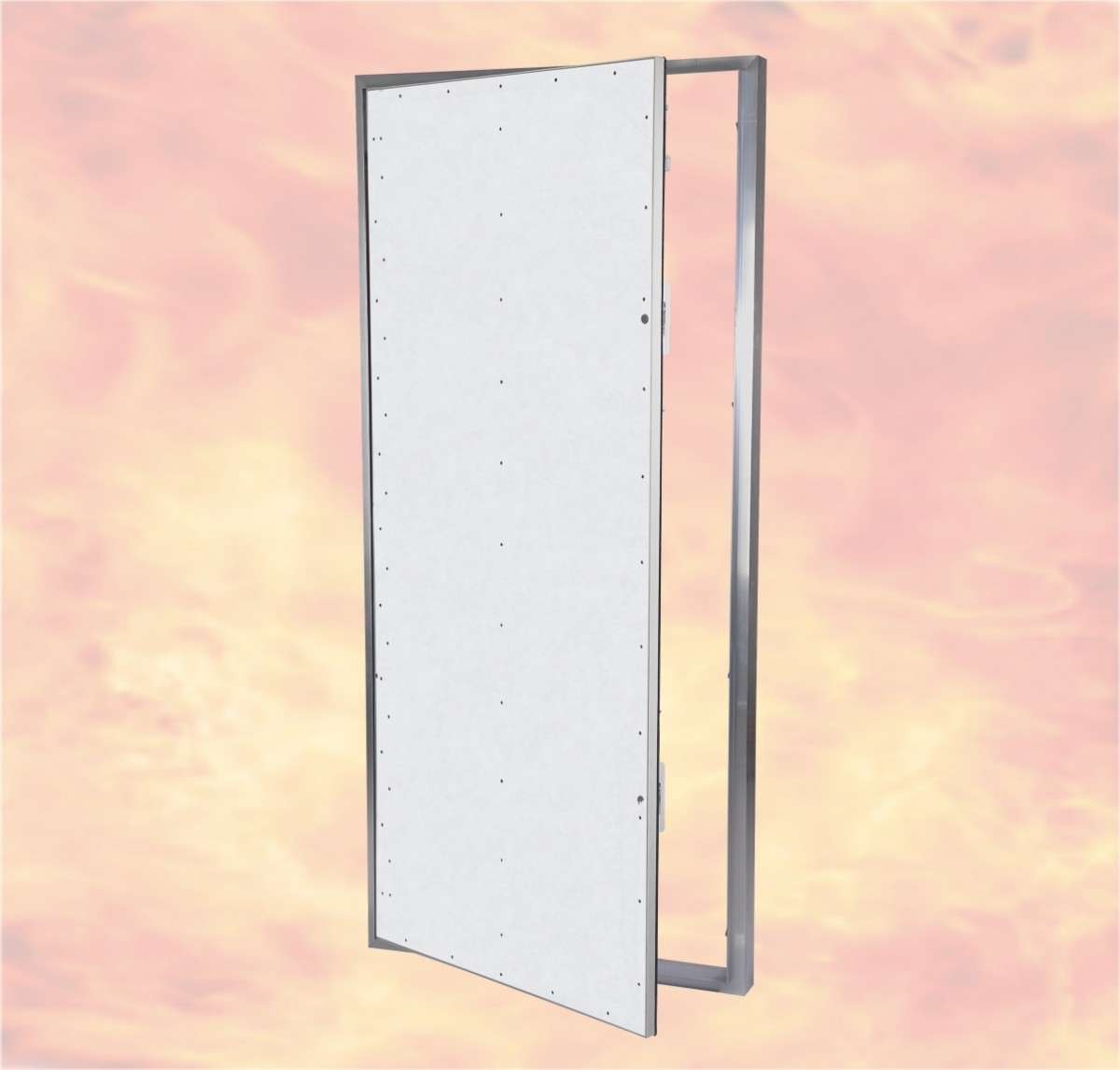

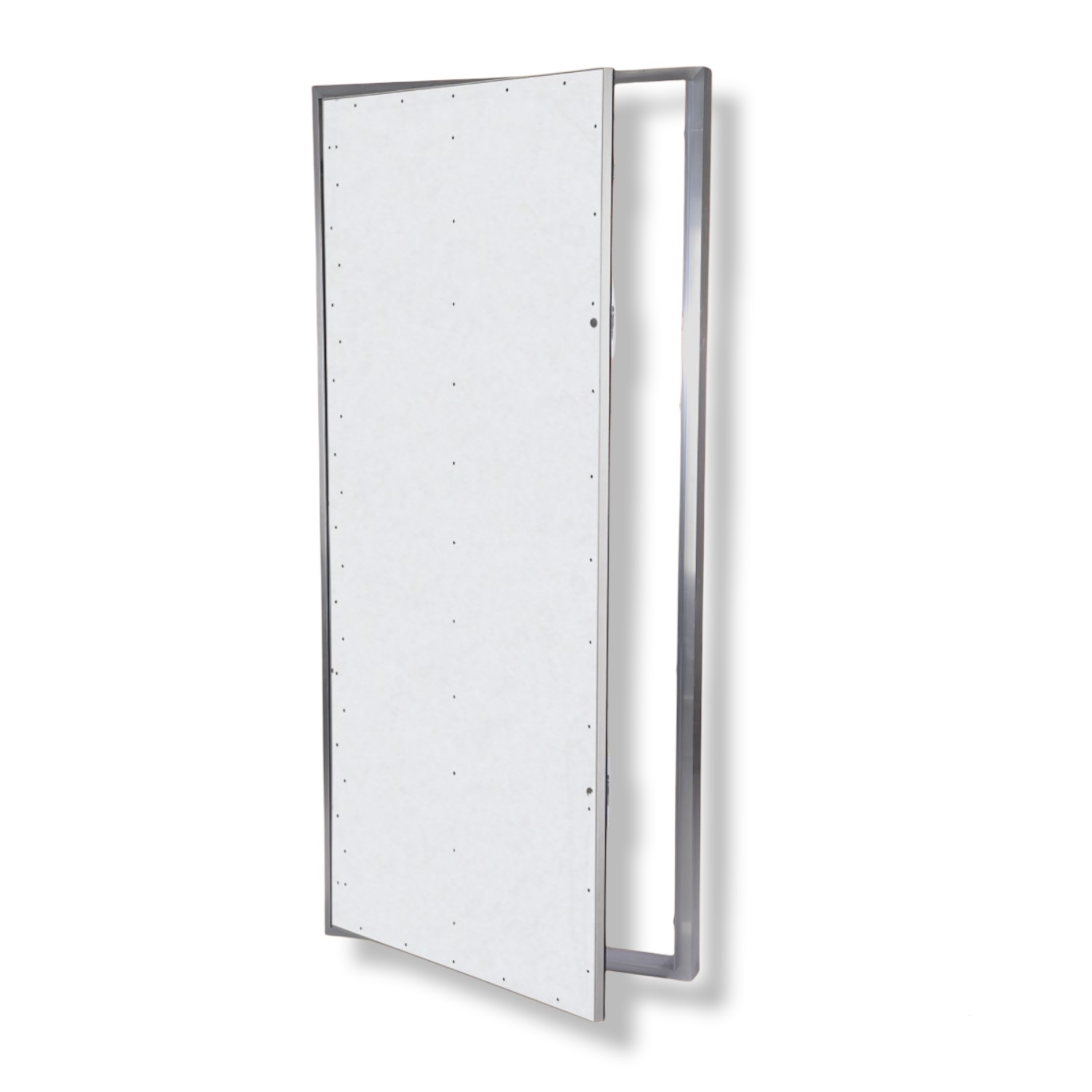

The door-type inspection hatch is designed for flush wall installation, with no visible frame or hinges, ensuring a clean and discreet appearance.
The outer structure is made of a sturdy tubular aluminium profile, while the inner frame consists of aluminium profiles welded using a special high-precision process.

A 3 mm gap is provided between the frame and the door panel, fitted with a shaped intumescent fire-resistant seal. The opening system features completely concealed snap locks, allowing the hatch to be opened with a simple press.

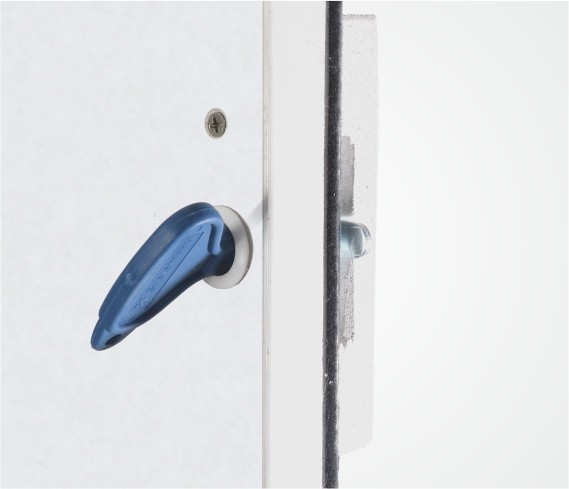

For enhanced security, additional locks can be installed (standard with square male key) to prevent access by unauthorized personnel. Special hinges allow for reversible side opening, either left-to-right or right-to-left, depending on installation requirements.


The product is certified in accordance with European standard EN 13501-2, with testing carried out in compliance with EN 1634-1.

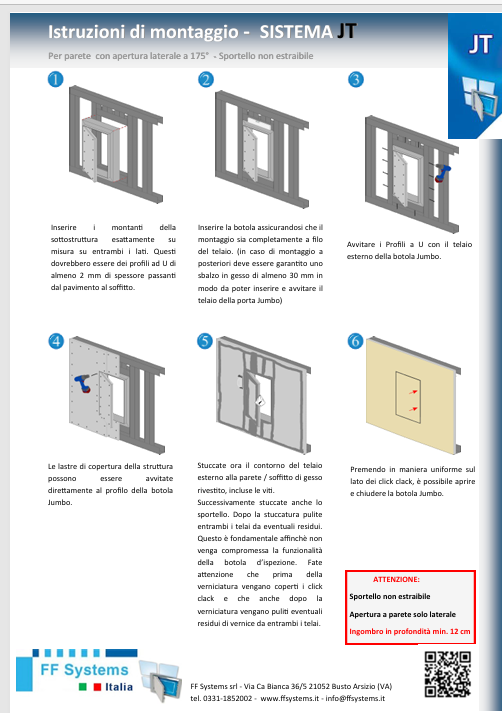

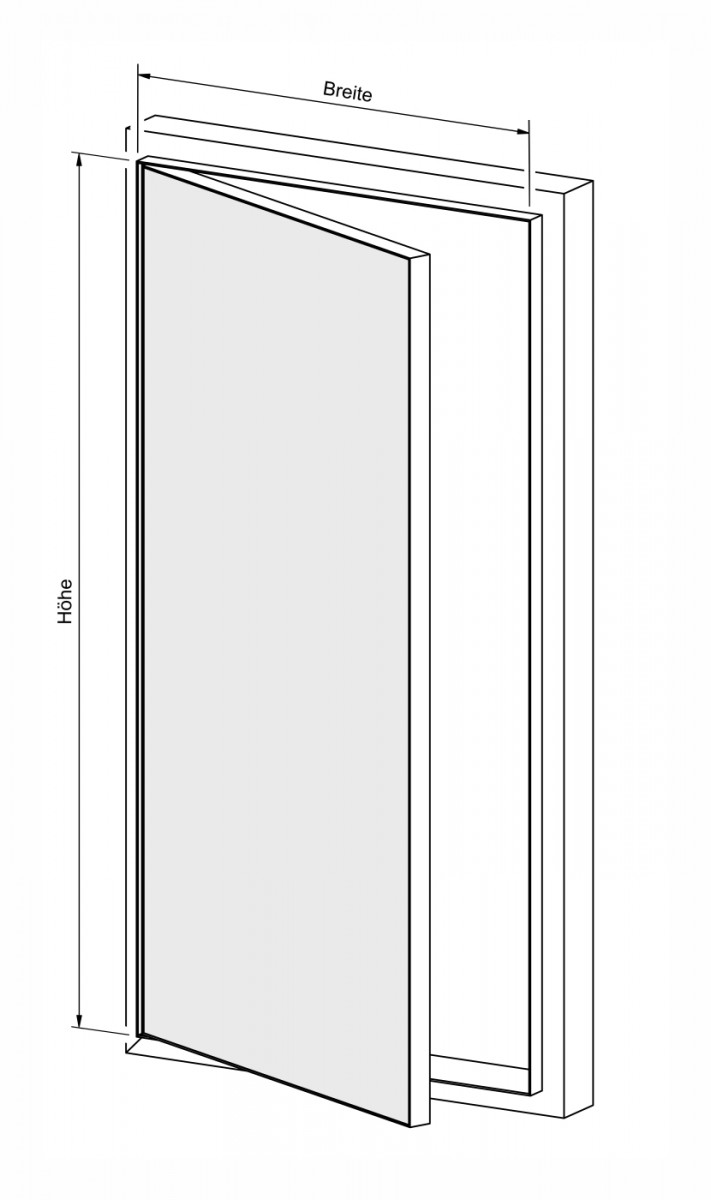

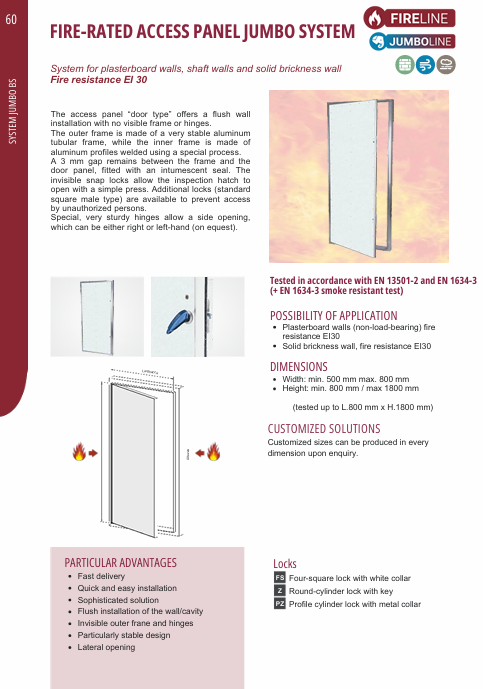

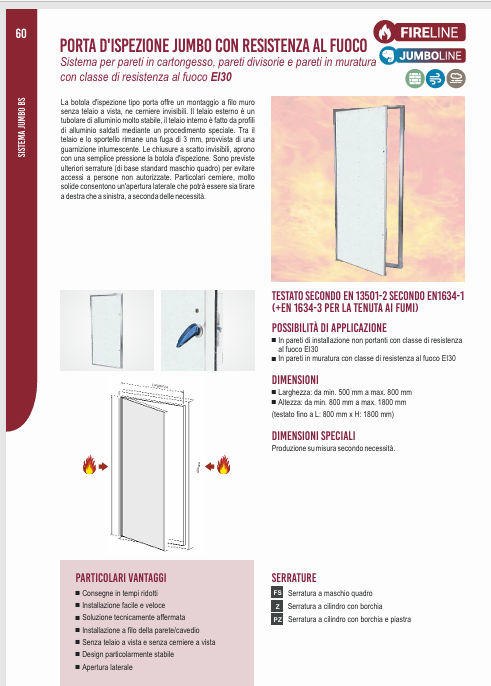

Download the technical files free of charge to support your design process. In the dedicated section of this page you will find technical data sheets, construction drawings, installation manuals, product lifestyle images, and catalogues.
