Fire resistance solutions, F62 Super Paint - Renovation of plasterboard false ceiling

The F62 Super Paint solution proposed by Elmo is a water-based intumescent coating designed to provide REI 120 passive fire protection for plasterboard suspended ceilings. It is ideal for horizontal compartmentation in buildings and for improving structural safety in the event of fire.

Main Technical Features

• System: High-performance F62 Super Paint intumescent coating
• Fire resistance: REI 120 certified in accordance with EN 1365-2

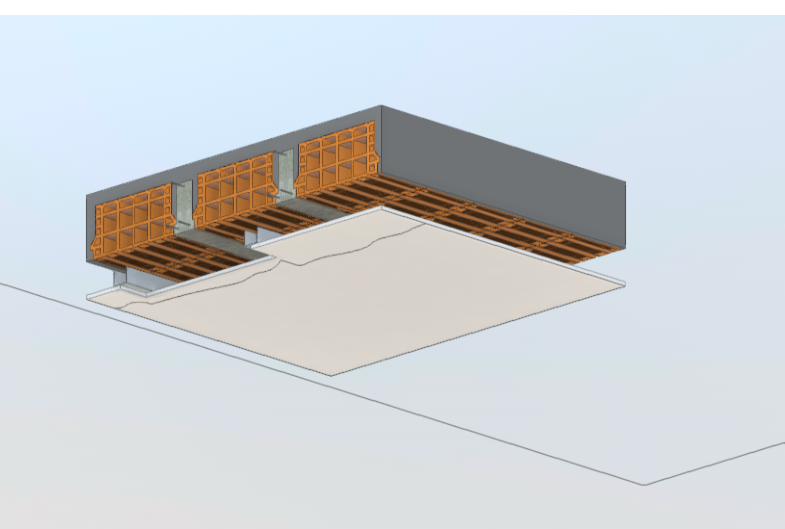

• Substrate: standard plasterboard suspended ceiling (Type A), 12.5 mm thickness
• Installation: mounted 100 mm below the intrados of the unplastered laterocement slab (16+4 cm)
• Indicative consumption: approximately 1 kg/m²
• Surface preparation: F62 Primer, 100 g/m²

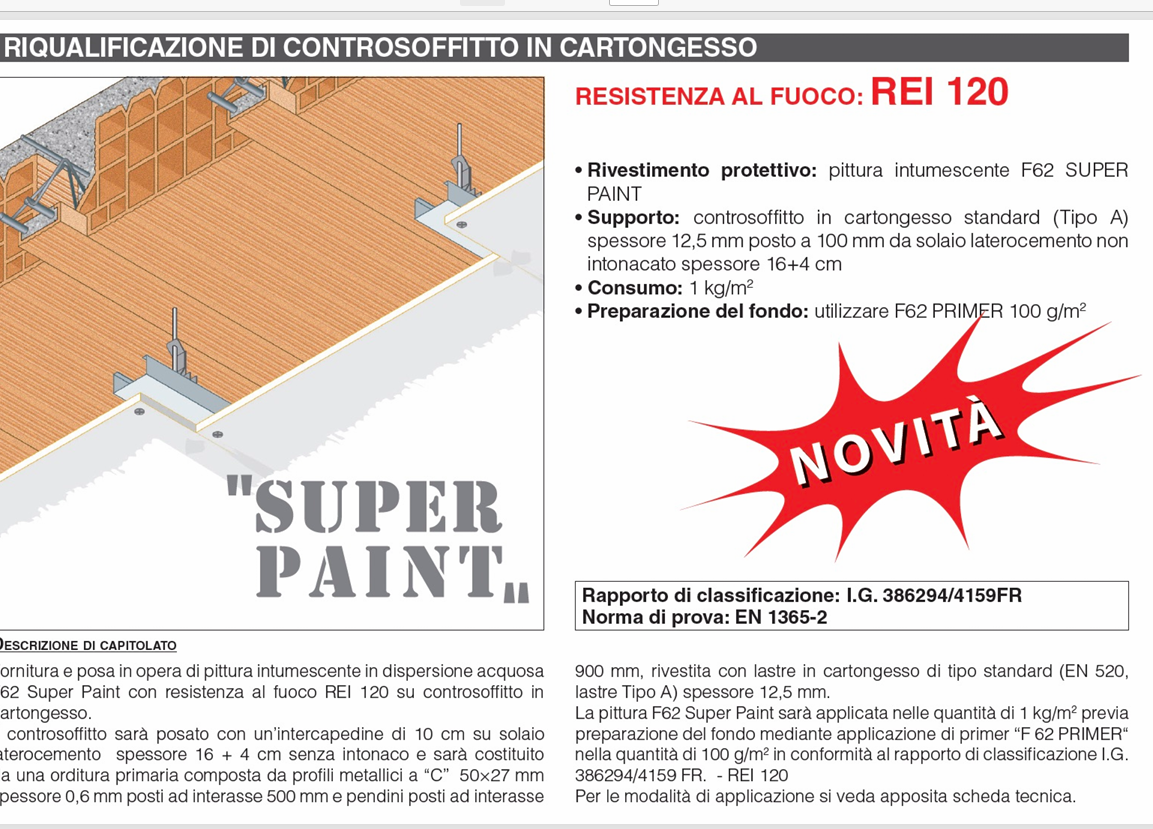

• Classification report: I.G. 386294/4159FR

Solution Advantages

• Significantly increases the fire resistance of horizontal plasterboard partitions
• Suitable for ceilings with structural cavities
• Simple application, compatible with standard metal framing systems
• Compliant with laboratory fire tests and recognized technical classifications

Download

In the download section of this Syncronia product page, you can freely access:

• F62 Super Paint product catalogs
• BIM files
• Technical specifications (bill of quantities)
• Detailed and informative product technical data sheets.
