Fire resistance solutions, F62 Paint - Protection of corrugated sheet metal roofing

Composite slabs with corrugated metal decking are a fast construction solution but are vulnerable to heat. Protecting the soffit of the metal sheet is essential to ensure the stability of the entire floor structure.

Low-Thickness REI 120 System

With only 1.0 kg/m² of F62 PAINT intumescent coating, it is possible to increase the fire resistance of the slab (metal deck + 50 mm concrete pour) up to REI 120. The system is extremely lightweight and requires no additional support structures.

Integrated Anti-Corrosive Treatment

To ensure the durability of the system on metal substrates, proper surface preparation is essential using:

⦁    F62 PRIMER S: For standard anti-corrosive protection.
⦁    F62 PRIMER Z: Specific for galvanized sheets.

Download

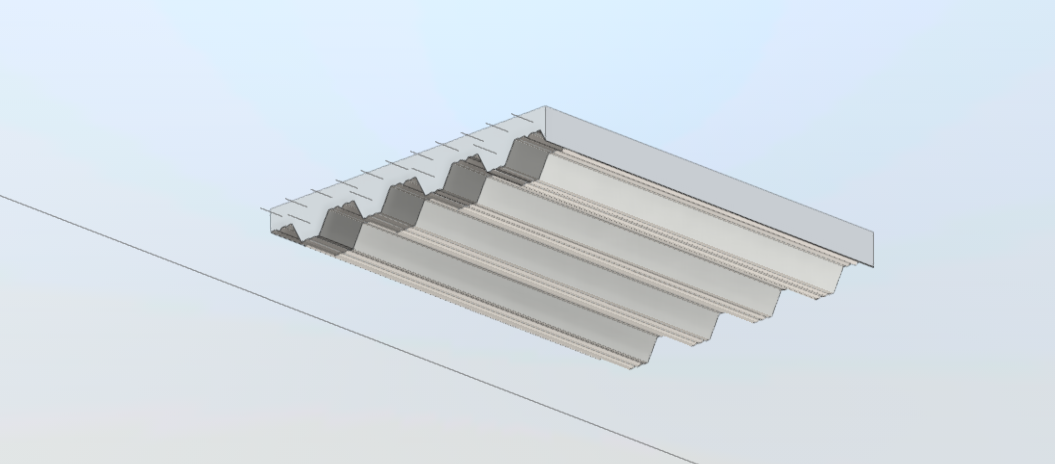

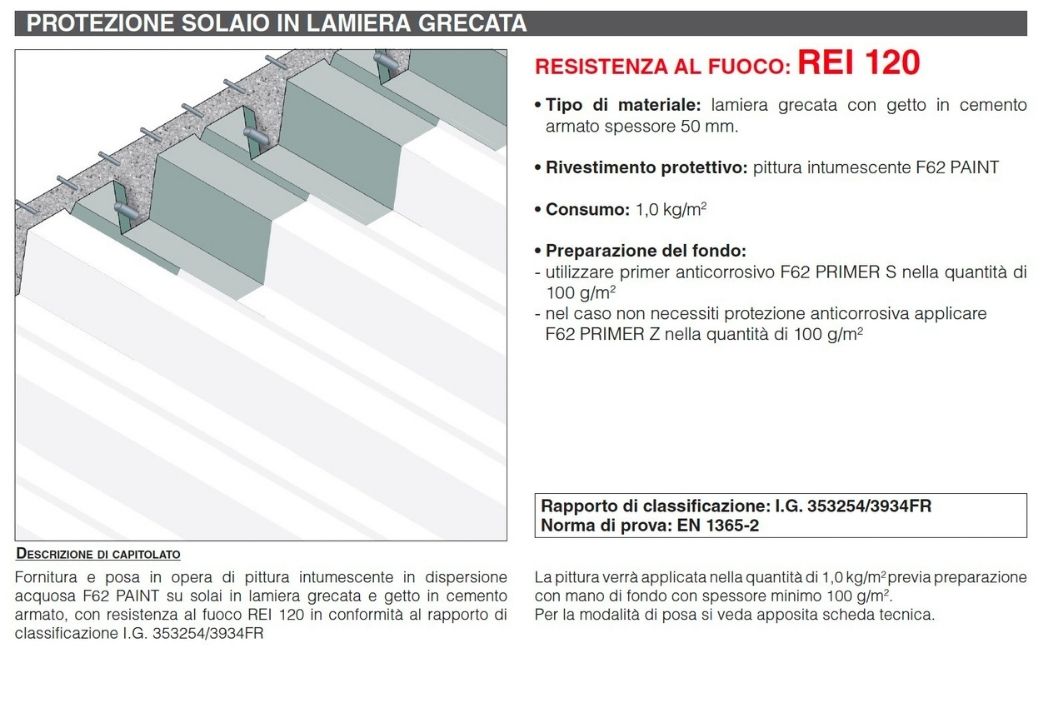

Download the free design files for the F62 Paint system for corrugated metal deck slab protection. Elmo makes .rvt files, catalogs, technical data sheets, and specifications available for designers on this Syncronia page. For more information, do not hesitate to contact the Elmo technical staff via the contact form.
