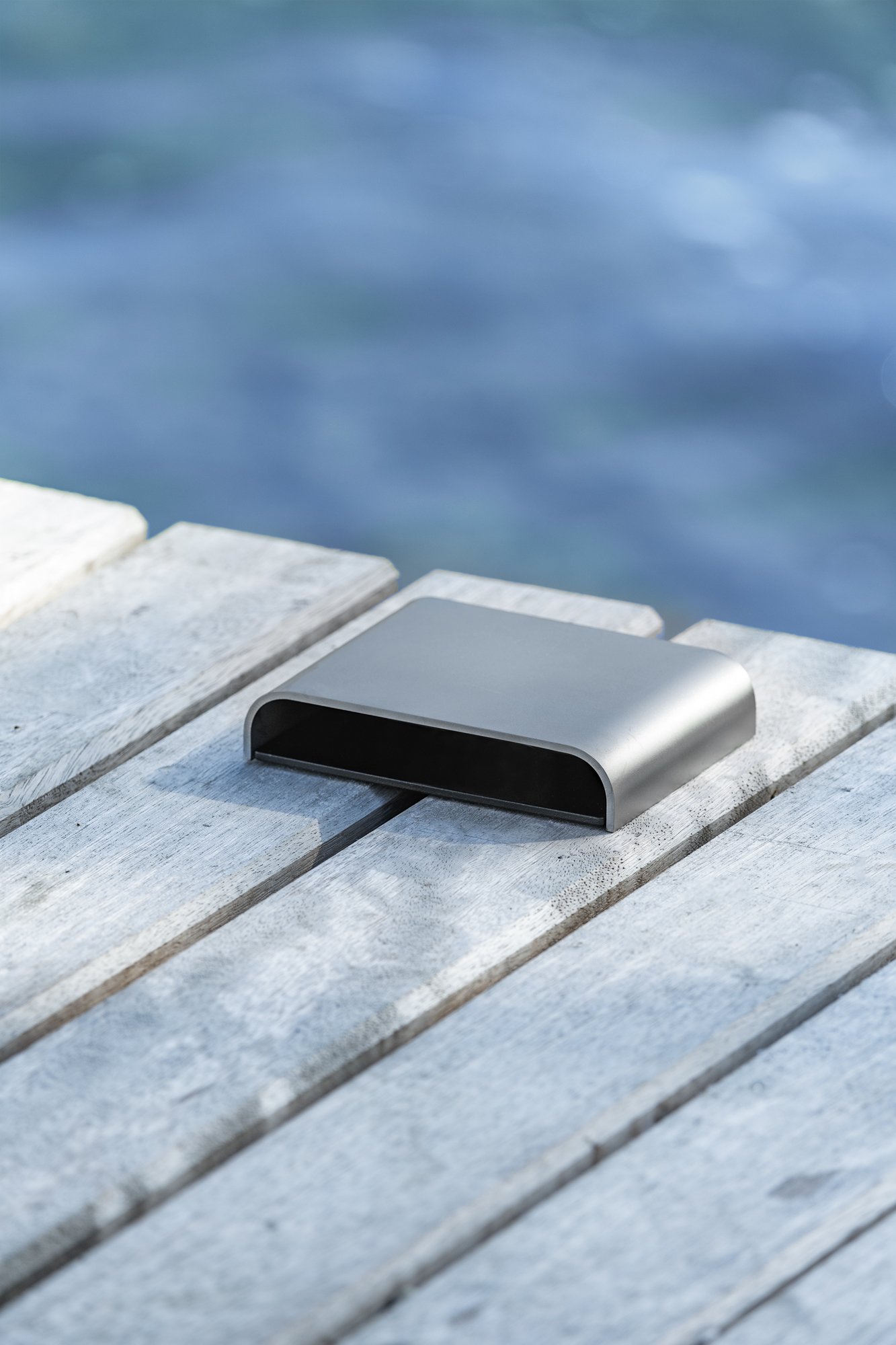

Outdoor lighting, Passo Grazing light StS

Designer: Danesi & Buizzoni

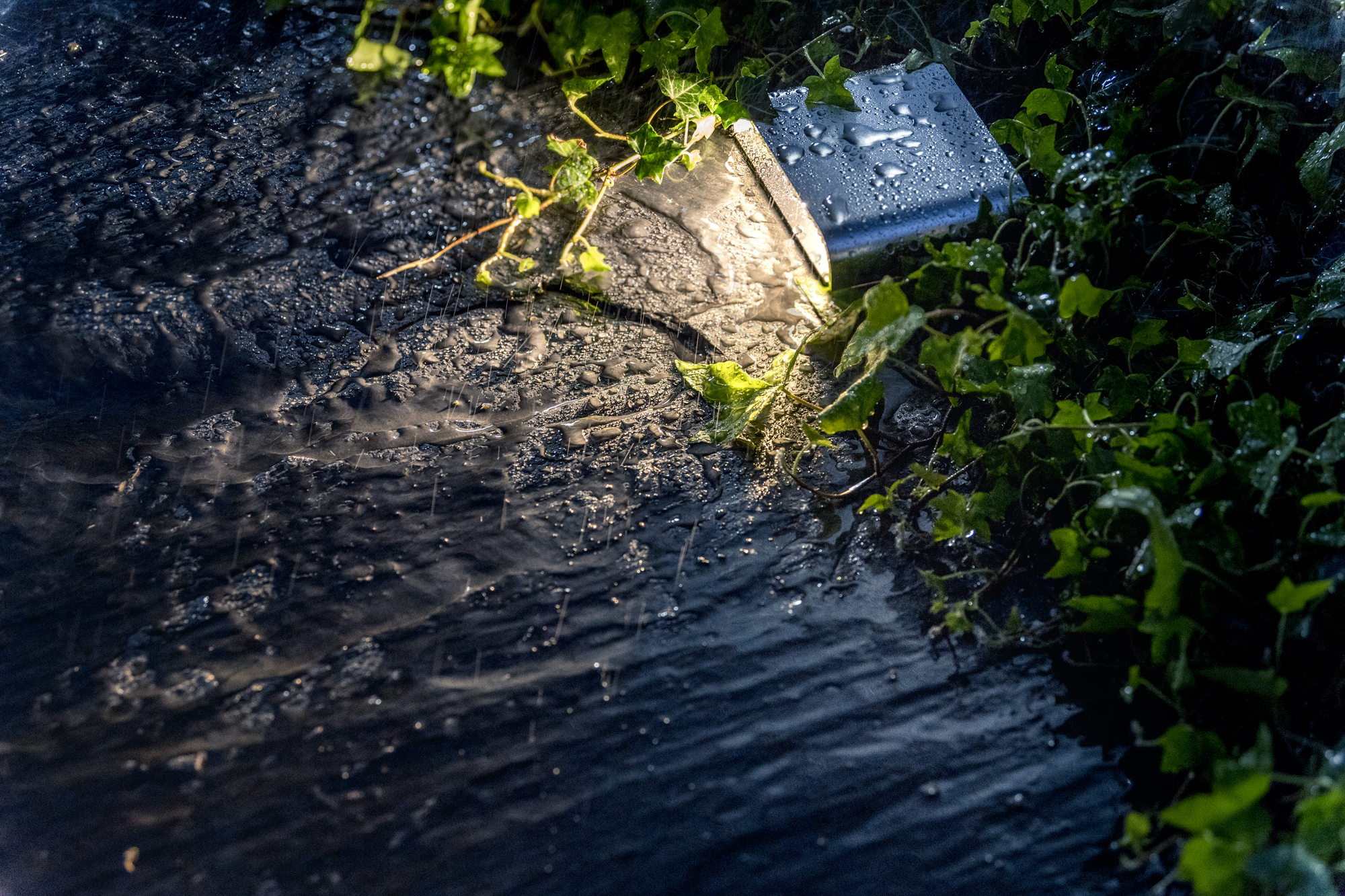

The Passo Grazing light StS is a compact outdoor grazing light designed to integrate outdoor lighting into architecture with discretion. In an outdoor project and outdoor lighting design project, the beam works close to surfaces, enhancing textures and depth while keeping a clean, contemporary visual rhythm along walls, pathways and paving. The output is conceived to guide movement with visual comfort and controlled presence.

The Passo collection by Platek develops a sober, refined language, appreciated for the shadows and reflections produced by grazing light. Corten versions emphasise the product’s shape and volume, while frosted stainless-steel finishes reflect surrounding colours, creating unexpected highlights. Thanks to its essential character, Passo fits a wide range of contexts while remaining consistent with materials and landscape.

Technical features

• Body in AISI 316L stainless steel with 3 mm thickness and ground fixing flange made of AISI 316L stainless steel
• A4 stainless steel screws
• LED light sources integrated in the body to avoid vandalism
• No visible screws
• Remote power supply to be made externally with 24V DC constant-current transformer, to be wired in parallel
• Before fixing the diffuser: atmospheric pressure plasma pre-treatment; silicone coating and automated assembly for sealing
• IP65, IK10

Download the free 3D and BIM models of the Passo Grazing light StS by Platek and integrate it into your outdoor lighting design project. Along with the BIM download, you can also access catalogues, datasheets and images to support drawings, specs and client presentations.
