Recessed spotlights, Nano In-ground

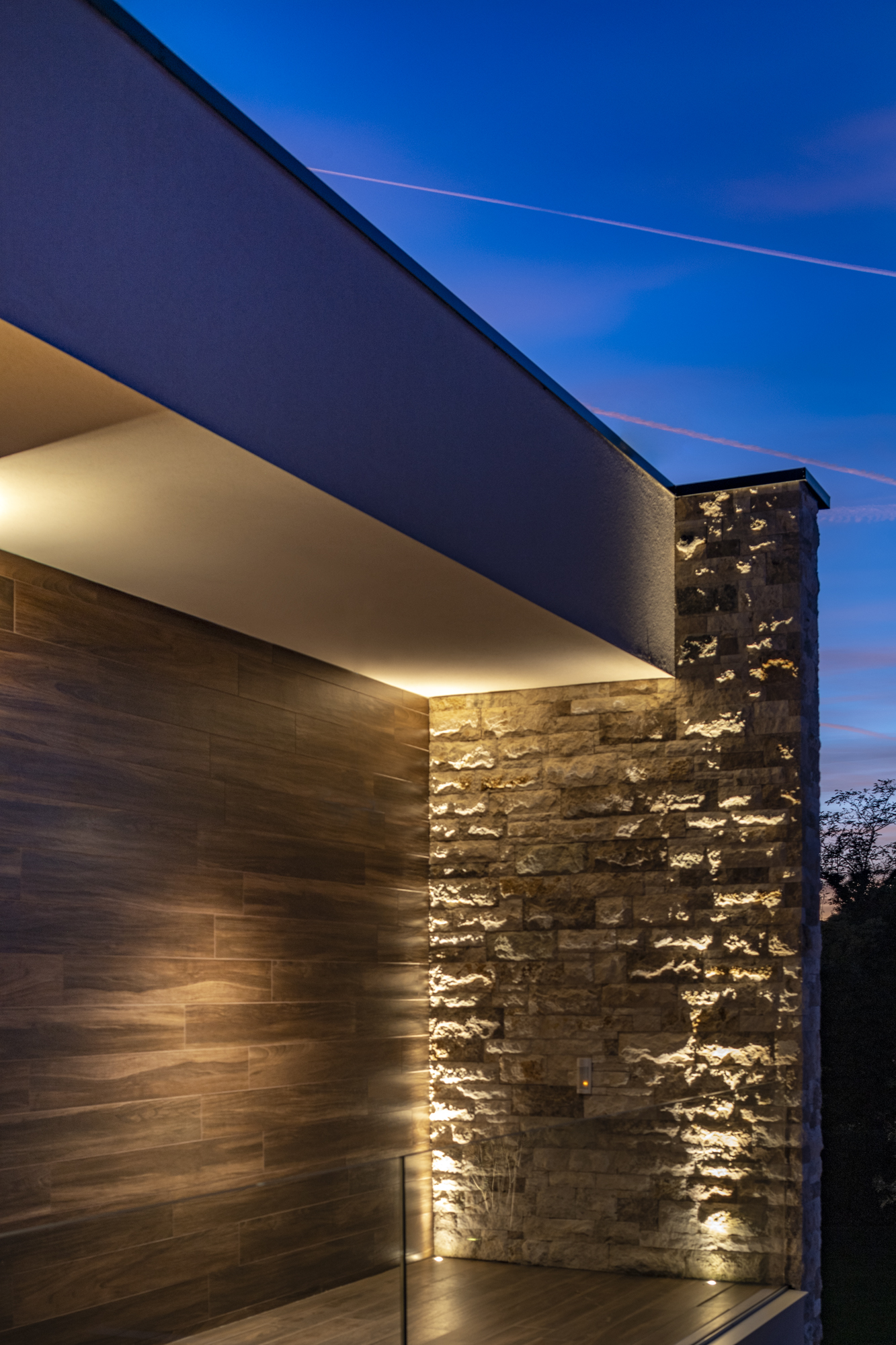

The Nano In-ground is an ultra-compact outdoor in-ground light designed to work precisely on architectural details and material surfaces. In outdoor lighting design, it helps you place discreet yet effective light points to support pathways or highlight landscape elements with controlled outdoor lighting.

The Nano collection by Platek offers small stainless-steel recessed fixtures with sharp, concentrated beams. Round or square flange options are available, together with flush or “roll over” installation, to integrate the fixture into the built environment with a clean, continuous look.

Technical features

• AISI 316 stainless steel body and ring
• No visible screws, fixing with o-rings
• Remote power supply with constant current driver max 700 mA, wired in series
• Diffuser bonding with atmospheric-pressure plasma pre-treatment, silicone coating and automated assembly for sealing
• IP68 protection with Full Dry system to avoid condensation inside the product
• Outer housing installation in cast concrete with a 20–30 cm gravel soakaway
• Only an IP68 connection to the power supply can guarantee the same protection to the fixture
• Outer housing and connector to be ordered separately
• IP66 / IP68 Full Dry, IK07

Dimensions

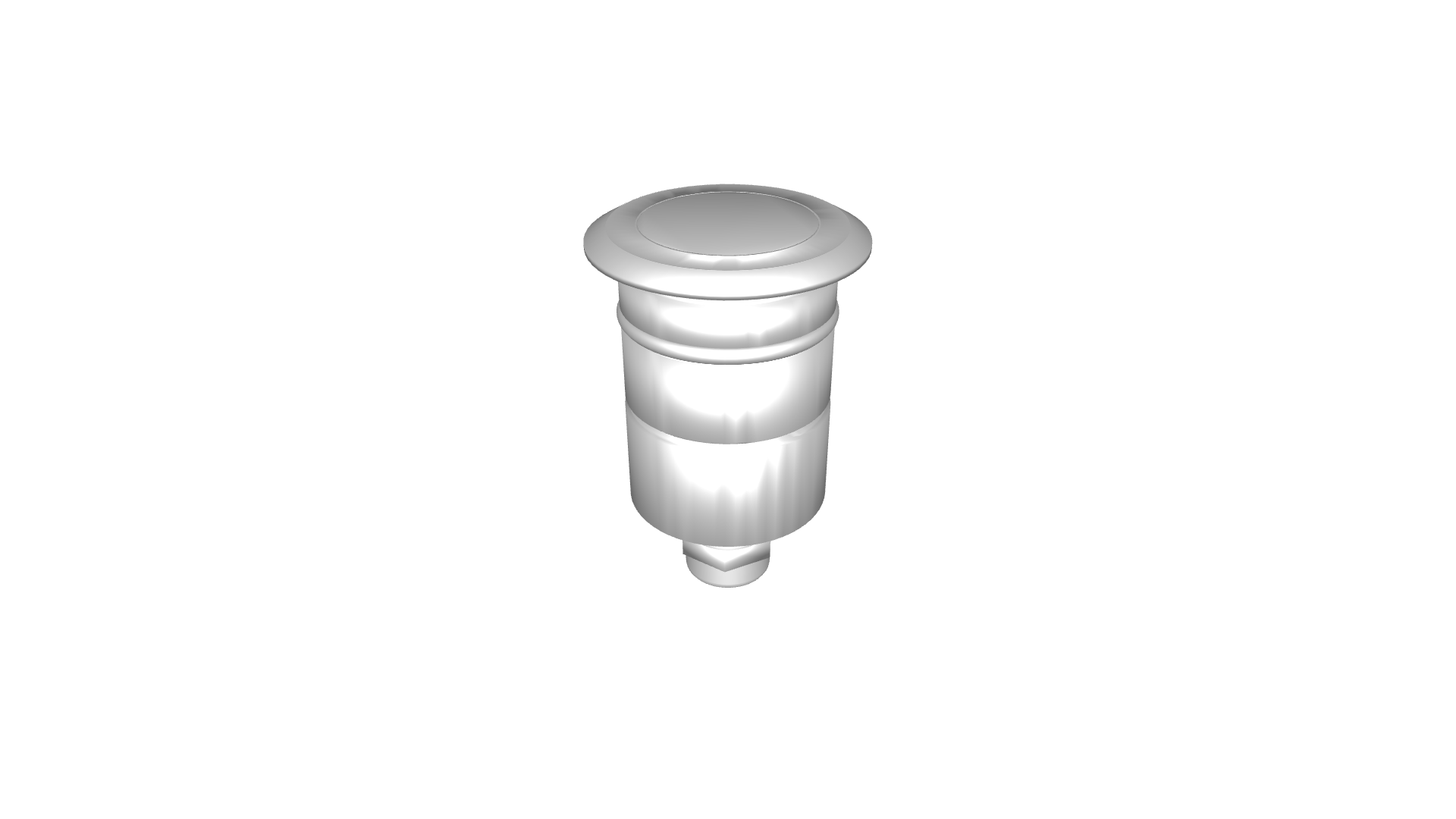

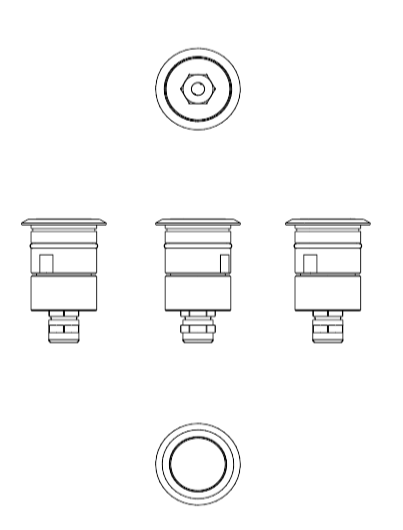

• Nano Round

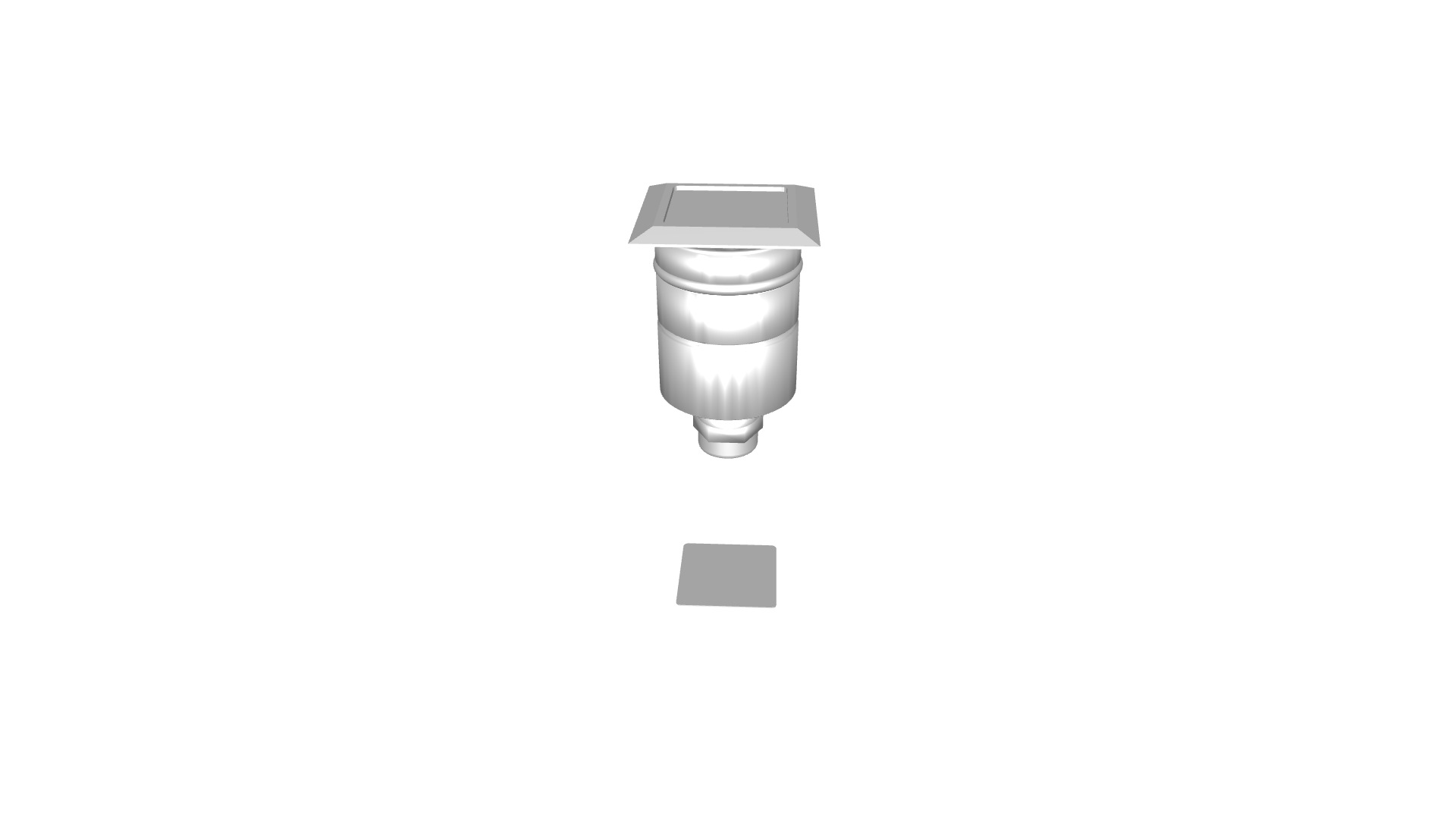

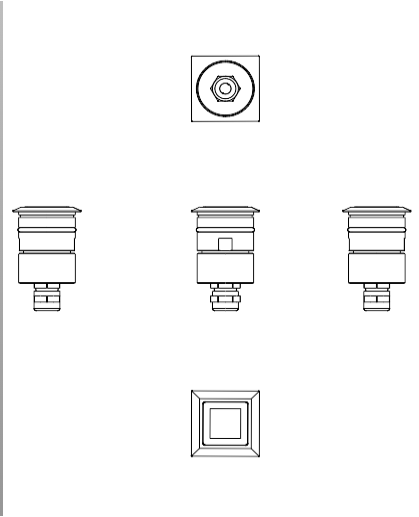

• Nano Square

Download the free 3D and BIM models of the Nano In-ground by Platek and integrate it into your outdoor project. Along with the BIM download, you can also access catalogues, datasheets and images to complete documentation, drawings and client presentation materials.
