Ceiling lamps, Nano Ceiling recessed

The Nano Ceiling recessed is a compact, precise outdoor recessed ceiling light developed to define volumes and geometries with controlled emission. In an outdoor project, it fits covered areas and transitional zones where outdoor lighting must stay discreet while remaining technically reliable.

The Nano collection by Platek includes small stainless-steel recessed fixtures with sharp, concentrated beams, available with round or square flange and flush or “roll over” installation. The family is designed to enhance architecture and pathways while keeping a clean, controlled lighting output.

Technical features

• AISI 316 stainless steel body
• No visible screws, fixing with pressure springs
• Remote power supply with constant current driver max 700 mA, wired in series
• Diffuser bonding with atmospheric-pressure plasma pre-treatment, silicone coating and automated assembly for sealing
• IP68 protection with Full Dry system to avoid condensation inside the product
• IP68 Full Dry, IK07

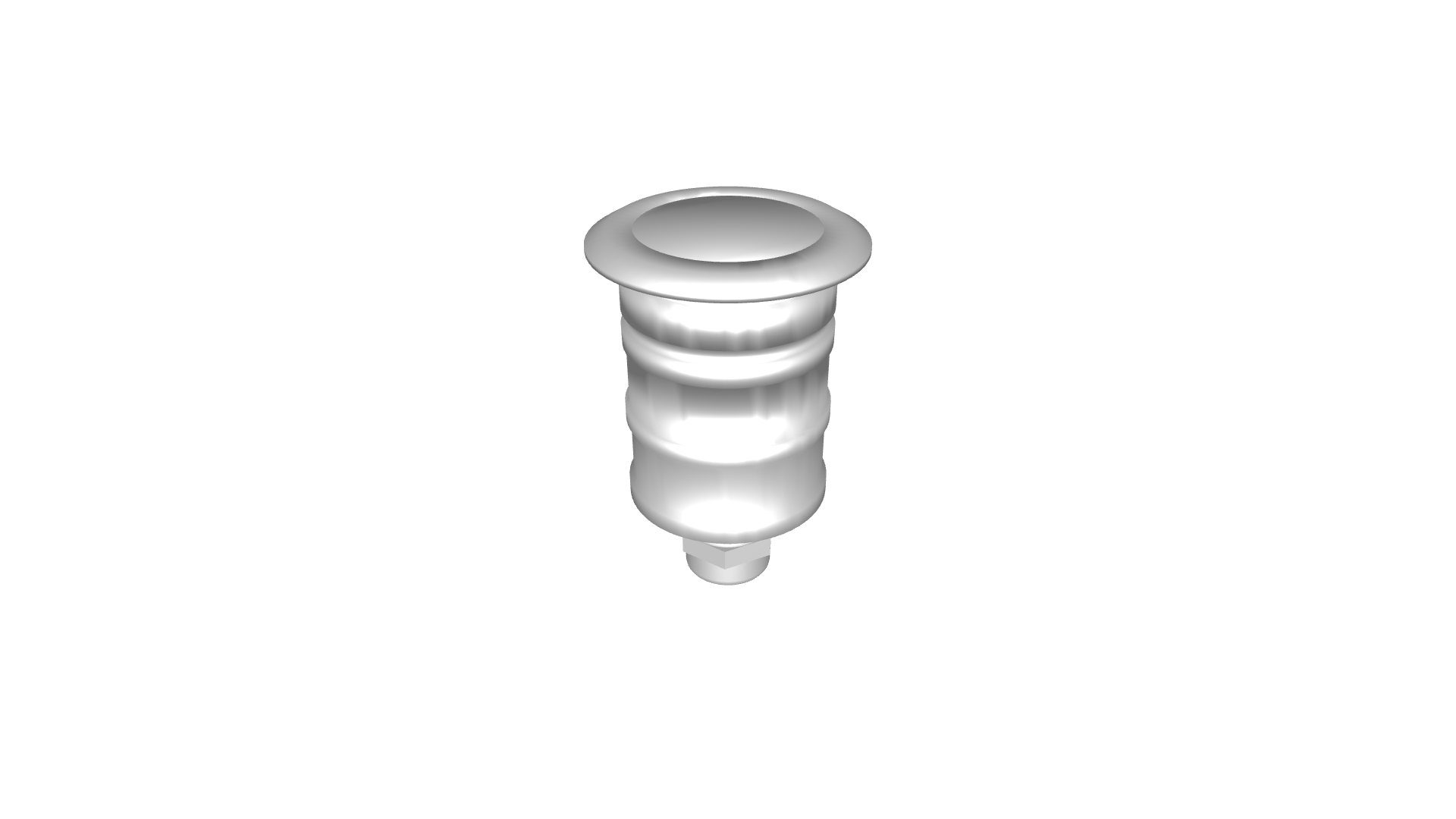

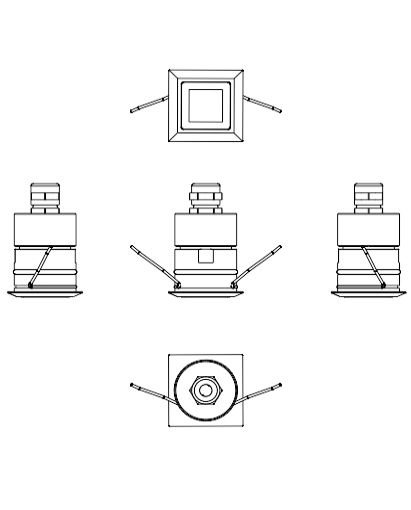

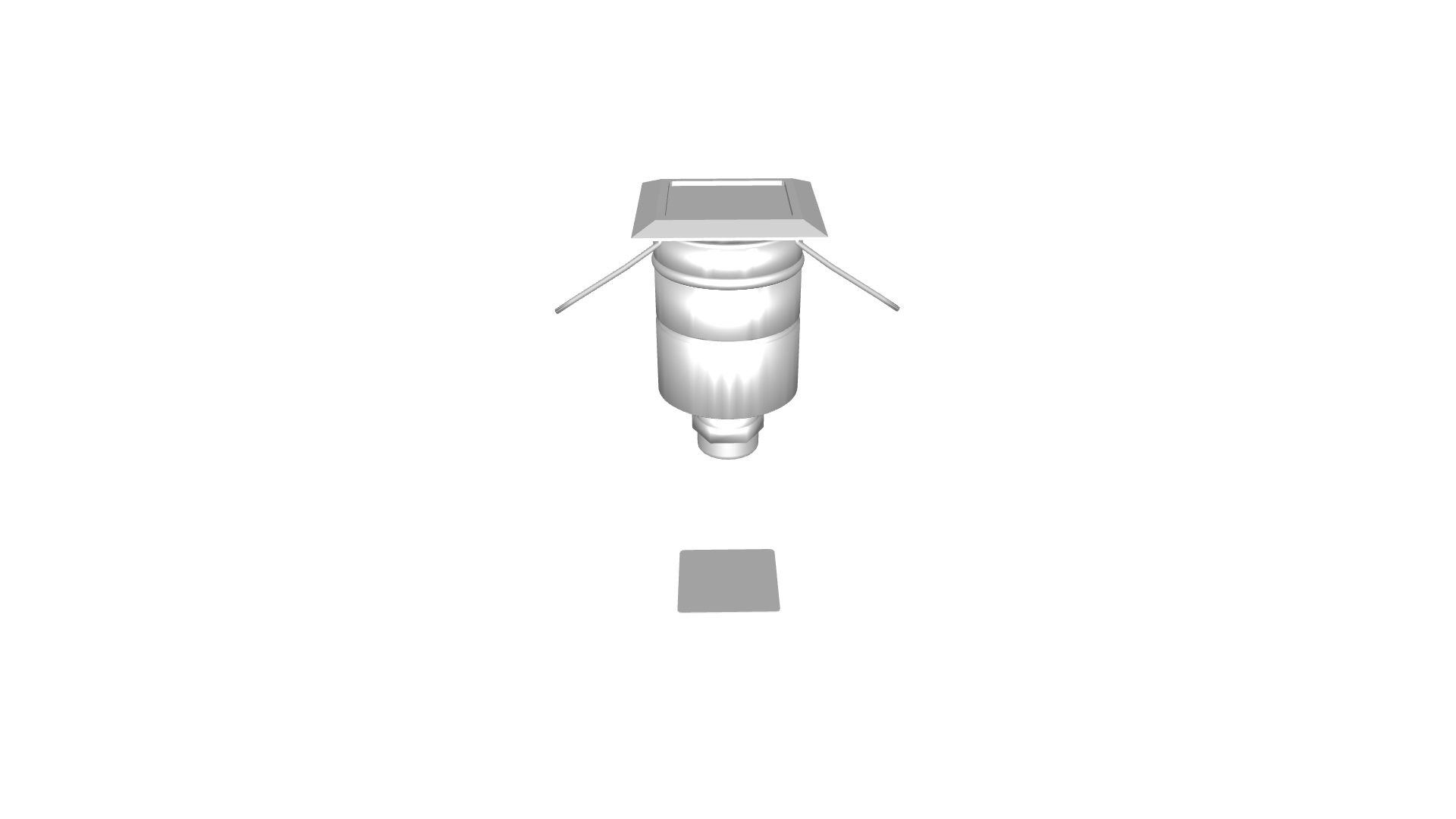

Download the free 3D and BIM models of the Nano Ceiling recessed by Platek and integrate it into your outdoor lighting design. Along with the BIM download, you can also access catalogues, datasheets and images to complete drawings, schedules and client-facing materials.
