Acoustic Inspection Access Panel, BSA EI30 System - Acoustic inspection hatch

BSA EI30 is an inspection access panel for walls and service shafts that combines fire resistance and acoustic performance, plus air/dust tightness and smoke control—useful when the access panel must contribute to the partition’s overall performance.

Key features

⦁    Aluminium profiles with high-resistance plasterboard 2×12.5 mm; a removable rear acoustic structure.
⦁    Supplied with safety cables and carabiners.
⦁    2.5 mm gap with a double gasket for air and dust tightness, supporting both sealing and sound insulation.
⦁    Opening via invisible snap locks (push-to-open).
⦁    EI30 according to EN 13501-2, smoke control Sa, S200, acoustic up to 42 dB (EN ISO 10140-2:2010), air and dust tightness (EN 12207).
⦁    Application note: for wall installation only with hinged opening.

Design advantages

A performance-oriented access panel for wall/shaft inspection systems, where fire compartmentation, smoke control and acoustic comfort matter, supported by coherent construction details (gaskets, safety devices, snap locks).

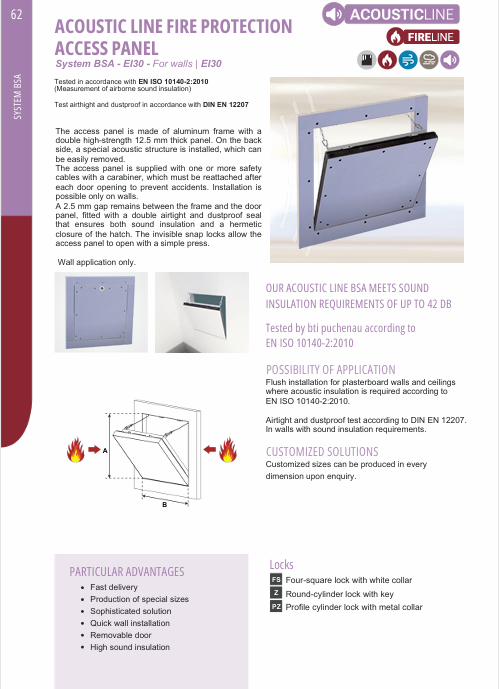

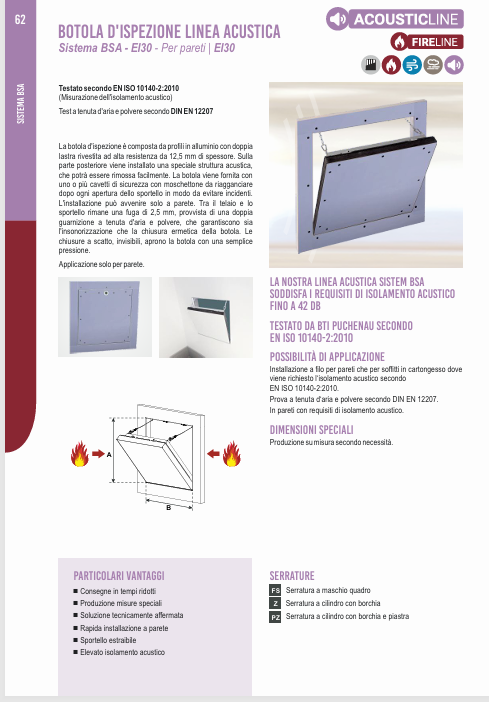

On Syncronia, you can download for free images, catalogs, System BSA EI30 technical sheets, and the files containing the information you need to specify it in your project.
