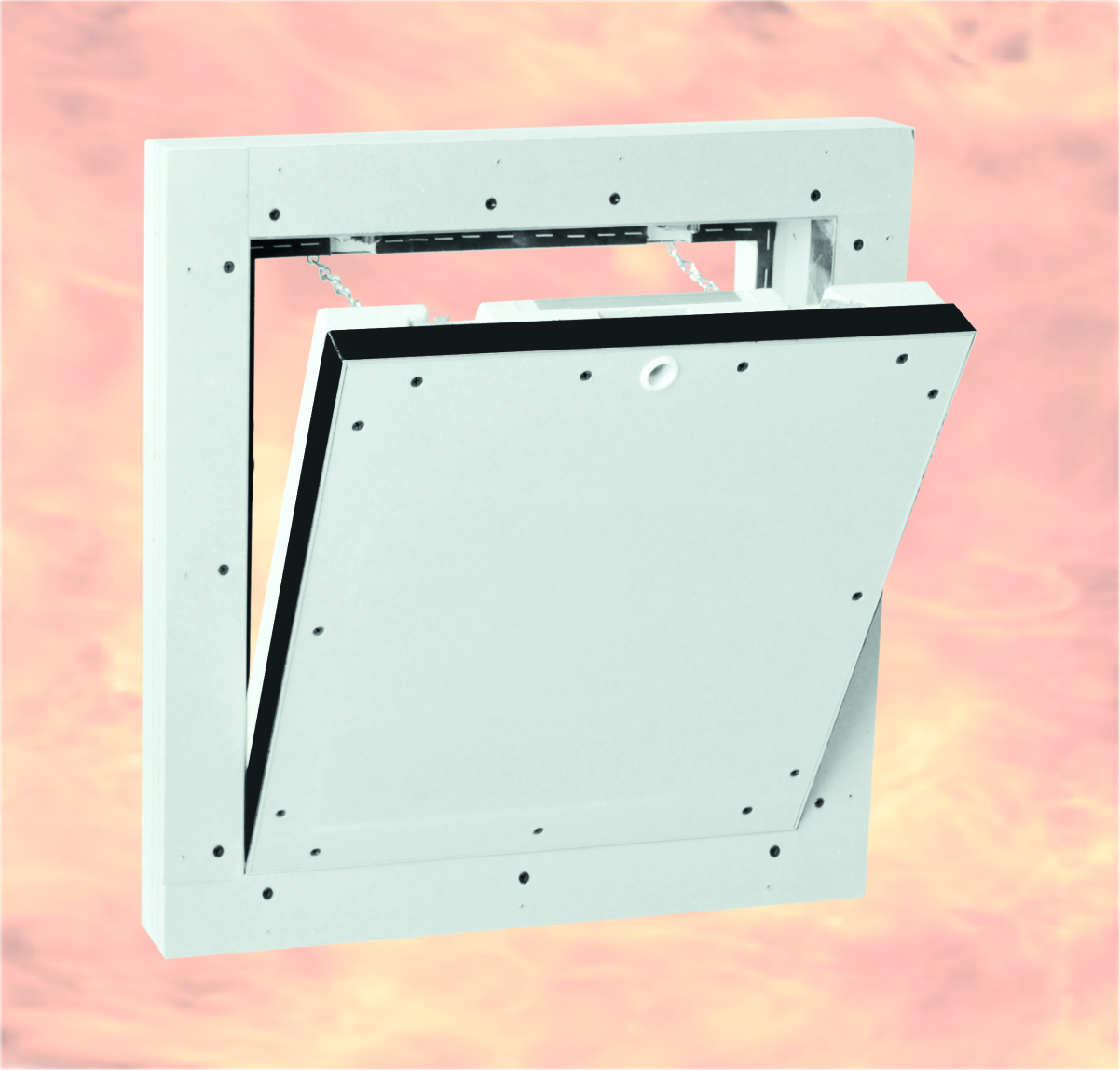

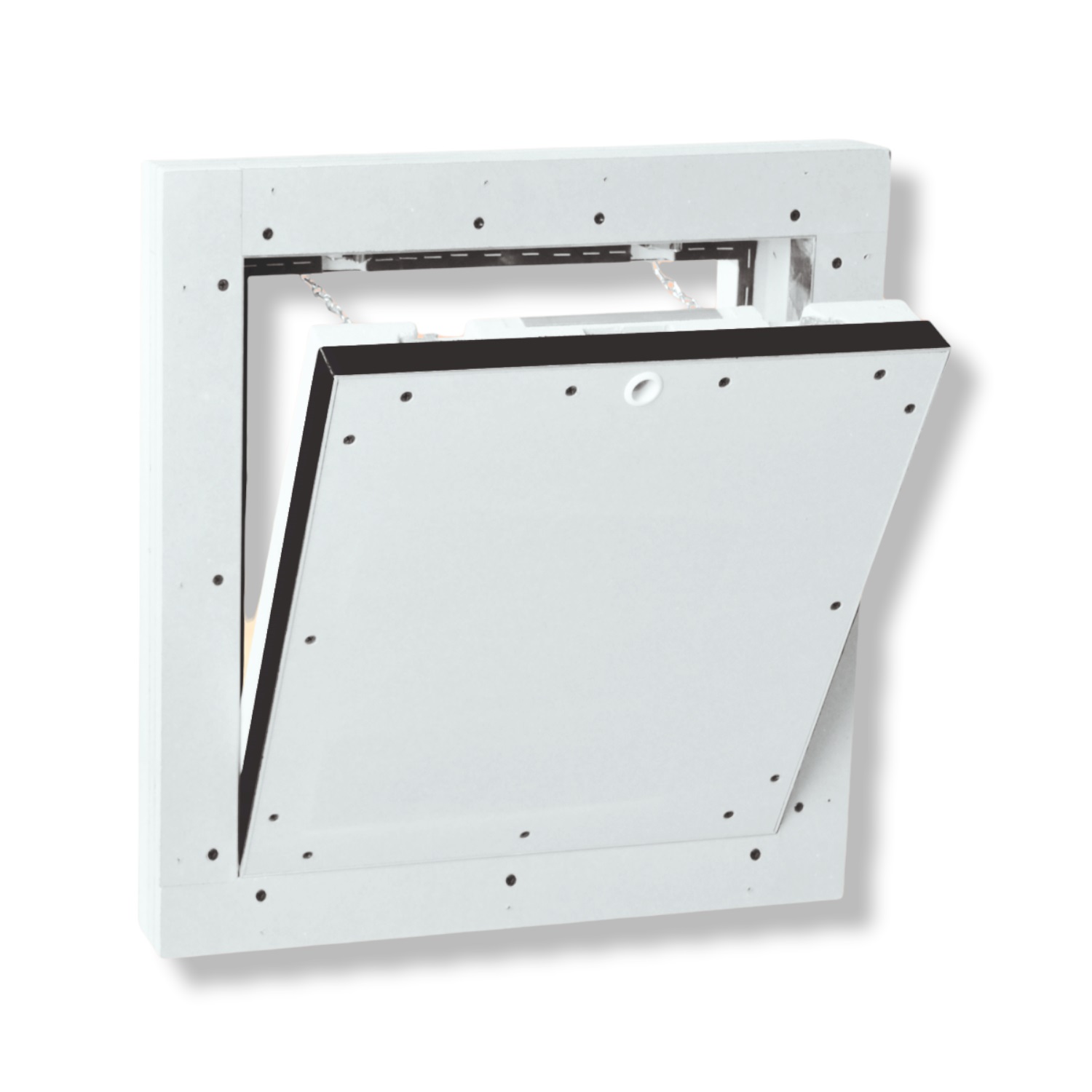

Inspection covers, F5 System EI90 – EI120 – Fire-Resistant Inspection Access panel

Inspection hatch with aluminium profiles and GKF plasterboard panel, available in the following thicknesses: 40 mm, 43 mm, 45 mm and 50 mm.

Made of four sturdy profiles welded together using a special process, the hatch ensures maximum structural strength. The system is completed by an external plasterboard frame with a thickness of 30 mm.

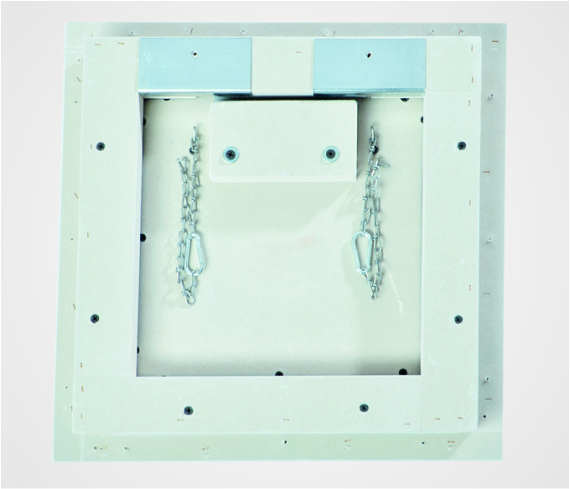

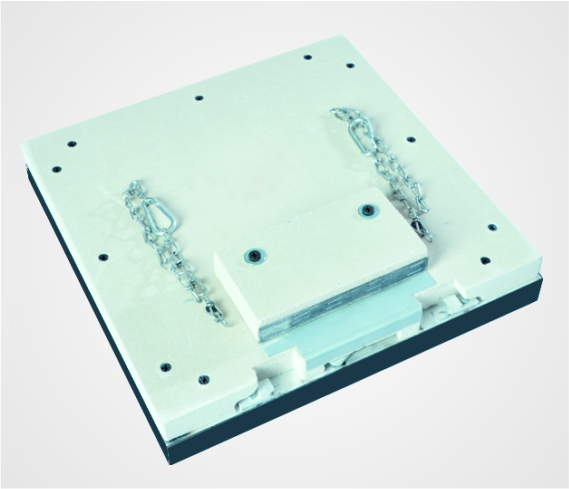

The hatch is supplied with one or more safety chains equipped with a carabiner, which must be reattached after each opening of the door to guarantee safe use at all times.

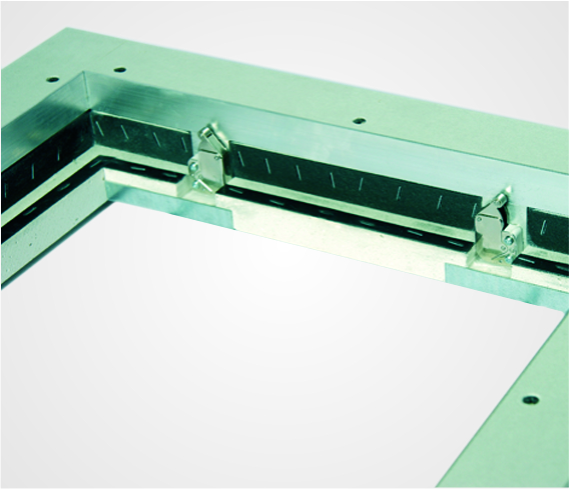

A 1.75 mm gap is provided between the frame and the door, fitted with an expanding profiled fire-resistant seal, designed to offer high protection in the event of fire.

The invisible snap-lock closures allow the inspection hatch to be opened with a simple press. The product has been tested in accordance with the European standard EN 1364-1 and is bilaterally certified up to a maximum size of 1000 × 1500 mm.

FF Systems provides designers and installers with useful files for the planning and installation of this type of inspection hatch, including:

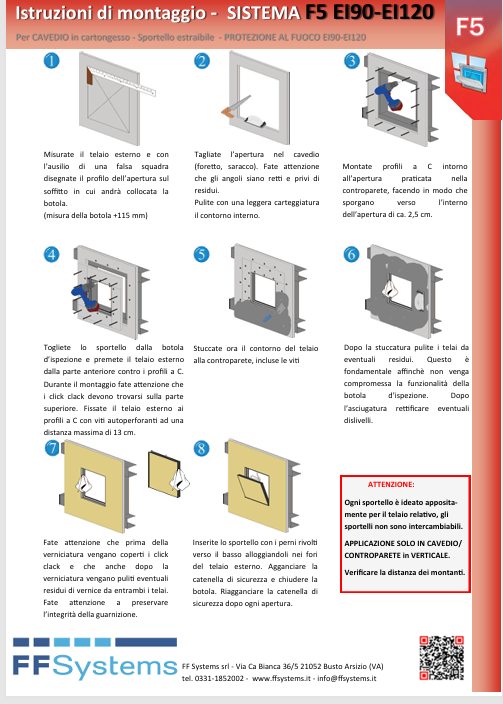

-nstallation manual

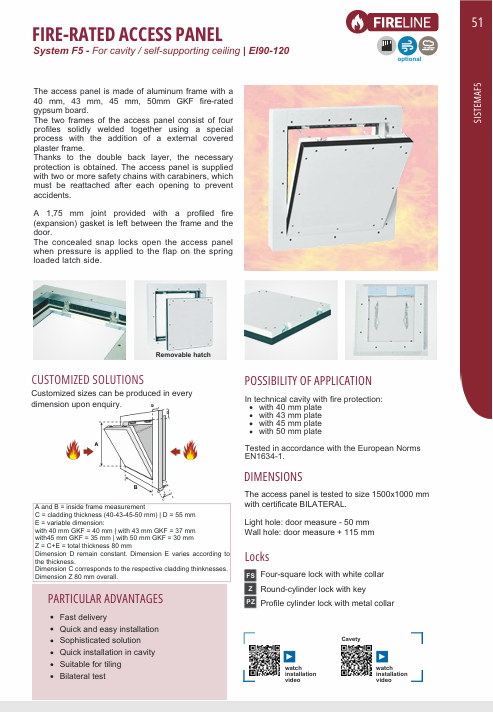

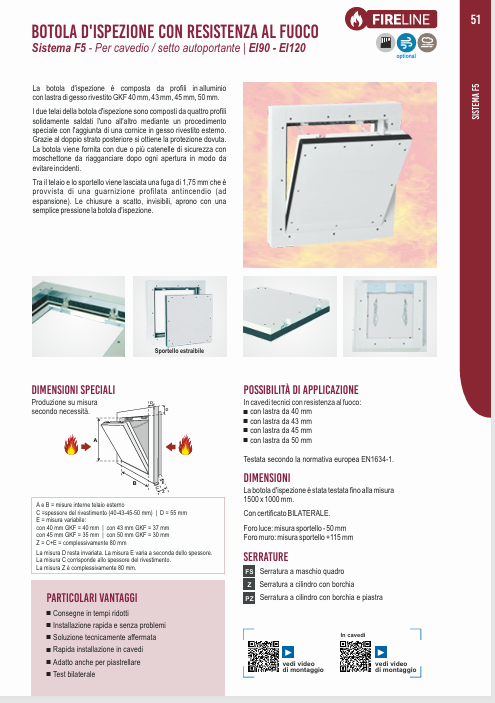

-technical data sheet
-roduct images
