Ceiling inspection hatch, APP System - Drop-in inspection access panel for ceiling

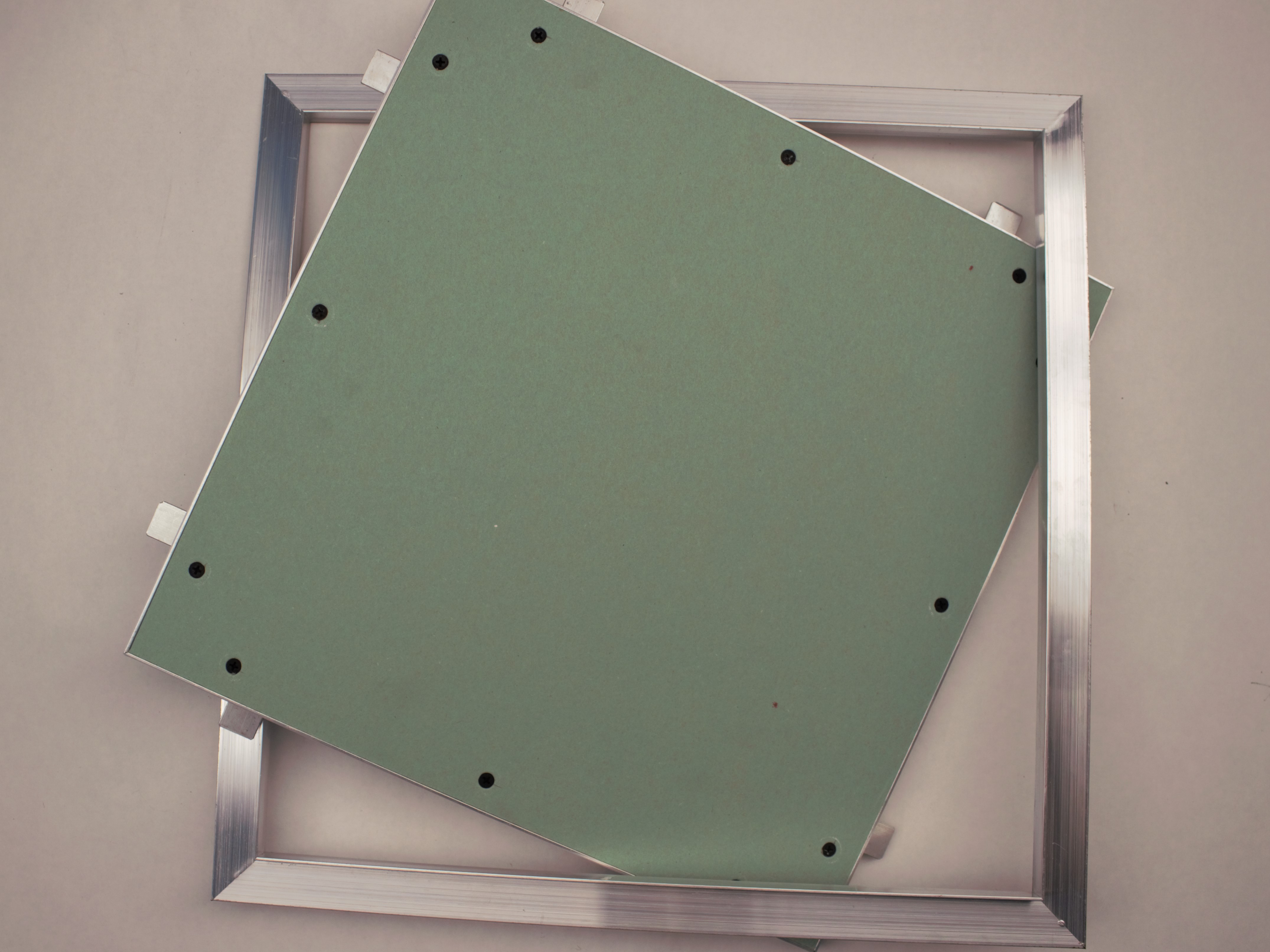

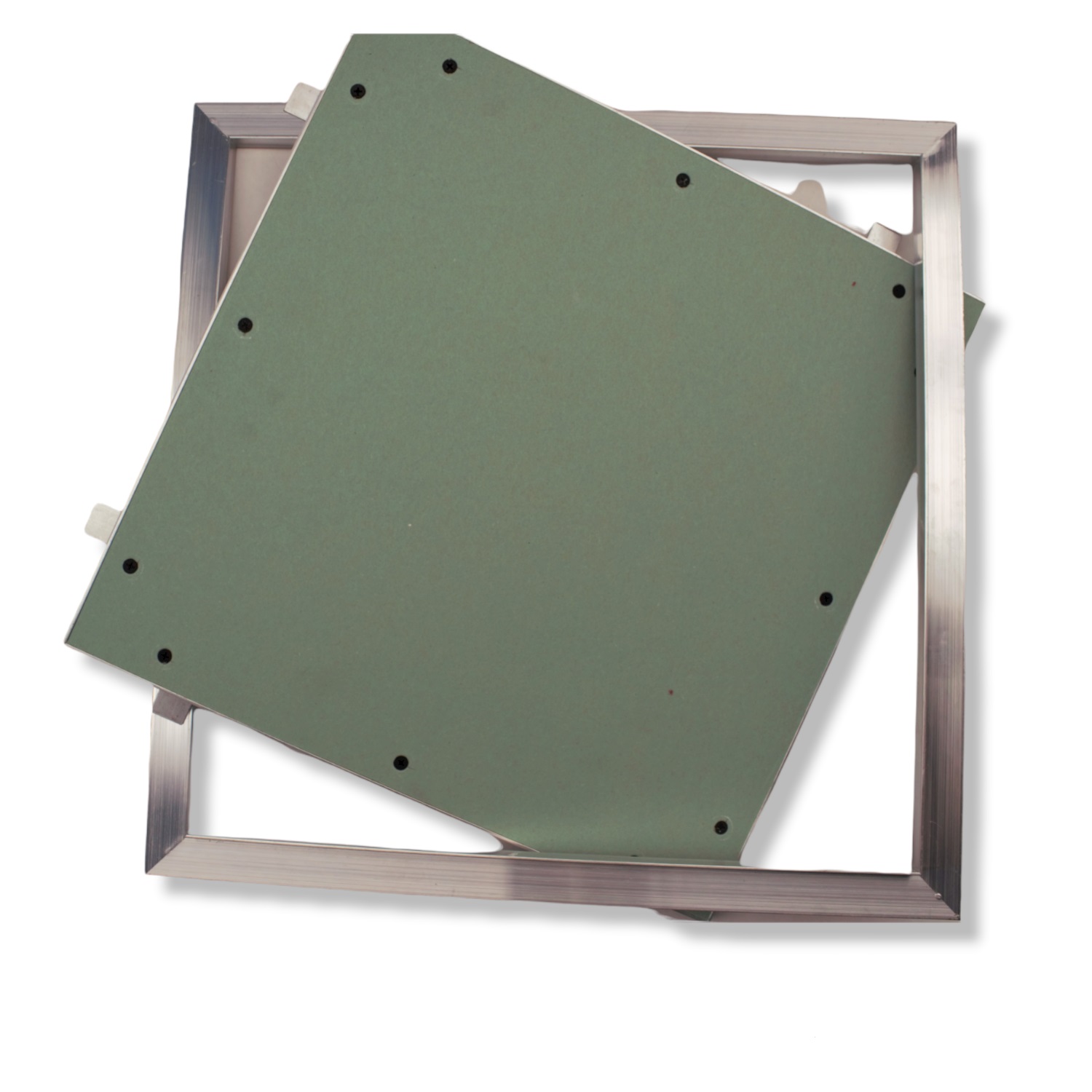

App is an inspection panel designed and manufactured with aluminum profiles and a water-repellent impregnated plasterboard panel with a thickness of 12.5 mm, or with plasterboard panels of 9.5 mm, 15 mm, 18 mm, or 25 mm.

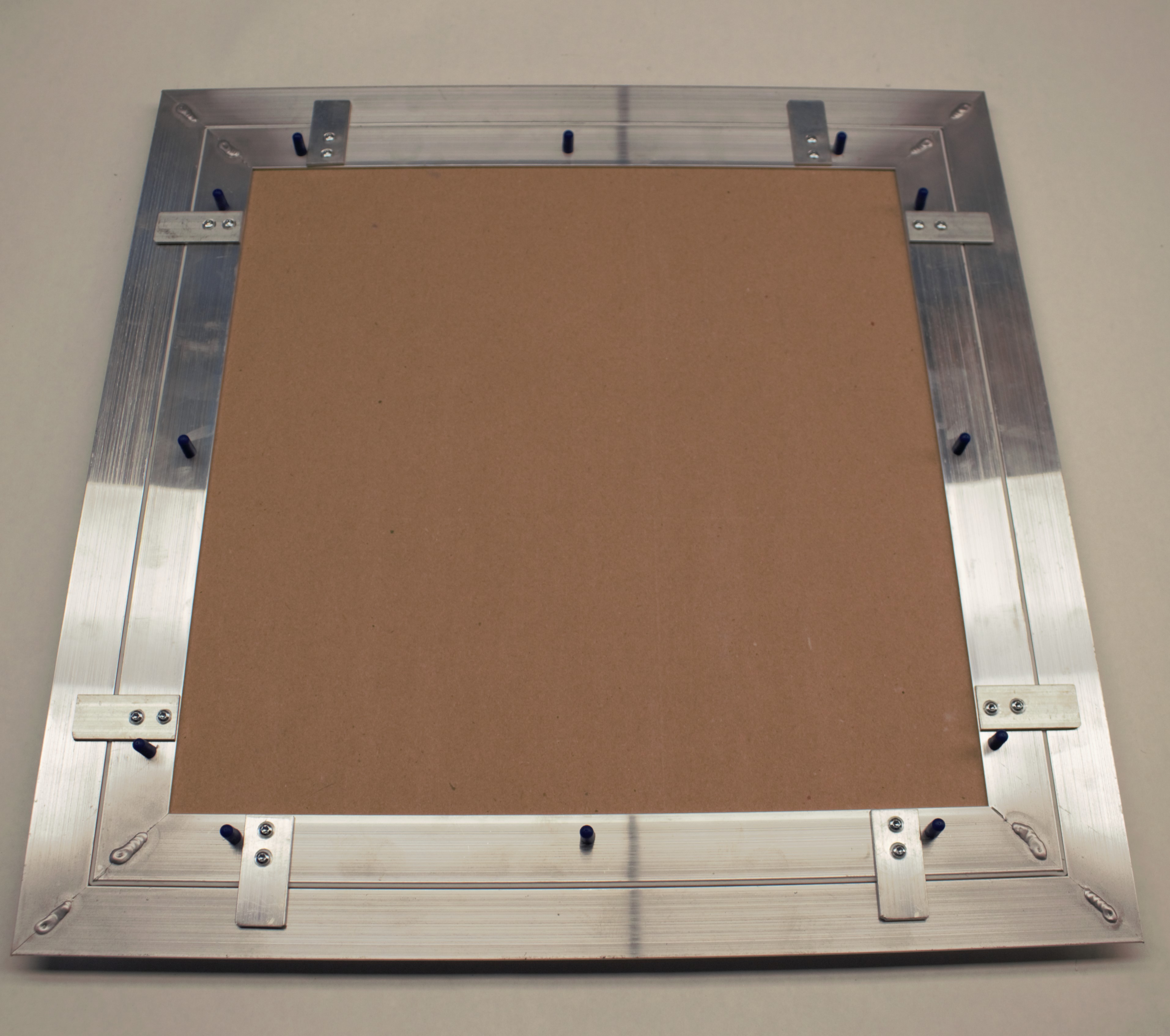

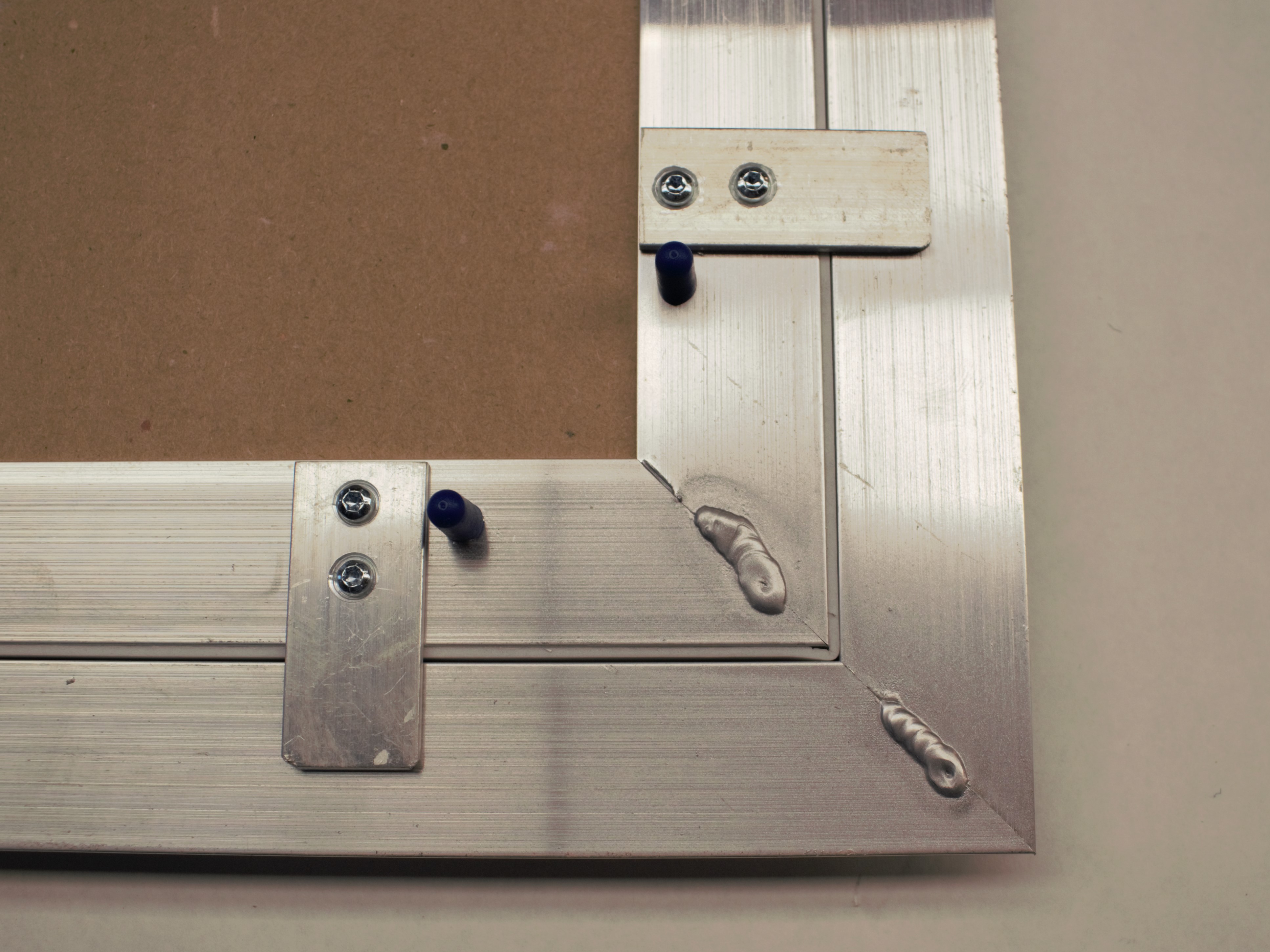

The two frames of the access panel are made of four profiles welded together using a special process that guarantees maximum safety.
The access panel is equipped with one or more safety cables fitted with carabiners, which must always be reattached after each opening.
Between the frame and the panel there is a 1.75 mm gap, finished with a white aesthetic gasket. The invisible snap-in fasteners allow the inspection panel to be opened with a simple press.

The App system offers multiple advantages:

1)Custom production according to requirements
2)Applications in confined spaces
3)Removable panels
4)Single inspection opening

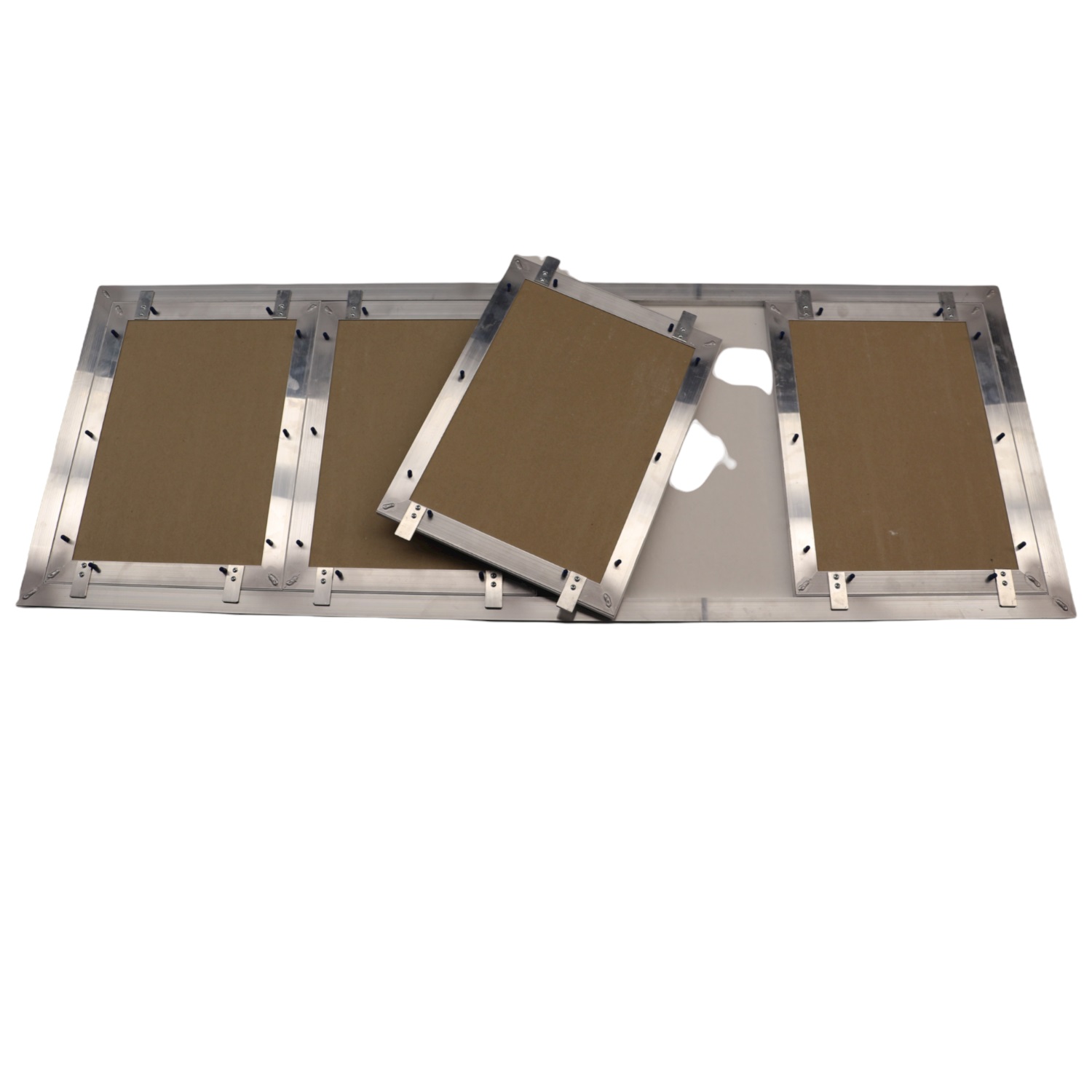

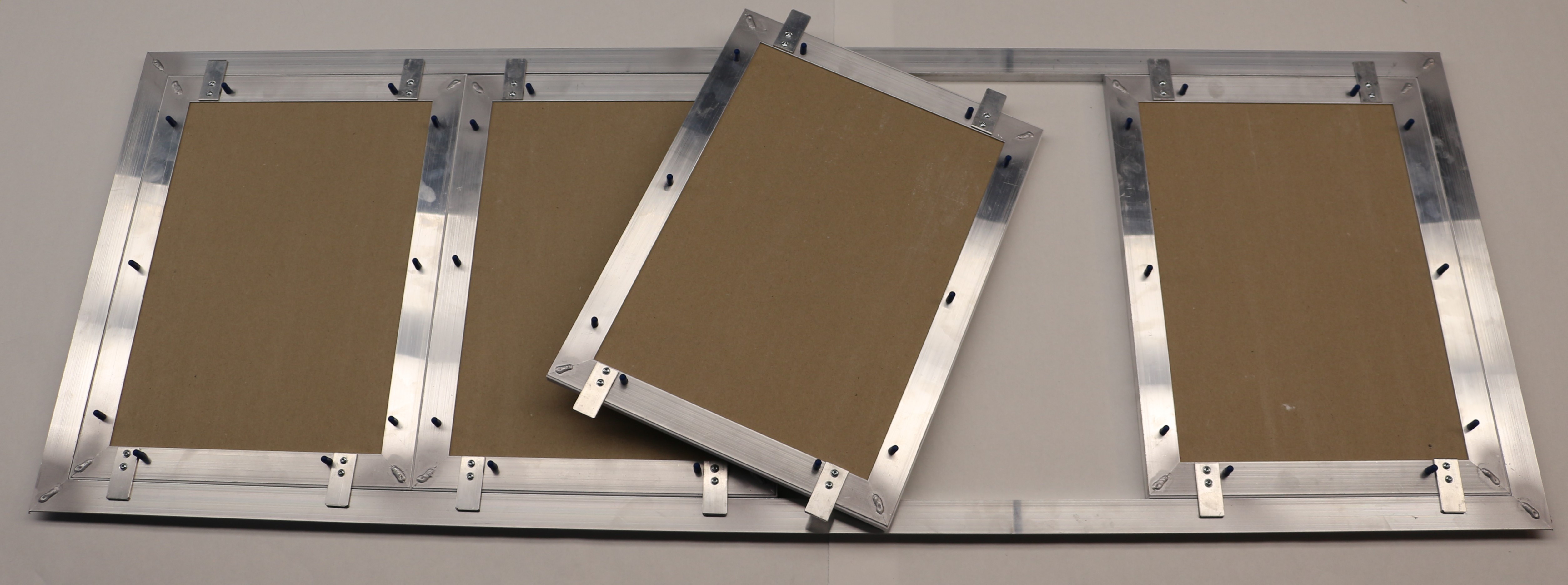

5)Multi-panel solution for ceilings

At the bottom of this product page, the following technical files are available for free download:

-Brochure

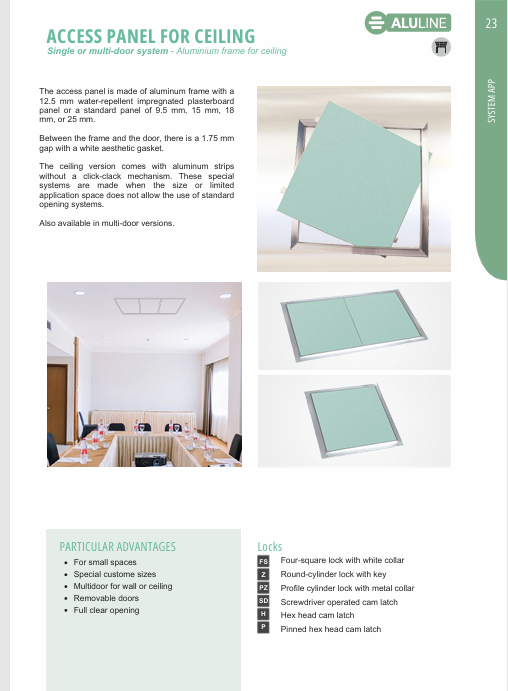

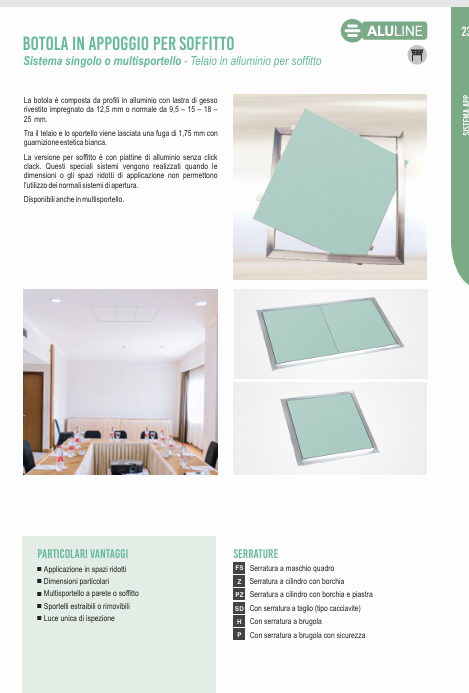

-Technical data sheets

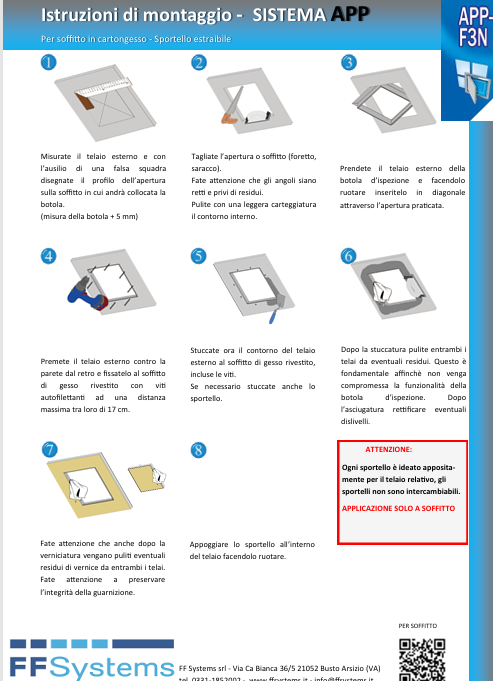

-Installation manual
-Representative product images
