The EI60 L550 external fire-rated service housing is a system designed for the passive fire protection of service penetrations and building systems components. It is engineered to ensure the continuity of fire compartmentation, even in outdoor installations.
...Read moreThe EI60 L550 external fire-rated service housing is a system designed for the passive fire protection of service penetrations and building systems components. It is engineered to ensure the continuity of fire compartmentation, even in outdoor installations.
This solution is intended for integration into complex architectural projects where certified fire resistance is required, combined with reliability, durability, and compliance with current regulations.
Technical System Description
The system consists of a prefabricated technical enclosure designed to contain and protect building service elements, while maintaining the fire resistance performance of the compartment.
The configuration is optimized for outdoor applications and ensures certified performance according to EI 60 classification, limiting the passage of flames and smoke for a defined period of time.
Technical Features
⦁ Fire exposure: external side
⦁ Support: slab
⦁ Structure: “L” profiles 50×50×0.6 mm
⦁ Protective cladding: FIREGUARD 13 boards, double layer 2 × 12.7 mm thickness
⦁ Fixing system: metal expansion anchors (Ø 6 mm) and self-drilling phosphated screws of suitable length
Technical Documentation Download
To support the design process, the complete technical documentation of the system is available on this Syncronia product page.
Within the download section, it is possible to freely download:
⦁ BIM files

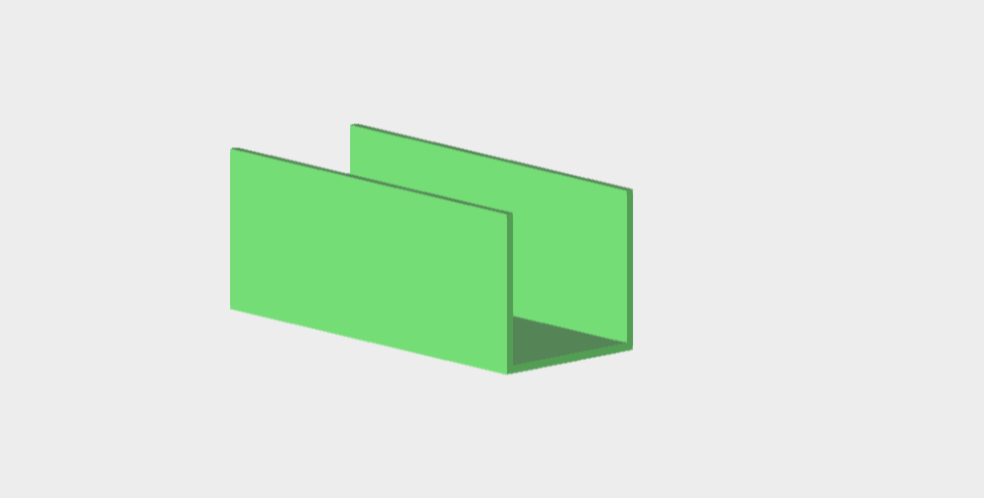

⦁ 3D files (DWG CAD and SketchUp)
⦁ Product technical datasheets

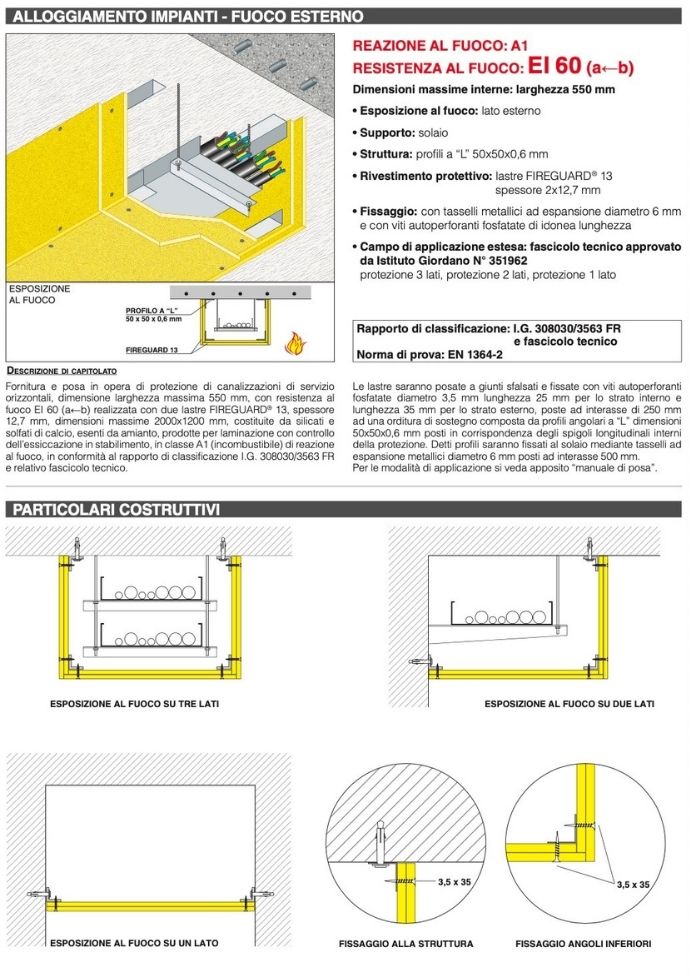

⦁ Technical specifications (bill of quantities / specification document)
