The EI120 L550 external fire system housing is an advanced system designed for the passive protection of service penetrations and plant components. It ensures the continuity of fire compartmentation even in outdoor applications.
...Read moreThe EI120 L550 external fire system housing is an advanced system designed for the passive protection of service penetrations and plant components. It ensures the continuity of fire compartmentation even in outdoor applications.
This solution is tailored for integration into complex architectural projects that demand high levels of fire resistance, long-term reliability, and full compliance with current regulations.
Technical System Description
The system consists of a prefabricated technical housing designed to contain and protect plant elements, maintaining the fire resistance performance of the compartmentation.
The configuration is optimized for outdoor installations and guarantees an EI 120 classification, preventing the spread of flames and smoke for an extended period in line with the most stringent safety requirements.
Technical Specifications
⦁ Fire exposure: external side
⦁ Support: floor slab
⦁ Structure: 50x50x0.6mm "L" profiles
⦁ Protective lining: FIREGUARD 13 boards (3x12.7mm thickness)
⦁ Fastening: 6mm diameter expansion metal anchors and phosphated self-drilling screws
Technical Documentation Downloads
To support design activities, Global Building provides the complete technical documentation for the system on this Syncronia page.
Within the download section, the following are available for free:

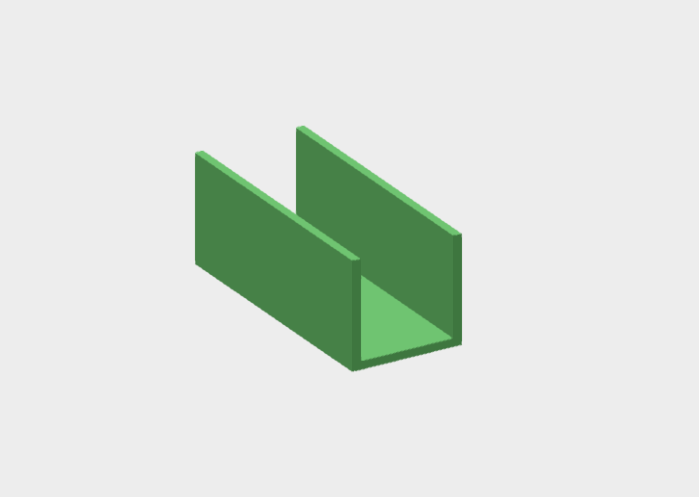

⦁ BIM file
⦁ 3D models (DWG CAD and SketchUp)
⦁ Catalog

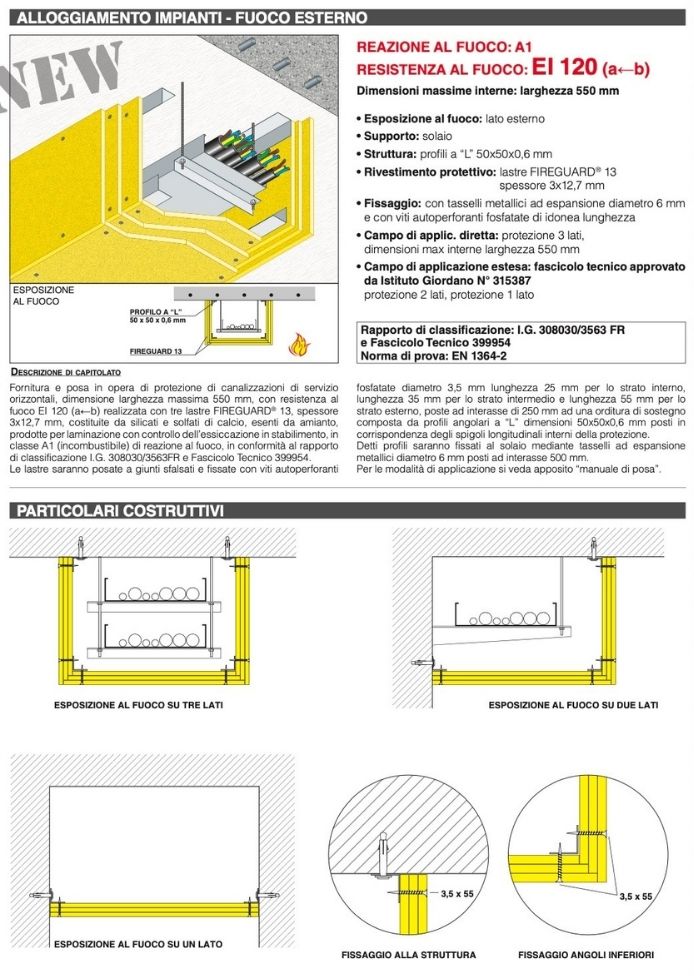

⦁ Technical specifications
