Fire resistance solutions, Built-in air conditioner protection

Air conditioning systems are vital arteries in contemporary buildings, yet recessed split units are often the “greatly overlooked” elements in fire protection strategies. The GB-SPLIT REI 120 protection system fills this gap. Thanks to the use of intumescent tapes on the collars and a certified structure measuring 600 × 600 × 400 mm, it allows the installation of recessed indoor units while maintaining the protective continuity of the floor slab. It is a strategic solution for architects who must manage the delicate balance between mechanical systems (HVAC) and horizontal compartmentation, ensuring passive fire protection of the highest level.

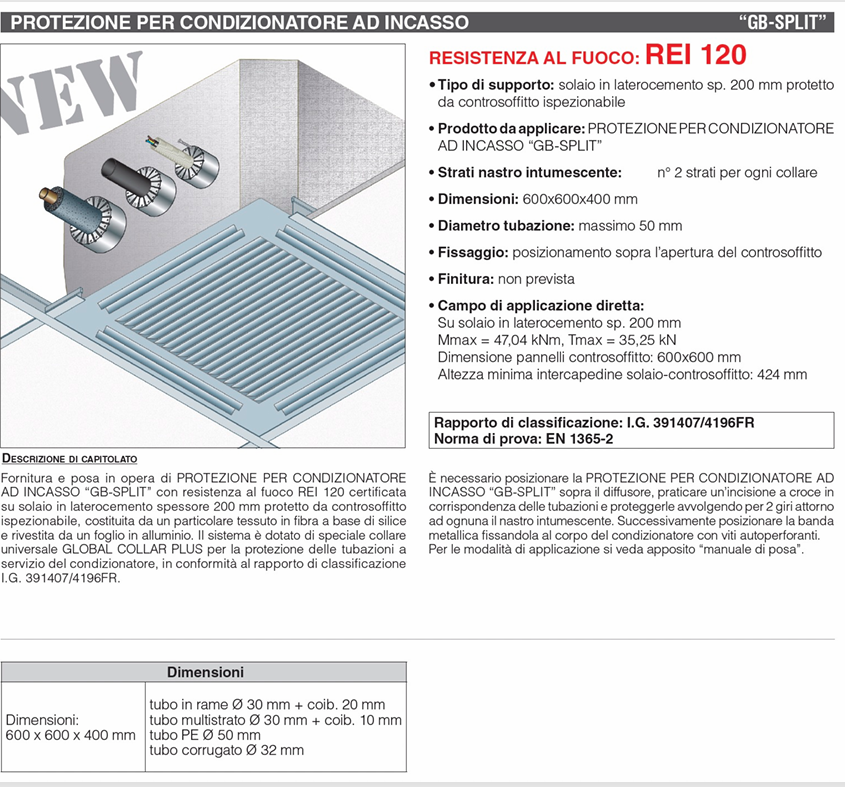

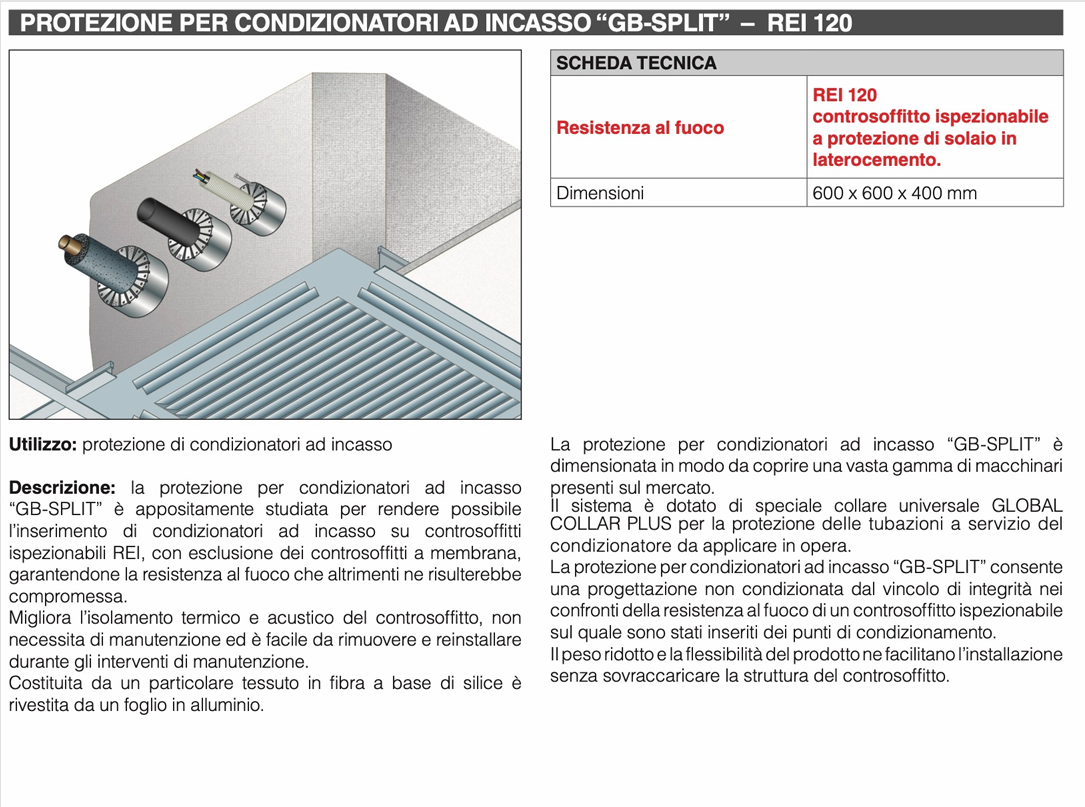

Technical Features

⦁    Support type: hollow clay block and concrete floor, thickness 200 mm, protected by an inspectable suspended ceiling
⦁    Product to be applied: “GB-SPLIT” recessed air conditioner protection
⦁    Intumescent tape layers: 2 layers for each collar
⦁    Pipe diameter: maximum 50 mm
⦁    Fixing: positioned above the suspended ceiling opening
⦁    Finish: not provided
⦁    Direct application field: on hollow clay block and concrete floor, thickness 200 mm
⦁    Mmax: 47.04 kNm
⦁    Tmax: 35.25 kN
⦁    Suspended ceiling panel size: 600 × 600 mm
⦁    Minimum cavity height between slab and suspended ceiling: 424 mm

Download

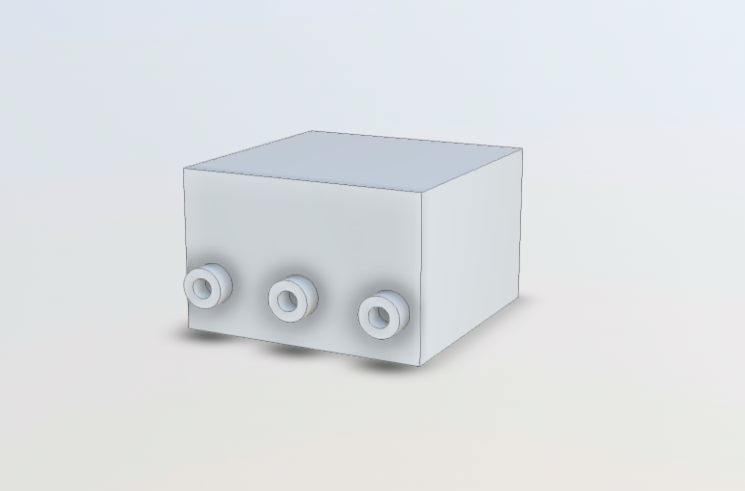

Download 3D BIM, DWG, SKP, and IFC models for free, along with technical datasheets, catalogues, and ready-to-use specification texts.
