Fire reaction solutions, Plant Protection - EI180 L1000 External Fire-Rated Enclosure

The Global Building EI 180 L1000 external fire system housing represents the definitive solution for protecting ducts, cable trays, and piping in environments where maximum fire resistance and extended volumetric capacity are required. With an internal width of up to 1000 mm, the L1000 system allows for the securing of large plant volumes, ensuring the continuity of fire compartmentation in outdoor applications.

Extreme Resistance and Design Versatility

In compliance with the EN 1364-2 standard, this system offers an EI 180 (a←b) classification, ensuring protection against flames and heat for 180 minutes. It is specifically designed for integration into complex architectural projects and critical infrastructure where fire safety cannot be compromised, even when directly exposed to atmospheric agents.

Technical Specifications

⦁    Fire exposure: External side
⦁    Protective lining: Three layers of FIREGUARD® 18 boards (3 x 18.0 mm thickness), made of calcium silicates and sulfates, non-combustible (Class A1).
⦁    Structure: 50x40x0.6 mm "L" profiles
⦁    Fastening: 6 mm diameter expansion metal anchors and phosphated self-drilling screws, finished with GB-MT firestop sealant.
⦁    Dimensions: Optimized for housings with a maximum internal width of 1,000 mm.

Downloads

Global Building provides all the necessary technical documentation on this Syncronia page. Within the page, you can download:

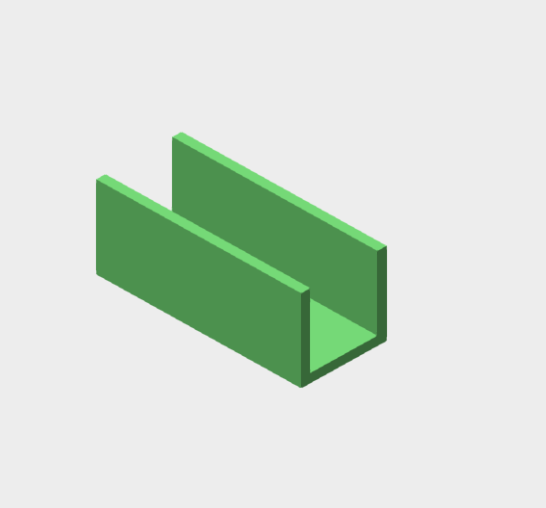

⦁    BIM Models (Revit): IFC and RFA formats
⦁    CAD Library: DWG and SketchUp files

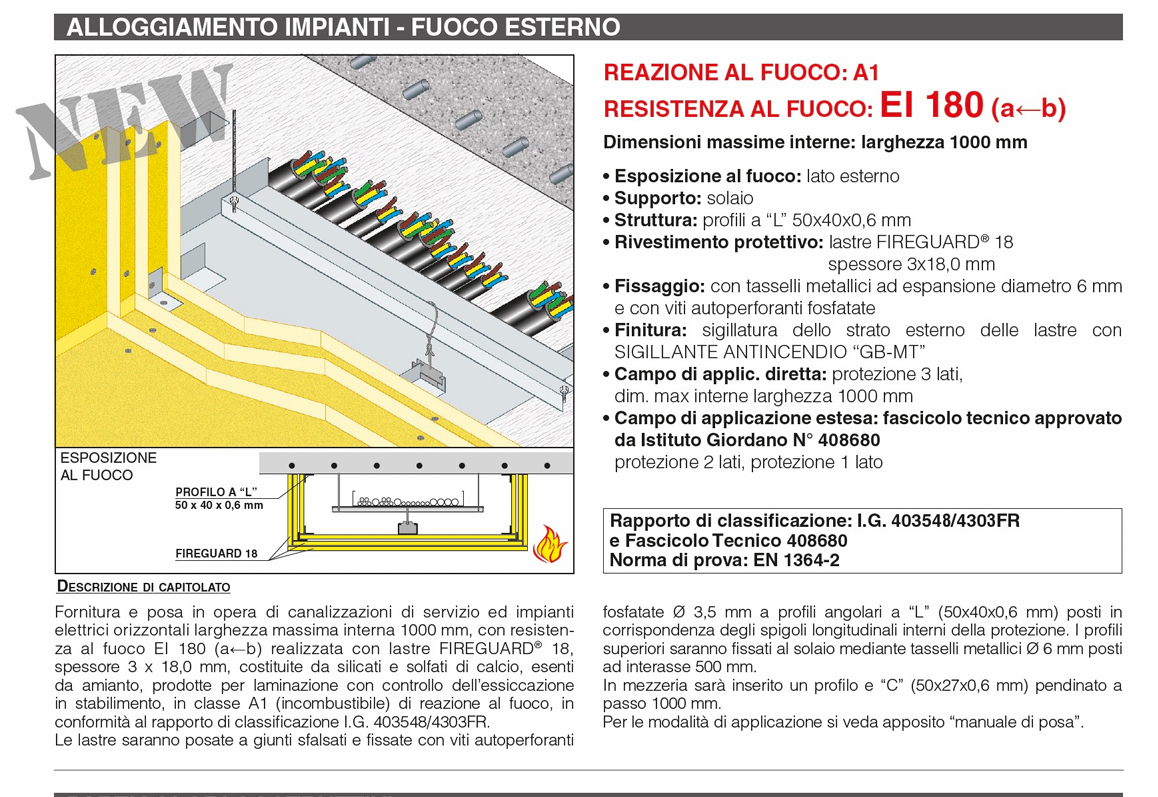

⦁    Technical Specifications
⦁    Product Catalog

For those requiring more information about the product, you can contact the company's technical staff via the contact form provided on this page.
