Fire Safety Solutions for "Omega" Steel Beams
"Omega" metal profiles are often used for their structural versatility, but their geometry requires intumescent protection calculated with precision, especially for profiles with high section factors (up to 800 m⁻¹).
R30 and R60 Certifications
Fire Safety Solutions for "Omega" Steel Beams
"Omega" metal profiles are often used for their structural versatility, but their geometry requires intumescent protection calculated with precision, especially for profiles with high section factors (up to 800 m⁻¹).
R30 and R60 Certifications
The Elmo system involves the use of F62 PAINT with calibrated yields:
⦁ R30: consumption of 2.0 kg/m².
⦁ R60: Ccnsumption of 2.7 kg/m².
These parameters ensure that the beam maintains its load-bearing capacity even in the event of a prolonged fire, complying with EN 1365-2 criteria. For complete protection, the use of specific primers (F62 PRIMER S or Z) and the F62 FINISH protective topcoat is recommended.
Elmo provides architects and designers with useful technical files, including:

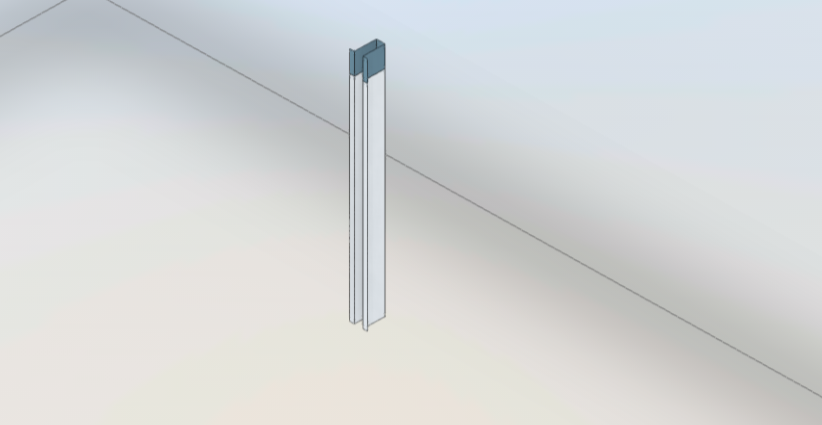

⦁ BIM .rvt file
⦁ Catalogs

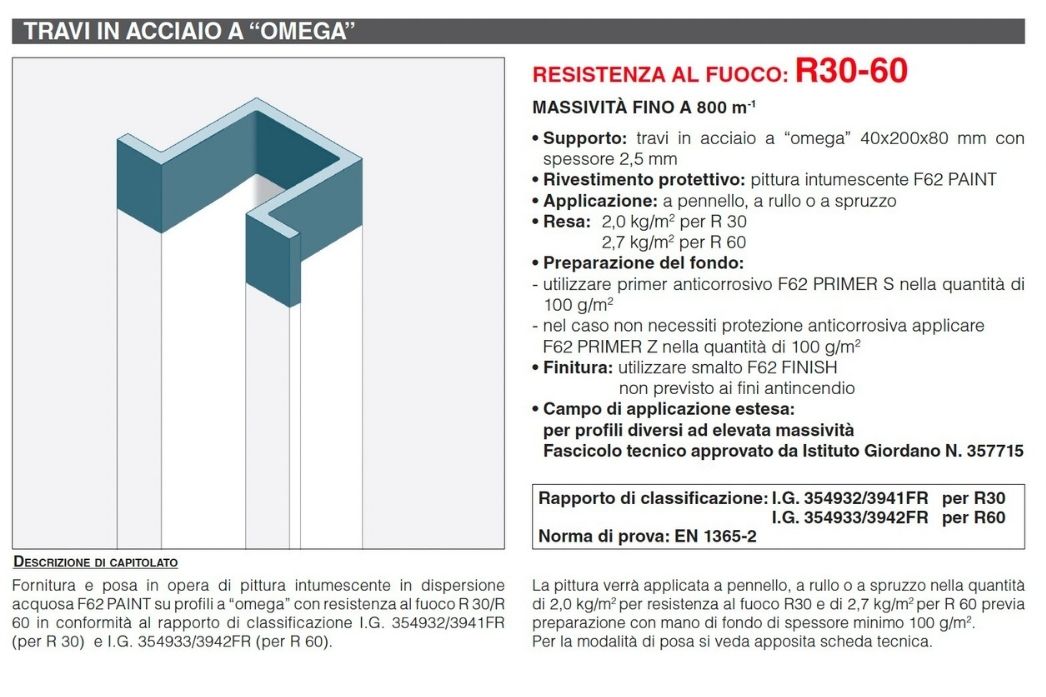

⦁ F62 Paint technical data sheet
⦁ Specifications
