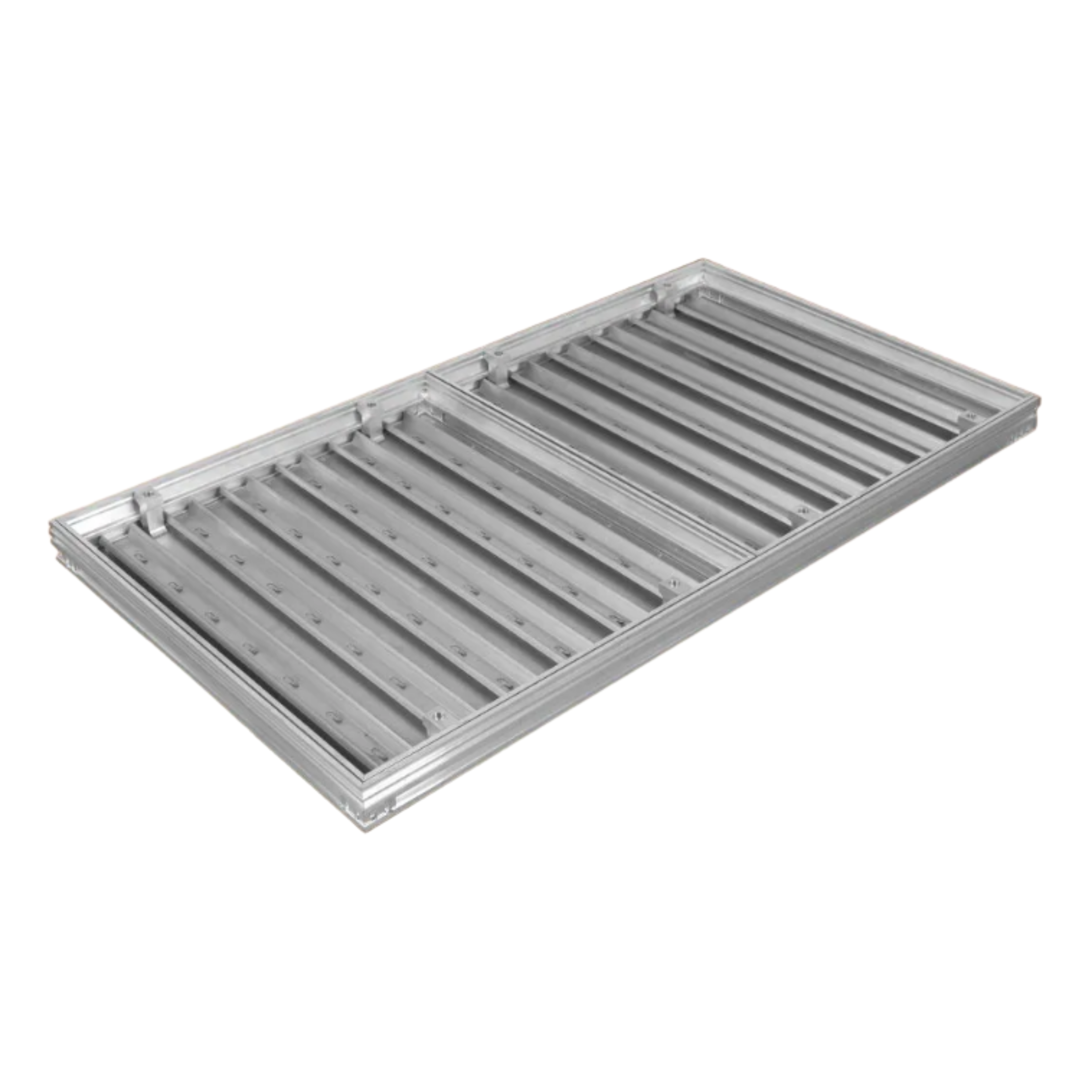

Floor Access Cover, 7500 BS multi-door series Aluminium

Overview

The multidoor version of Series 7500 BS is designed for larger openings or to manage access through multiple doors, while keeping a flush-to-floor finish and meeting fire protection requirements. It is intended for projects where technical access must remain clean and well integrated.

Technical features

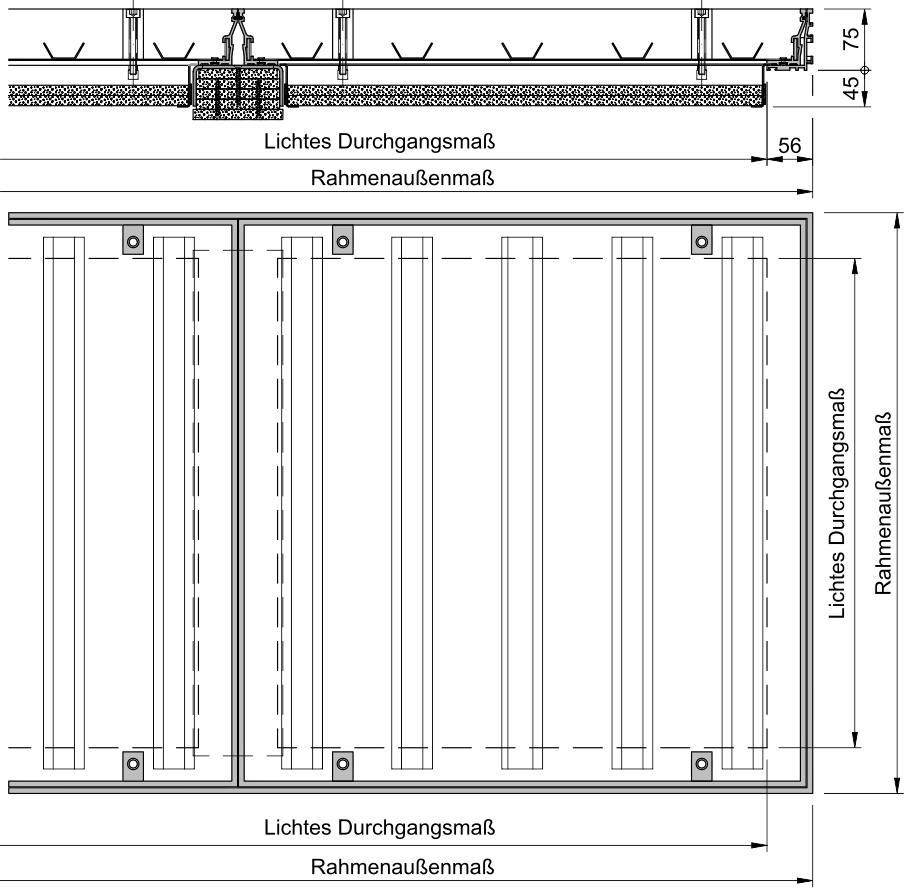

Frame and tray are made of aluminium. The depth of the tank is 62 mm and the height of installation is only 75 mm. The manhole cover is equipped with three special gaskets all around the perimeter. The frame is fixed by throwing at floor level. The tray can then be filled and inserted into the frame. The lid is fixed to the frame by 4 tightening screws, and can be removed with special lifting keys. It includes a 25 mm thick fire protection plate and offers fire protection for up to 120 minutes, with EI120 classification. Filling the tray is possible with tiles, concrete, resin, granite, self-locking, hardwood and flooring or other materials. Use of the EasyLifter is recommended.

Project advantages

⦁    Multidoor solution supports access on large technical voids.

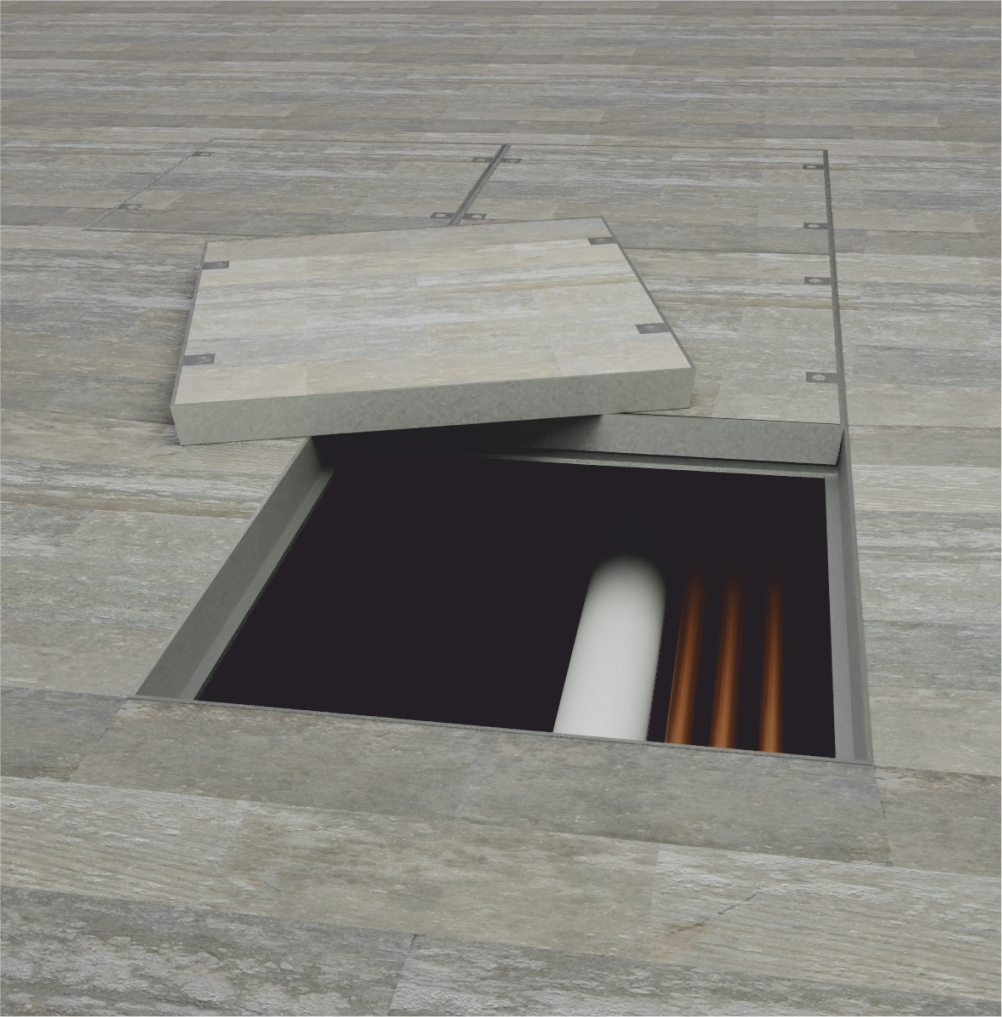

⦁    Almost invisible when installed on the finished floor.
⦁    Easy opening thanks to the conical construction design.

Operational notes

During design, correctly dimension the clear opening and plan safe lifting and inspection operations.

Download documentation on Syncronia

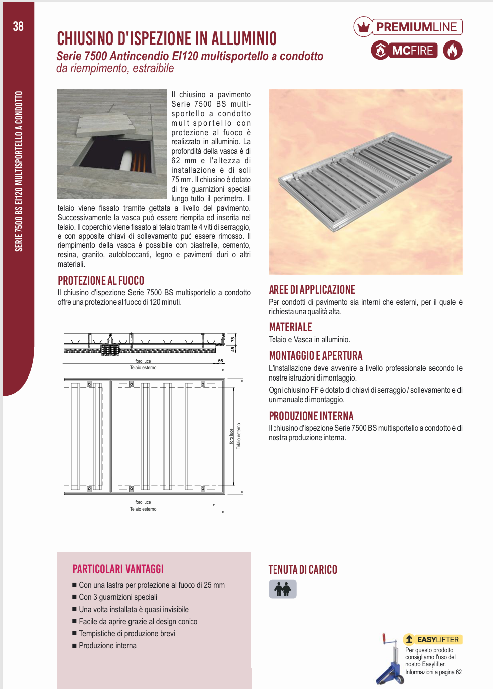

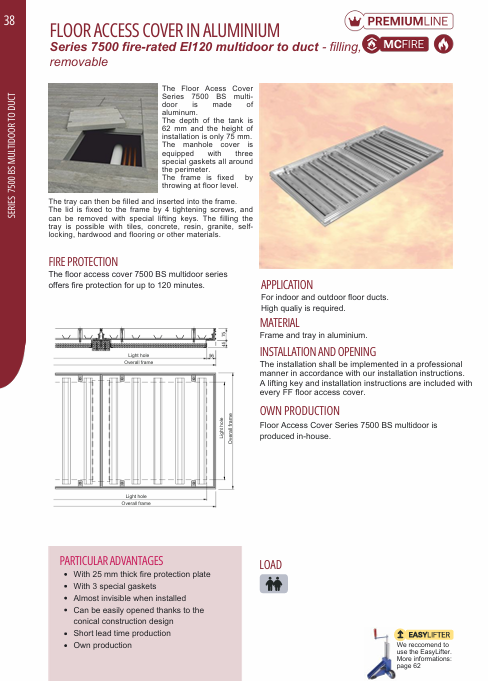

On Syncronia.com you can free download images, catalogues and technical data sheets download for Series 7500 BS multidoor, with official documentation to integrate it into your project.
