Fire-rated access hatch for walls with EI 90/120 fire resistance. The supporting wall types suitable for this hatch include:
-EI 90 drywall partition
-EI 120 drywall partition
-EI 120 calcium silicate partition
Fire-rated access hatch for walls with EI 90/120 fire resistance. The supporting wall types suitable for this hatch include:
-EI 90 drywall partition
-EI 120 drywall partition
-EI 120 calcium silicate partition
Available sizes for the GB-EI 120 Partition Hatch are: 300×300 mm, 400×400 mm, 500×500 mm, and 600×600 mm. Wall fixing is carried out using phosphated self-drilling screws.
The hatch finishing includes filling and smoothing of both the frame and the closing panel with FIREGUARD COMPOUND, ensuring a uniform surface and compliance with fire protection requirements.
The product also features an extended field of application, making it suitable for installation on drywall partitions of different thicknesses, as approved in the Technical File issued by the Istituto Giordano. Please note that the fire resistance certification is valid when exposed to fire from both sides of the wall.

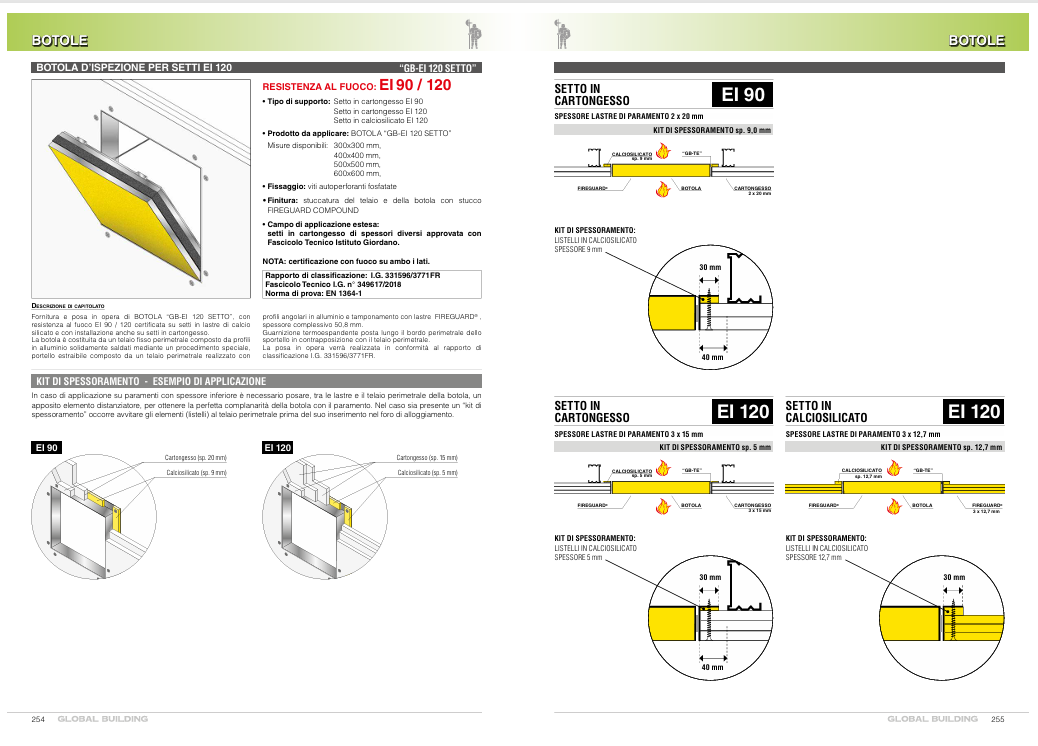

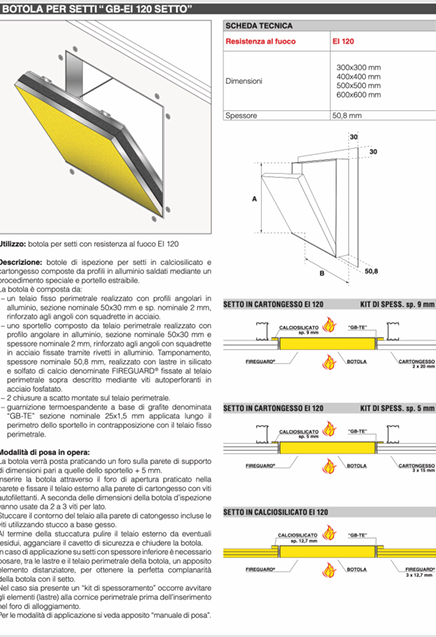

Download the technical design files free of charge, compatible with various design software. Available formats include: DWG CAD files, BIM files, 3D SketchUp files, technical data sheets, and technical catalogues.
For further information about the product, you may contact our technical staff through the dedicated contact form on this page.
