Inspection manhole, 7500 Series - Inspection Cover - Aluminium

The Series 7500 BS by FF Systems is designed for inspection systems with a fillable tray installed flush at floor level, supporting a tidy technical access that can be integrated into the finish design.

Main technical features

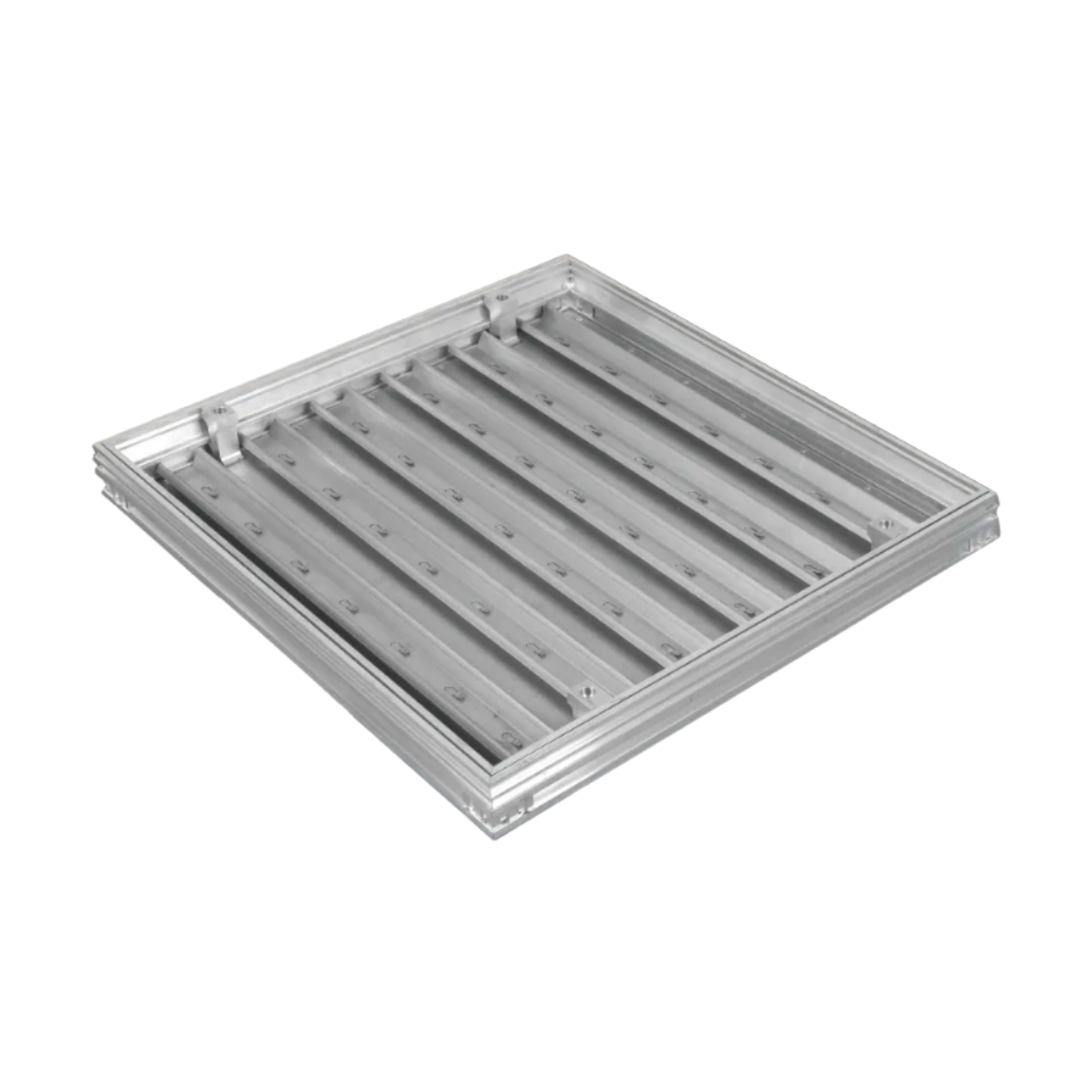

The access cover is made of aluminum. The tray depth is 62 mm and the installation height is 75 mm. It is equipped with three special gaskets along the entire perimeter. The frame is installed by casting at floor level; then the tray can be filled and inserted into the frame.
The lid is fixed with 4 tightening screws and can be removed using special lifting keys. The tray can be filled with tiles, concrete, resin, granite, self-locking blocks, wood, hard floors, or other materials. It is intended for indoor and outdoor floor ducts.

Design advantages

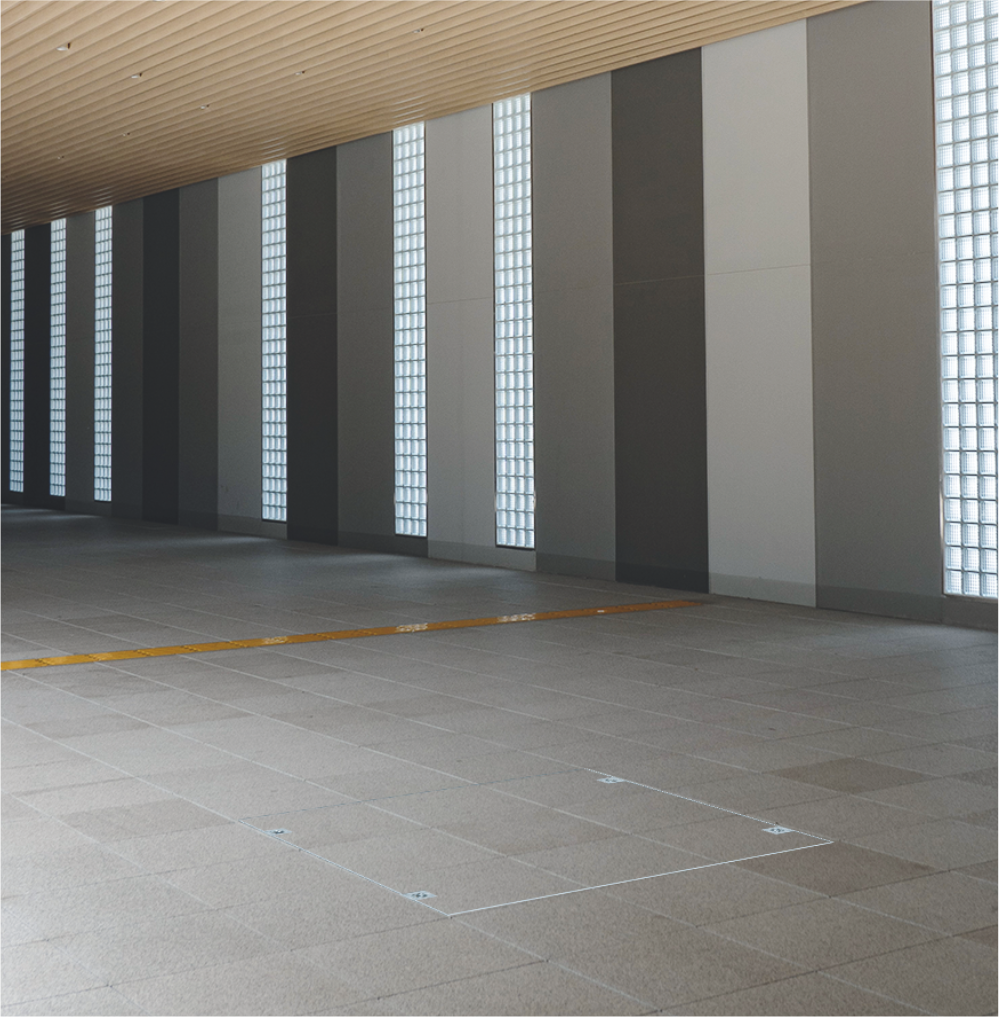

⦁    Almost invisible when installed
⦁    Easier opening thanks to the conical construction design
⦁    Own production with short lead times

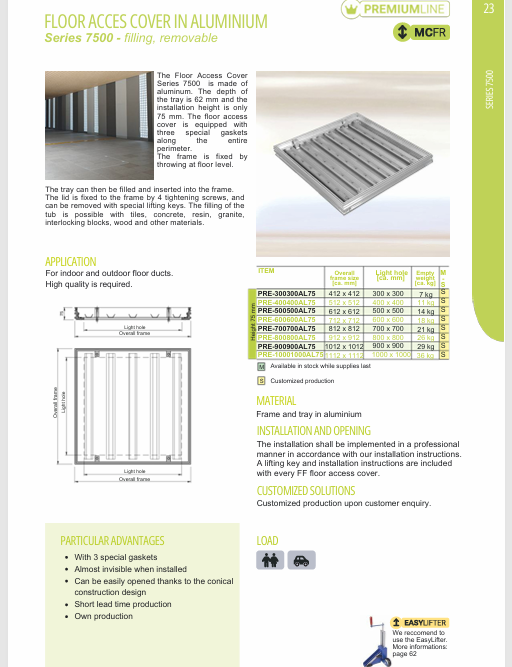

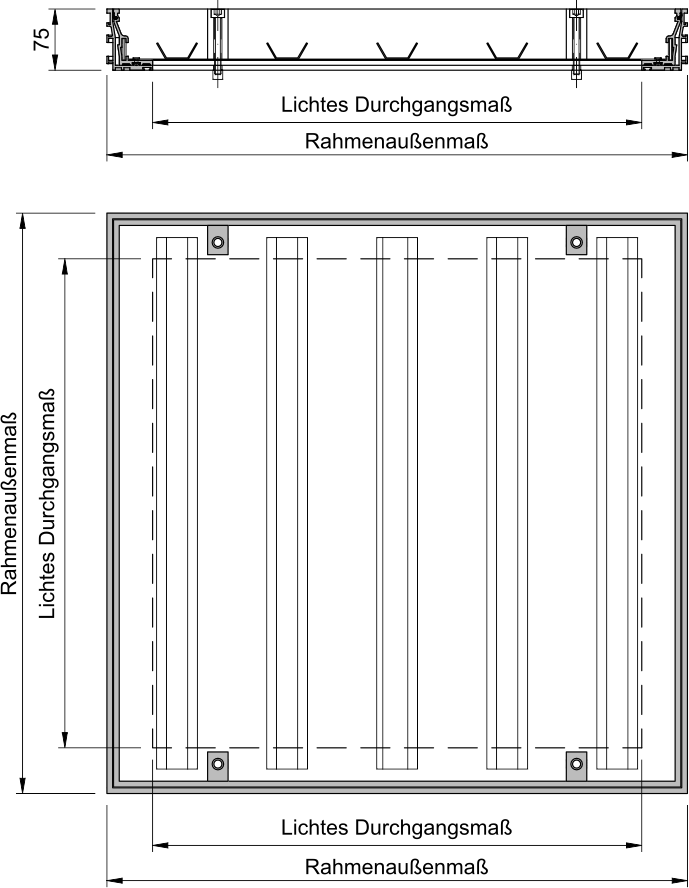

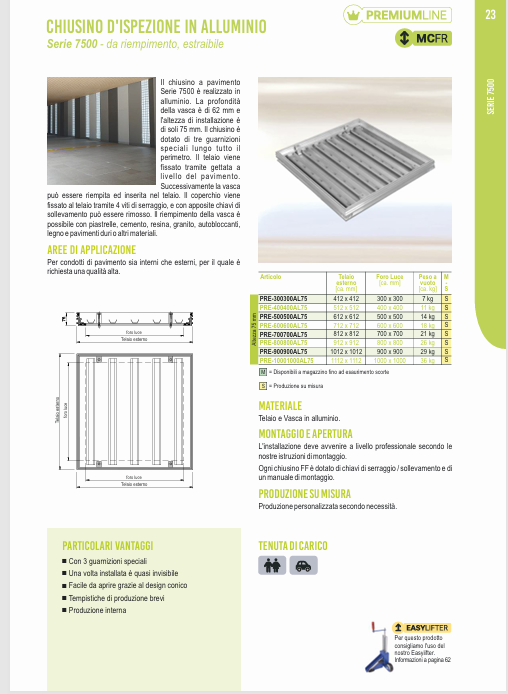

On Syncronia you can find images, catalogs, and the Series 7500 BS Aluminium technical datasheets, with files useful for specification, installation, and correct integration into your project.
