Inspection manhole, 7500 Series Multi-Door

The Series 7500 multidoor version is designed to manage floor technical access points through a multi-door configuration, while keeping the fillable-tray approach typical of inspection floor access covers.

Main technical features

Made of aluminum, it features a 62 mm tray depth and a 75 mm installation height. The access cover is equipped with three special gaskets along the entire perimeter. The frame is installed by casting at floor level; then the tray can be filled and inserted into the frame.
The lid is fixed with 4 tightening screws and can be removed using special lifting keys. Tray filling is suitable with tiles, concrete, resin, granite, self-locking blocks, wood, hard floors, or other materials. It is intended for indoor and outdoor floor ducts.

Design advantages

⦁    Multidoor configuration for distributed access
⦁    3 special gaskets around the perimeter
⦁    Almost invisible when installed
⦁    Easier opening thanks to the conical construction design
⦁    Own production with short lead times

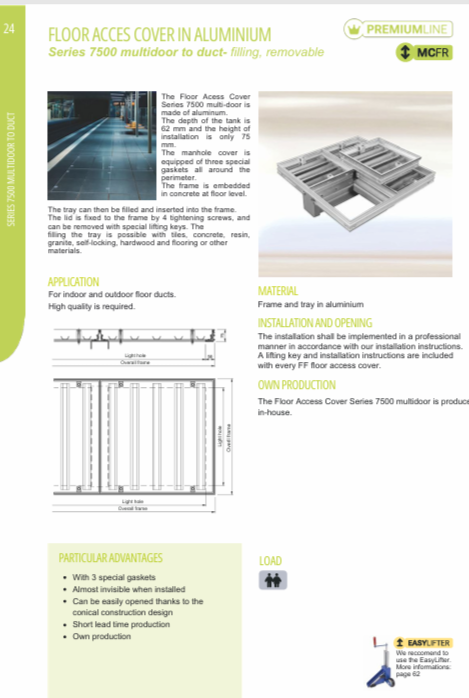

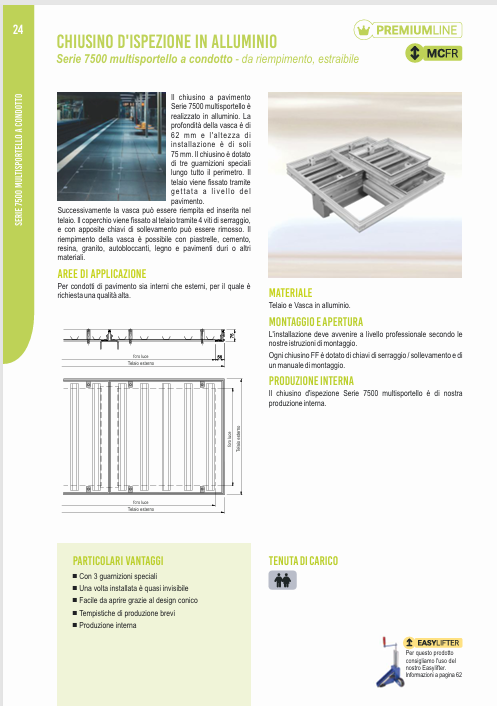

On Syncronia you can download for free images, catalogs, and the Series 7500 multidoor aluminium technical datasheets, with documents useful to specify it in your project.
