Inspection manhole, MA-GTR System - Inspection Manhole Cover

What it is

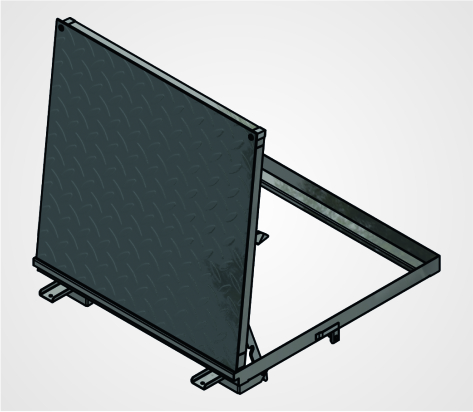

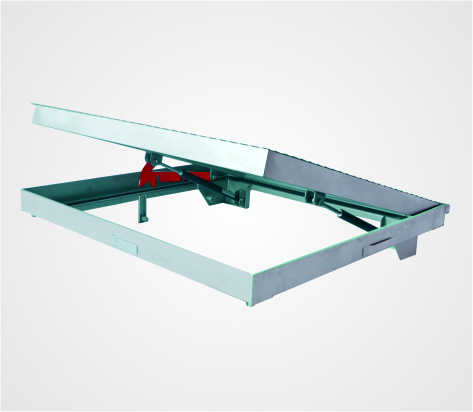

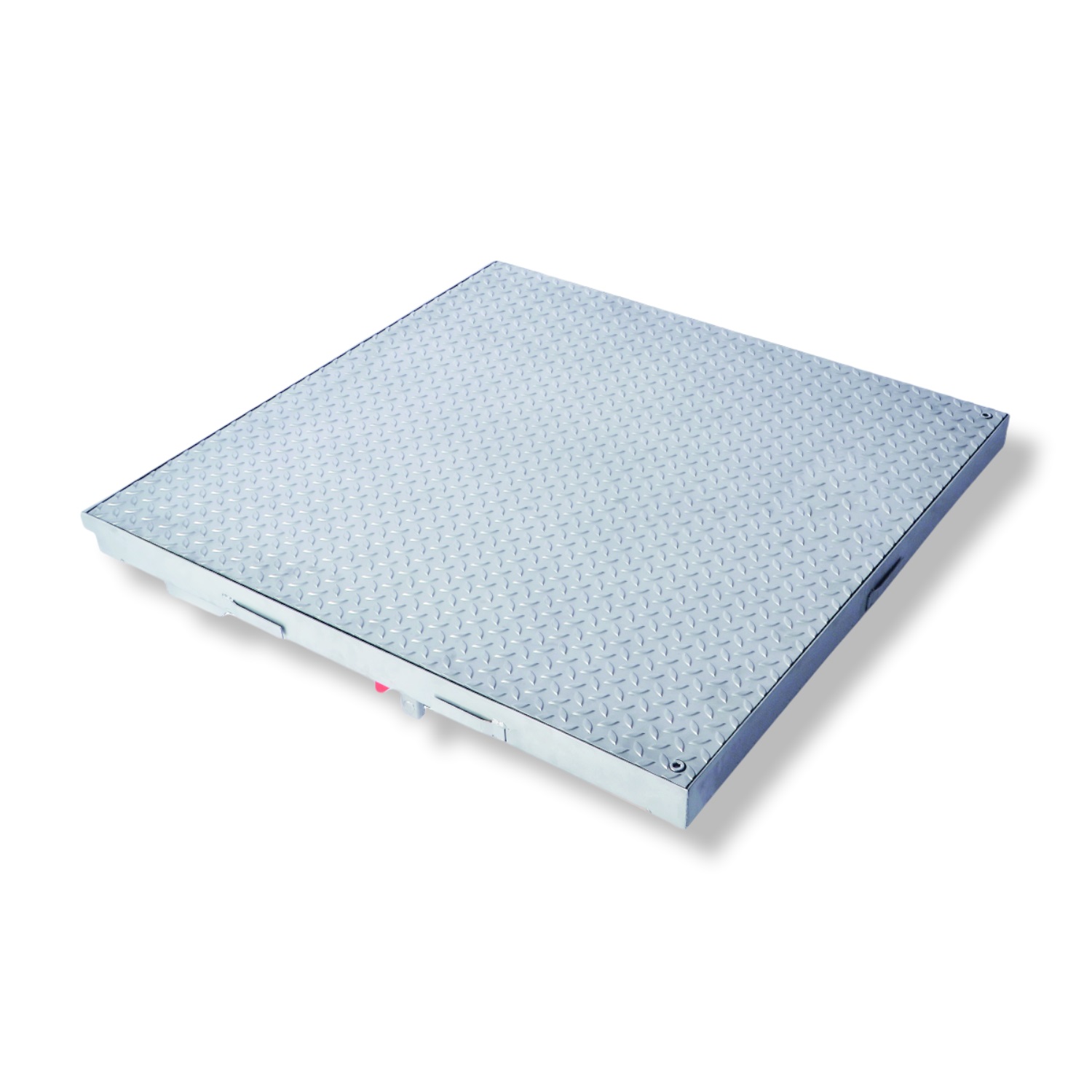

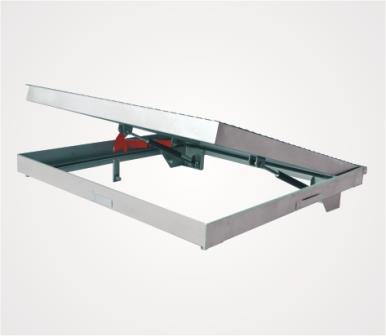

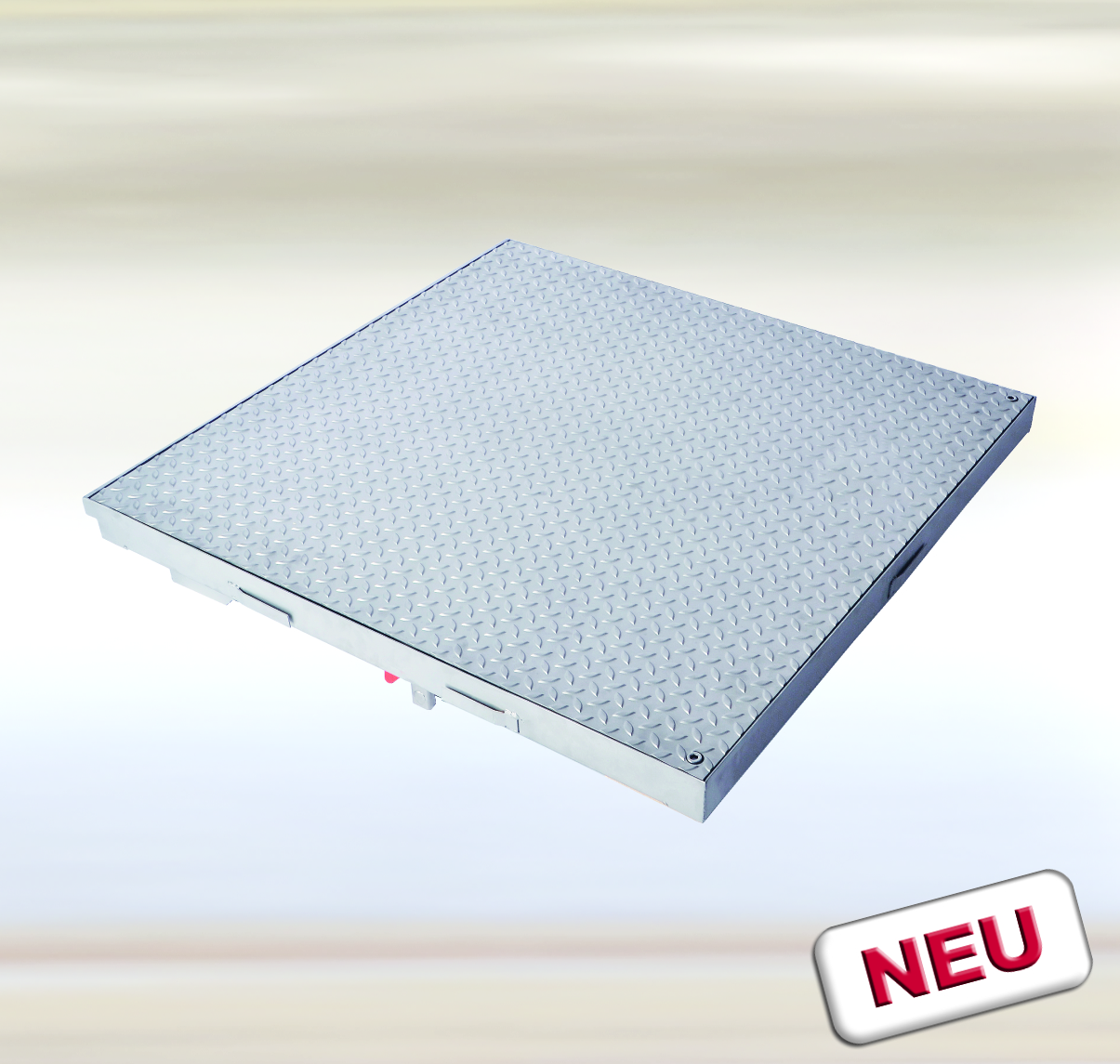

MA-GTR is a stainless steel floor access cover with a checkered plate and assisted opening, designed for access points opened frequently for maintenance.

Technical features

Stainless steel 2.5 mm thick, with a frame featuring a special frost- and weather-resistant seal. Installed flush by concrete pour; the checkered sheet is fixed at the corners. Installation height: 77 mm; outer frame size: clear opening + 100/121 mm.

Key benefits

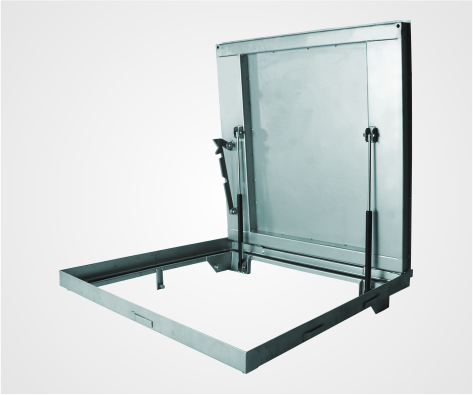

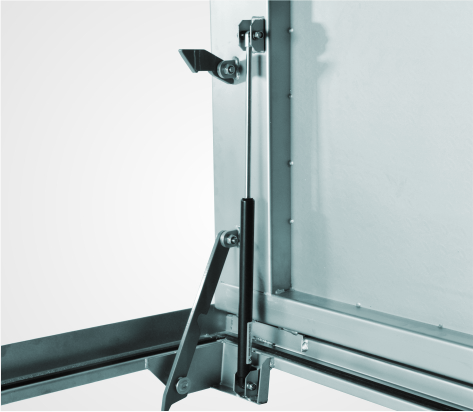

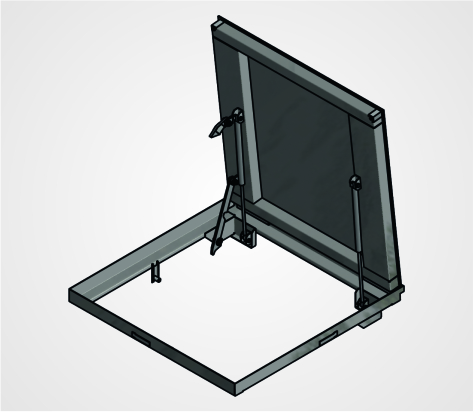

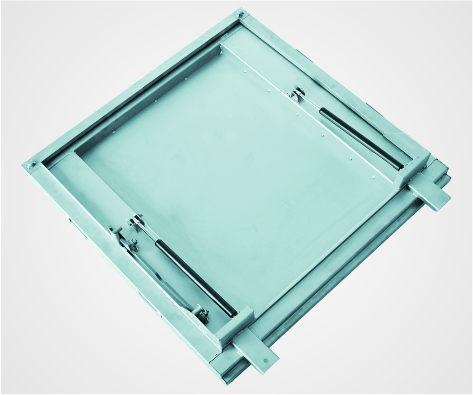

⦁    Two high-quality gas struts for one-person operation
⦁    Fall-protection device
⦁    Load capacity: Class A15 according to EN 124

Application

For covers opened frequently and without particular effort, intended for regular maintenance inspections.

Download on Syncronia

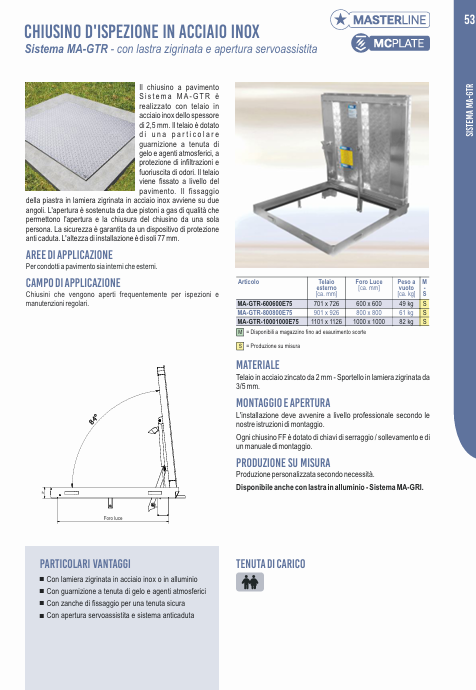

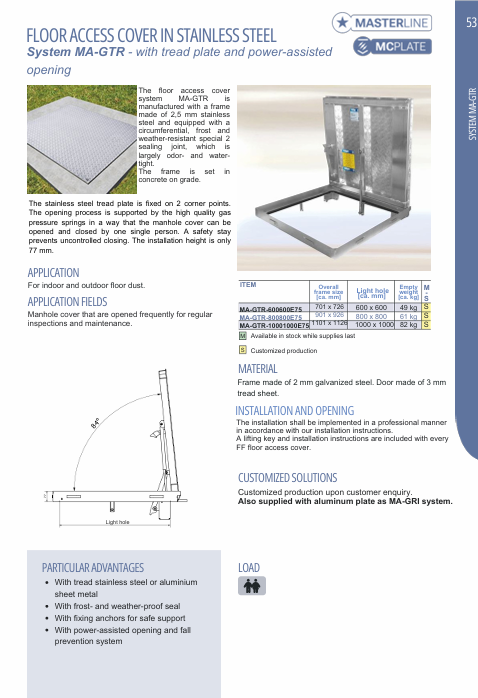

On Syncronia, download for free images, catalogues, technical datasheets and project-ready files for MA-GTR.
