Inspection manhole, MA-WT System - Inspection cover

What it is

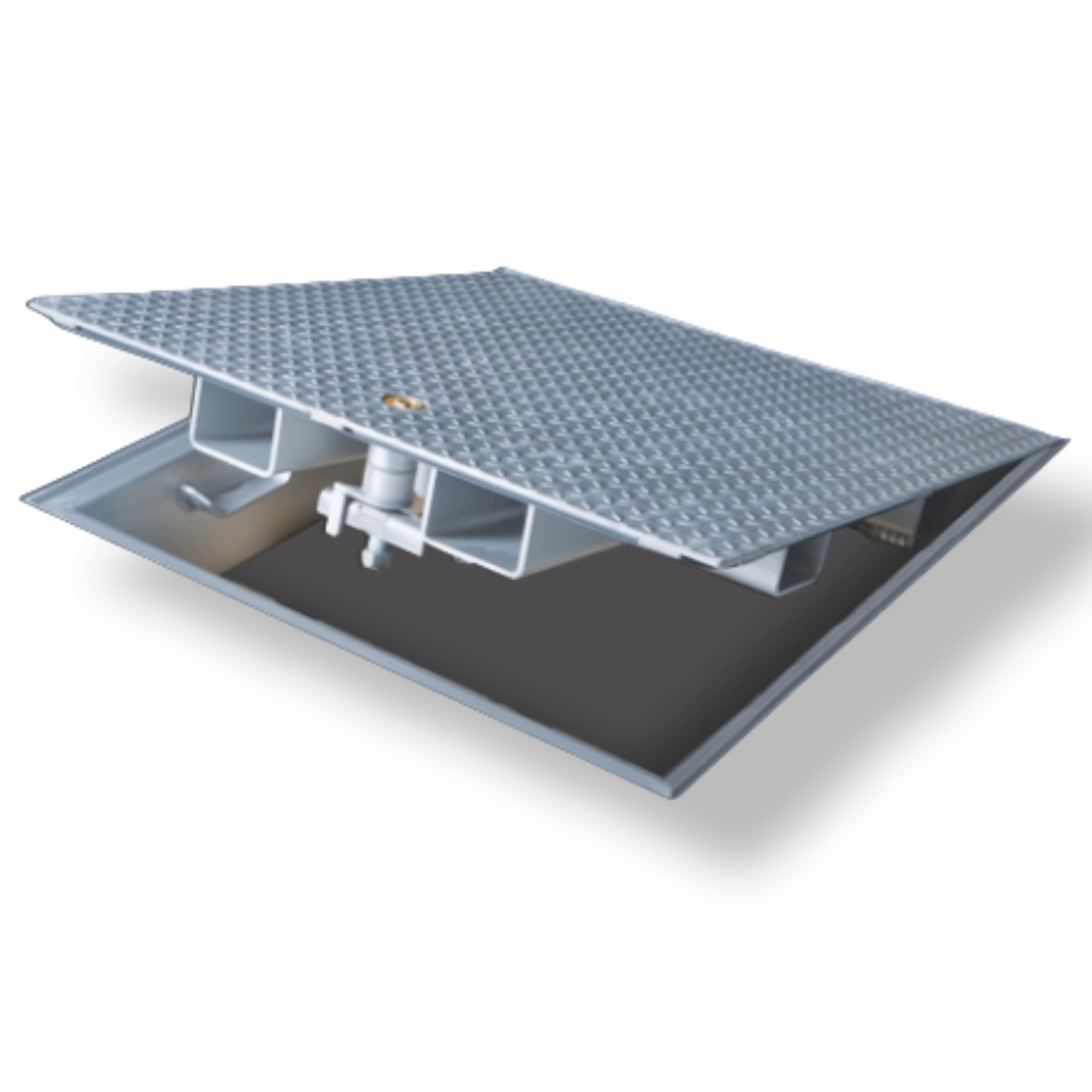

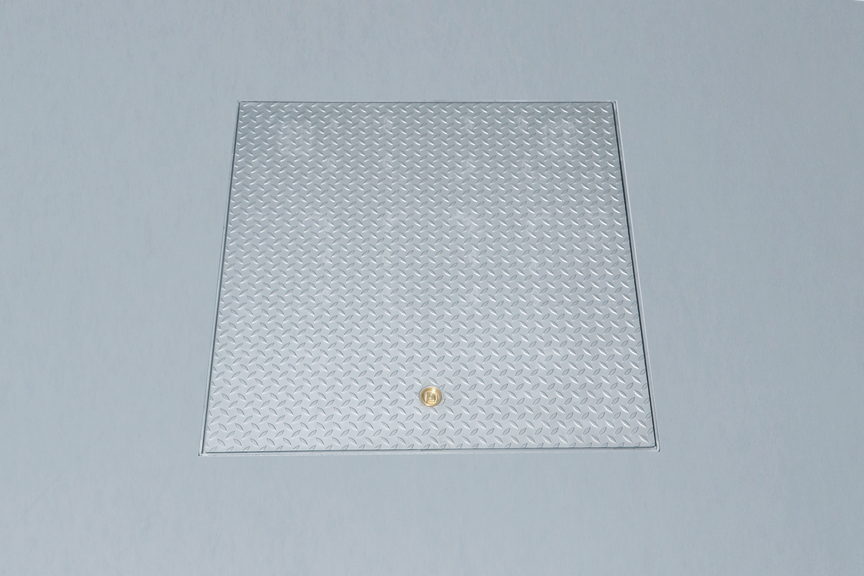

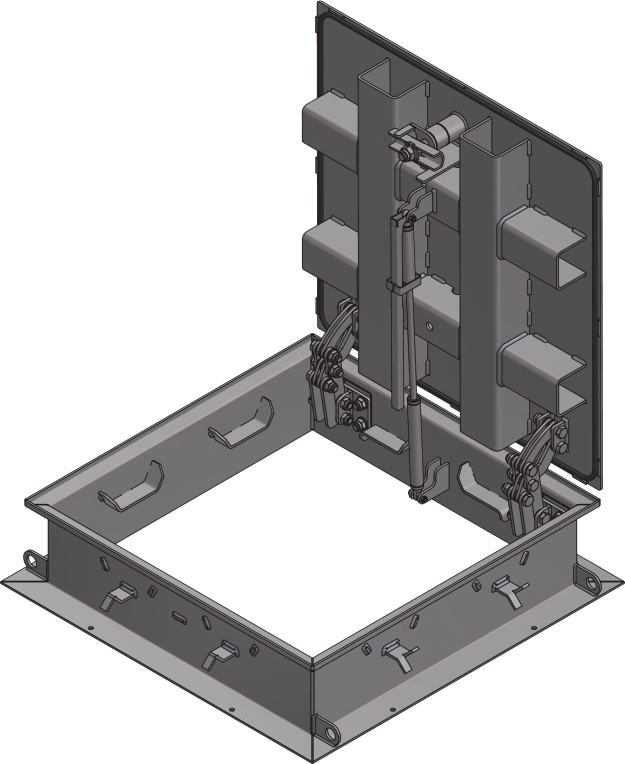

MA-WT is a stainless steel floor access cover with a checkered plate, walkable and waterproof, designed for applications where heavy loads are expected.

Technical features

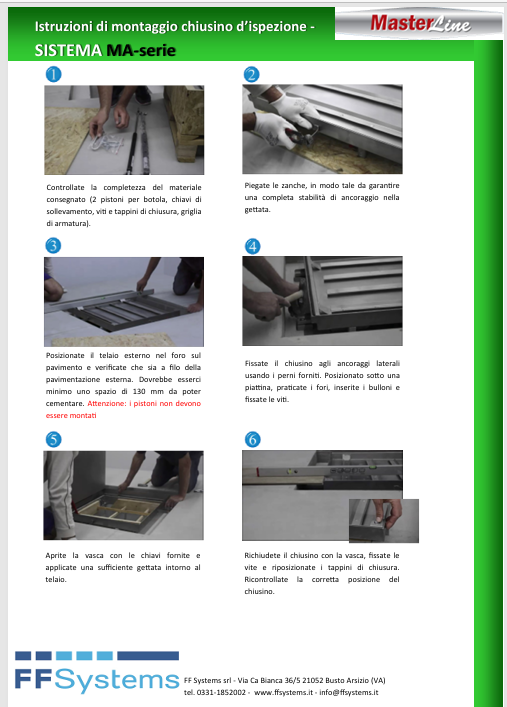

Made of 5 mm thick stainless steel, with a frame equipped with a special frost- and weather-resistant gasket. Installed flush via concrete pour; the checkered cover is secured with screw fastenings and a brass protective cap. Installation height: 220 mm; external frame dimension: clear opening + 150 mm.

Key benefits

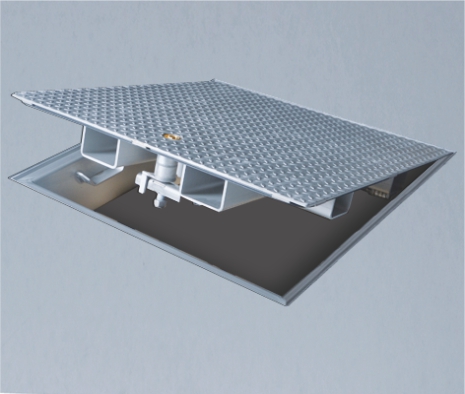

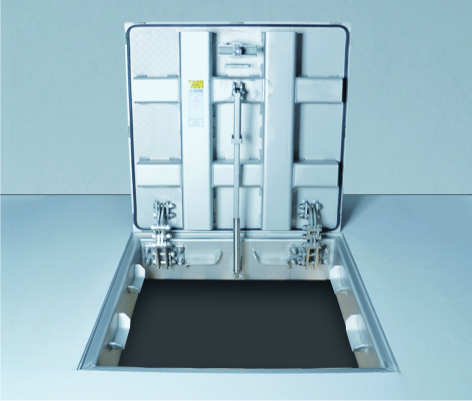

⦁    Assisted opening with two high-quality gas struts and a fall-protection safety device

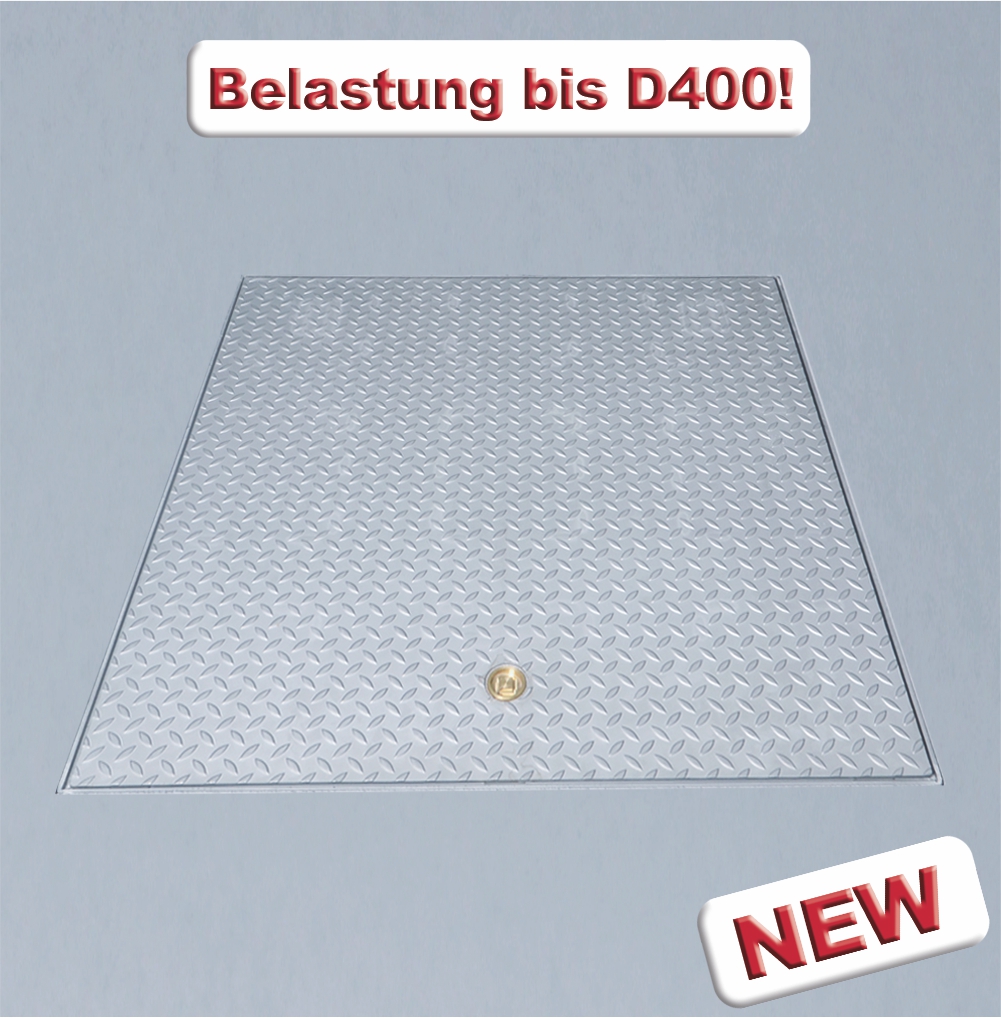

⦁    Load rating (EN 124): Version 1 up to Class D400; Version 2 (Thermal) Class D400

Application

Suitable for floor ducts in indoor and outdoor environments, where high quality is valued and heavy loads are expected.

Download on Syncronia

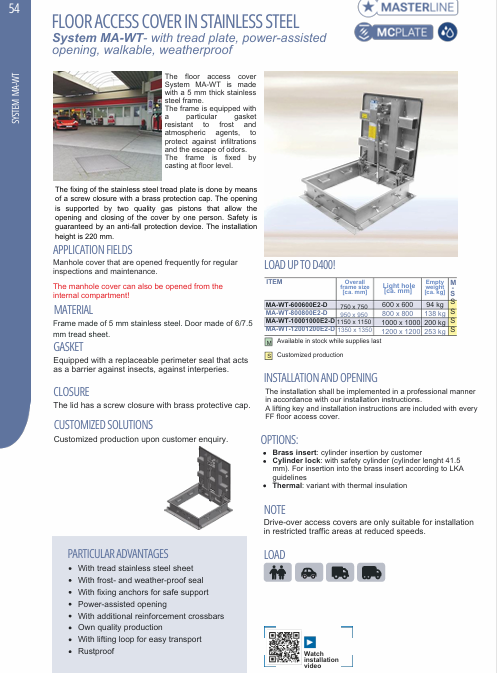

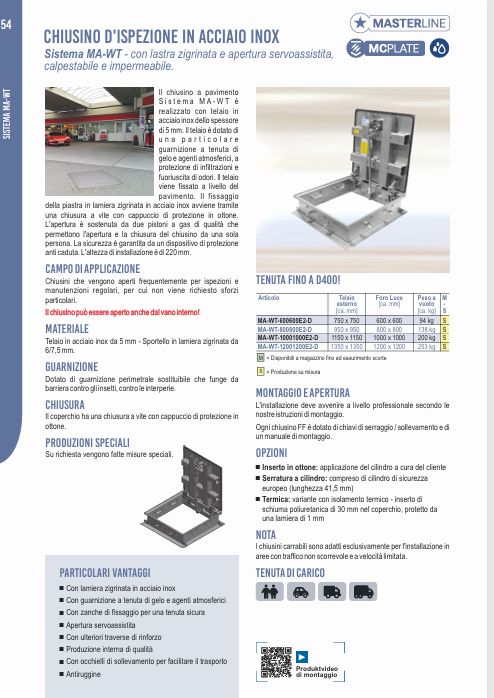

On Syncronia, download for free images, catalogues, technical datasheets and files containing all the information you need to integrate MA-WT into your project (e.g., MA-WT technical datasheet download and walkable waterproof floor access covers catalogue).
