Inspection manhole, PRO-TR System - Inspection cover

What it is

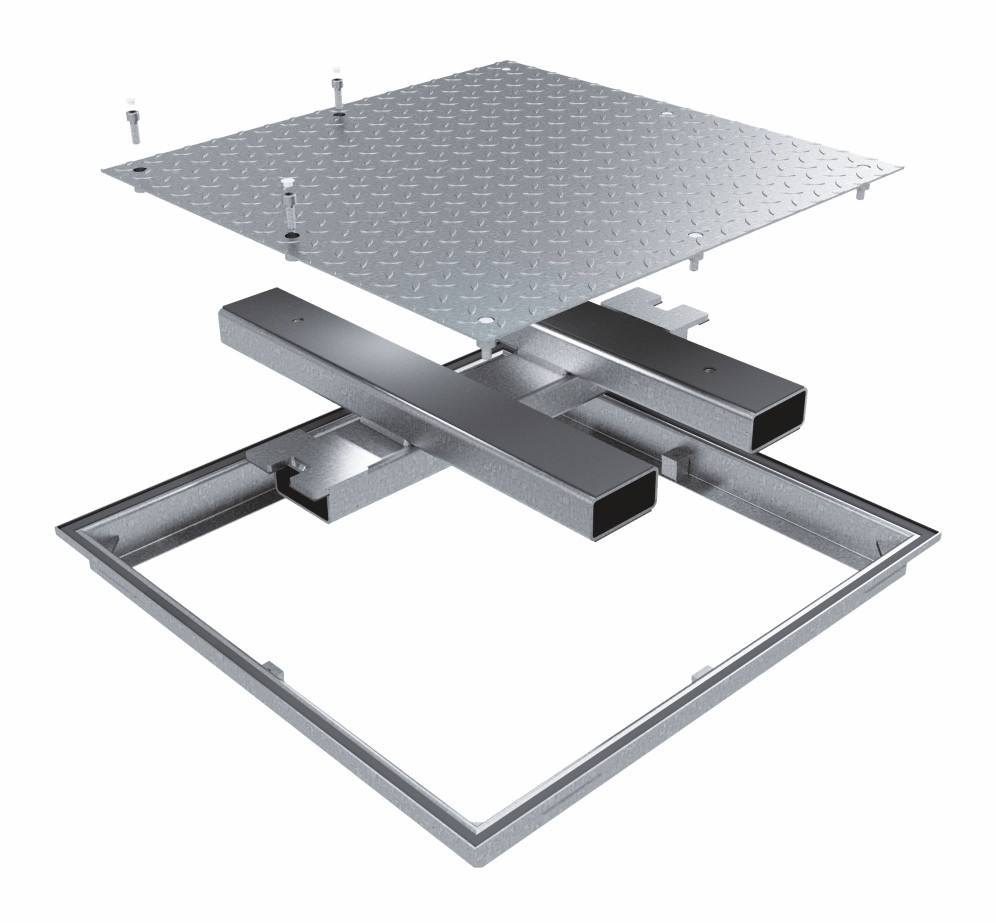

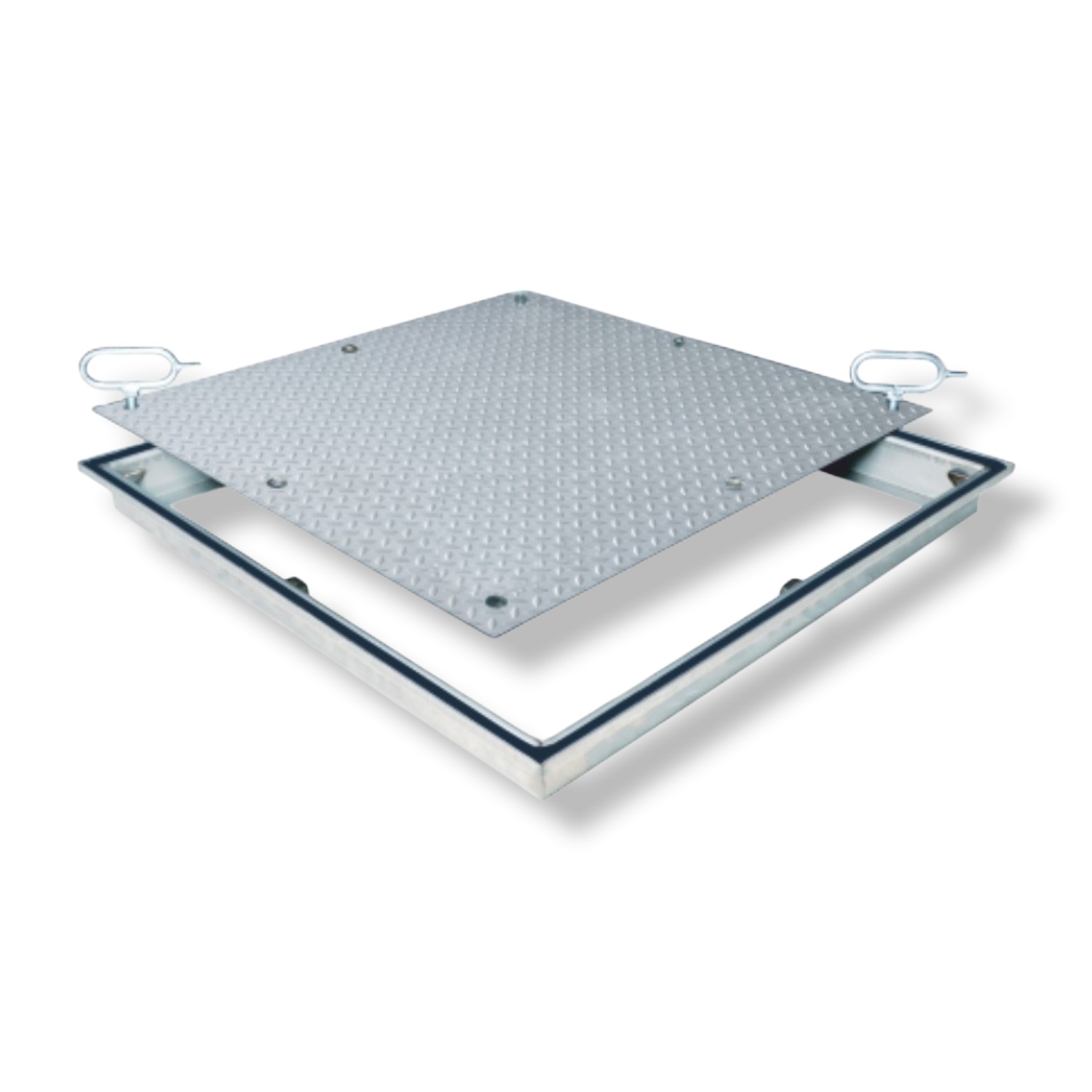

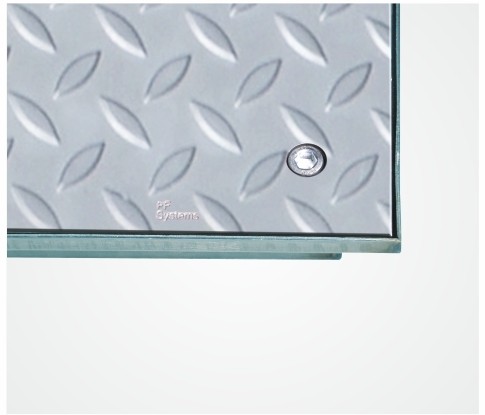

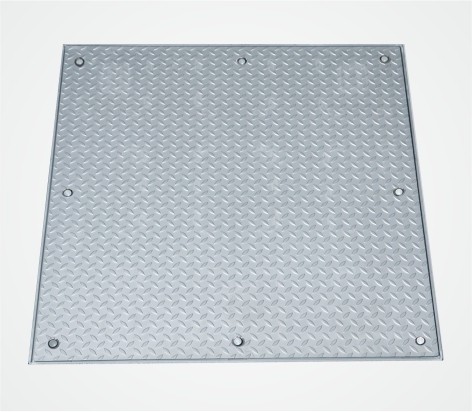

The PRO+TR floor access cover is an inspection cover designed for floor ducts and technical voids, where a flush-to-floor finish and a walkable surface are required. The system is made of stainless steel, and the cover is finished with an anti-slip checkered metal plate.

Features & installation

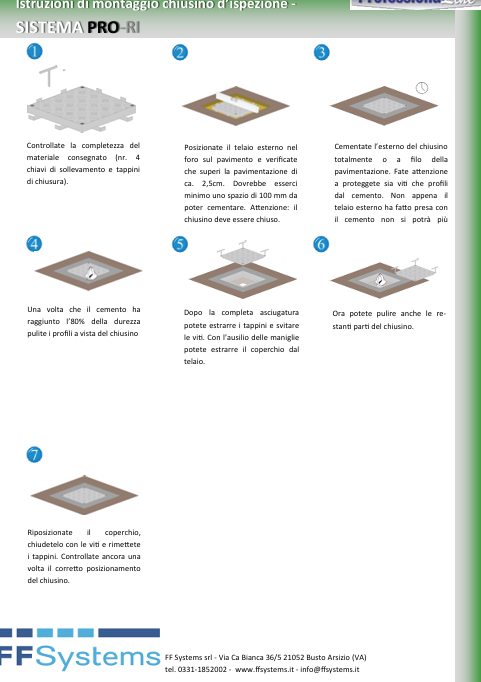

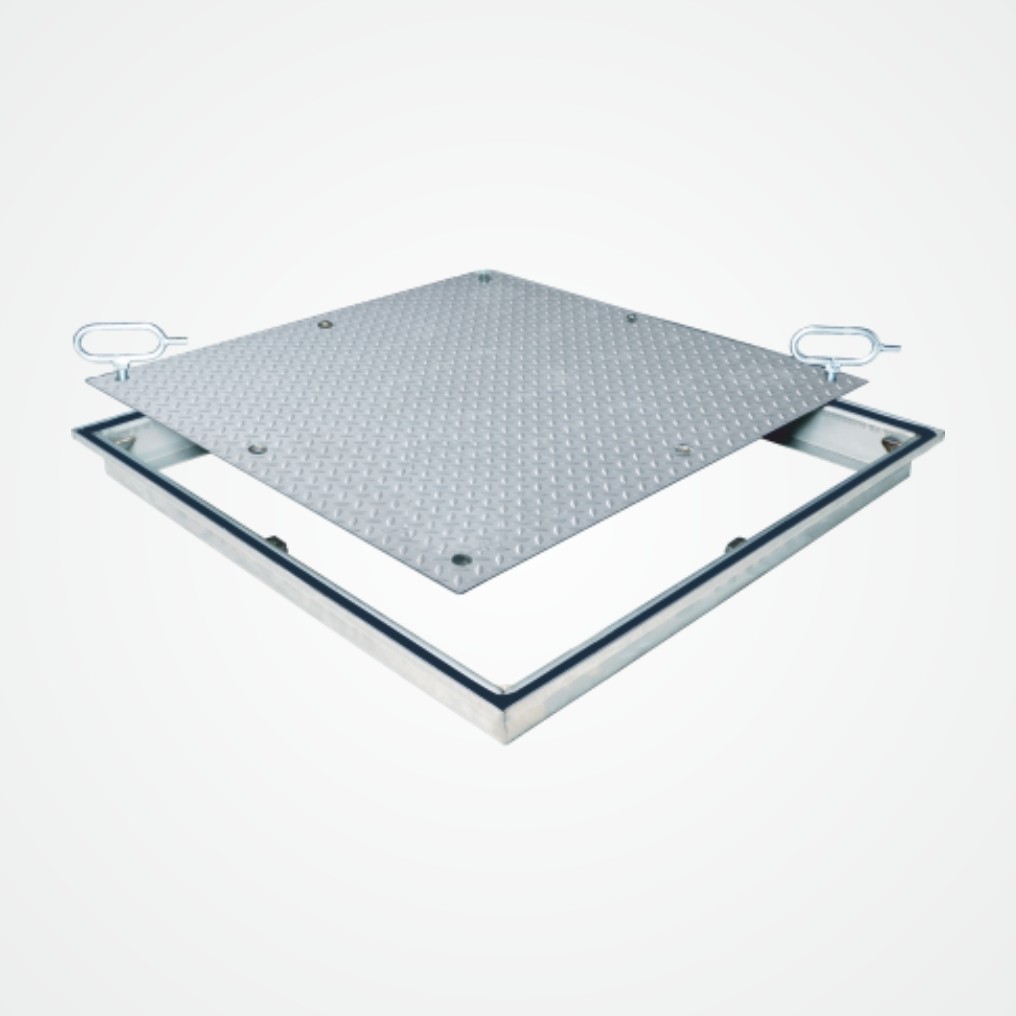

The frame is equipped with a special gasket that is resistant to frost and weather conditions, helping protect against seepage and odor leakage. Installation is performed flush with the floor by means of a concrete pour; the cover is secured with tightening screws and can be removed using the dedicated lifting key supplied. As a reference, the external frame dimension is stated as clear opening + 75 mm.

Performance & versions

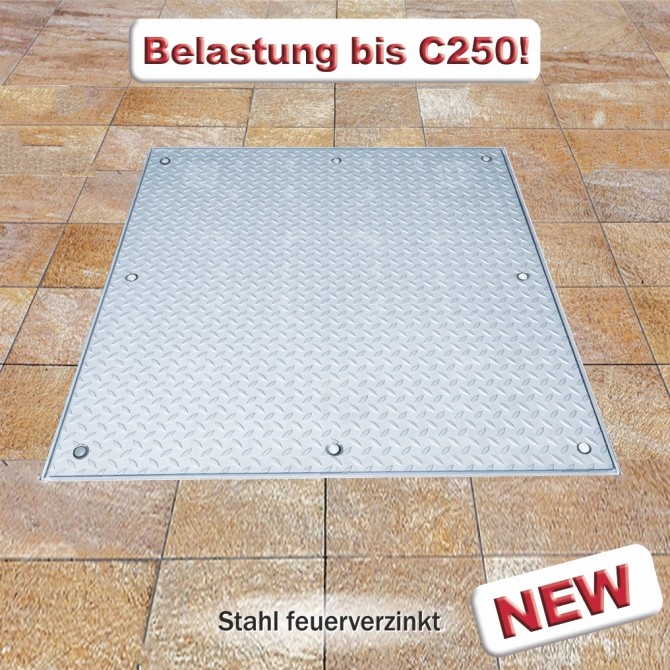

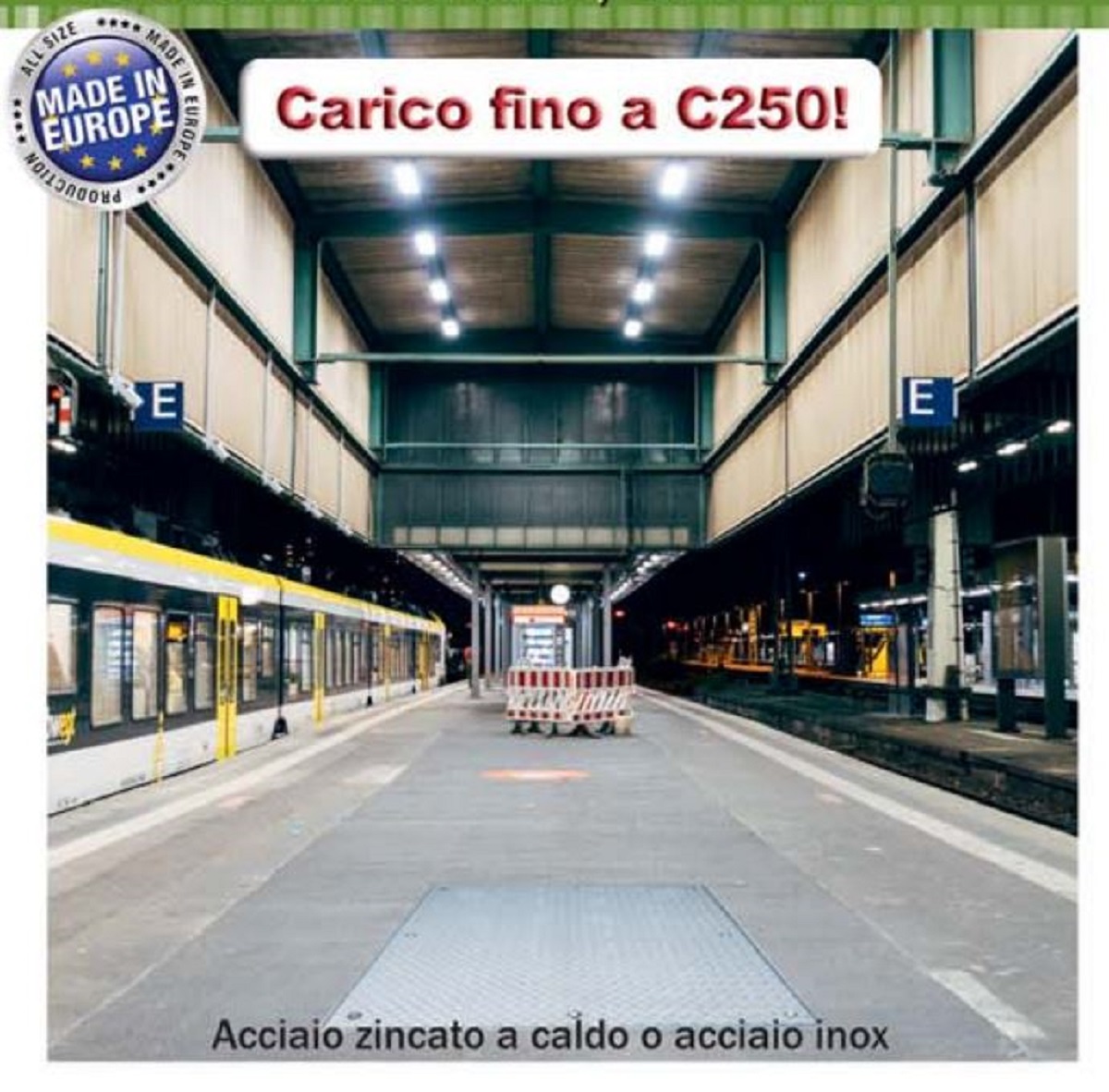

Two load configurations are indicated: Version 1: Class A15 according to EN 124 and Version 2 Ultra Strong: Class C250 according to EN 124. This can be relevant when inspection requirements must be coordinated with heavier load scenarios (depending on the version).

Benefits (and notes)

⦁    Integrated frame height of only 40 mm, supporting clean construction details.
⦁    Custom sizes available on request.
⦁    Note: installation must ensure the gasket fits tightly against the frame profile.

The FF Systems range also includes dedicated solutions for fire systems and fire-rated manhole covers, where compartmentation is required.

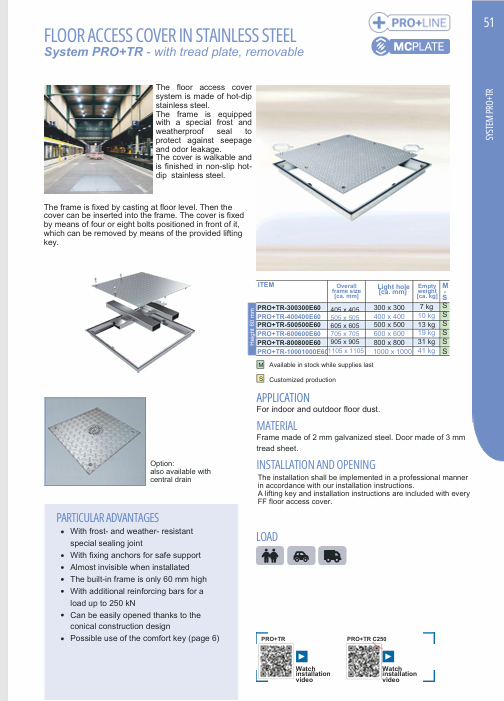

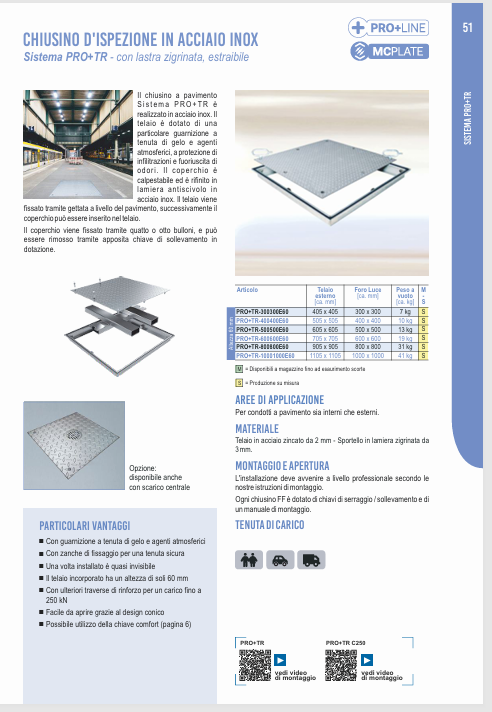

On Syncronia, you can download for free official catalogues, images, and PRO+TR technical data sheets, plus information files useful for correct project integration.
