Outdoor inspection access panel, MPW System - Outdoor inspection access panel for masonry

The MPW outdoor inspection hatch by FF Systems is made of aluminum profiles with a cement board panel and two or more stainless steel snap locks.

The frame has a thickness of 15 mm, while the cement board panel has a thickness of 12.5 mm and is recessed to allow flush skim coating. In addition, the external frame, with a thickness of 60 mm, is designed for installation on block or brick walls, either by means of anchoring lugs or by fixing with wall plugs.

The hatch is equipped with one or more safety cables with carabiner, which must be reattached after each opening of the panel.

Between the frame and the panel there is a 3 mm gap, fitted with a gasket that ensures airtight and dust-tight sealing.

Key features:

-Quick installation
-Solid aluminum profiles
-Fast installation on façades

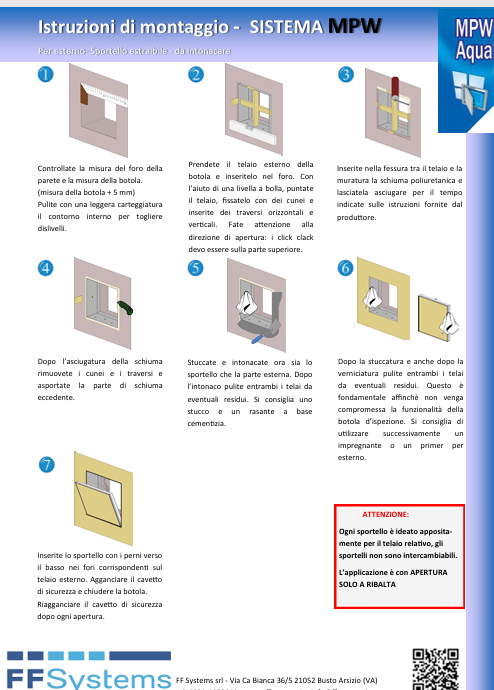

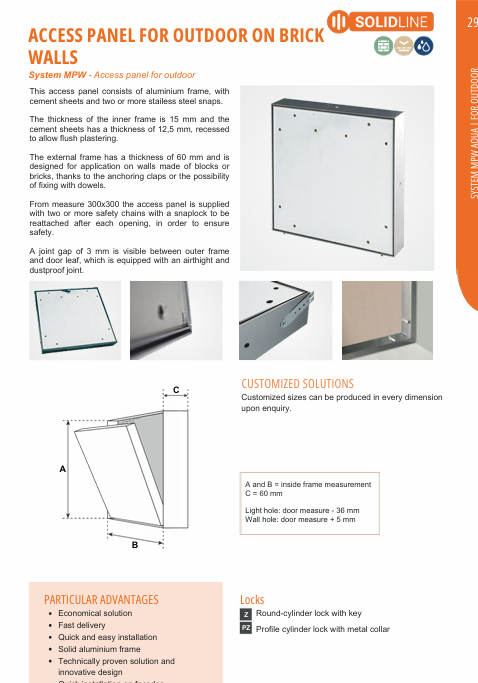

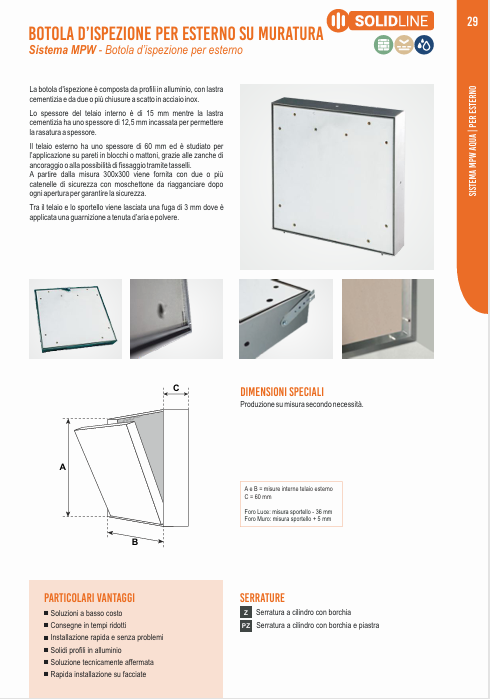

From the Syncronia page, it is possible to download free of charge the files required for the installation of this outdoor hatch. FF Systems provides catalogs, technical data sheets, and representative product images.
