Outdoor lighting, Mini Corniche In-ground

Year of production: 2013

Mini Corniche in-ground recessed light is a linear outdoor lighting fixture that combines technical precision with refined design, ideal for integrating discreetly yet effectively into contemporary architectural spaces. Its powerful, uniform, and efficient light is designed to enhance surfaces and pathways from below, creating impactful and scenic lighting effects.

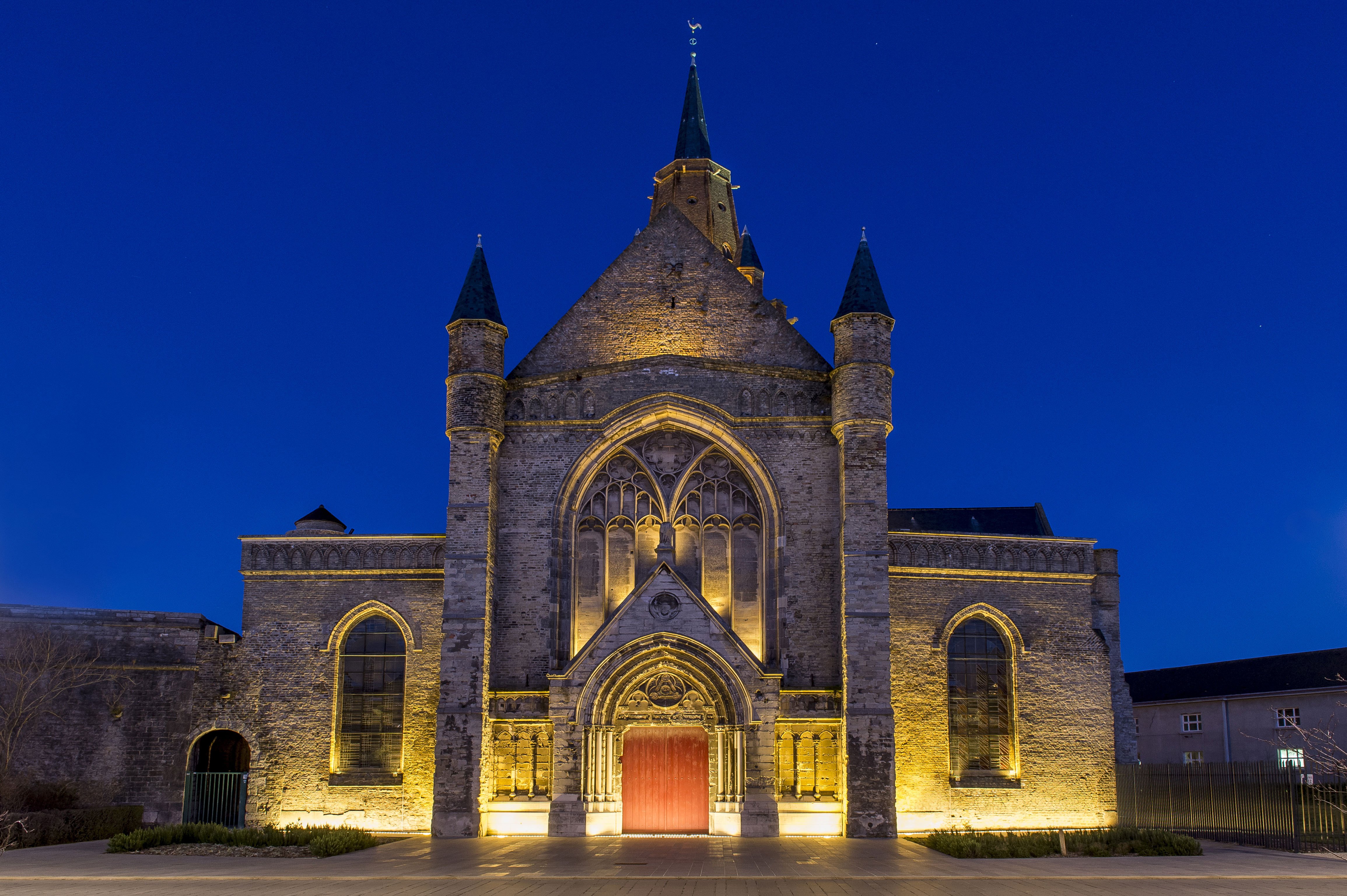

Thanks to its availability in different lengths and power options, Mini Corniche adapts to a wide range of applications, including façade lighting, architectural and monumental walls, and the enhancement of walkways, squares, gardens, and both public and private outdoor spaces.

The compact and minimalist design, combined with its ability to distribute light evenly, allows for the creation of coherent and sophisticated lighting environments, improving spatial perception and contributing to the architectural identity of the project.

From a construction standpoint, Mini Corniche is made of extruded primary aluminum alloy with A4 stainless steel screws, ensuring durability and long-term performance. The AISI 316 stainless steel spring fastening system guarantees stable and reliable installation. The power supply must be installed externally using a 24V DC constant voltage transformer, with parallel wiring.

The product is equipped with a GORE® valve that prevents condensation from forming inside the fixture, preserving its performance over time. The surface treatment includes a complete galvanic anodization process followed by a double-layer coating (epoxy primer and polyester finish), creating a highly resistant protective barrier against weather conditions, UV rays, and corrosion, with salt spray resistance exceeding market standards.

The glass assembly is preceded by an atmospheric pressure plasma treatment, which improves adhesion and ensures optimal sealing. The automated bonding process guarantees long-lasting and reliable performance.

For recessed installation, a housing box is required to be installed in concrete with a 20–30 cm gravel drainage layer. It is essential to use an IP68 connection to the power supply to ensure the same level of protection as the fixture. Housing box and connector are available separately. With an IP67 rating and IK07 impact resistance, Mini Corniche is suitable for even the most demanding outdoor environments.

This complete range of high-efficiency linear fixtures offers maximum design flexibility, suitable for both walk-over in-ground installations and wall-mounted applications. The stainless steel version is also suitable for submerged installations.

Dimensions

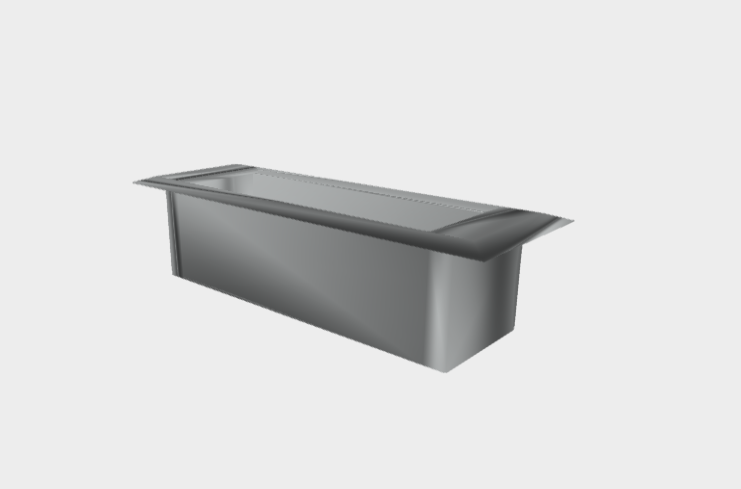

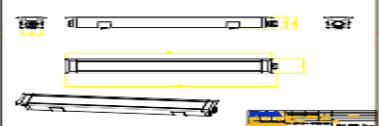

• Mini Corniche 100

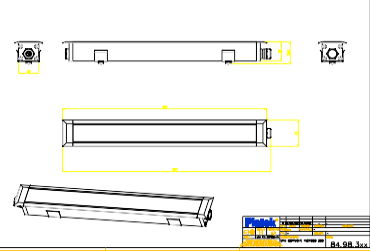

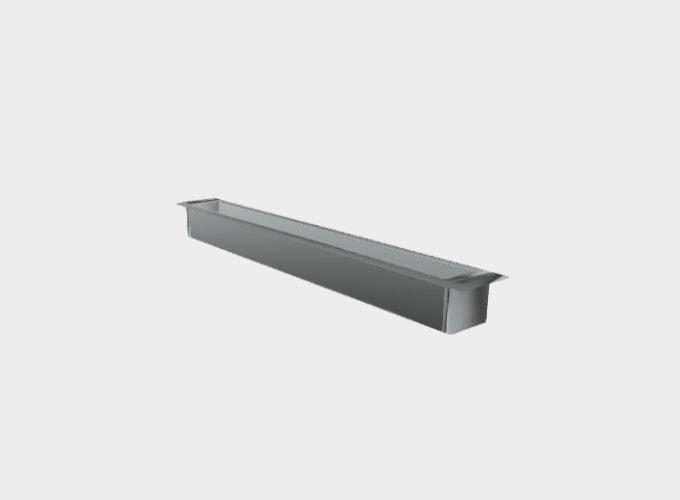

• Mini Corniche 300

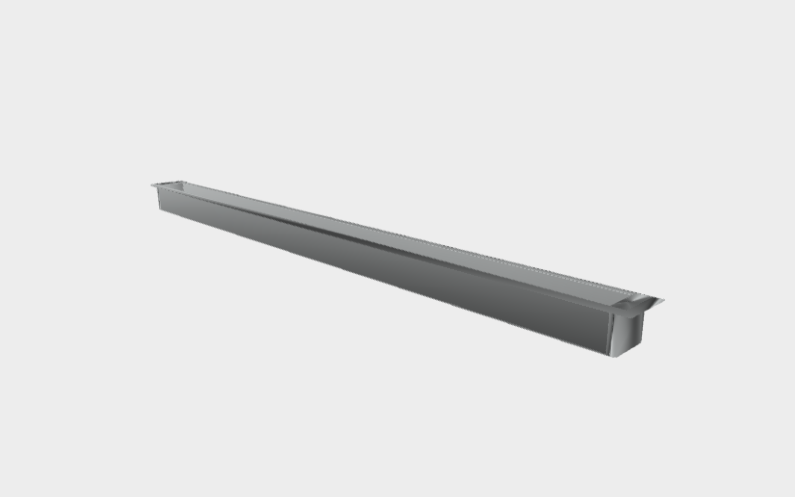

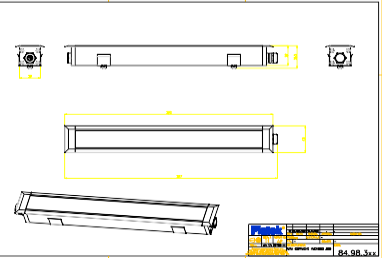

• Mini Corniche 600

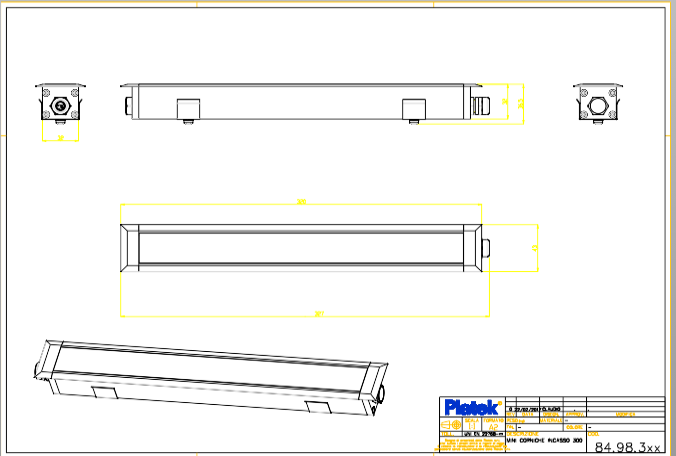

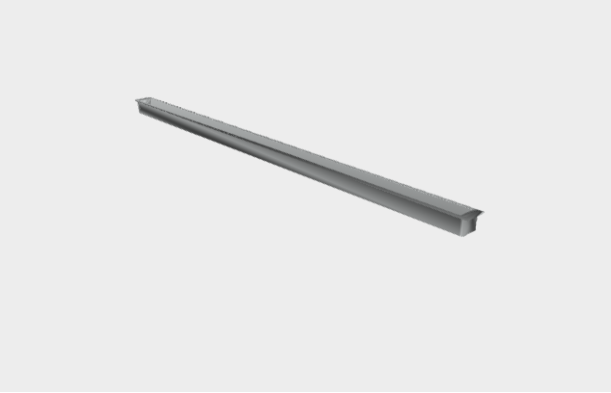

• Mini Corniche 900

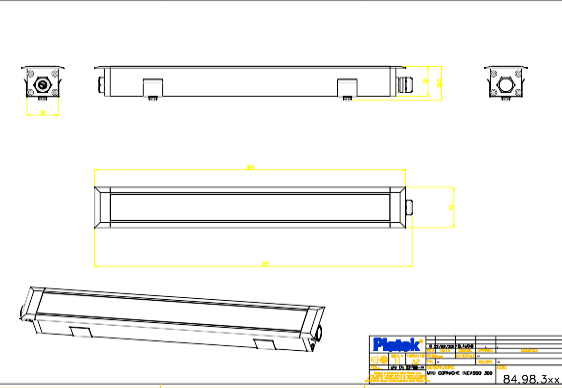

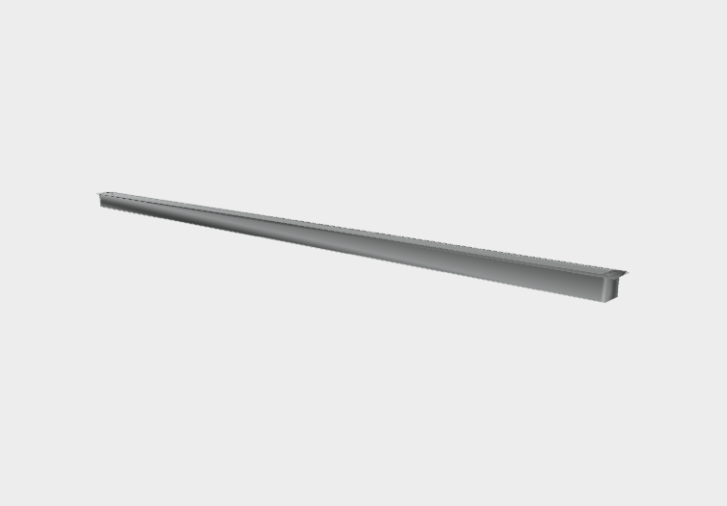

• Mini Corniche 1200

Download

Download the available files on this product page for free. Specifically, you can access 3D BIM files, 2D DWG CAD drawings, and lifestyle product images to support your design and planning process.
