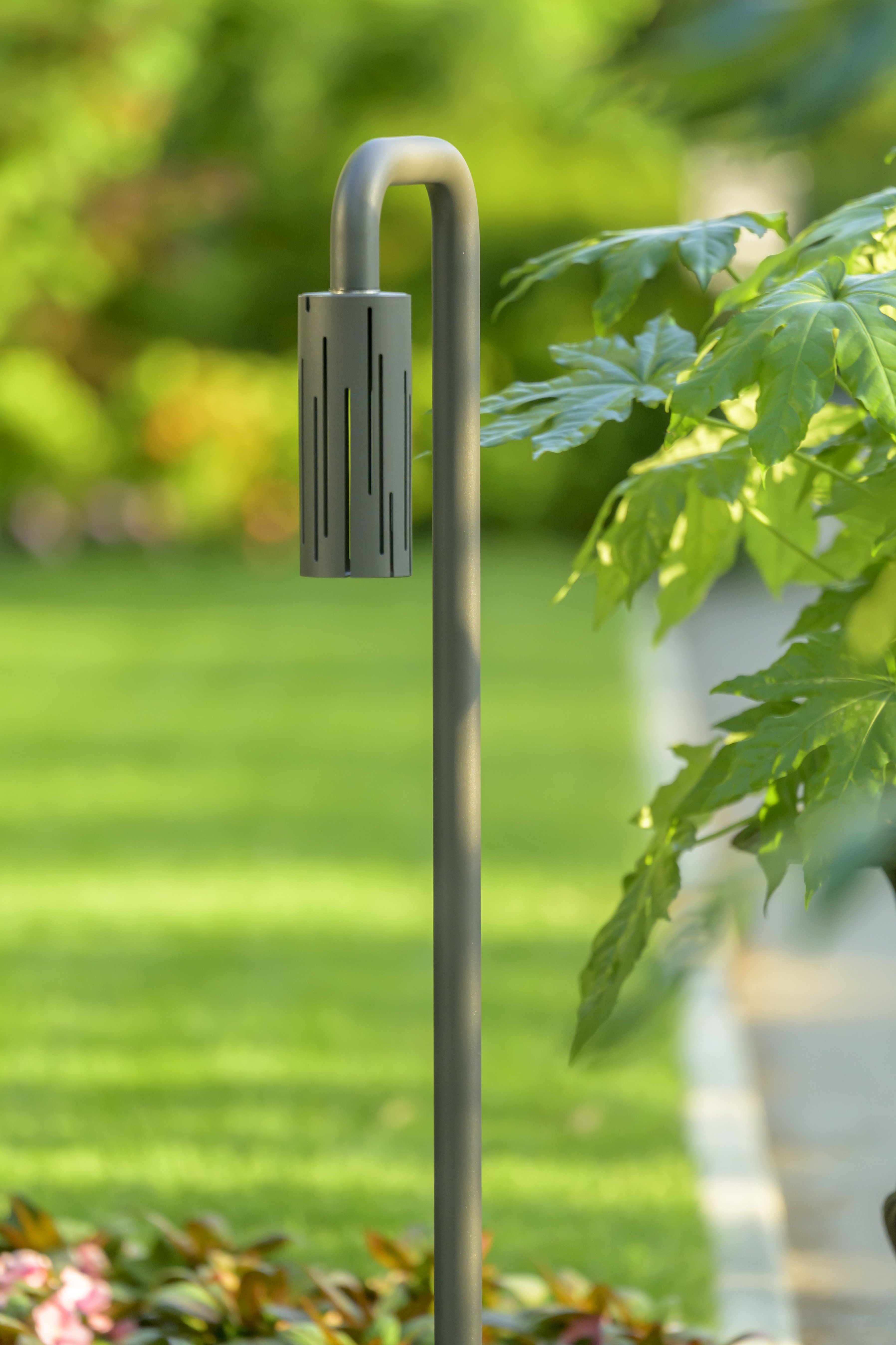

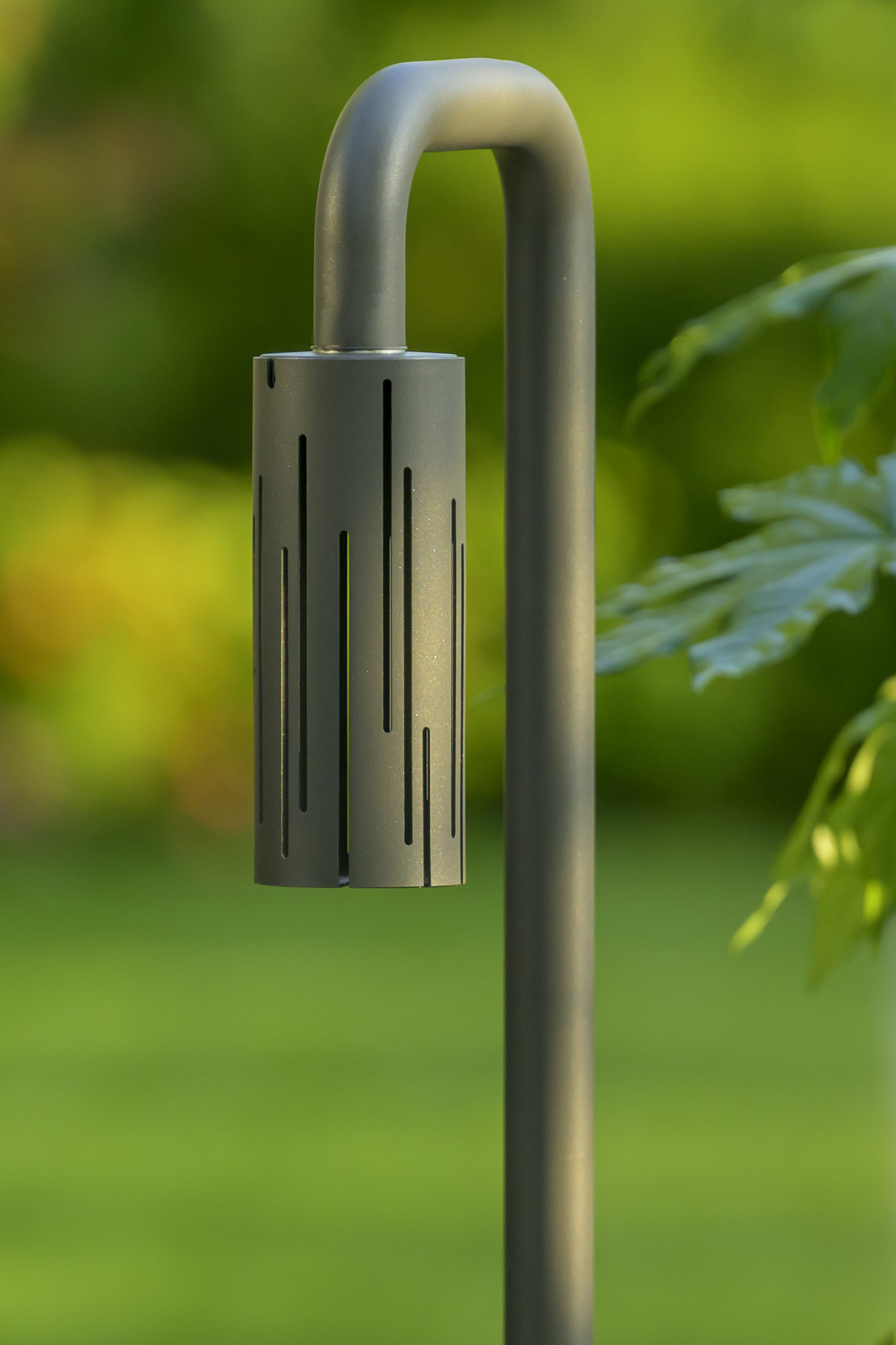

Poles, Airliner M Bollard

Designer: Jan Van Lierde - Year of production: 2024

The Airliner is an outdoor lighting element that blends architectural clarity, with visual lightness. Its crisp, articulated lines guide the light in a dynamic way, creating a visual presence that quietly elevates the surrounding space. With its sculptural design and refined presence. Airliner  stands out as a visual marker, born from a dialogue between form, and light, with is refined design and its ability shape atmospheric lighting effects. Airliner is ideal for gardens, wallkways, pedestrian routes, and outdoor areas in both public and residential settings, helping to define the character of each enviroment with a coherent, contemporary expression.

Technical Specifications

Die-cast body and flange manufactured in EN 44300 aluminium alloy with very low copper content. Diffuser support made of primary aluminum. Diffuser made of AISI 304 stainless steel with laser cutting. Optical system consisting of high-intensity COB LEDs, with a color rendering index greater than 90. No visible screws. Subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and final sealing. The product is painted following a continuous two step paint process (epoxy-based primer + polyester-based colour finish), which allows to generate a single thick protective coating which then generates aprotective barrier against atmospheric agents and UV rays. Before fixing the diffuser on the Platek products a Pretreatment using an atmospheric pressure plasma process is carried out on the surface. The process activates the ionic load on the surface exactly where it is needed, thus promoting the best silicone grip possible and removing any residual release of agents for a longer lasting seal. The next steps are the coating of silicone and the assembly of the diffuser on the lighting fixture, with an automated process to guarantee the perfect sealing of the lamp. IP65, IK08.

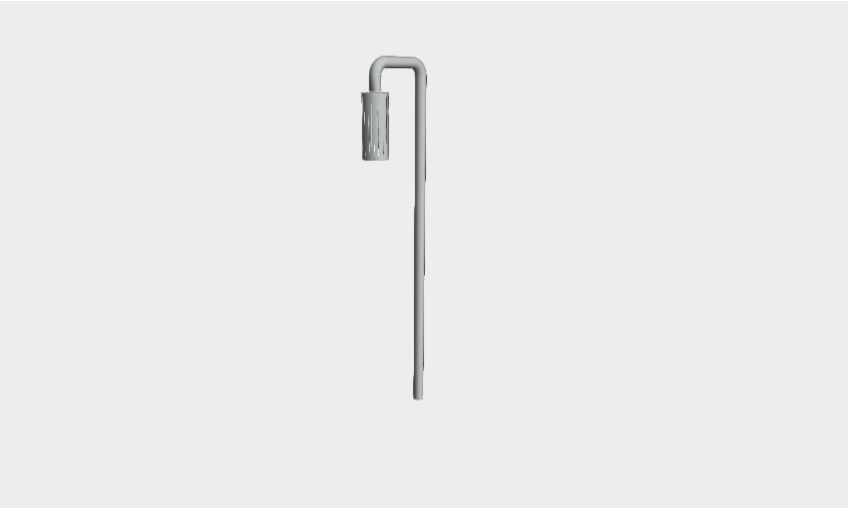

Download the 2D and 3D files useful for design free of charge from this Platek product page. To get a better view of how the final product appears in outdoor settings, you can also download the enviromental images of the Airliner M Bollard.
