On this page you can download Revit files, catalogues, specifications and technical data sheets for fire protection systems for corrugated steel decking using F62 Super Spray and F62 Spray.

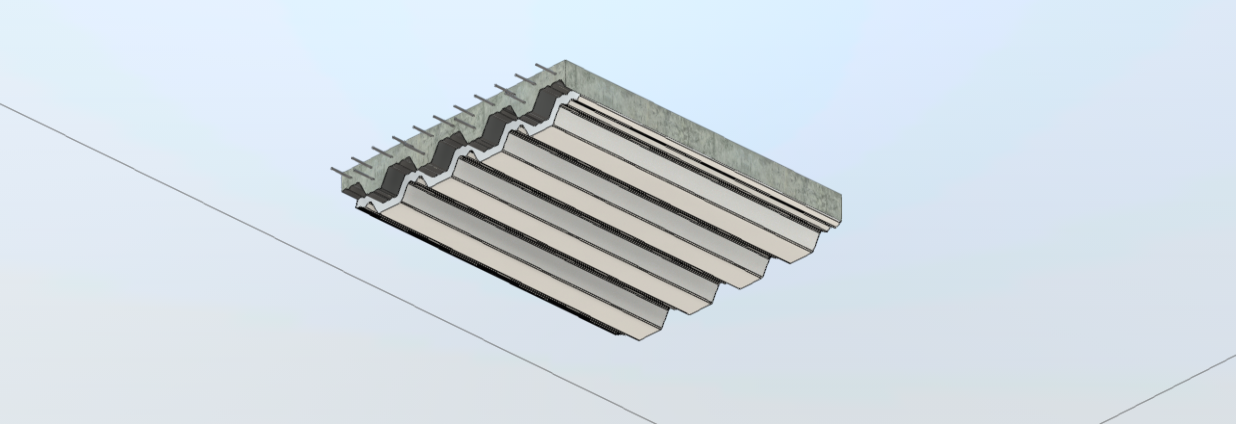

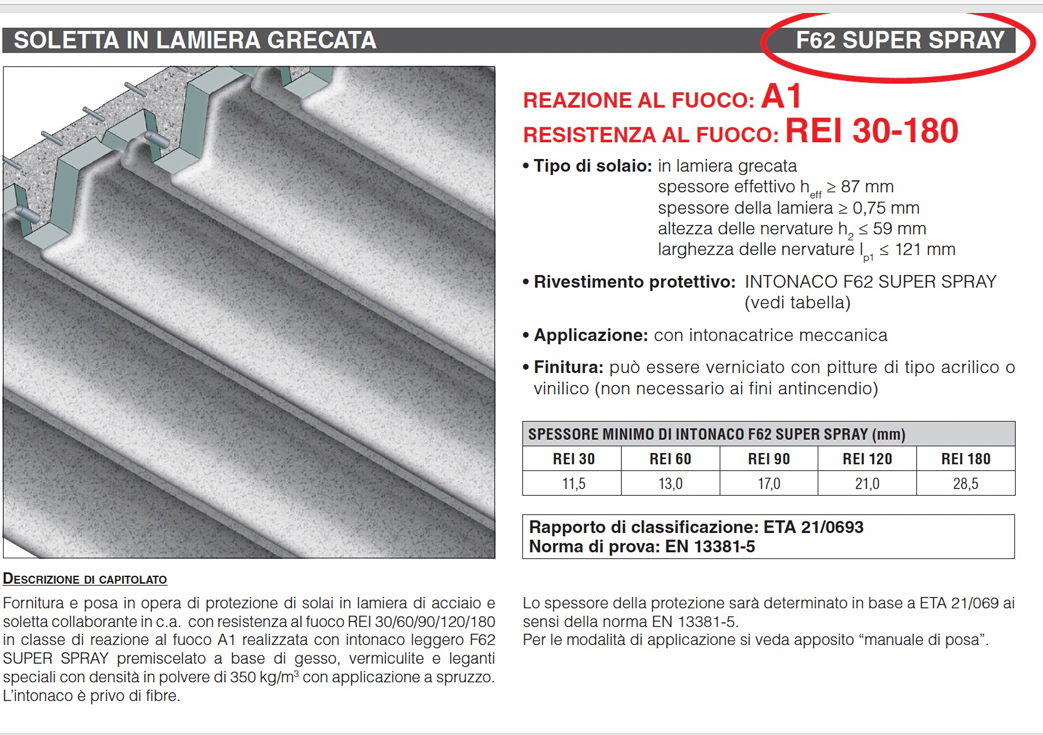

F62 Super Spray
Fire resistance: REI 30–180
On this page you can download Revit files, catalogues, specifications and technical data sheets for fire protection systems for corrugated steel decking using F62 Super Spray and F62 Spray.
F62 Super Spray
Fire resistance: REI 30–180
-Slab type: corrugated steel decking;effective thickness hₑff ≥ 87 mm steel sheet thickness ≥ 0.75 mm rib height h₂ ≤ 59 mm rib width lₚ₁ ≤ 121 mm
-Protective coating: F62 Super Spray fireproof plaster
-Application: mechanical spraying
-Finish: may be coated with acrylic or vinyl paints (not required for fire protection purposes)

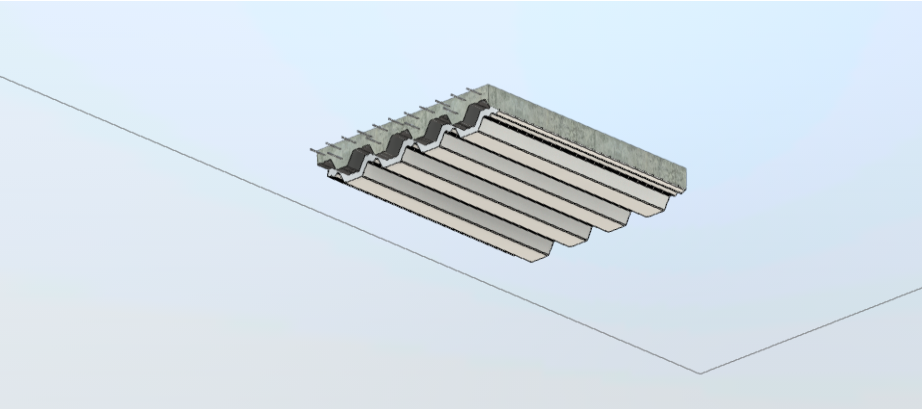

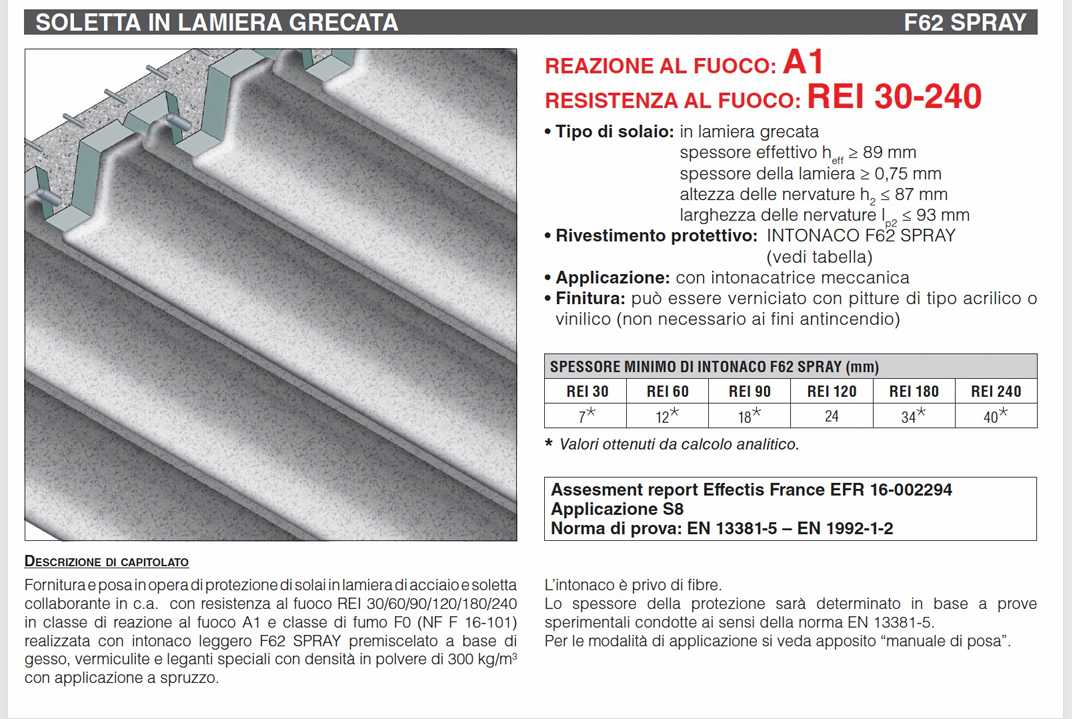

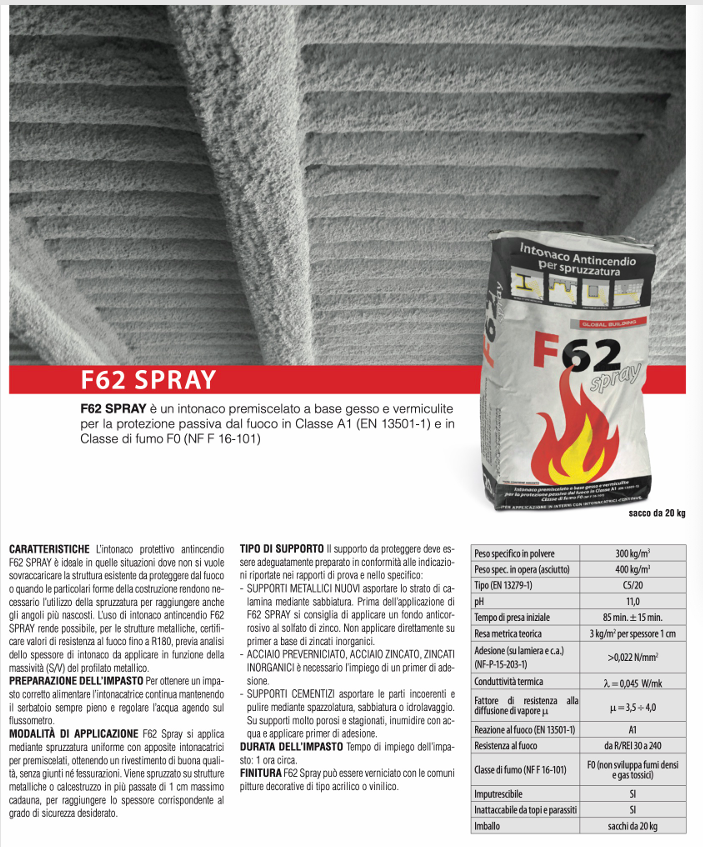

F62 Spray
Fire resistance: REI 30–240
-Slab type: corrugated steel decking;effective thickness hₑff ≥ 89 mmsteel sheet thickness ≥ 0.75 mm rib height h₂ ≤ 87 mm rib width lₚ₂ ≤ 93 mm
-Protective coating: F62 Spray fireproof plaster
-Application: mechanical spraying
-Finish: may be coated with acrylic or vinyl paints (not required for fire protection purposes)
