F62 Paint One is a two-component, solvent-based intumescent fire protection coating designed for application in both indoor and outdoor environments, even in the presence of light oxidation. This fire protection system provides fire resistance ratings of up to R120 with a single application coat, with dry film thicknesses of up to 6000 µm.
...Read moreF62 Paint One is a two-component, solvent-based intumescent fire protection coating designed for application in both indoor and outdoor environments, even in the presence of light oxidation. This fire protection system provides fire resistance ratings of up to R120 with a single application coat, with dry film thicknesses of up to 6000 µm.
As a low-VOC, two-component product, it allows high levels of fire protection to be achieved with reduced application and drying times. F62 Paint One can be spray-applied directly onto steel substrates without the need for a предварily applied two-component primer.

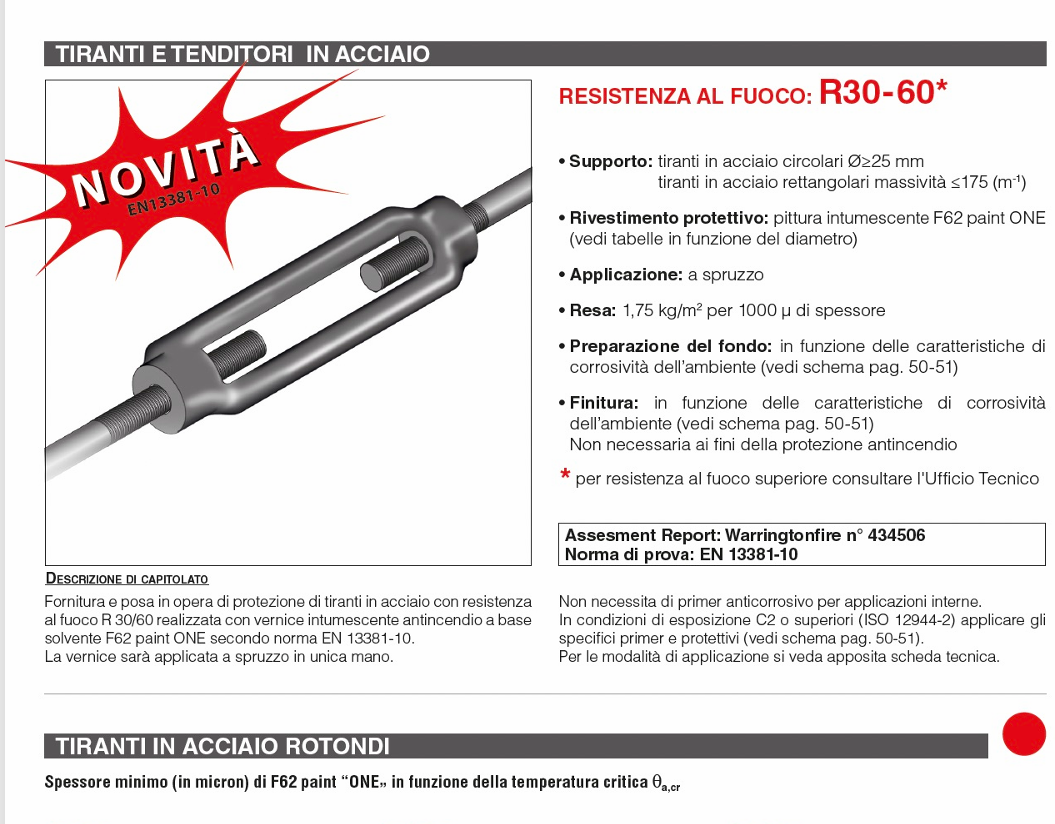

The advantages of applying F62 Paint One to steel tie rods and turnbuckles include a fire resistance rating of R30–60*. The product is suitable for use on circular steel tie rods with a diameter ≥ 25 mm and on rectangular steel tie rods with a section factor (massivity) ≤ 175 m⁻¹. Application is carried out by spray. Surface preparation and the selection of any finishing coat are determined according to the corrosivity category of the exposure environment; a finishing coat is not required for fire protection purposes.

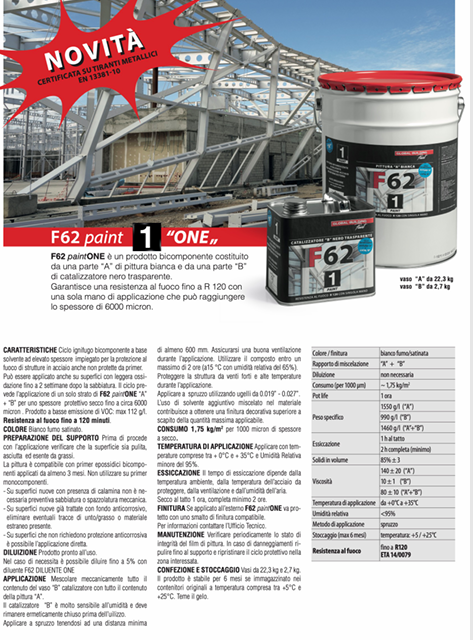

Elmo also makes available, via the Syncronia platform, the technical documentation required for the design of the F62 Paint One system for steel tie rods and turnbuckles. BIM professionals can access Revit files, while catalogs and detailed technical data sheets are provided for further technical reference. If you want, I can also adapt the translation to a more marketing-oriented tone or to a strictly normative/technical style.
