Fire resistance solutions, Protection for REI 120 Ceiling Lights and spotlights

For environments that require the highest compartmentation performance, the GB-LIGHT REI 120 ceiling light protection represents a benchmark solution. This protection system has been designed to be placed directly above the suspended ceiling opening, fitting closely to create a protective “shell” that complies with EN 1365-2 standards. Whether used with hollow clay block and concrete floors or more complex structural systems, GB-LIGHT ensures that fire remains confined, protecting both human life and building assets with unmatched reliability.

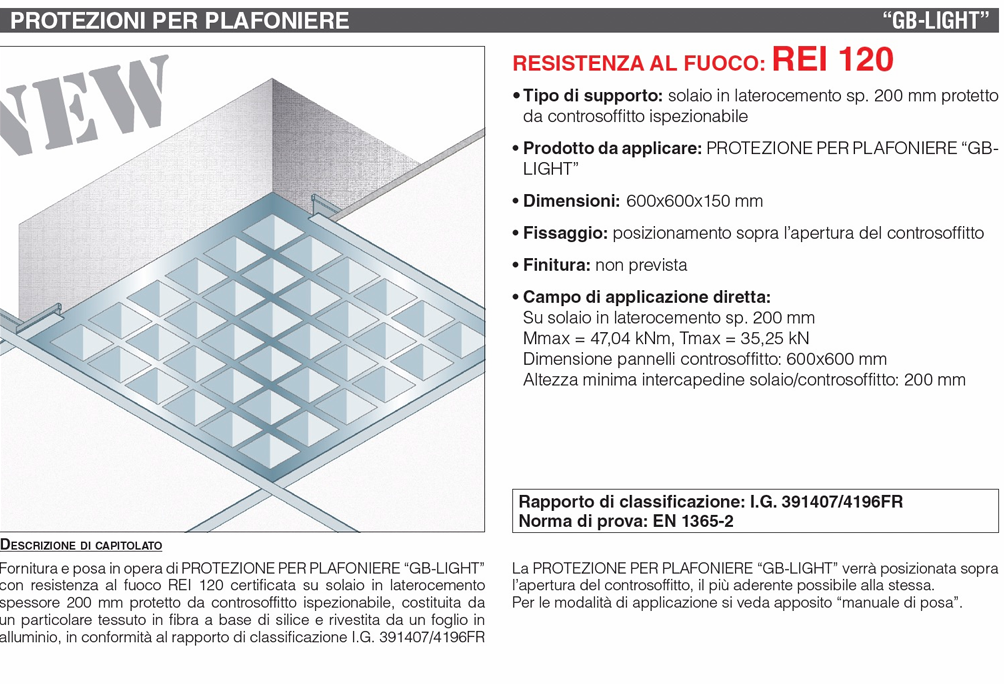

Technical Features

⦁    Support type: hollow clay block and concrete floor, thickness 200 mm, protected by an inspectable suspended ceiling
⦁    Product to be applied: “GB-LIGHT” ceiling light protection
⦁    Dimensions: 600 × 600 × 150 mm
⦁    Fixing: positioned above the suspended ceiling opening
⦁    Finish: not provided
⦁    Direct application field: on hollow clay block and concrete floor, thickness 200 mm
⦁    Mmax: 47.04 kNm
⦁    Tmax: 35.25 kN
⦁    Suspended ceiling panel size: 600 × 600 mm
⦁    Minimum cavity height between slab and suspended ceiling: 200 mm

Download

For your construction details, you can download 3D BIM, DWG, SKP and IFC files free of charge. Specification texts, catalogues and technical datasheets are also available.
