Inspection covers, F2 System - Aluminum inspection access panel with removable door

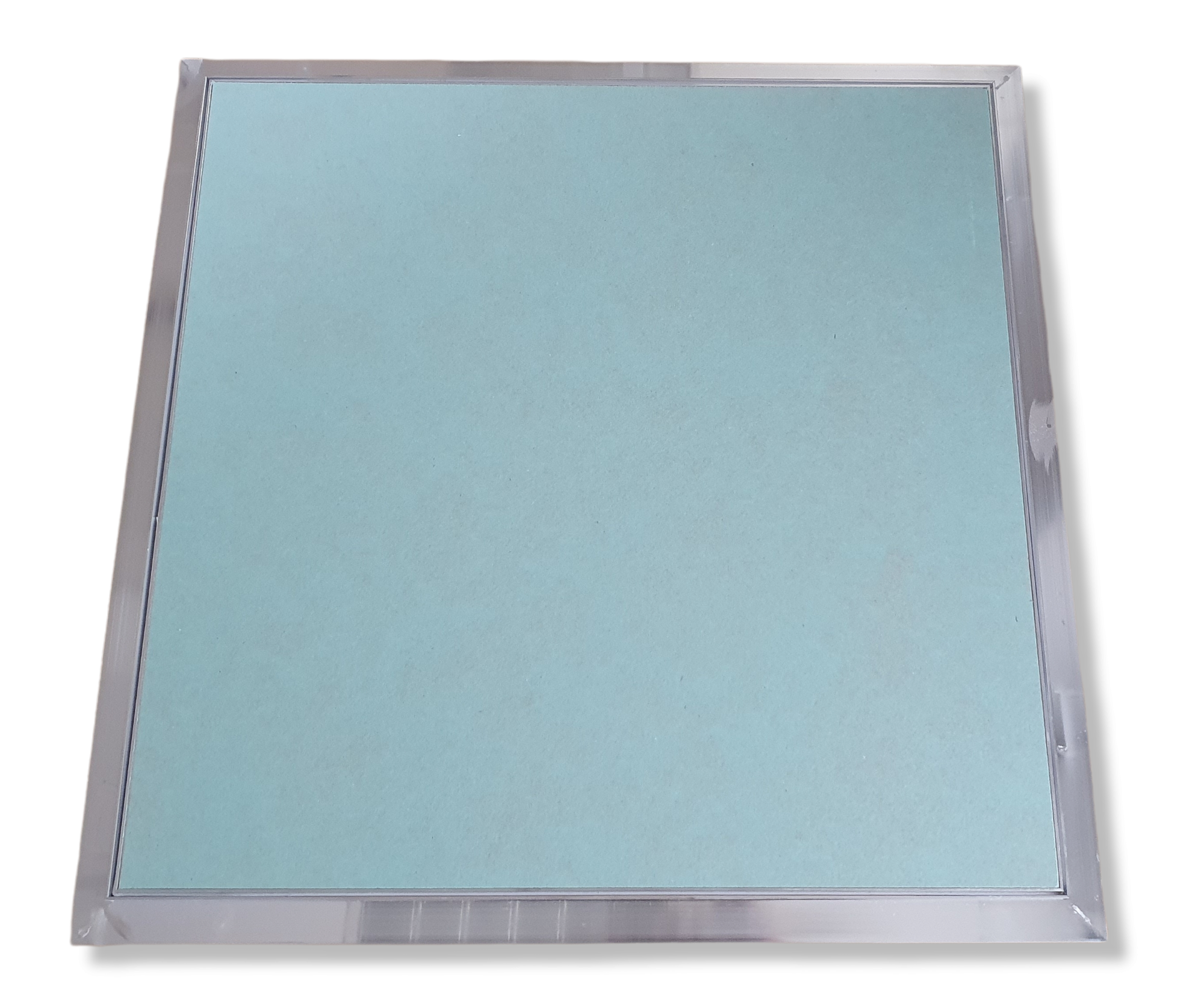

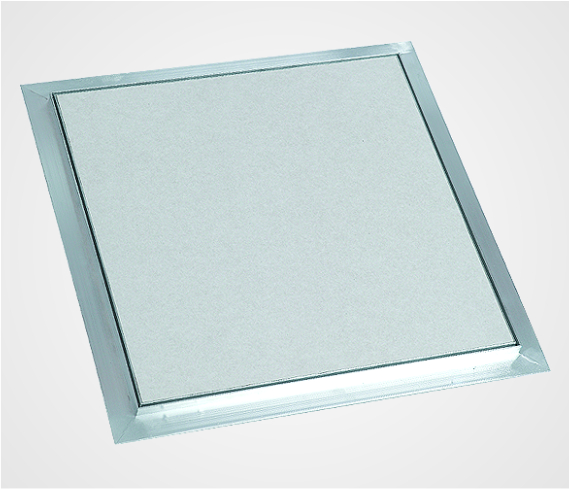

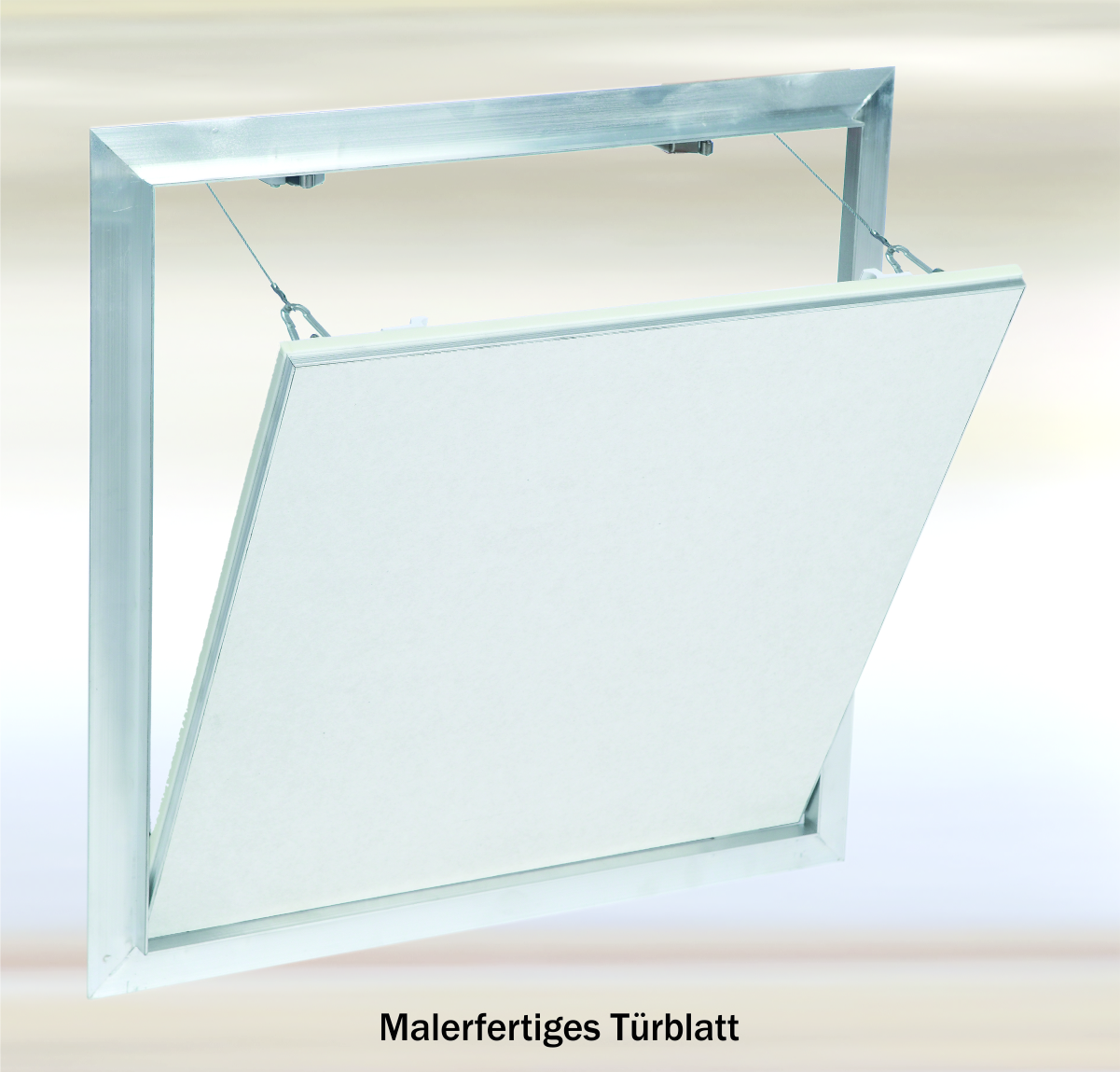

F2, the flush-to-wall access panel by FF Systems, is made of aluminum profiles combined with a moisture-resistant impregnated gypsum board panel, available in the following thicknesses: 12.5 mm, 15 mm, and 25 mm, and equipped with two or more snap latches.

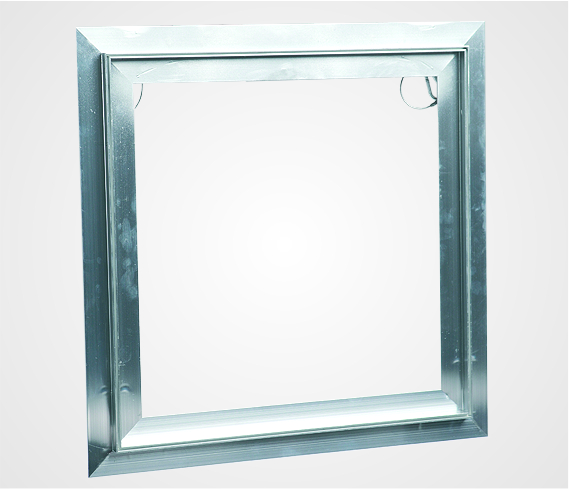

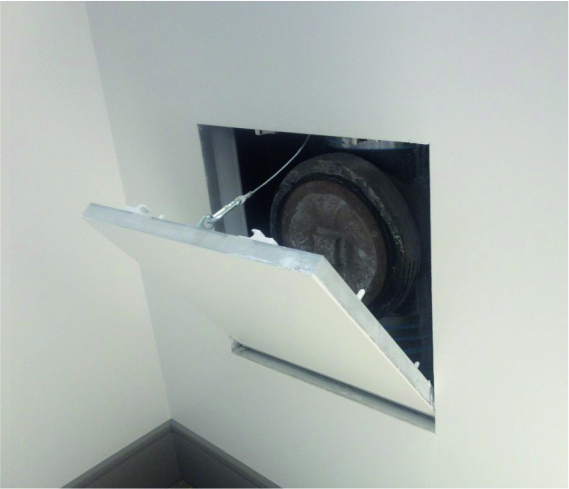

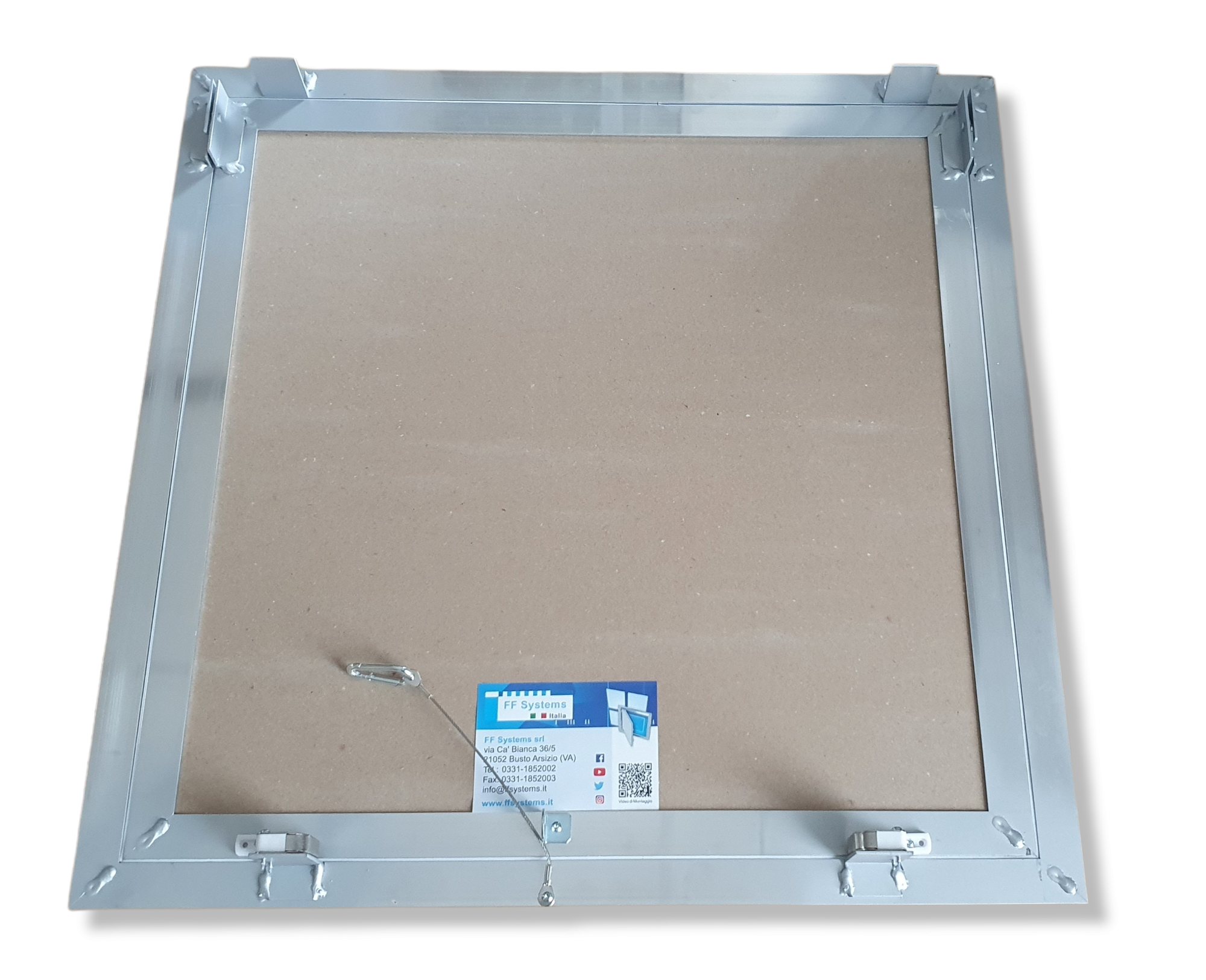

The access panel frame is composed of four profiles welded together using a special process. From the size 300 × 300 mm onwards, the panel is supplied with one or more safety cables with a snap hook, to be reattached after each opening.

Between the frame and the door there is a 1.75 mm gap, fitted with a profiled gasket that prevents the perception of light passing between the two elements.
The completely invisible snap latches allow the inspection hatch to be opened with a simple push.

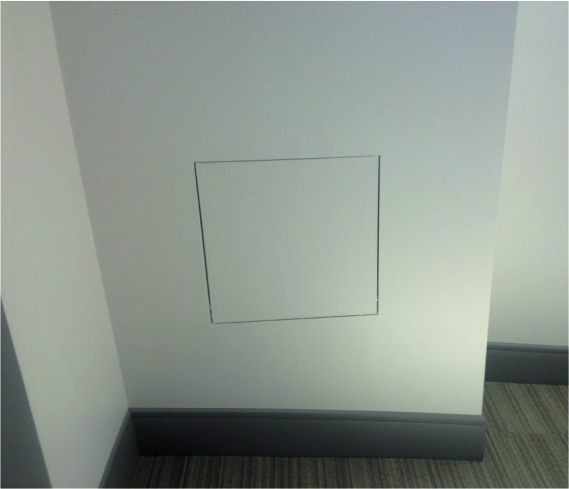

The door does not require joint filling and, unless otherwise specified, features no visible screws and is ready for painting.

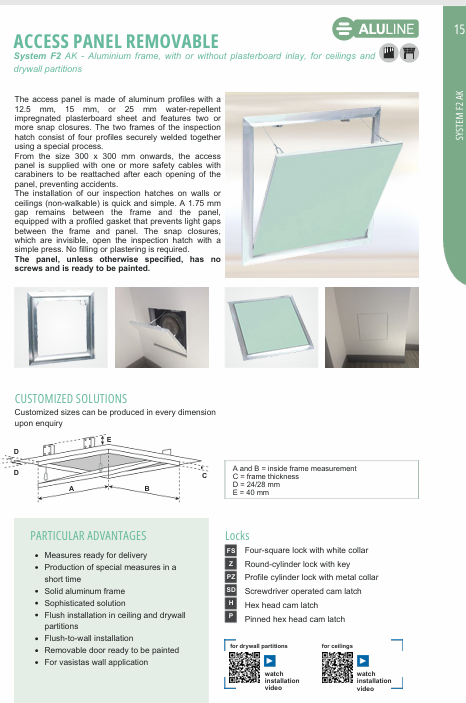

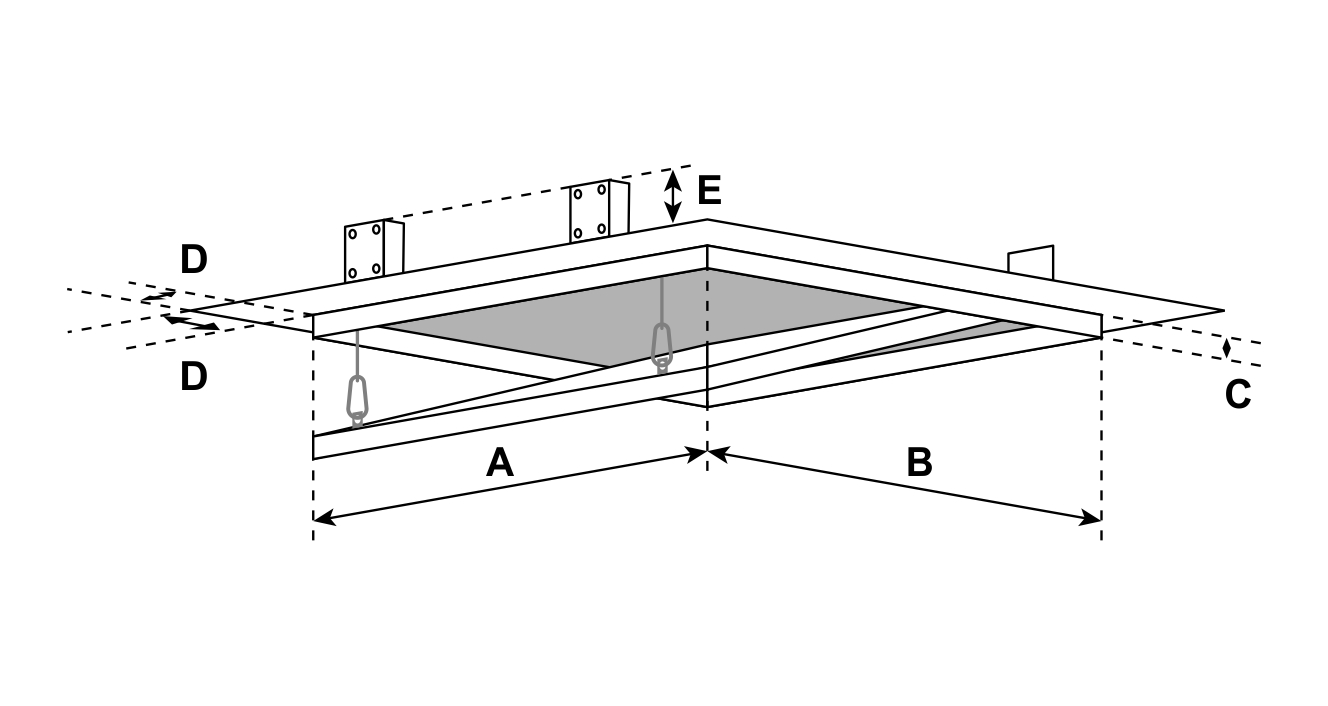

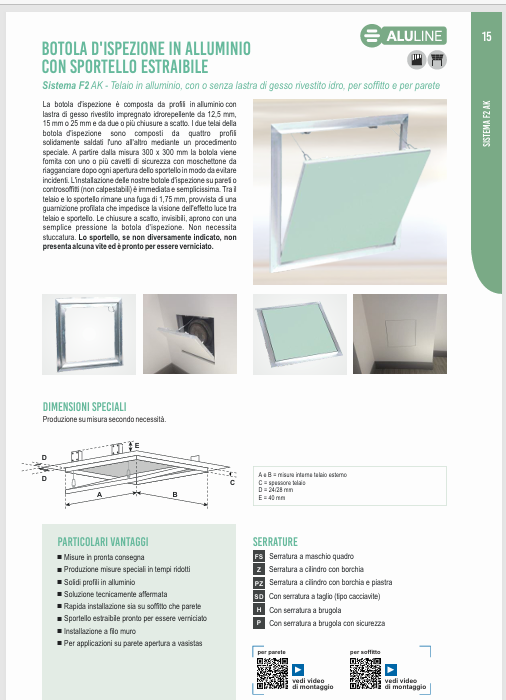

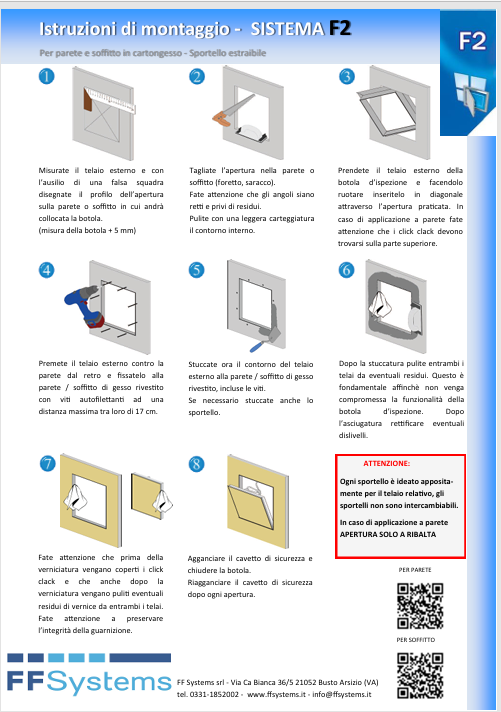

Would you like to discover the technical details of this product? Download the technical data sheets, technical drawings, images, and dedicated brochures for the F2 flush-to-wall access panel free of charge.
