Inspection covers, System F5 EI60 – Fire-Resistant Inspection Access Panel

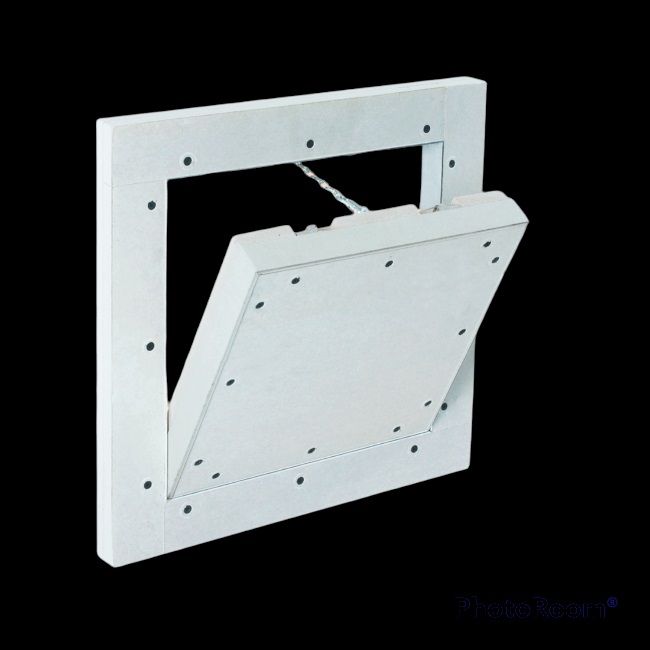

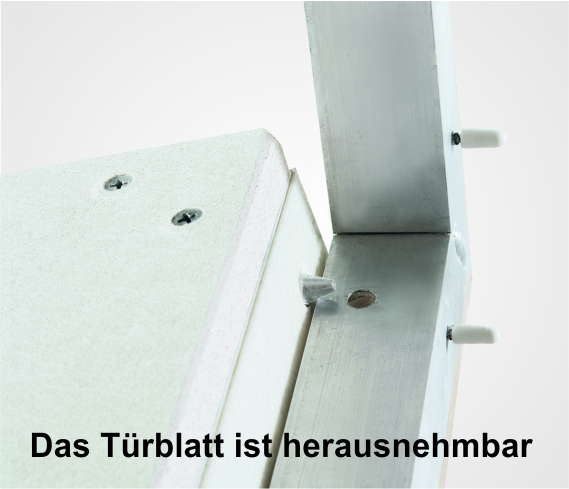

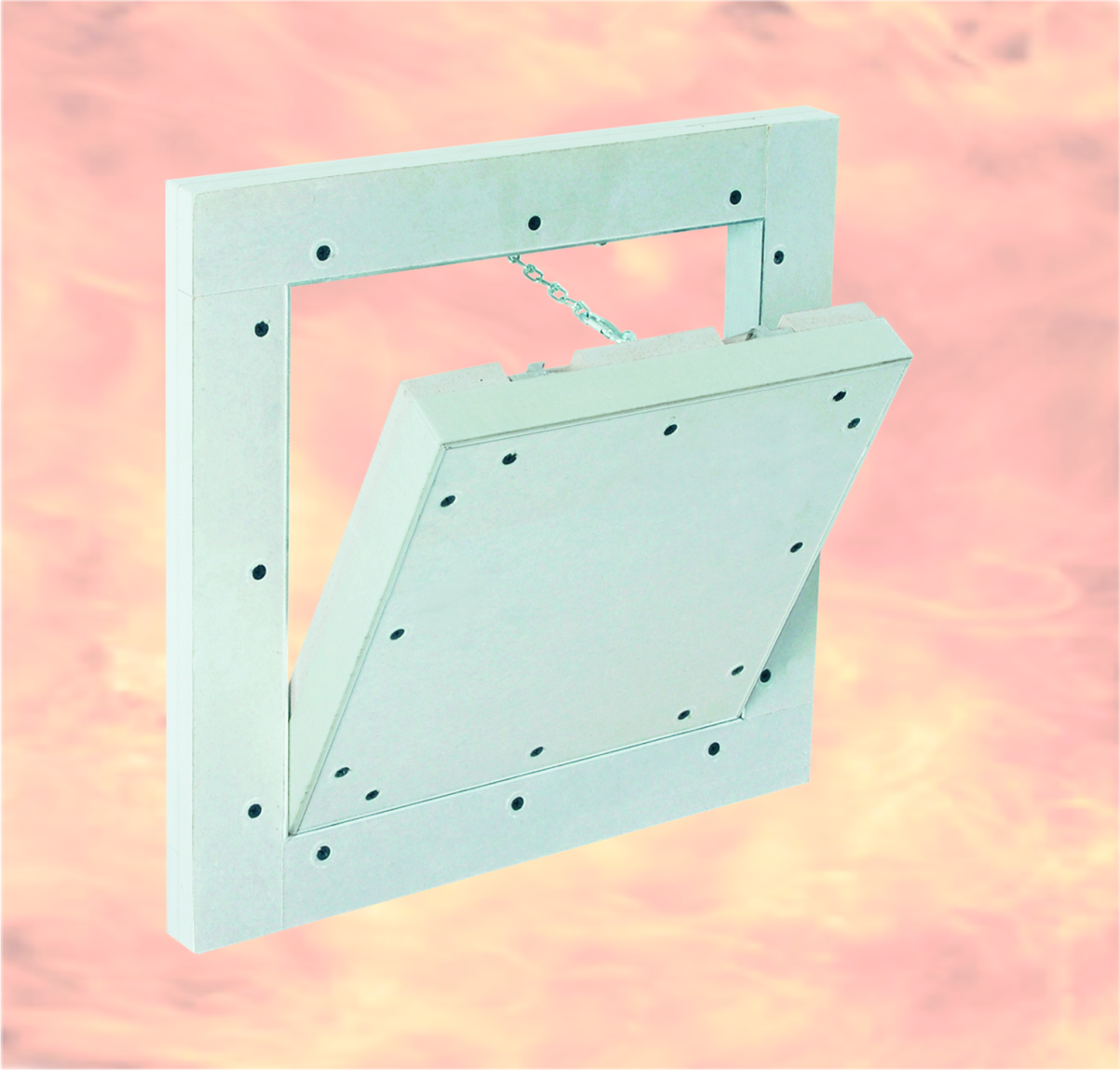

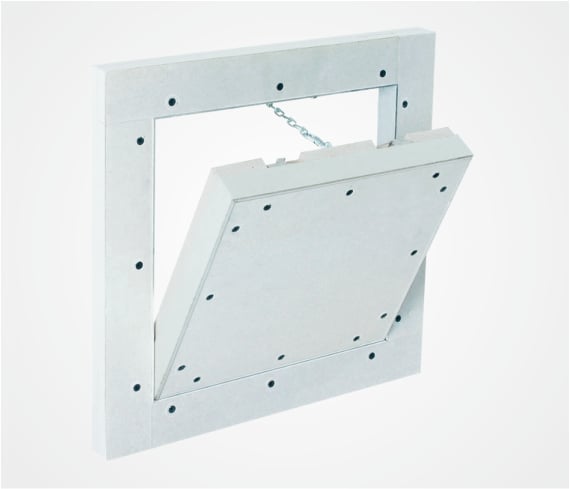

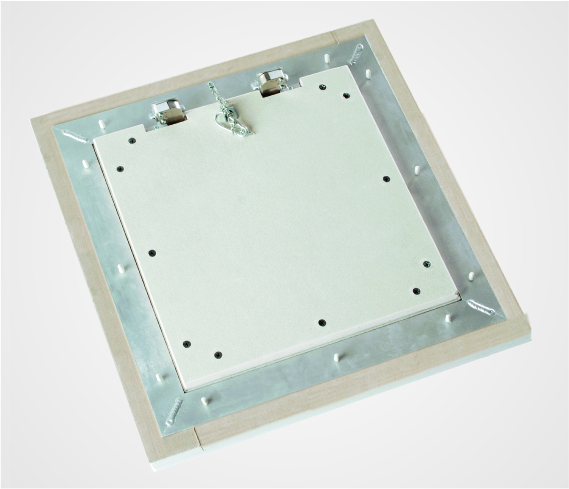

F5 EI 60 is an inspection hatch with aluminium profiles and a 30 mm GKF coated plasterboard panel and two or more snap closures. The two frames that make up the hatch are structured with profiles welded together with a 30 mm thick coated plasterboard frame.

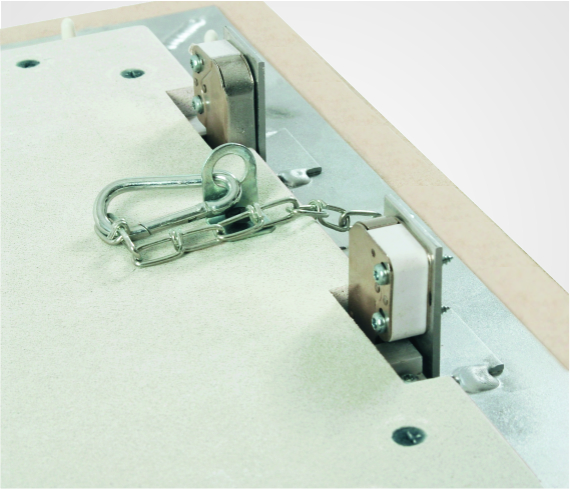

The system includes safety chains with integrated carabiners, which must be reattached correctly after each opening. The invisible snap locks allow the hatch to be opened with a simple push.

The 2.5mm gap between the frame and the door houses a gasket, designed to react to heat and seal the passage of smoke and flames.

Certifications and Dimensions

The hatch has passed the rigorous tests required by European standard EN1634-1. It has a BILATERAL certificate attesting to its resistance on both sides, covering generous dimensions up to a maximum of 800x800 mm.

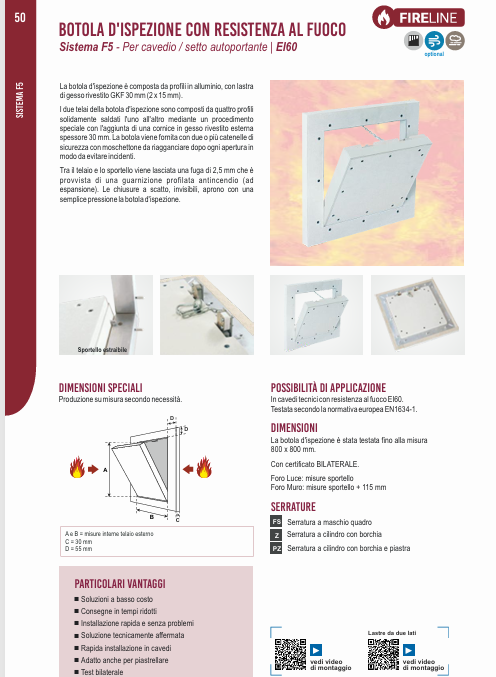

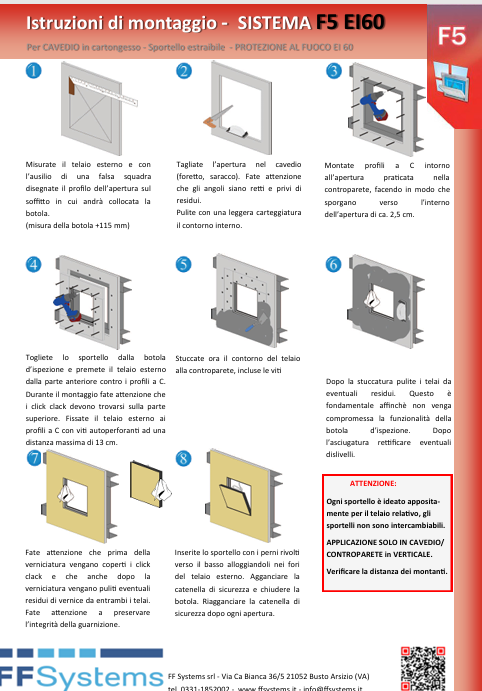

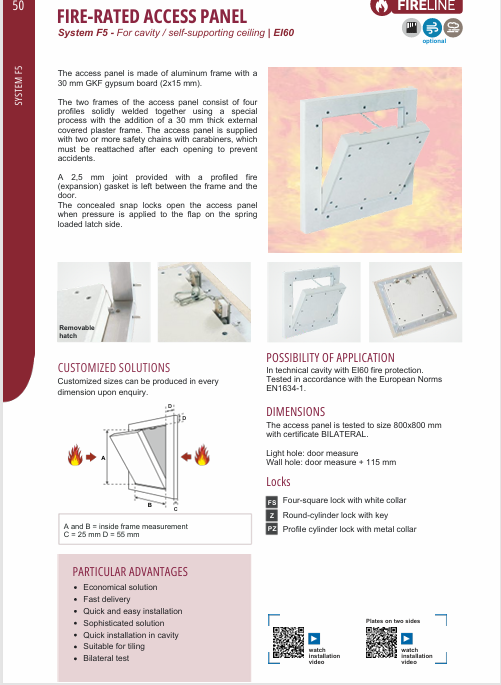

FF Systems provides designers with technical files, catalogues, technical information and assembly manuals on this Syncronia page in the dedicated section.
