Inspection manhole, ECO System - Inspection cover

What it is

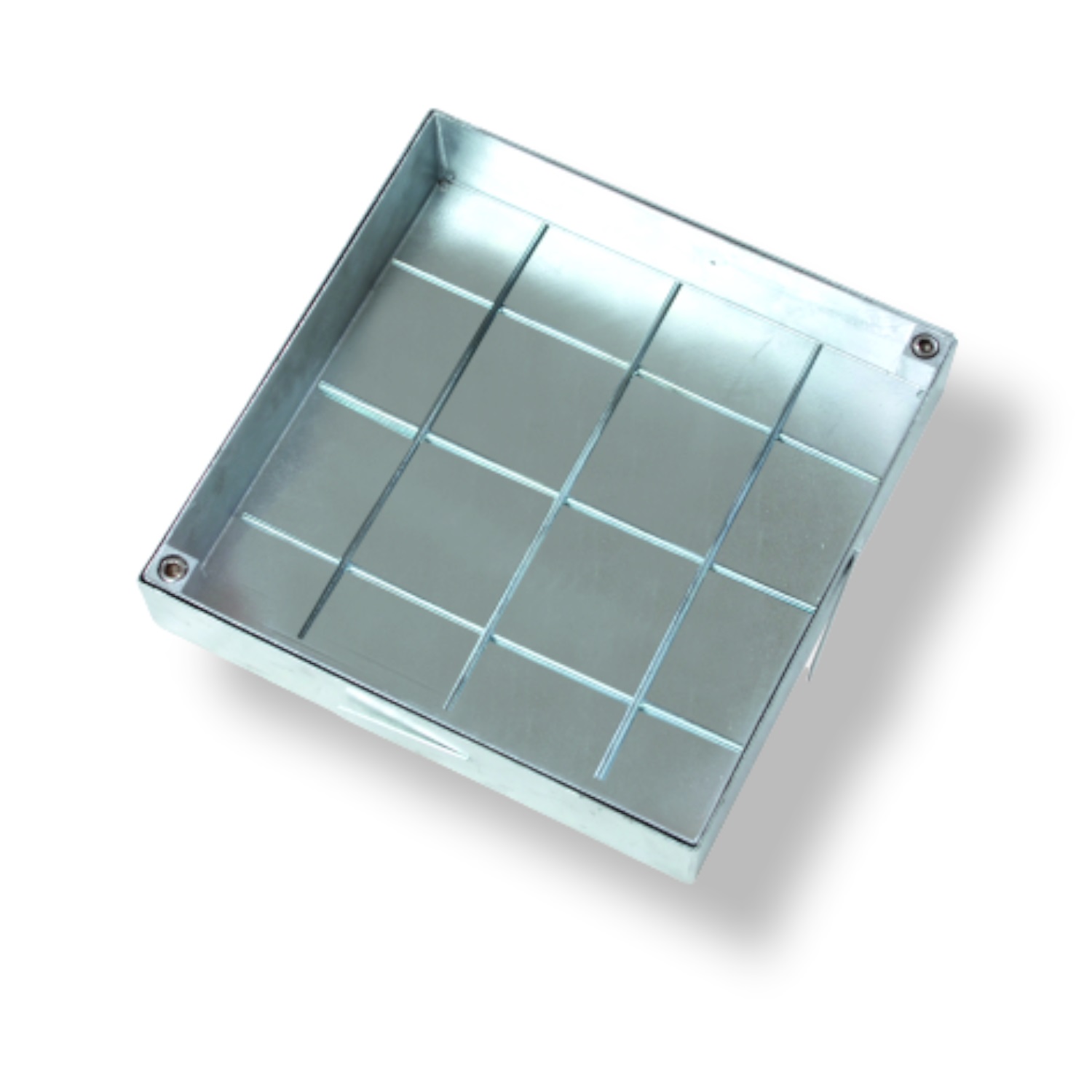

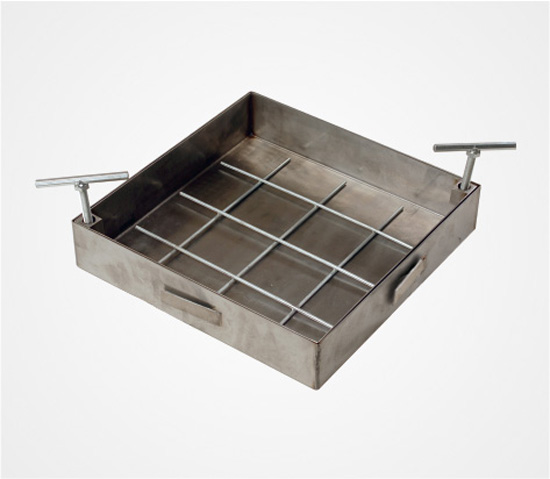

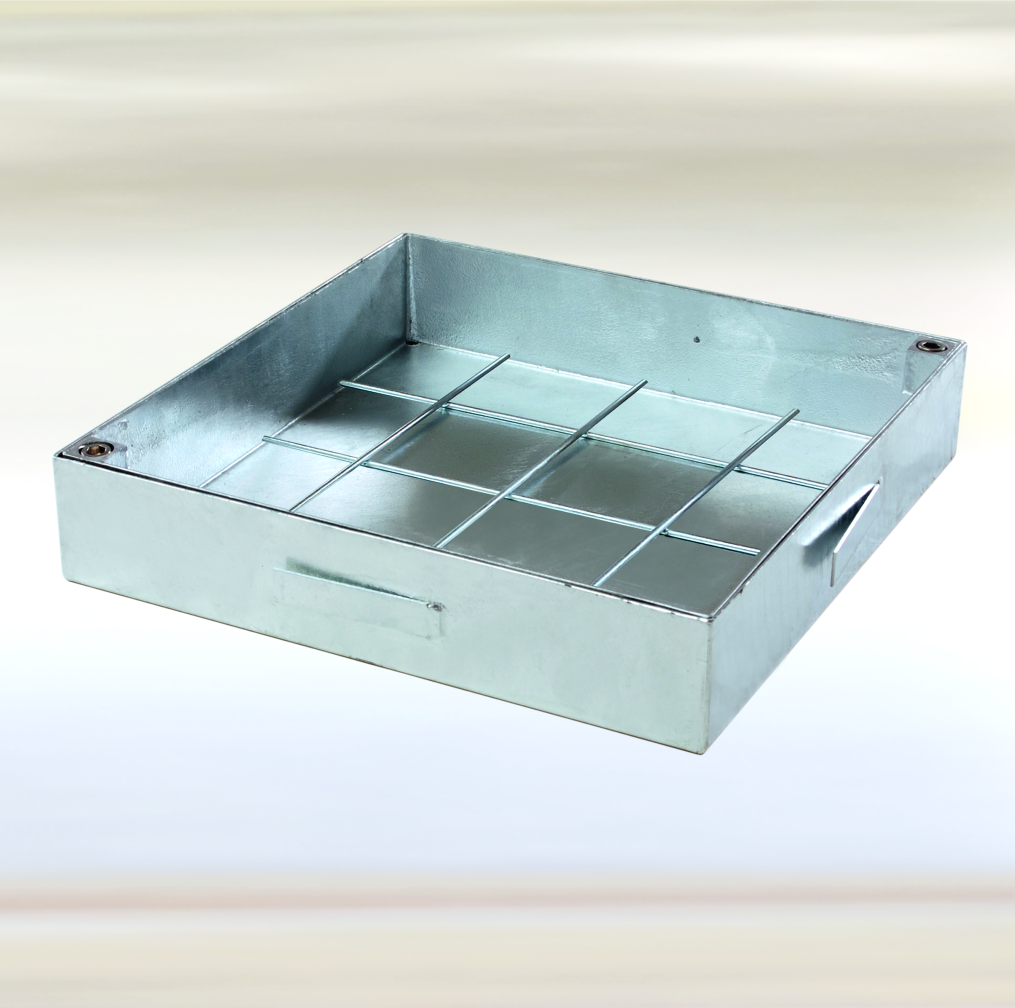

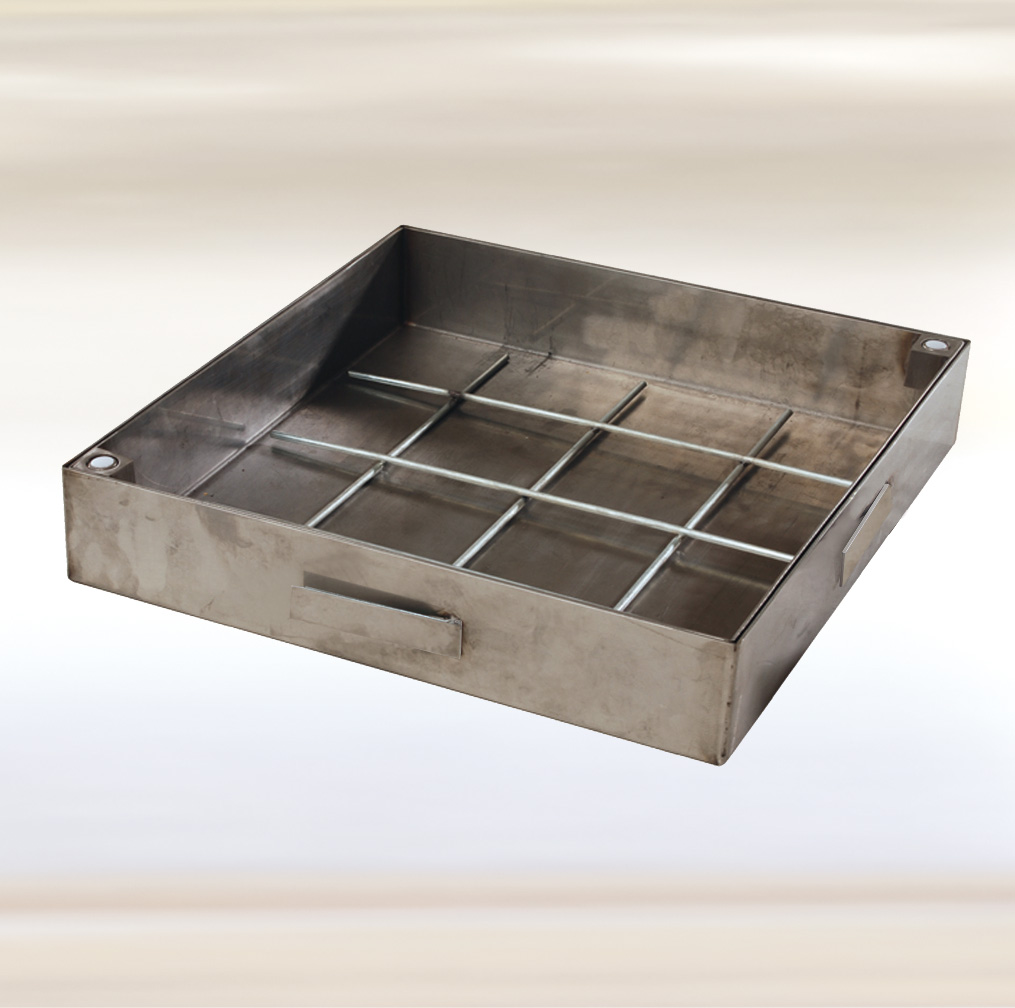

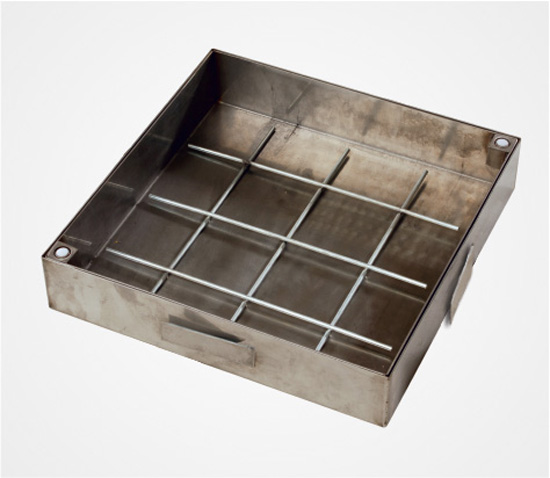

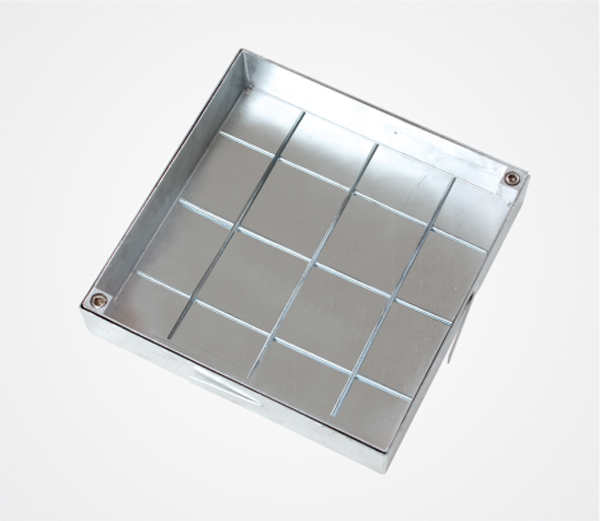

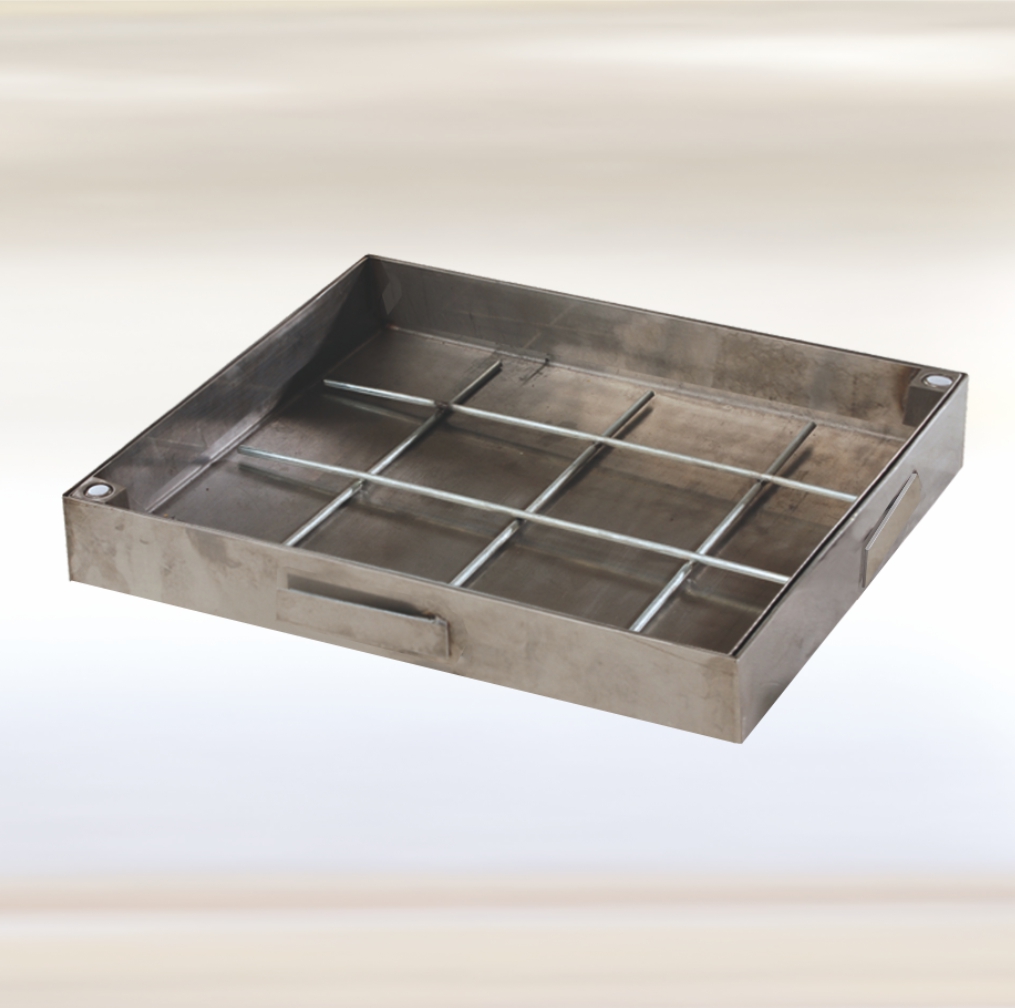

The ECO System is a fillable, removable floor access cover designed to be tile-/finish-in: frame and tray allow the surface finish (stone, tiles, concrete, resin, granite, wood and hard floors) while maintaining inspection access. It is available in hot-dip galvanized steel or stainless steel, with 2 mm thickness indicated.

Features & installation

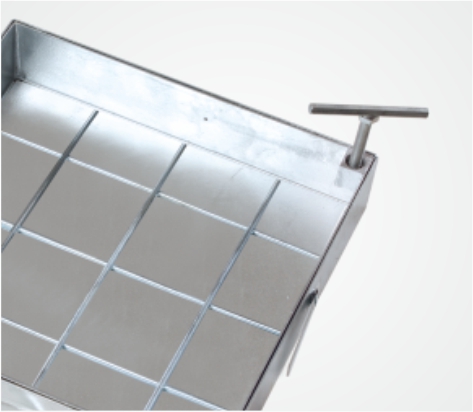

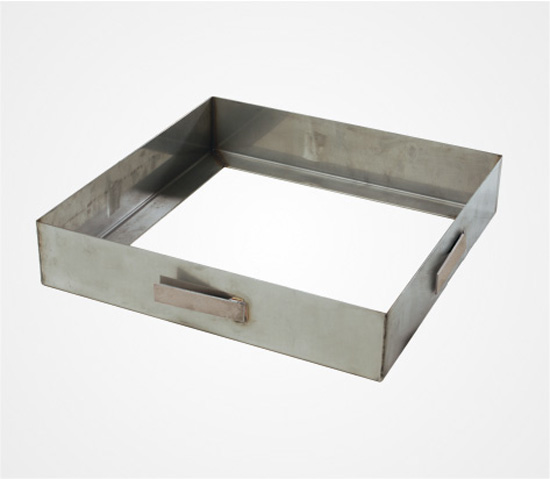

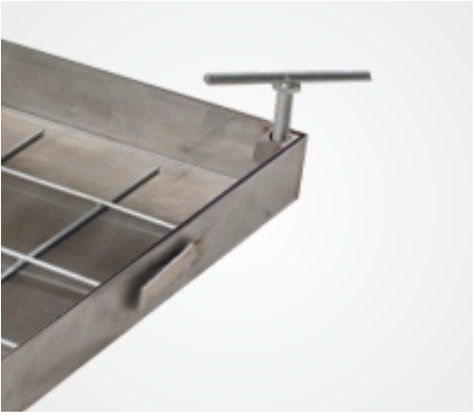

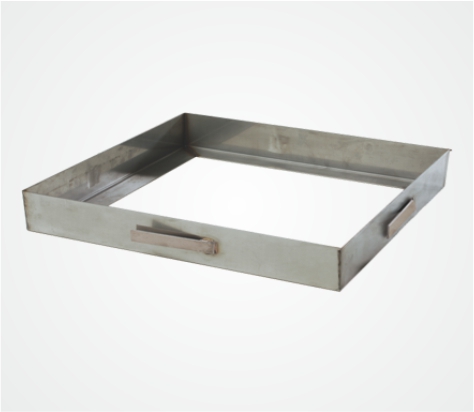

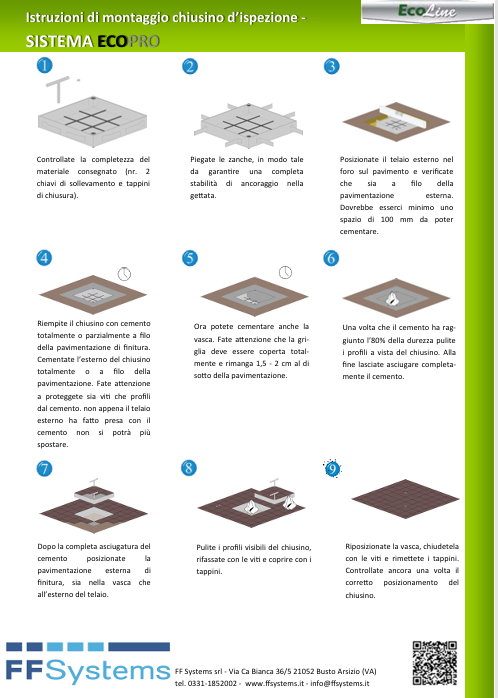

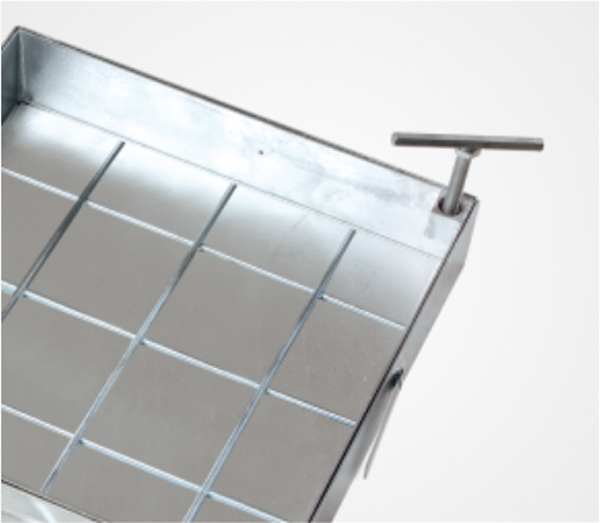

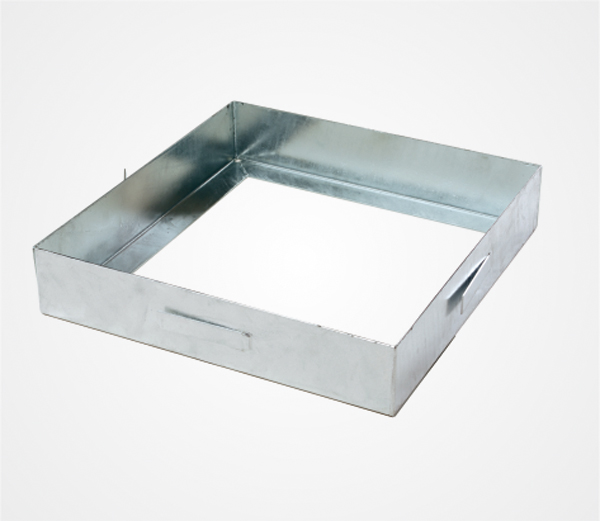

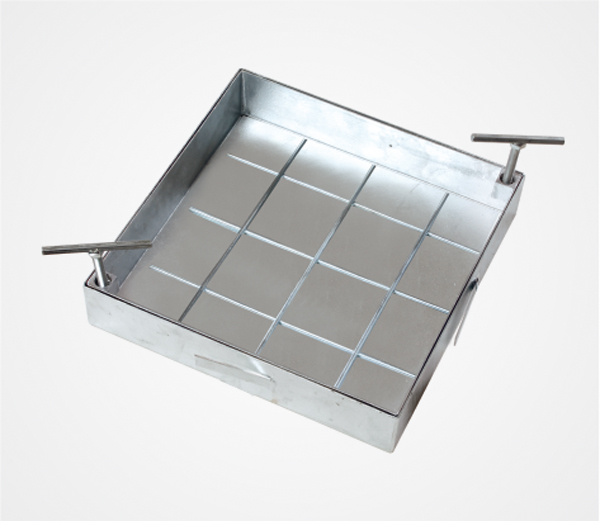

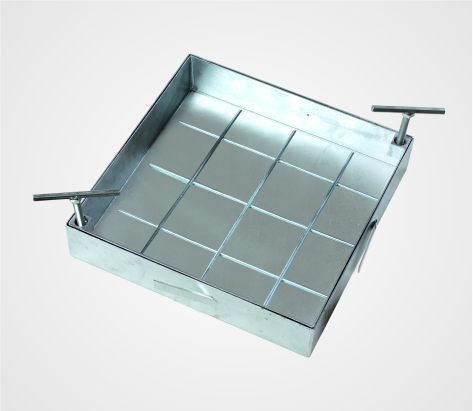

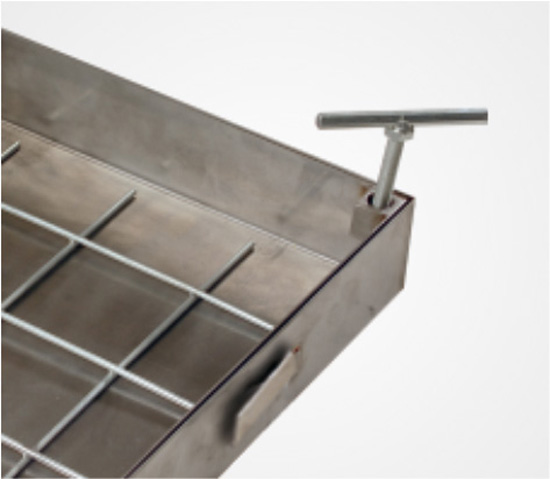

The frame is fixed by casting at floor level; afterwards, the tray can be filled and inserted into the frame. The cover is not fixed to the counterframe: the screws are used only to lift the cover with the lifting key supplied. Tray depths are available in 50 mm and 120 mm; as a reference, the clear opening is indicated as external frame size – 80 mm.

Performance

The system indicates load capability up to Class D400 according to EN 124, supporting projects where the inspection point must coordinate with higher load areas (depending on configuration).

Benefits (and notes)

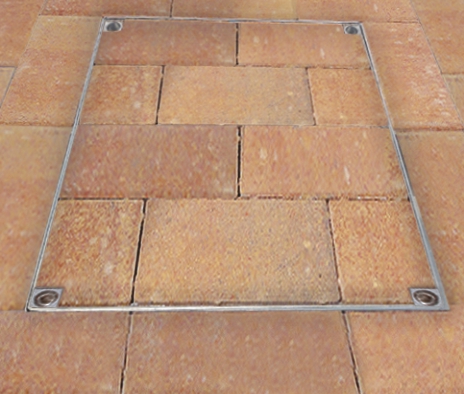

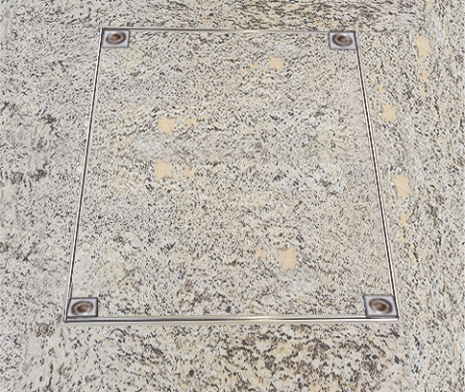

⦁    Aesthetic integration: the finish can visually “disappear” into the floor.
⦁    Conical design is indicated to make opening easier.
⦁    Note: performance depends on correct filling, flatness, and concrete pour detailing.

The FF Systems range also includes dedicated fire systems and fire-rated manhole covers.

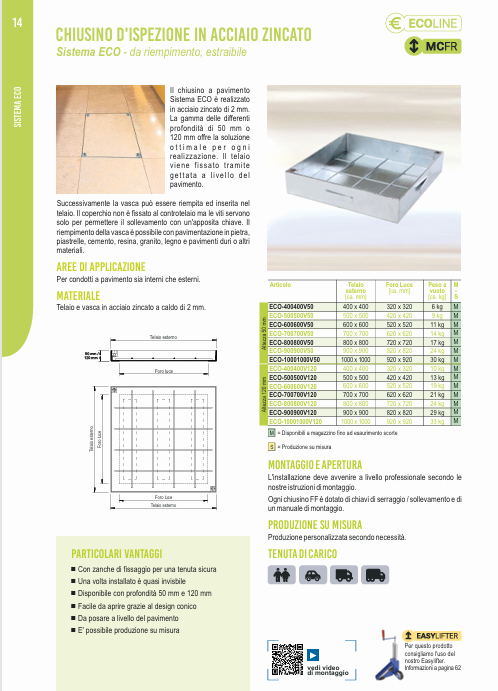

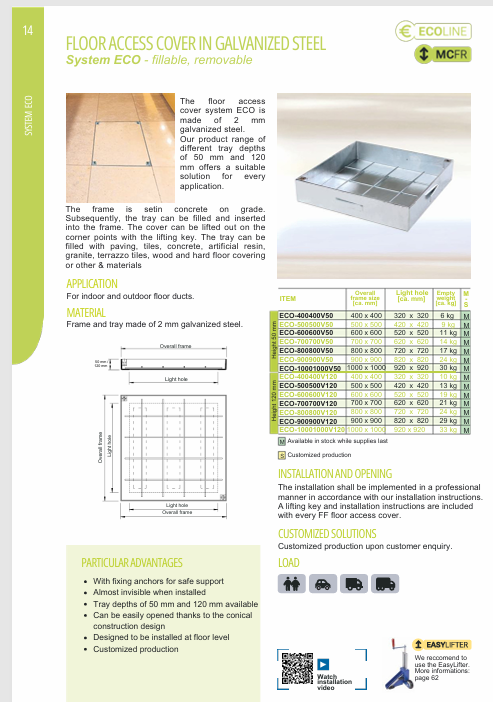

On Syncronia, you can download for free official images, catalogues, and ECO technical data sheets: information files (not CAD/3D) with the details needed for project integration.
