Inspection manhole, PRO+SLIM System - Inspection manhole cover

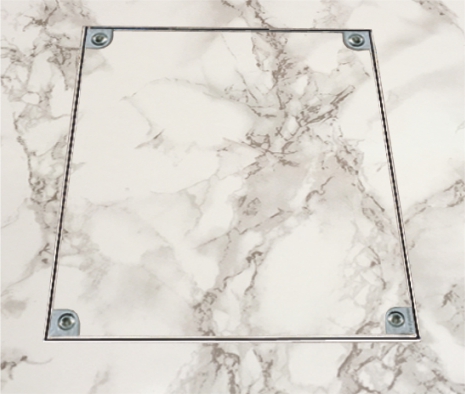

The PRO+SLIM floor inspection cover is designed to provide a clean, flush access to service ducts: the frame is cast level with the floor, and the basin can be filled with the chosen finish (e.g., tiles, concrete, resin, granite, wood, hard floors, or other materials).

Key features

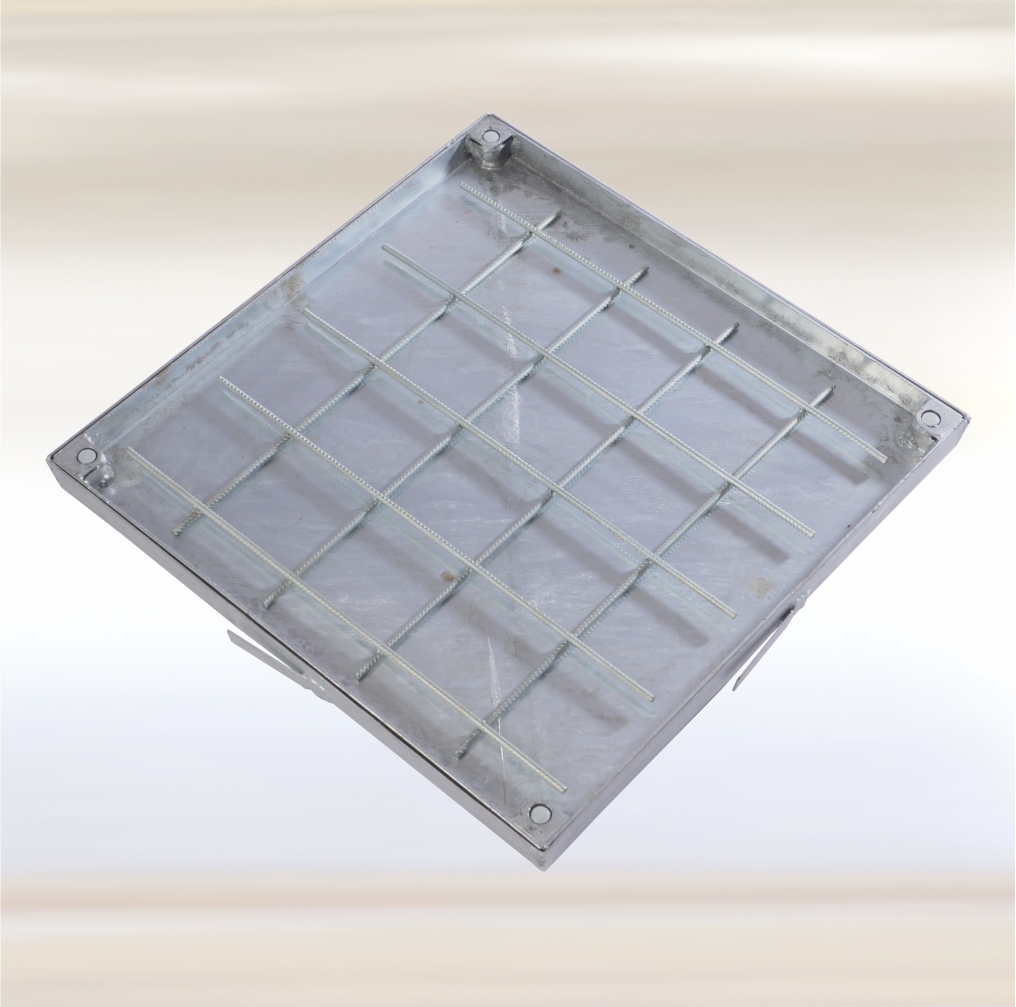

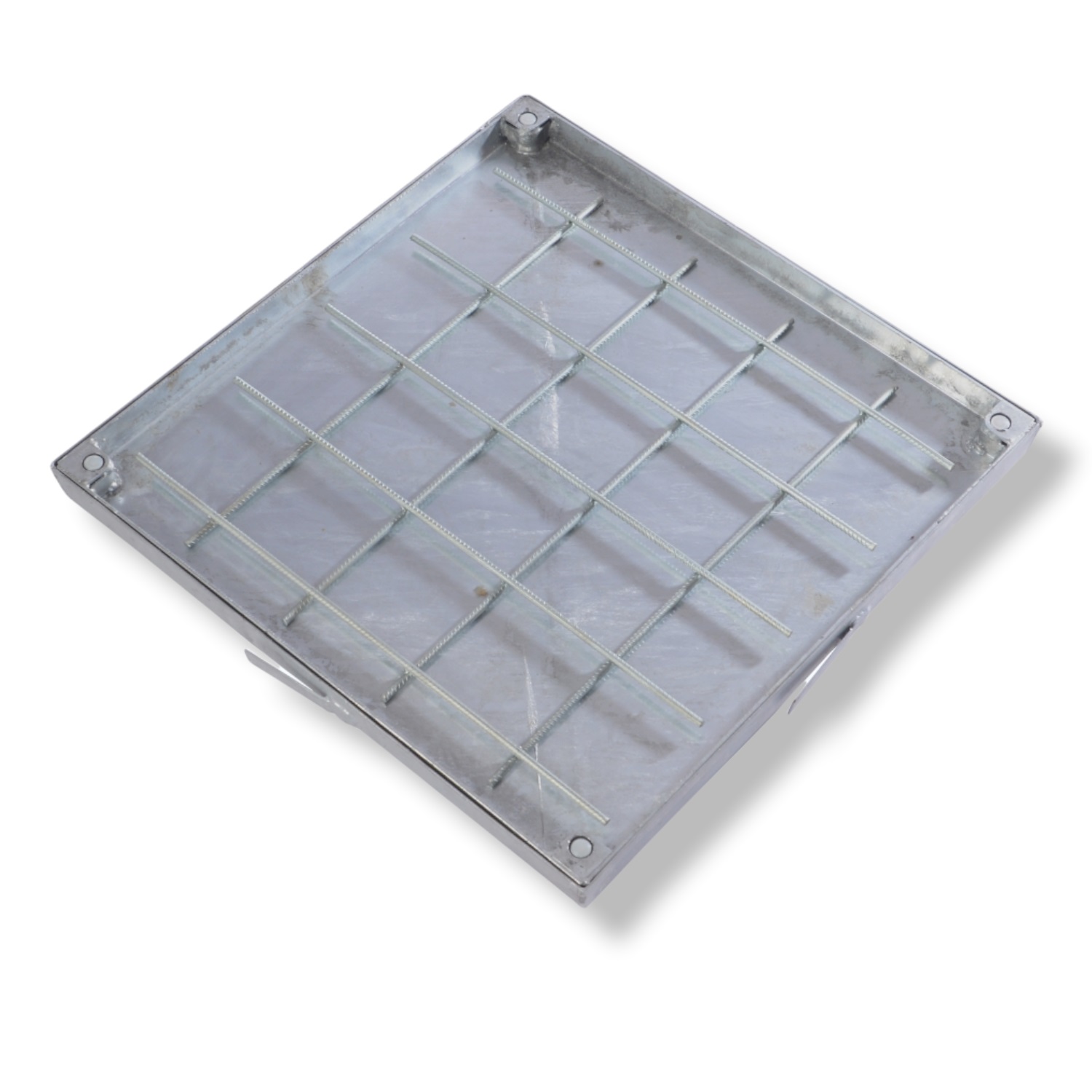

⦁    Made of 2 mm thick hot-dip galvanized steel.
⦁    27 mm basin depth and 50 mm installation height.

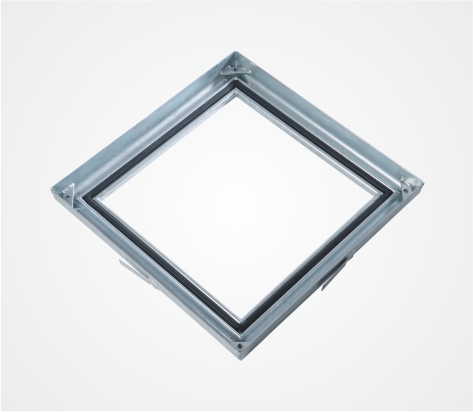

⦁    Frame with a special gasket resistant to frost and atmospheric agents, protecting against infiltration and odour leakage.

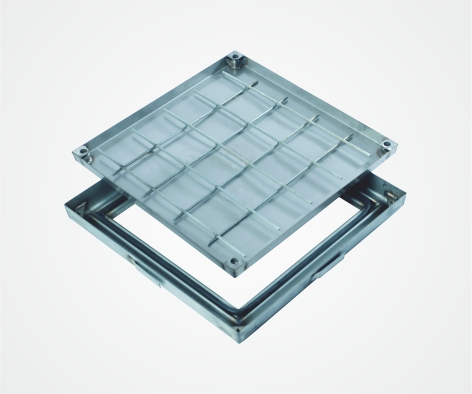

⦁    Lid fixed with tightening screws; removable with the supplied special lifting key.
⦁    Load rating up to Class A15 according to EN 124; suitable for floor ducts both indoors and outdoors.

Design advantages

Compact overall build-up, “invisible” finish thanks to the fillable basin, and a practical inspection cover concept for planned maintenance access.

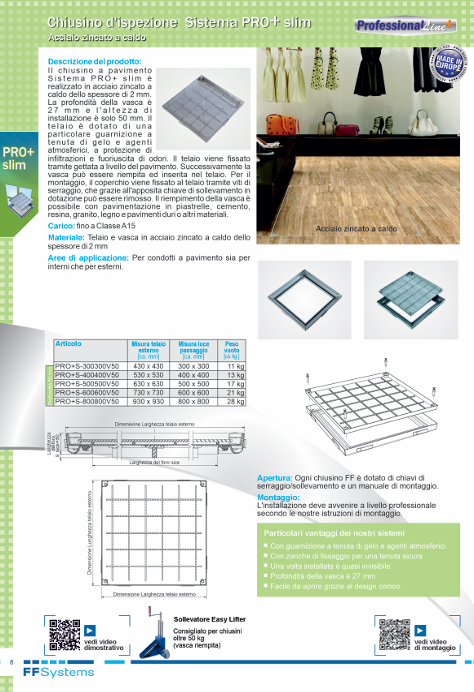

On Syncronia, you can download for free images, catalogs, PRO+SLIM System galvanized steel technical sheets, and the files containing the information you need to specify it in your project.
