Inspection manhole, MA-GB System – Floor access cover

What it is

MA-GB is a stainless steel floor access cover designed for maintenance and inspection points that need frequent opening, thanks to assisted opening.

Technical features

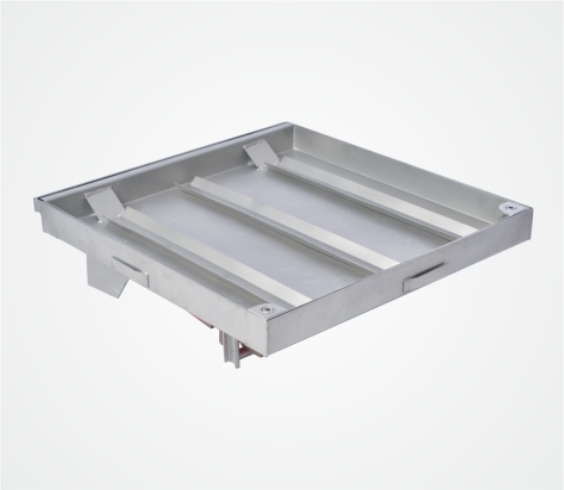

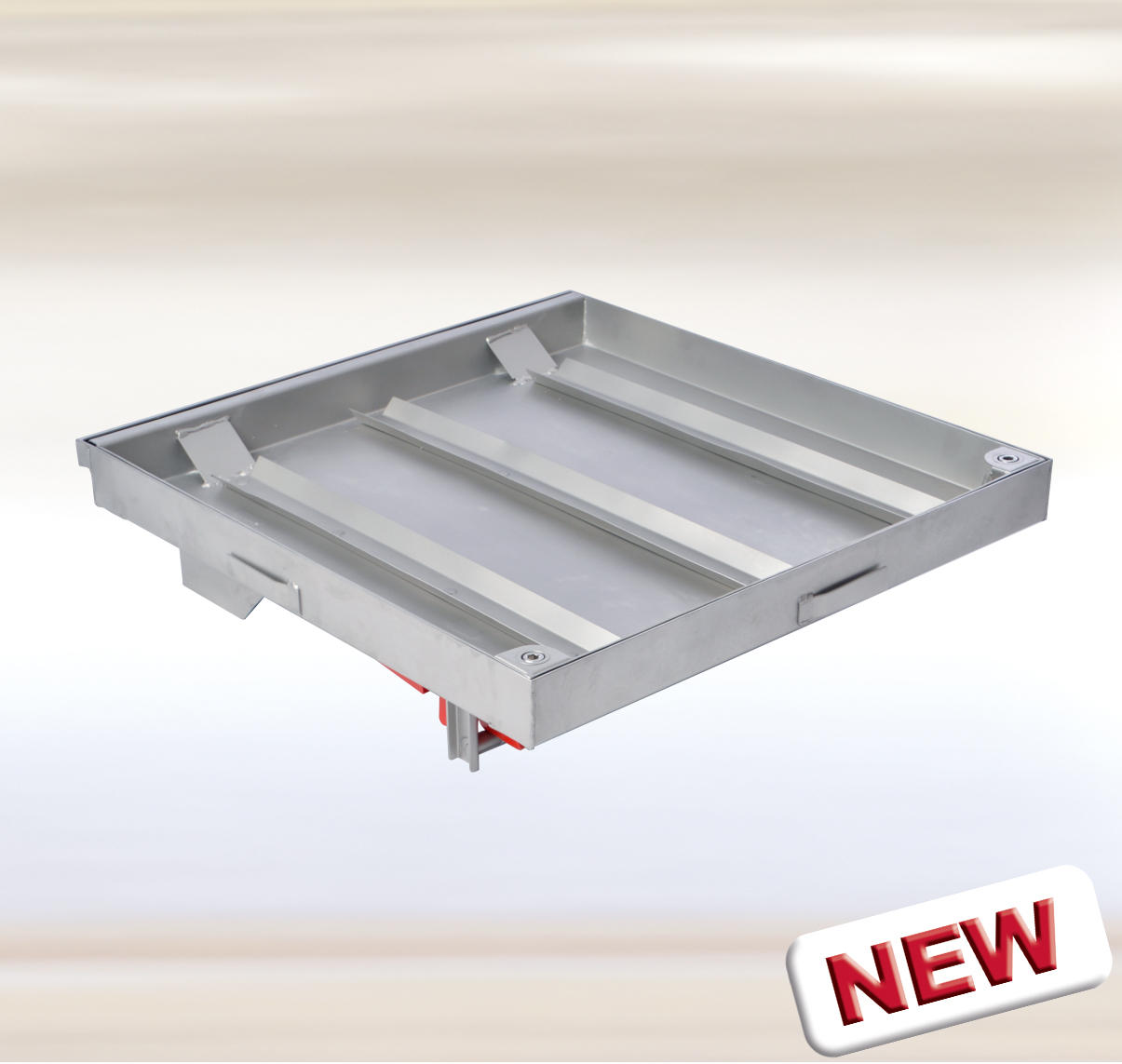

Made of stainless steel, 2.5 mm thick, with 50 mm tray depth and 75 mm installation height. The frame includes a special frost- and weather-resistant seal, installed flush by casting, followed by tray insertion.

Key benefits

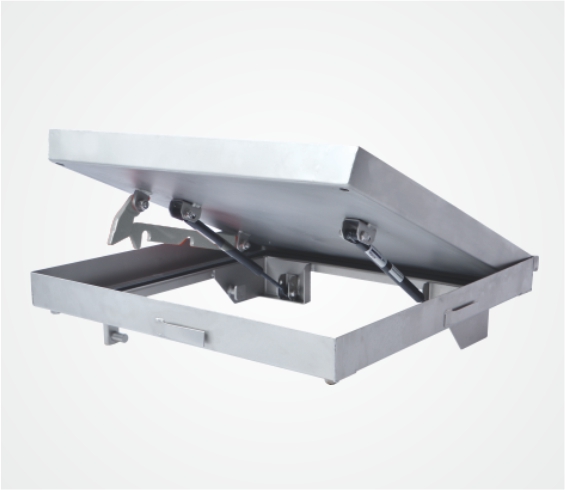

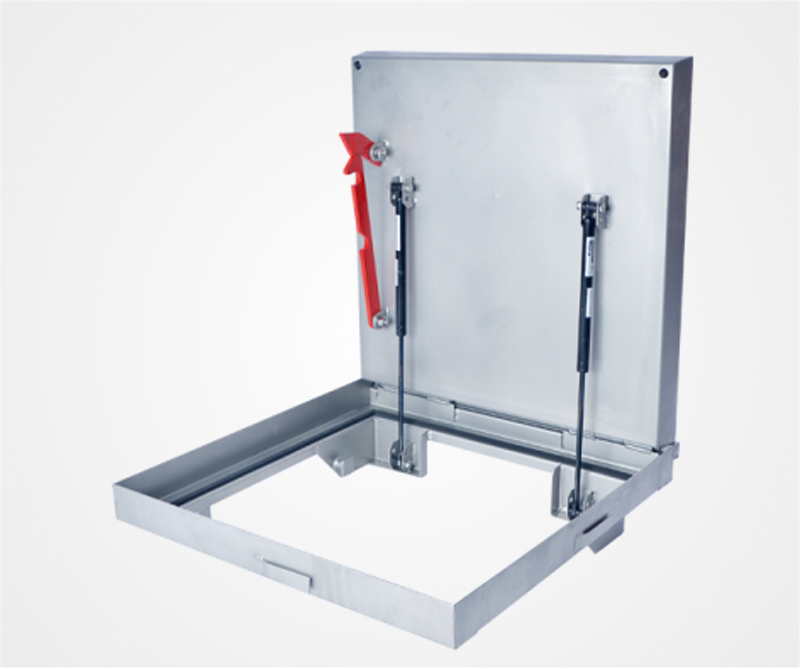

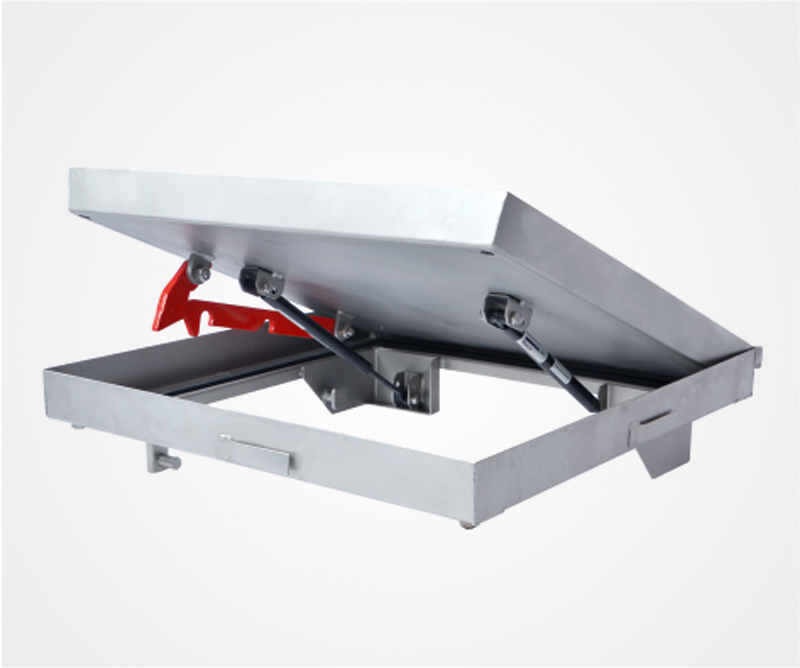

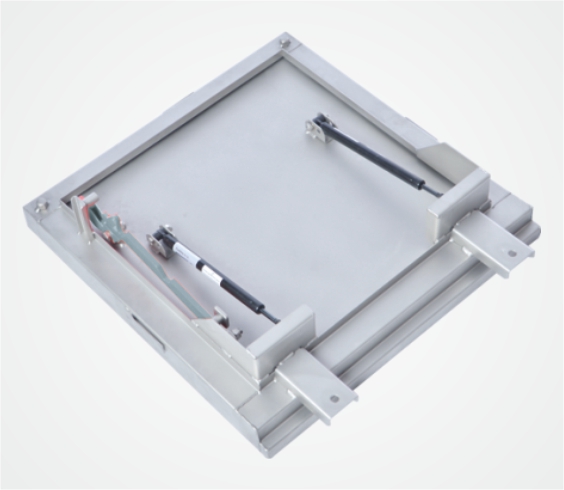

⦁    Opening supported by two high-quality gas pistons, operable by a single person

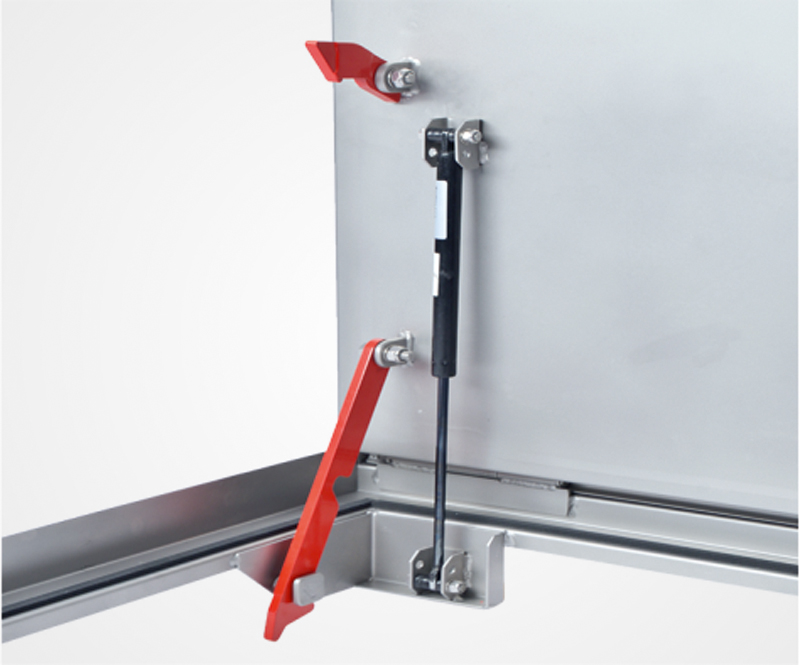

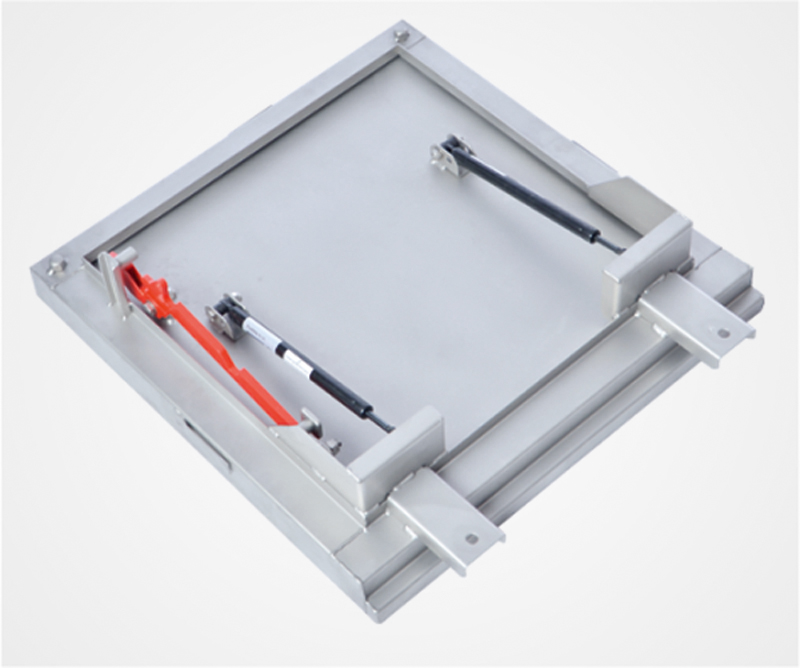

⦁    Fall-protection device for safety

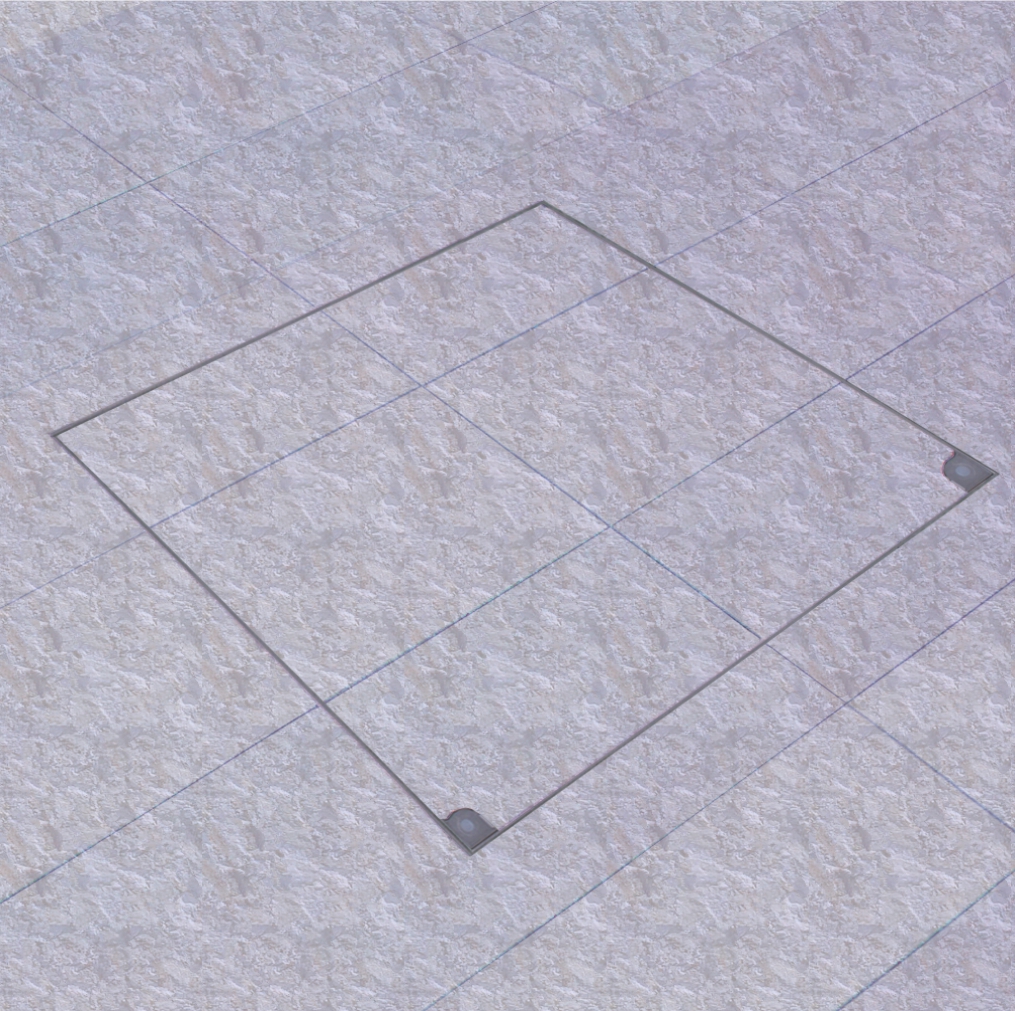

⦁    Tray fill options include stone, tiles, concrete, resin, granite, wood and other hard flooring materials
⦁    External frame size: clear opening + 101/124 mm

Performance & use cases

Load up to Class B125 according to EN 124; suitable for covers opened frequently and without particular effort—FF Systems mentions regular maintenance inspections (including pools as an example).

Download on Syncronia

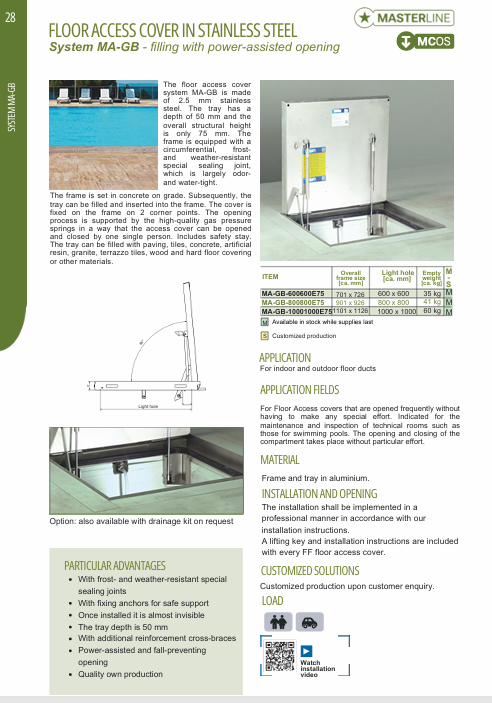

On Syncronia, download for free images, catalogues, technical datasheets and project-useful files: search MA-GB technical datasheet download and stainless steel floor access covers catalogue.
