Poles, Tube Urban lighting

Tube pole is an outdoor lighting element that combines functionality and minimalist design through a clean, contemporary formal language. Its refined lines and solid structure integrate naturally into urban and architectural contexts, both classic and modern, helping to create an orderly and harmonious landscape. Its compact, well-balanced volume becomes a subtle yet recognizable luminous feature, ideal for defining and illuminating avenues, squares, pedestrian areas, and public or private spaces. Designed to integrate seamlessly into projects focused on urban quality, Tube pole provides functional and efficient lighting, enhancing the environment with restraint and stylistic coherence, and becoming an integral part of the spatial design.

Technical specifications

The product features a body made of extruded primary aluminum, while the head and flange are die-cast in EN 44300 aluminum alloy, characterized by an extremely low copper content. For the closing diffusers, polymethyl methacrylate (PMMA) is used instead of traditional polycarbonate (PC), ensuring high transparency, excellent resistance to UV rays, and increased scratch resistance. The ground-fixing flange is fully integrated and concealed. All screws are made of A4 stainless steel.

The surface treatment includes a galvanic anodizing process divided into several stages: mechanical satin finishing, surface degreasing, anodic oxidation, and final sealing. To complete the process, the product is coated using an in-line double-layer system consisting of an epoxy-based primer and a polyester-based topcoat, creating a single, high-thickness protective layer. The combination of anodizing and coating provides effective protection against atmospheric agents and UV radiation, ensuring corrosion resistance performance in salt spray tests that significantly exceeds market standards.

From this page you can freely download useful files for design purposes. Specifically, the following materials are available for free download:

• BIM files

• 2D CAD DWG files

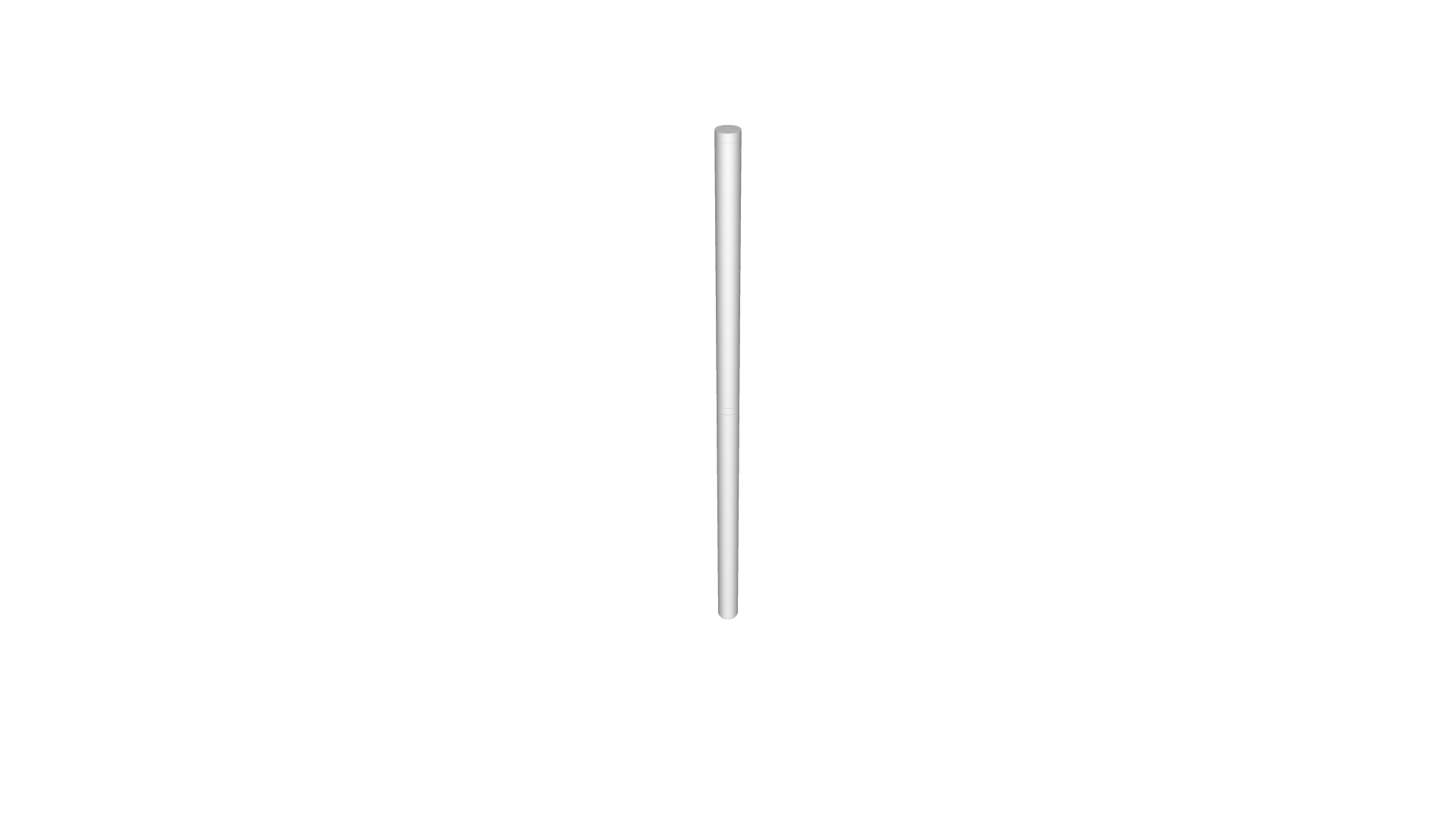

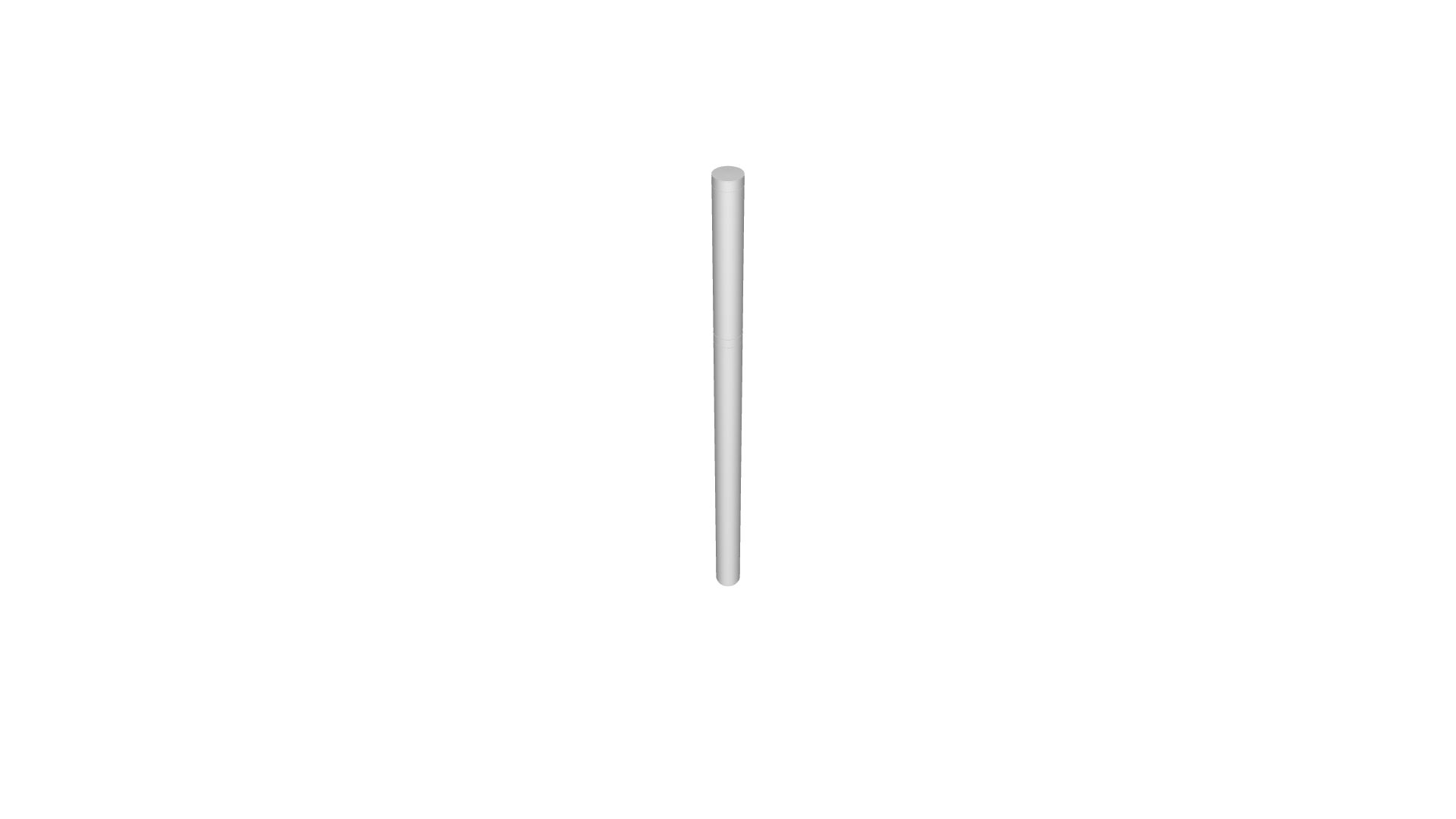

• 3D 3ds files

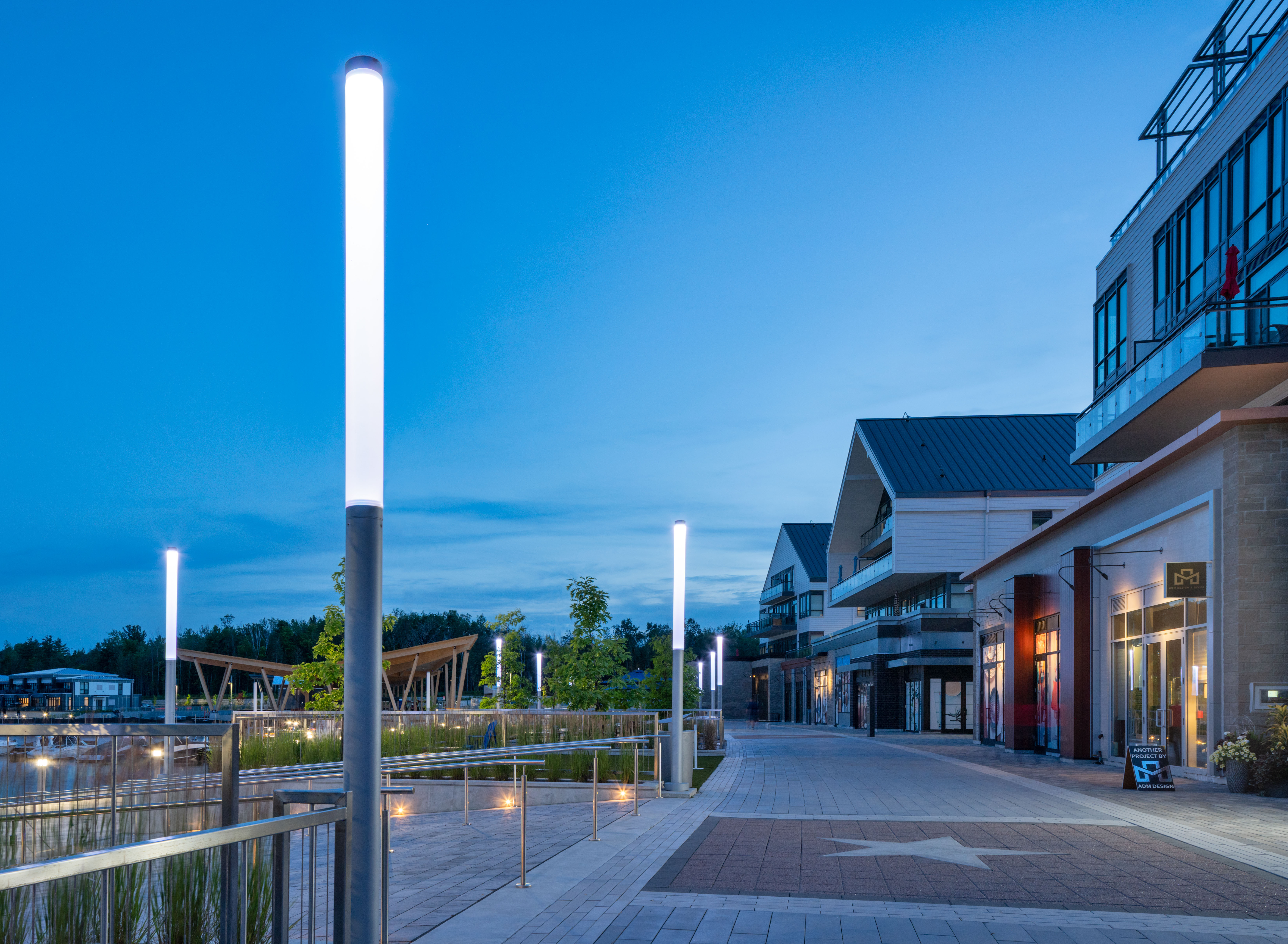

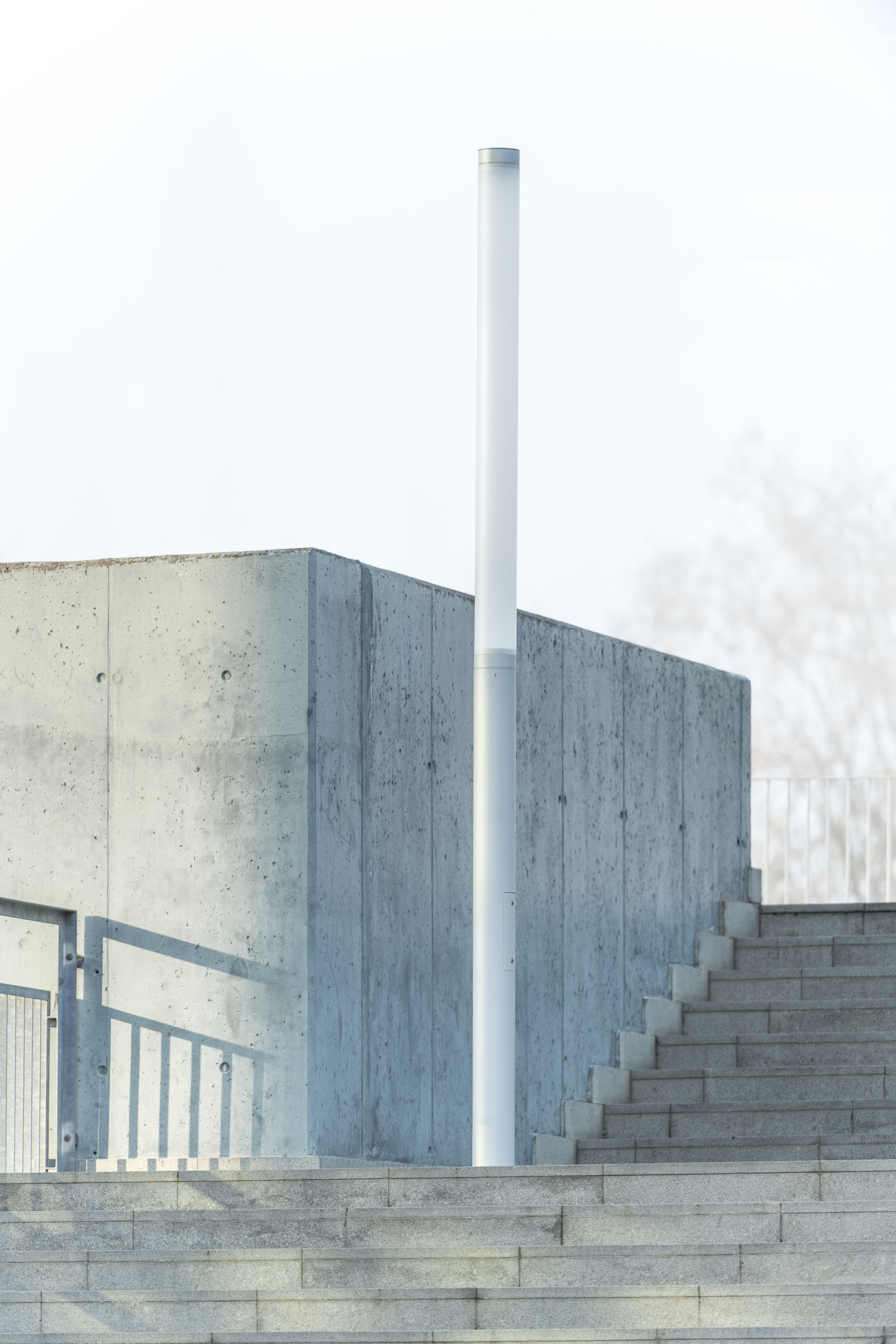

• Lifestyle images

• Catalogs: to explore the entire Tube collection

For further details, you can contact Platek via the dedicated contact form on this page.
