Wall hatch, MW System – Inspection access panel for masonry walls

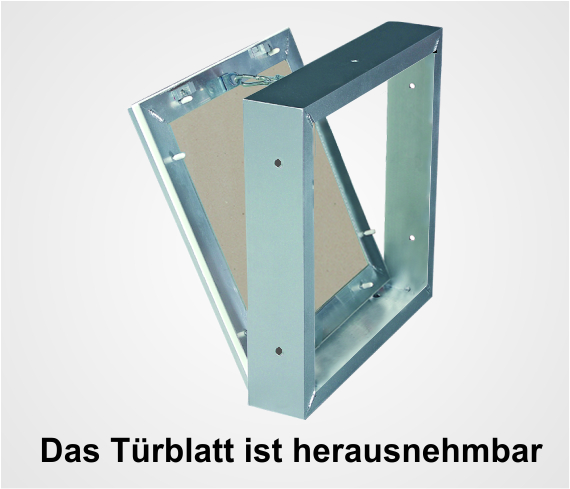

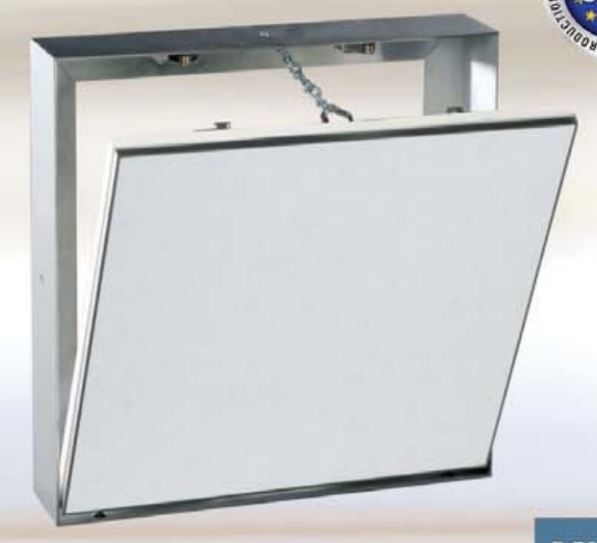

Inspection hatch for masonry walls consisting of aluminium profiles, coated plasterboard and two or more snap closures. Available with internal frame in three different thicknesses: 12.5, 15 and 25 mm.

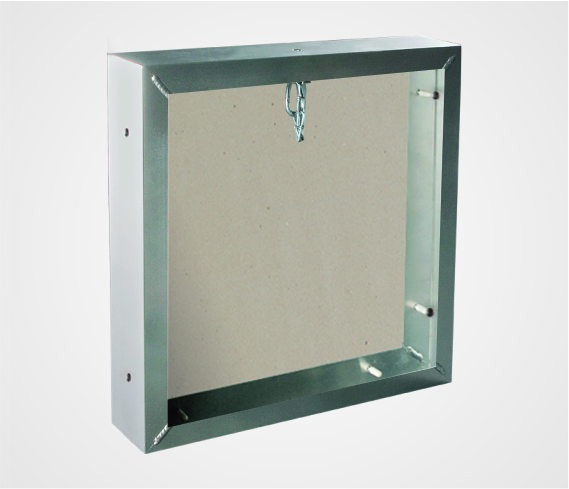

Externally, the frame has a thickness of 60 mm, specifically designed for installation on block or brick walls, using anchoring clamps or the possibility of fixing with dowels.

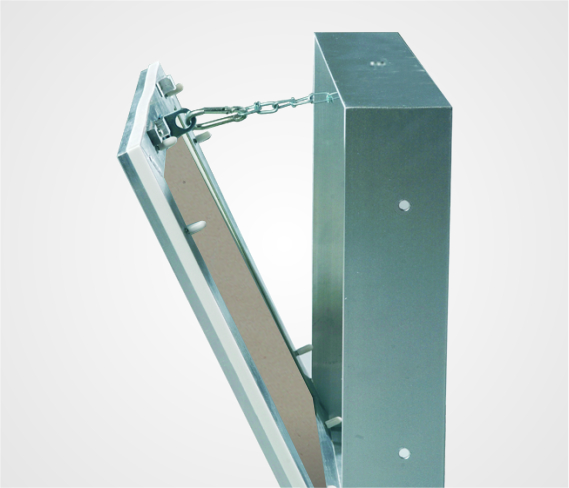

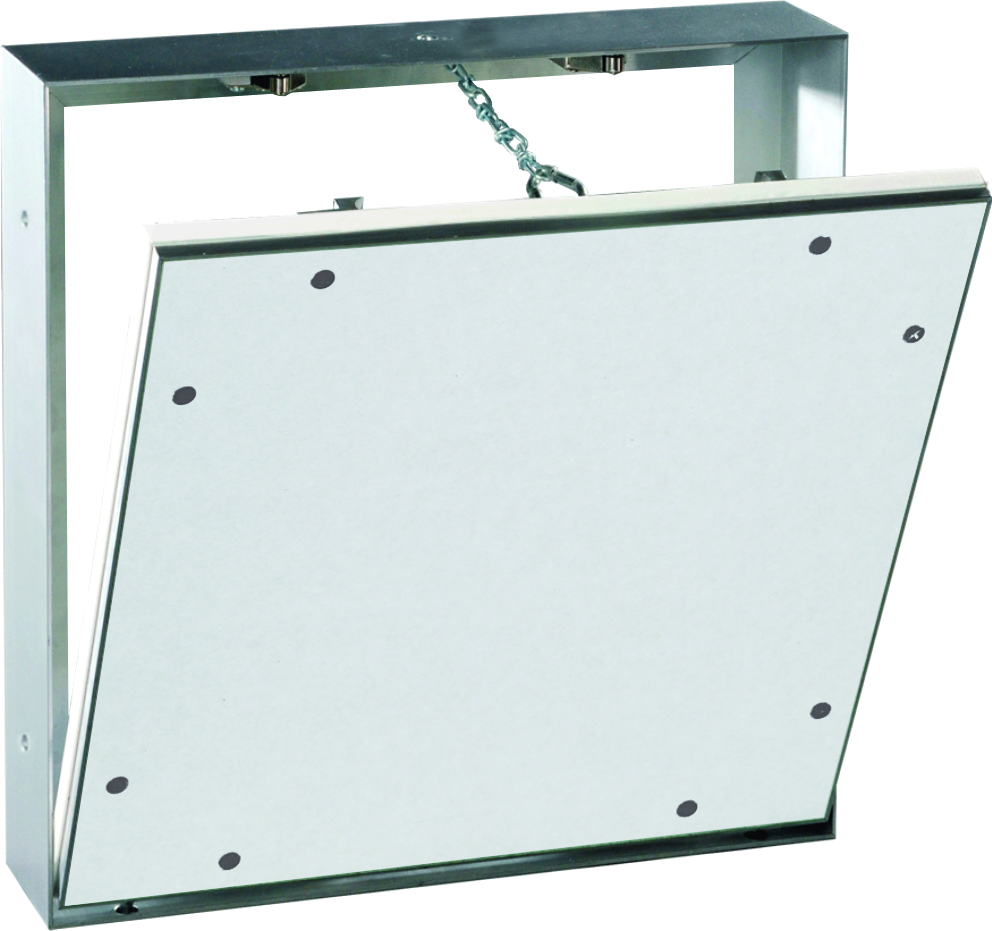

The hatch is supplied with one or more safety cables and a carabiner to be reattached after each opening of the door. There is a 1.75 mm gap between the frame and the door with a white aesthetic seal.

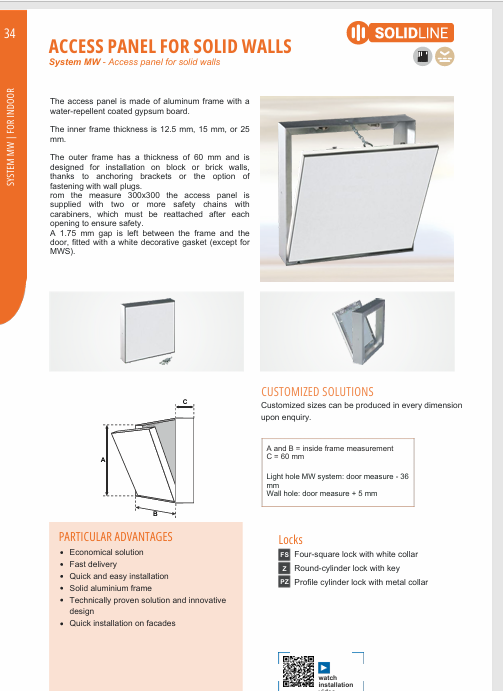

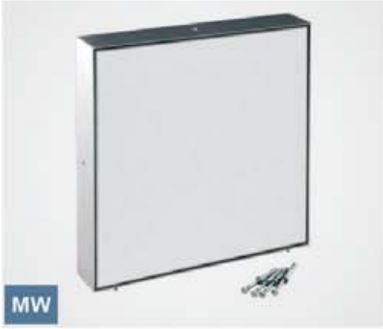

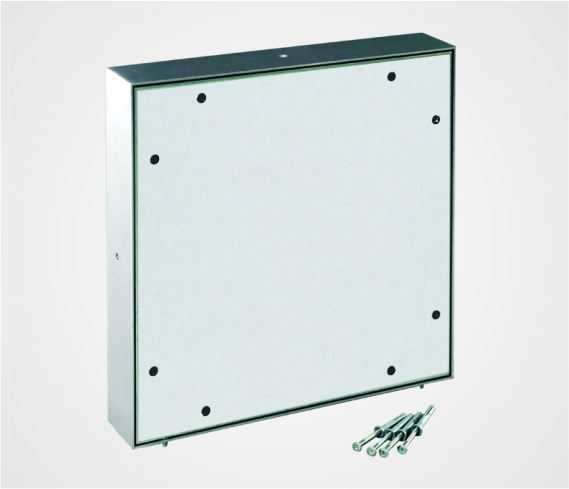

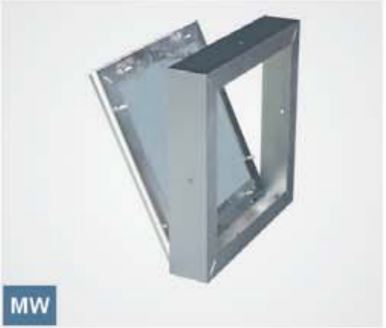

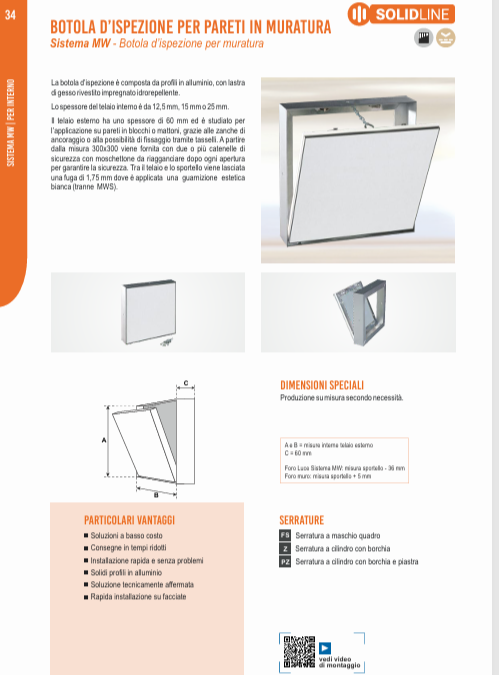

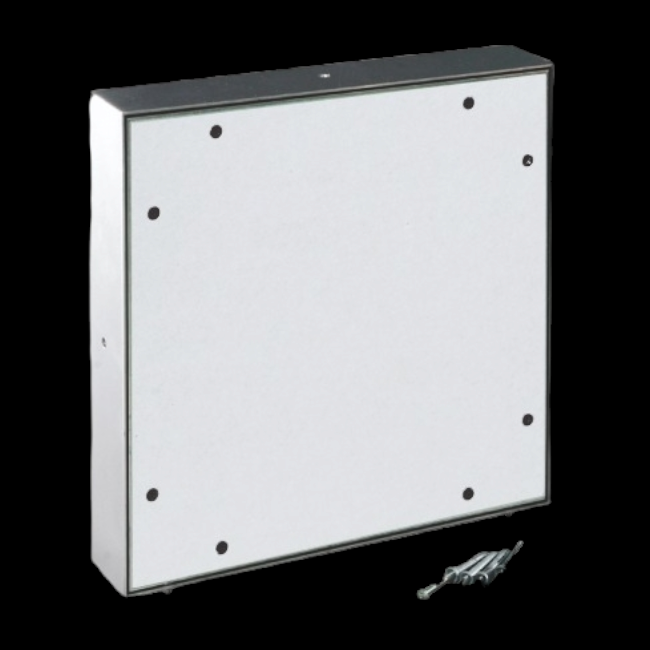

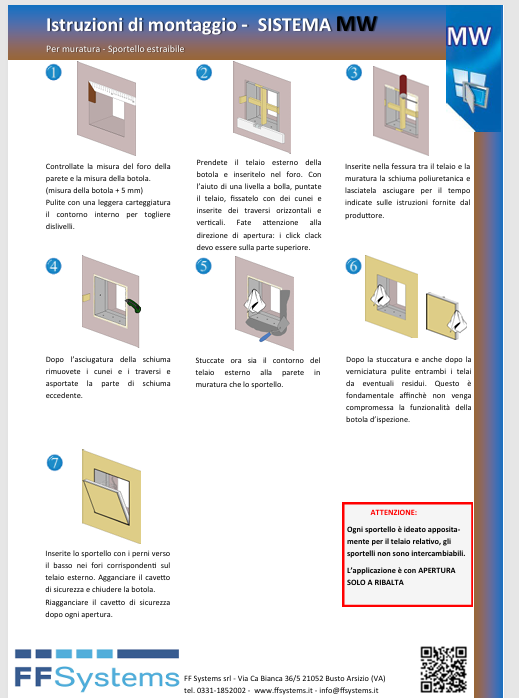

FF Systems provides technical files to support the design and installation of the trapdoor. Representative images of the product, technical data sheets and catalogues can be downloaded from the download section of this product page.
