Description

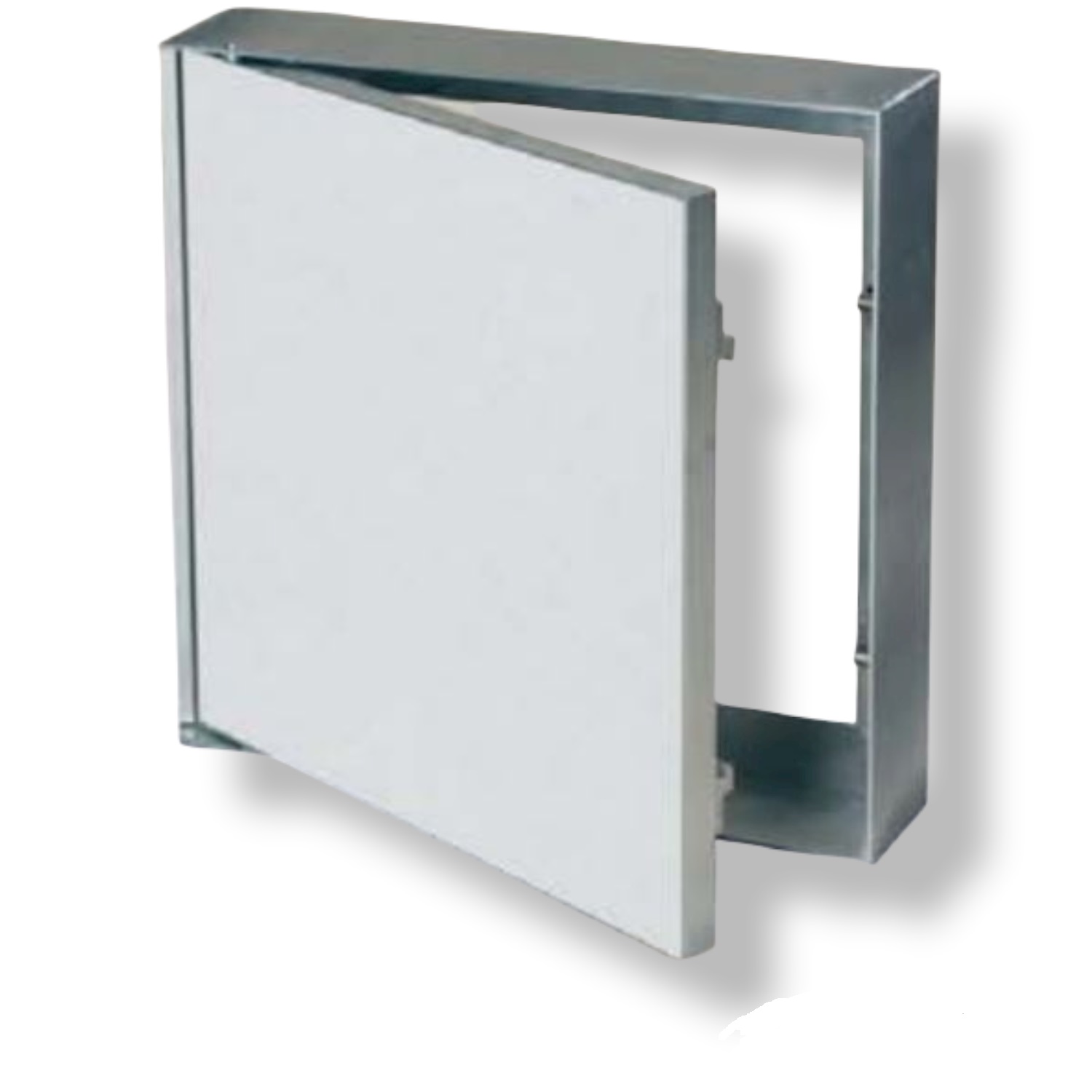

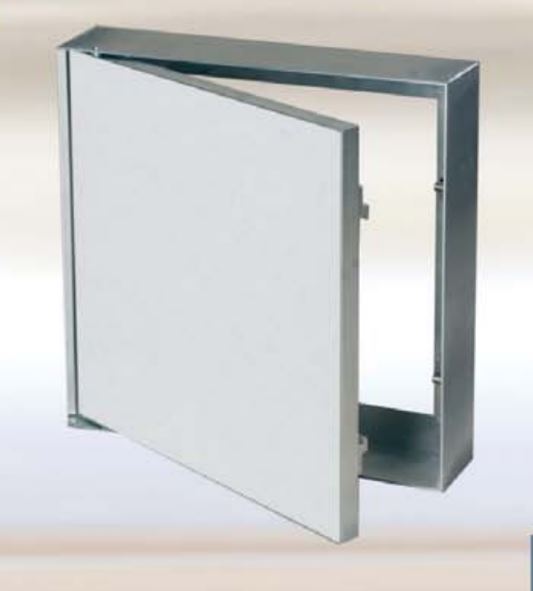

MWS by FF Systems belongs to the range of inspection hatches for masonry walls with aluminium profiles, coated plasterboard and two or more snap closures.
Internal frame thickness:
- 12.5 mm
- 15 mm
- 25 mm
MWS by FF Systems belongs to the range of inspection hatches for masonry walls with aluminium profiles, coated plasterboard and two or more snap closures.
Internal frame thickness:
- 12.5 mm
- 15 mm
- 25 mm

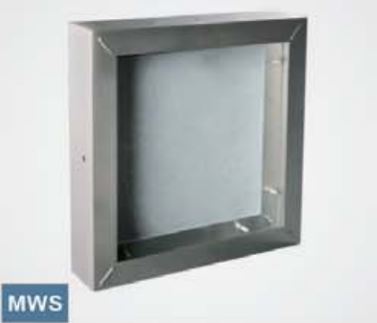

The 60 mm thickness of the external frame is specifically designed for application on block or brick walls, thanks to anchoring clamps or the possibility of fixing with dowels.
The hatch is supplied with one or more safety cables with carabiners to be reattached after opening the door. 1.75 mm gap between frame and door without seal.

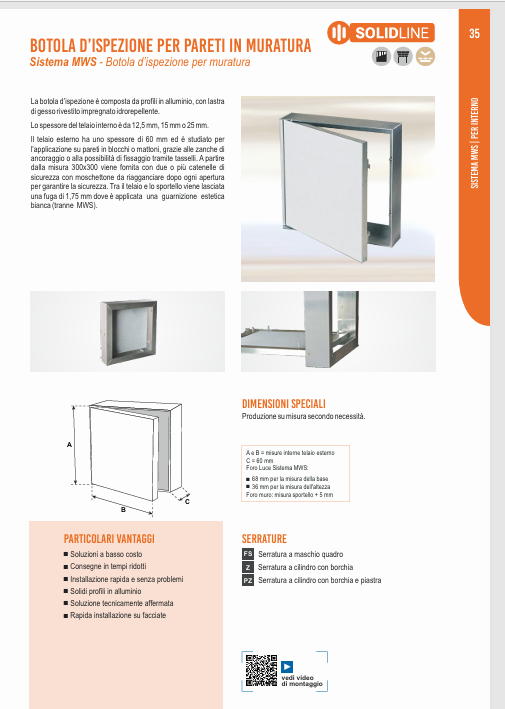

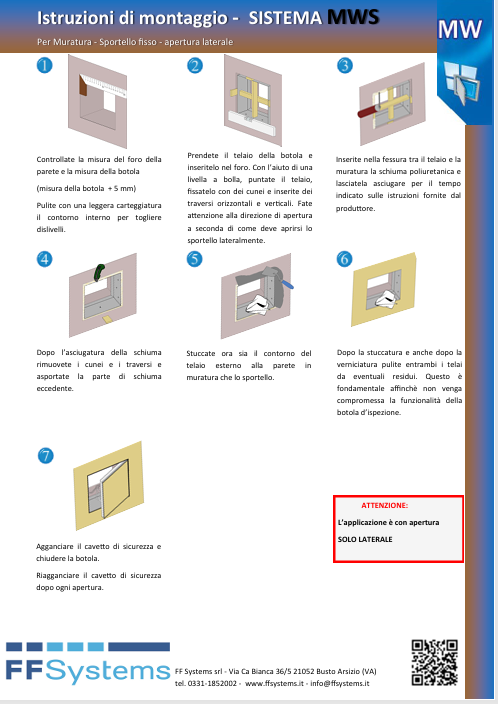

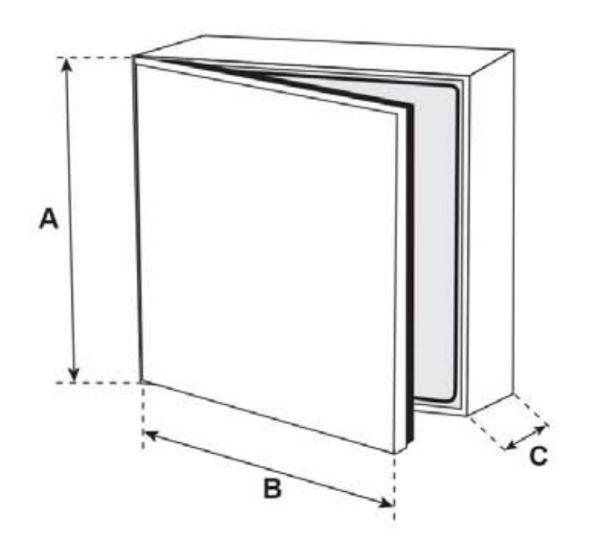

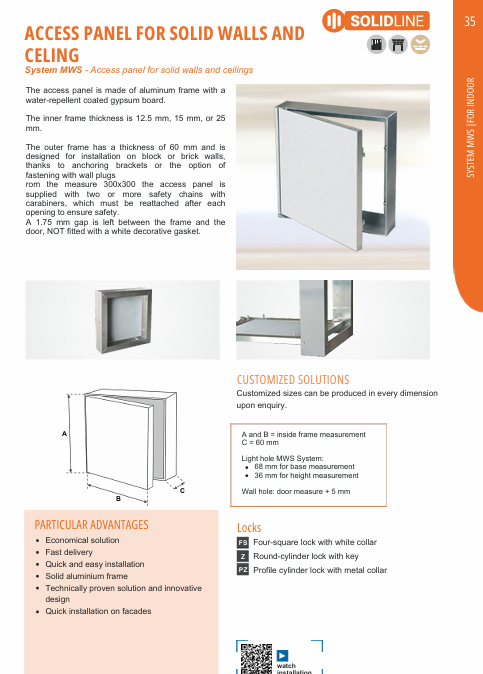

Download the technical material you need for your design from this Syncronia page. In the ‘Technical Information’ section, you will find the technical drawing of the MWS trapdoor, the technical data sheets and the assembly manual. FF Systems also provides representative images of the product.
