Fire reaction solutions, Equipment housing External Fire - EI180 L475

When risk levels demand superior protection, the EI 180 W 475 enclosure stands as the technical solution of excellence. Engineered to withstand extreme temperatures for three hours, this technical duct protects electrical cables, piping, and ventilation systems located in compartments with high fire loads.

Technical Specificatins

• Fire Resistance Class: EI 180 (according to EN 1366-5 standard).
• Dimensional Development: optimized section with internal width up to 475 mm.
• Fire Exposure: external side.
• Substrate/Support: floor slab.
• Framing Structure: "L" profiles 50x40x0.6 mm.
• Protective Coating: FIREGUARD® 18 boards, thickness 3x18.0 mm.
• Fastening: 6 mm diameter metal expansion anchors and phosphated self-drilling screws.
• Finishing: External board layer sealing with "GB-MT" FIRESEALANT.

Download

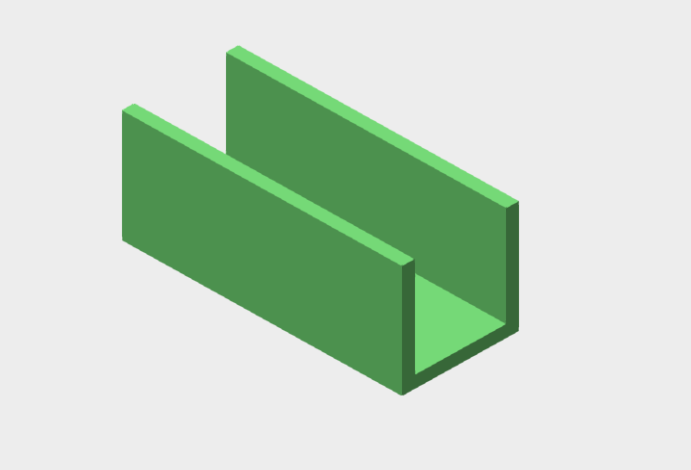

Global Building provides designers with essential project resources, including 3D and BIM models, catalogs, and tender specifications.

For those requiring further technical details, our expert staff is available for consultation. Please use the contact form located on this product page to get in touch with the Global Building technical team.
