Fire reaction solutions, Facade protection – Non-ventilated double-skin facade, EI 30–60

In non-ventilated double-skin façades, continuity of protection is ensured by a system of cavity joints that isolates compartments, preventing the service void from acting as a chimney for fire spread. This solution is ideal for high energy-performance buildings where airtightness and fire resistance must coexist without structural compromises.

Technical characteristics

⦁    Support: double-skin façade with slab thickness ≥ 200 mm, density ≥ 550 kg/m³
⦁    Protective cladding
BAND
FIREGUARD 18 (EI 30), thickness 1 × 18 mm
FIREGUARD 13 (EI 60), thickness 2 × 12.7 mm
JOINT
FIREGUARD S8, thickness 8 mm
⦁    Height: ≥ 1 meter
⦁    Position relative to the slab: intermediate, upper, lower

Download Section

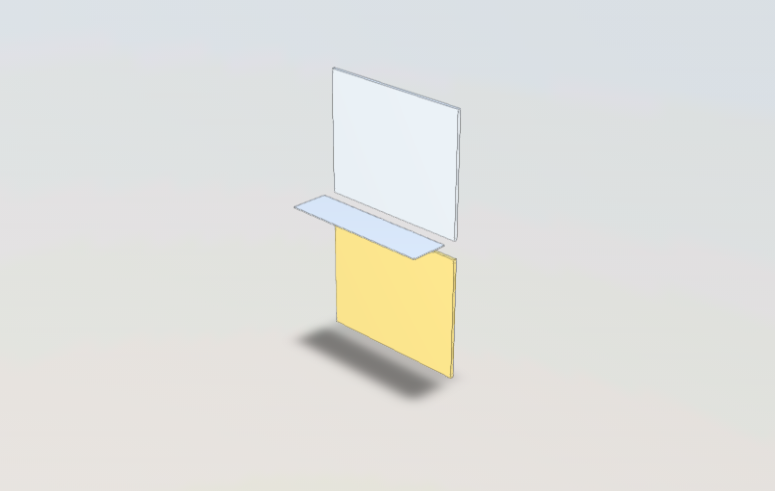

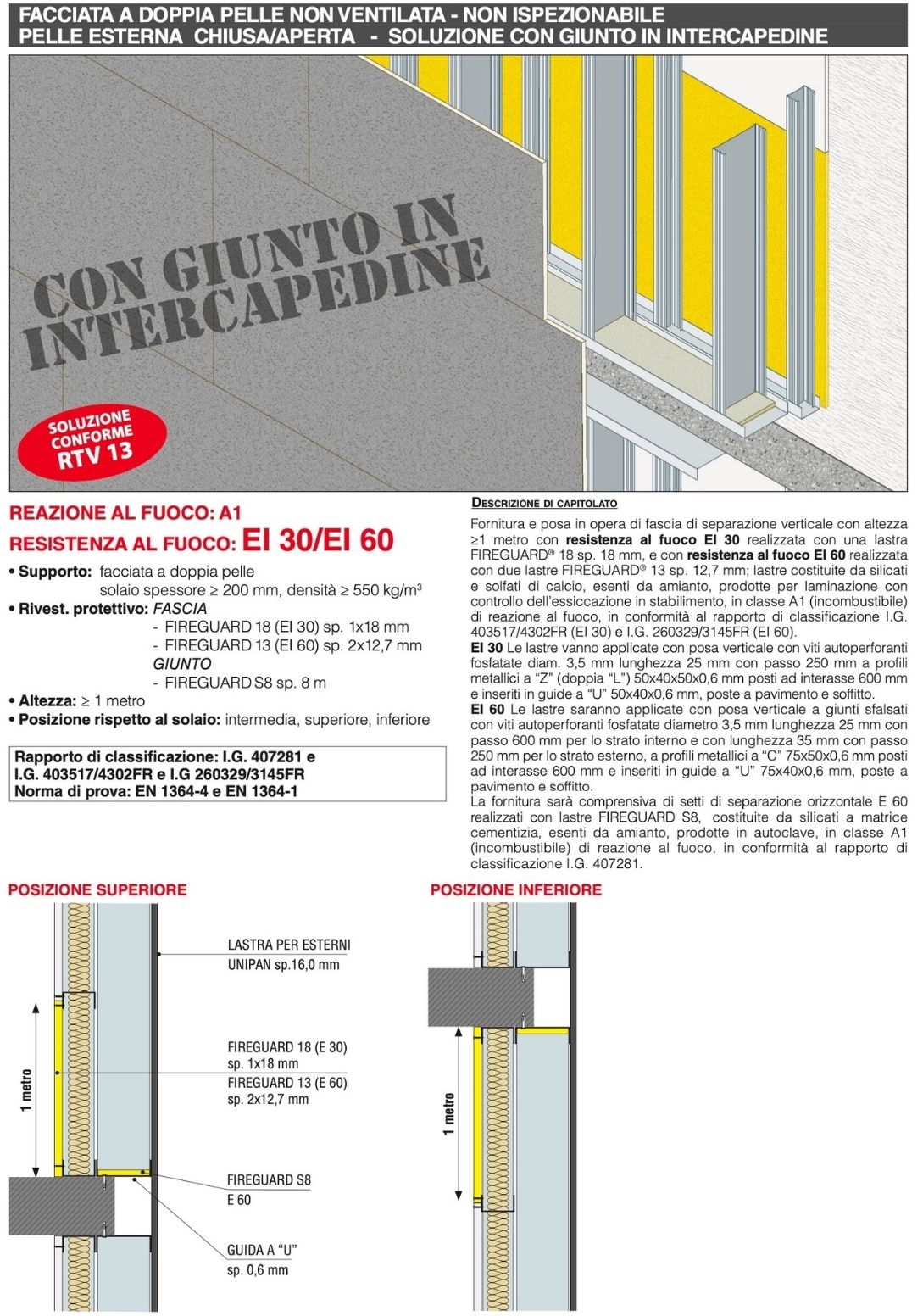

At the bottom of this page, you can access the technical documentation made available on this Syncronia page by Global Building. Available for free download are BIM objects (RFA, IFC), DWG and SKP libraries for detailed design, along with technical manuals and specification clauses.
