Floor Access Cover, 5000 BS aluminium series

Overview

The Series 5000 BS floor access cover is an inspection access panel for floor ducts that combines a flush-to-floor finish with requirements linked to fire protection systems. It is designed for projects where clean detailing and reliable access are both needed.

Technical features

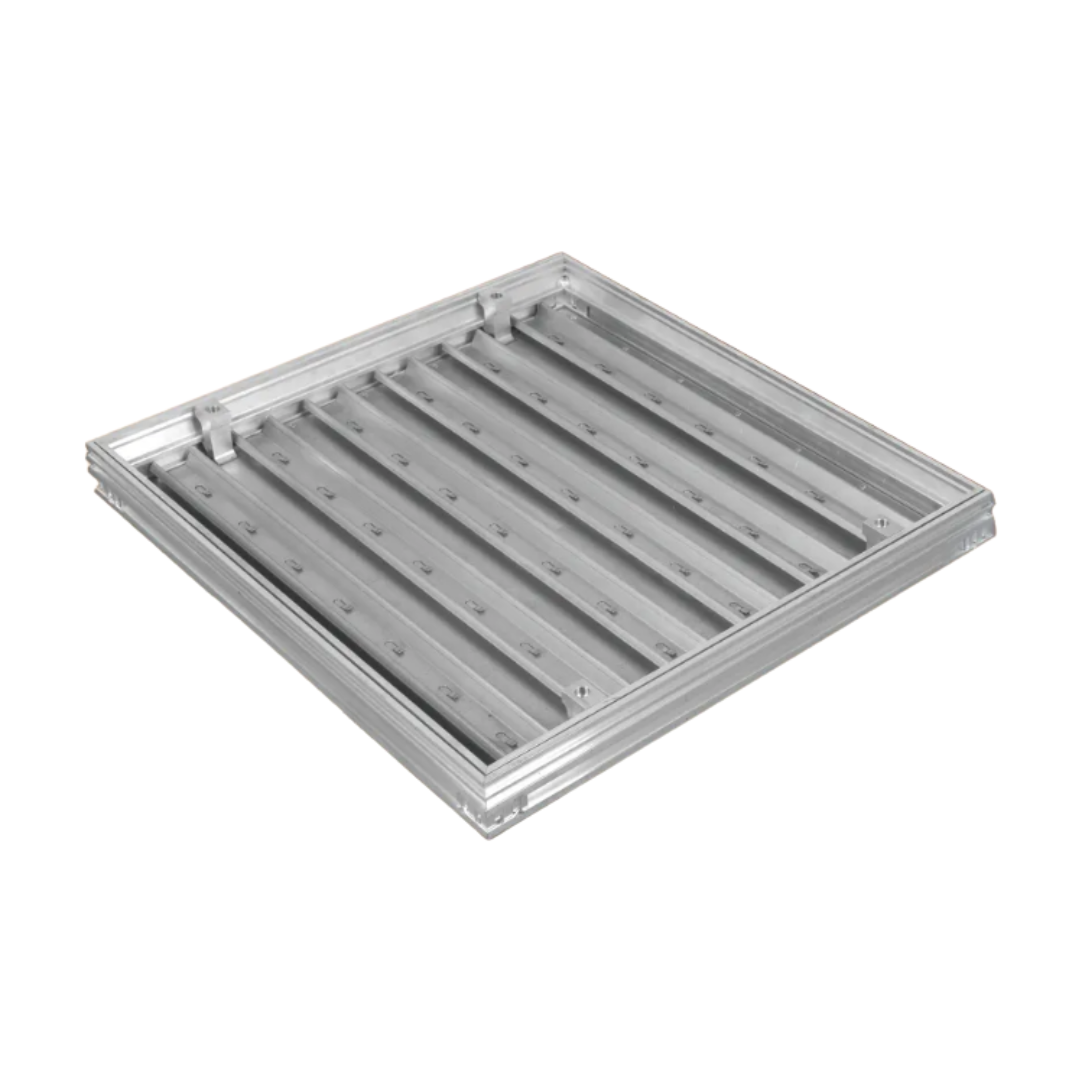

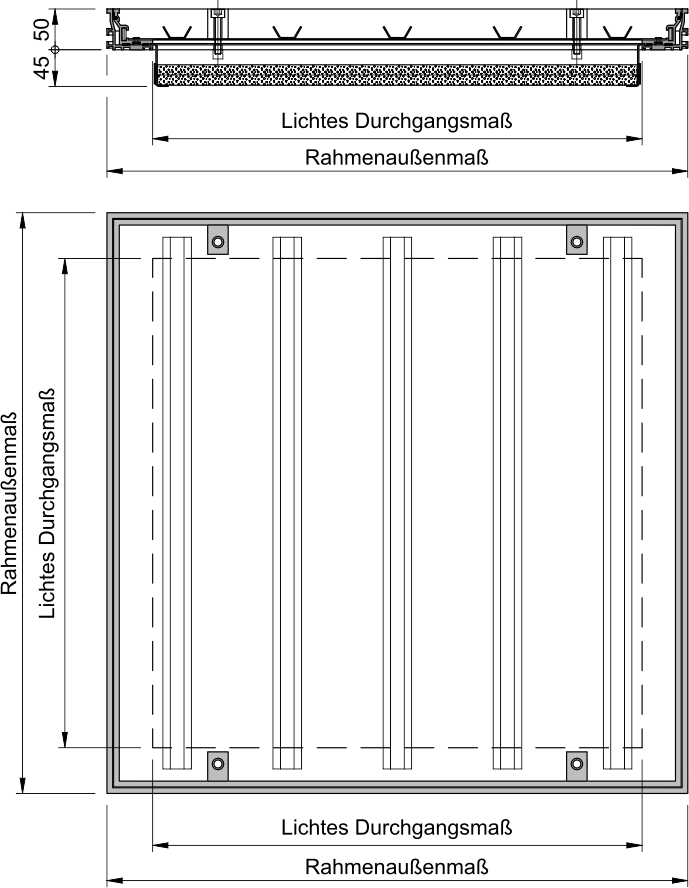

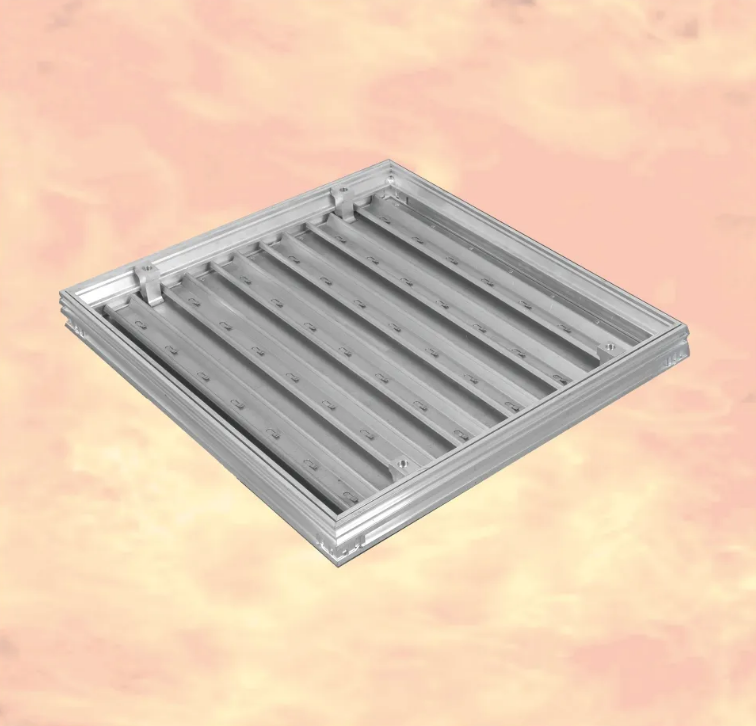

Frame and tray are made of aluminium. The tray depth is 37 mm and the installation height is only 50 mm. The floor access cover is equipped with three special gaskets along the entire perimeter. The frame is embedded in concrete at floor level. The tray can then be filled and inserted into the frame. The lid is fixed to the frame by 4 tightening screws, and can be removed with special lifting keys. Filling the tray is possible with tiles, concrete, resin, granite, self-locking, wood, hard floors or other materials. It includes a 25 mm thick fire protection plate and fire protection tested for up to 120 minutes.

Project advantages

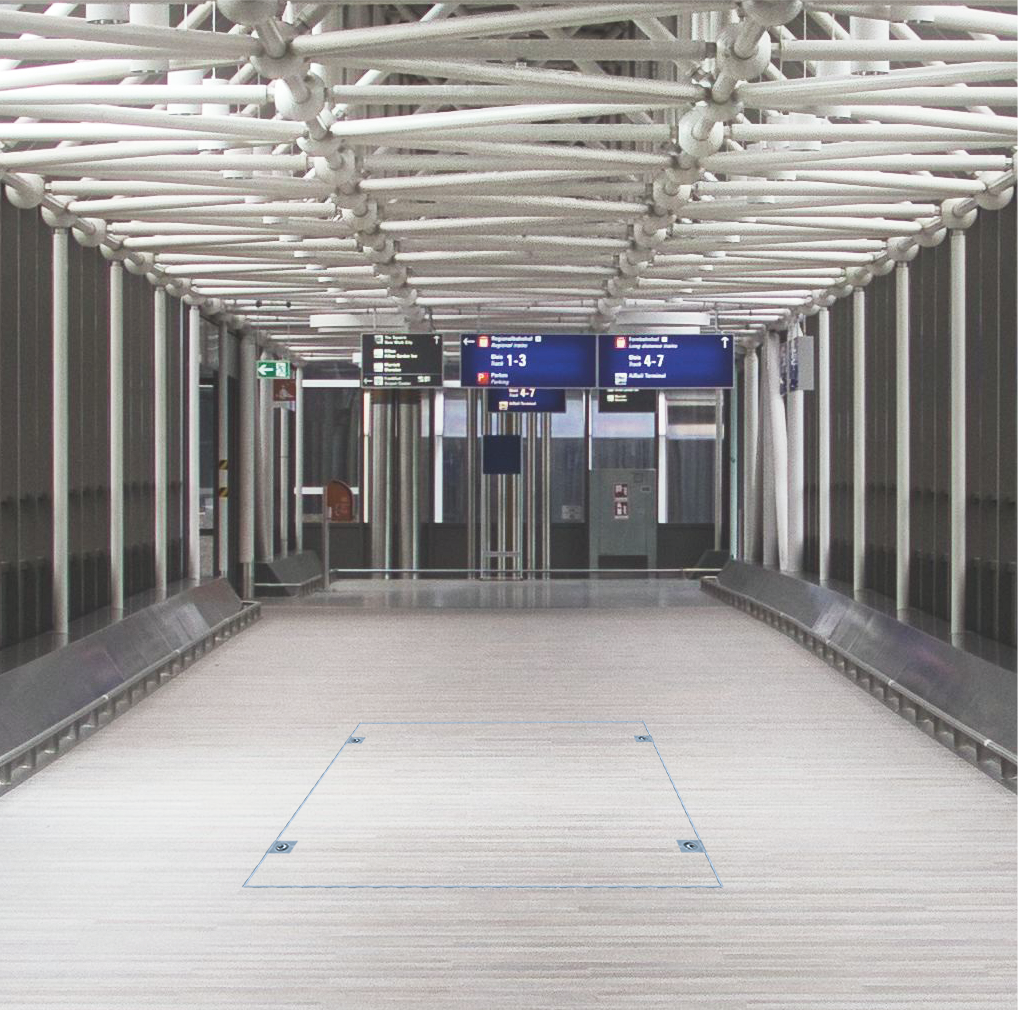

⦁    Almost invisible when installed, supporting high-end floor detailing.
⦁    Easy opening thanks to the conical construction design.
⦁    Suitable for indoor and outdoor floor ducts.

Operational notes

Filling build-up and professional installation are key to maintain flatness and performance over time.

Download documentation on Syncronia

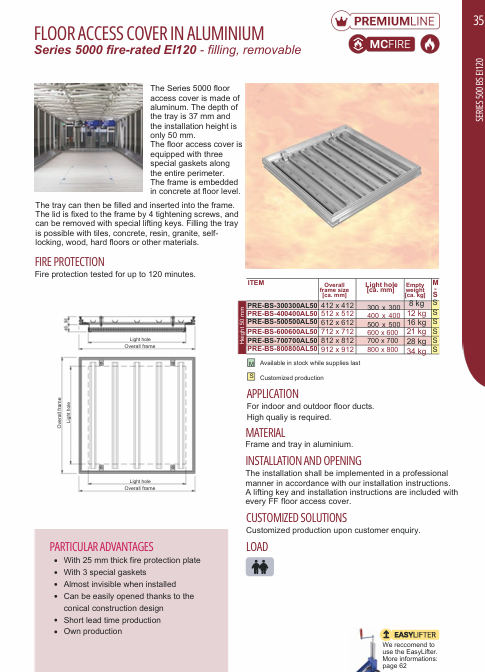

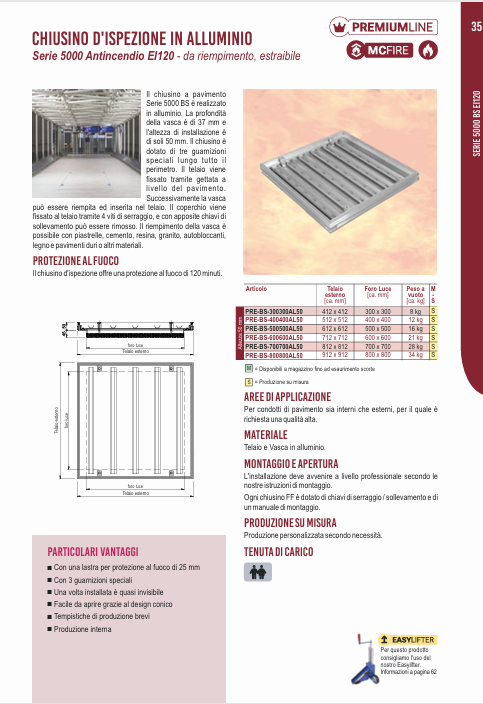

On Syncronia.com you can free download images, catalogues and technical data sheets download for Series 5000 BS, plus files containing the information needed to integrate it into your design documentation.
