Recessed spotlights, Mini Grazing light

Mini Grazing Light is designed to deliver outdoor grazing lighting, enhancing surfaces with a controlled and measured output. In an outdoor project and an outdoor lighting design project, it is useful when you need accurate light on materials and geometries in a compact format. It is available in 2 openings, 4 openings or Blade versions, and it is also indicated for walkways.

The Mini collection by Platek (the brand’s first historical family) has been updated with new light sources and surface treatments to increase reliability. Its stated performance and efficiency make it suitable for large surfaces and—through dedicated optics—also for tall trees and vegetation. The reduced thickness limits visual impact on floors and walls; the range also includes full stainless-steel versions for high scratch and foot-traffic resistance.

Technical features

• Body and closing flange die-cast in aluminium alloy EN 44300 with very low copper content
• A4 stainless-steel screws
• Extra-clear tempered glass cover
• GORE® valve to prevent condensation
• Glass bonding with atmospheric-pressure plasma pre-treatment, silicone application and automated assembly for sealing
• Galvanic anodizing + continuous two-step paint process (epoxy primer + polyester colour finish)
• Suitable for ground and wall installation; can withstand full water immersion (mandatory cast concrete and gravel for drainage and to avoid cable-gland submersion)
• IP66 / IP68 Full Dry, IK08

Versions

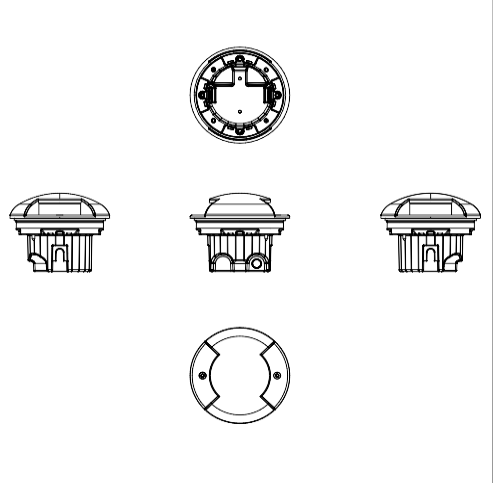

• Mini Grazing Light 2 Openings

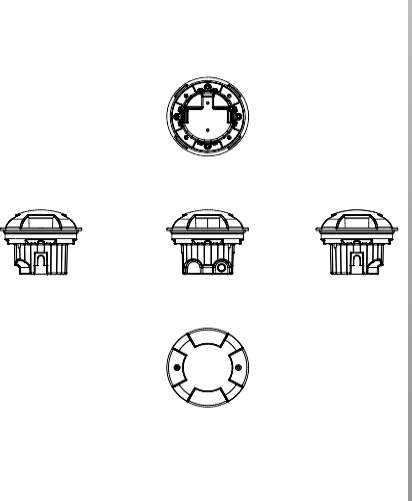

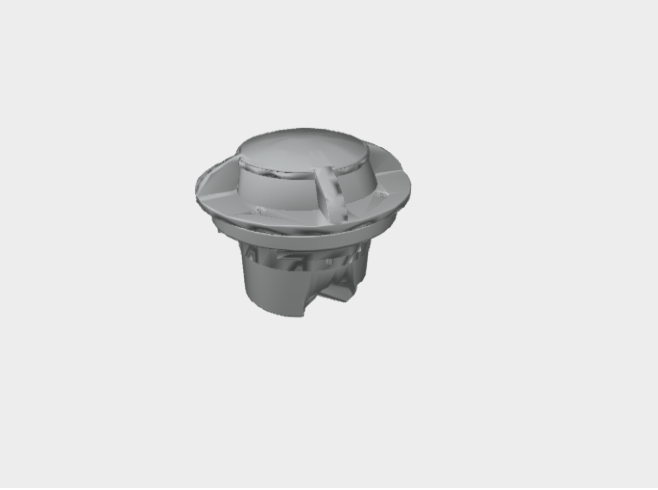

• Mini Grazing Light 4 Openings

• Mini Grazing Light Blade

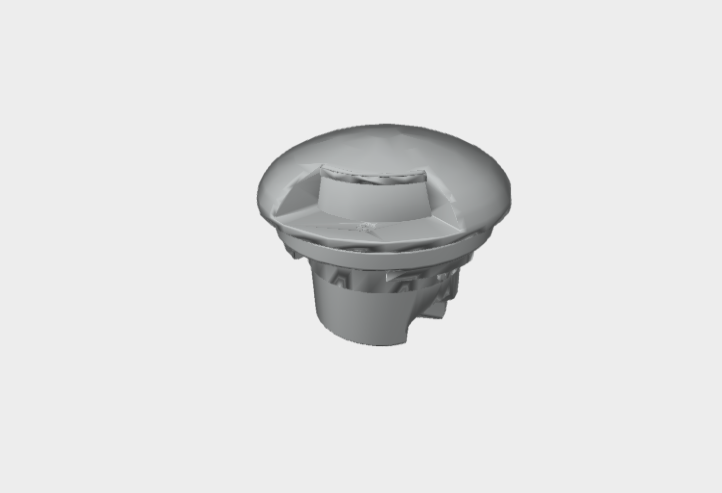

Download the free 3D and BIM models of Mini Grazing Light by Platek and integrate it into your outdoor lighting design project. With the BIM download you can coordinate installation details; catalogues, datasheets and images are also available to complete drawings and client presentations.
