Awnings, QUBICA FLAT

If you have used this product in your project. Click here to publish you project on SYNCRONIA!

Description

Shade arm awning with cassette

Qubica Flat is a shading awning with cassette, with small structural elements to ensure minimal aesthetic impact. Qubica flat is perfect for enhancing contemporary architectural contexts: open it is an elegant awning, closed it a canopy of exclusive design.
The shading fabric is equipped with a patented winding system that reduces wrinkles and folds when closing and opening.

...Read more

Shade arm awning with cassette

Qubica Flat is a shading awning with cassette, with small structural elements to ensure minimal aesthetic impact. Qubica flat is perfect for enhancing contemporary architectural contexts: open it is an elegant awning, closed it a canopy of exclusive design.
The shading fabric is equipped with a patented winding system that reduces wrinkles and folds when closing and opening.

The maximum measurements of the Qubica Flat awning are:
- Maximum width 1200 cm
- Maximum projection 360 cm

The Qubica Flat cassette awning has a class 2 wind resistance and is also certified EN 13561 rain resistance: the roller blind elements have been tested to resist the 'pocket' effect of water in the event of precipitation.

The movement arms of the cassette awning are high-performance and resistant and are designed to guarantee up to 30,000 opening and closing cycles.
The Qubica flat cassette awning can be equipped with a LED lighting system; it is possible to automate the opening and closing of the awning via an app for mobile devices.

A special feature is the possibility of having two-colour shading in the various elements of the awning.

If you are realising an outdoor architectural project, the Qubica Flat awning with cassette is available for free download: 3d models and bim objects of awnings made by KE, compatible with autodesk software (revit and autocad) but also with the main architectural drawing software.

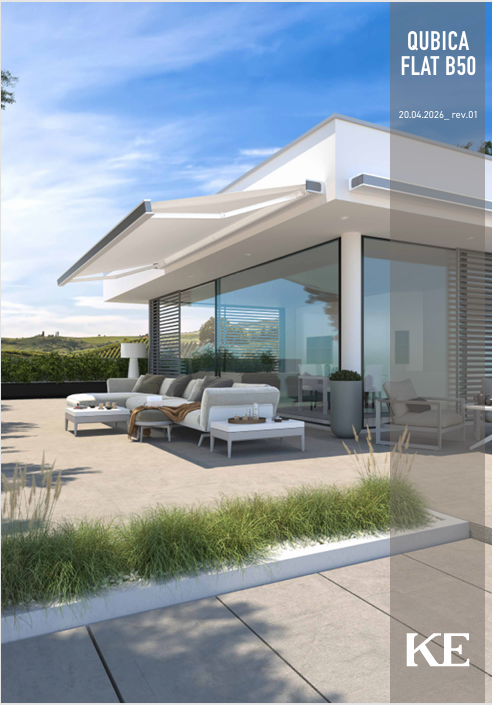

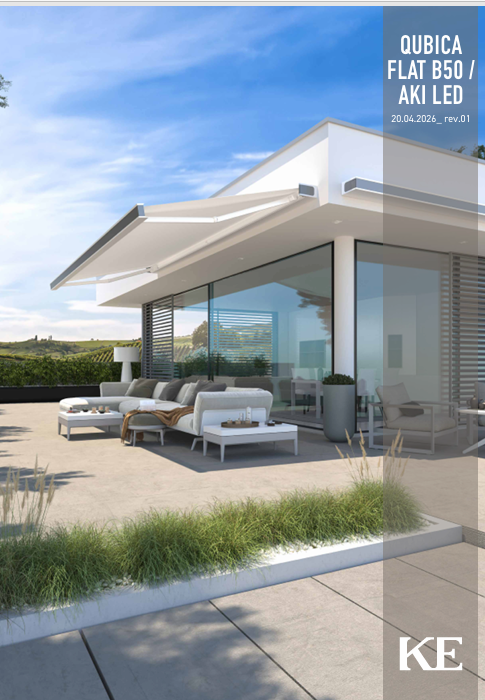

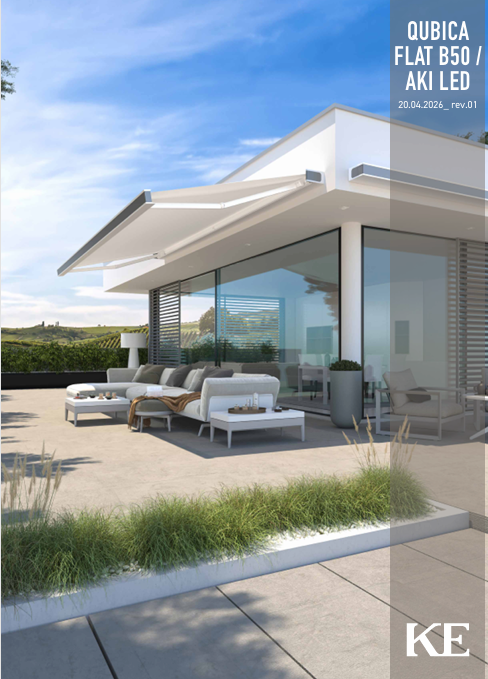

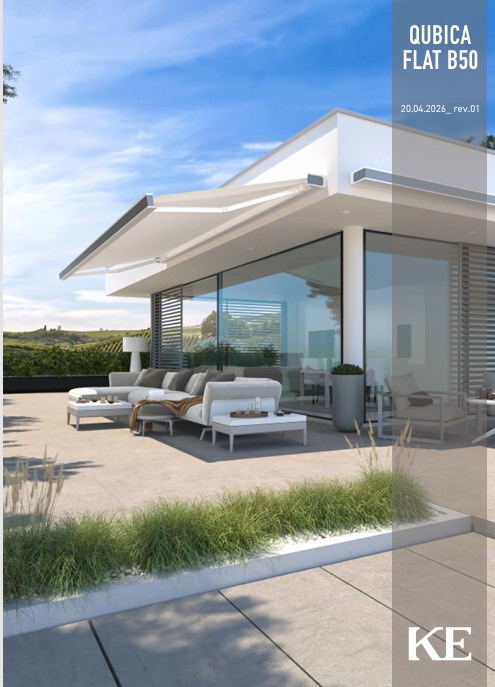

Download from this page also KE's company catalogues and technical data sheets for arm awnings with cassette: authentic and up-to-date material made available directly by the company.
If you require design support, please do not hesitate to contact the service department directly using the form at the bottom of the page: KE personnel are at your disposal to provide specialised assistance in the shortest possible time.


Read less

Available downloads

BIM Files - IFC

BIM files for Autodesk Revit - RFA

BIM File for designing with Autodesk Revit
