Recessed spotlights, Medio In-ground StS Ring

The Medio In-ground StS Ring is an outdoor in-ground fixture that combines formal elegance, lighting precision, and maximum resistance, designed to integrate light into the project without overpowering the architecture. Within an outdoor project, it can support path definition, highlight vertical surfaces, and structure space with a discreet yet expressive gesture—helping you keep consistency between construction details and outdoor lighting.

This product belongs to the Medio collection by Platek, a landmark recessed ground lighting family renewed with new light sources and treatments aimed at high reliability. The collection delivers high performance and lighting power and is suited for uplighting important surfaces (in width and height) and tall trees with large branches. Its thickness is contained and the protrusion from the walking surface (or wall line) is minimal; the family also includes the Full Inox version, providing even greater resistance to scratching and foot traffic.

Technical features

• Die-cast body manufactured in EN 44300 aluminium alloy with very low copper content and front locking trim in AISI 316L stainless steel
• Galvanic anodizing treatment: mechanical satin finishing, surface degreasing, anodic oxidation, final sealing
• Continuous two-step paint process (epoxy-based primer + polyester-based colour finish) to create a thick protective coating; barrier against atmospheric agents and UV rays; corrosion resistance in salt spray declared higher than market standards
• IP68 degree of protection with Full Dry system to avoid condensation inside the product
• Recessed housing installation in cast concrete with a 20–30 cm gravel soakaway; only an IP68 connection to the power supply can guarantee the same protection to the fixture
• Outer housing and connector to be ordered separately
• IP68 Full Dry, IK10

Dimensions

•
  224 x 221 mm

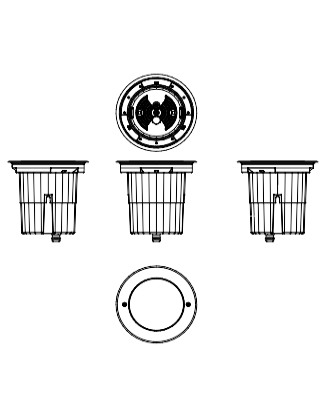

Download the 3D files and BIM models of the outdoor in-ground fixture Medio In-ground StS Ring by Platek and place it into your outdoor project. Along with the BIM files, you can also download catalogues, technical sheets and images, useful to complete drawings and documentation and to present an outdoor lighting proposal with clear, verifiable materials.
