Passive fire protection of floor systems is a fundamental pillar in architectural and structural design. Elmo addresses this need with the premixed plaster F62 SPRAY, a solution based on gypsum and specific additives, designed to ensure high fire resistance (up to REI 240) on different types of slabs, without adding excessive weight to the structures and while ensuring a high-quality aesthetic finish.
...Read morePassive fire protection of floor systems is a fundamental pillar in architectural and structural design. Elmo addresses this need with the premixed plaster F62 SPRAY, a solution based on gypsum and specific additives, designed to ensure high fire resistance (up to REI 240) on different types of slabs, without adding excessive weight to the structures and while ensuring a high-quality aesthetic finish.

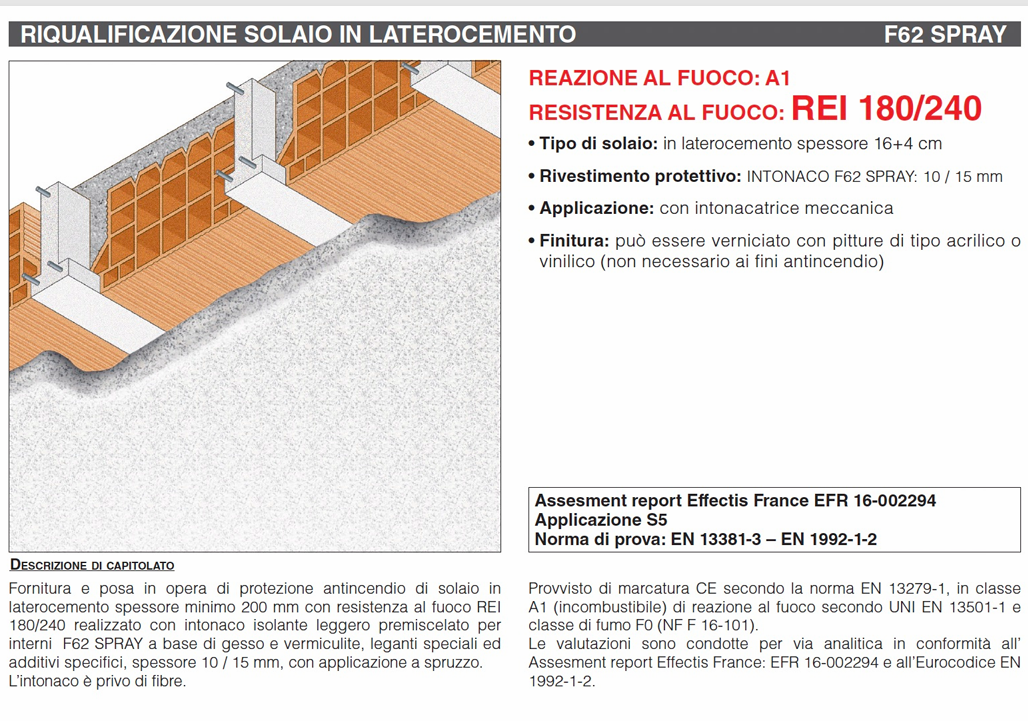

The refurbishment of reinforced clay-concrete slabs is one of the most common challenges in fire safety upgrading interventions. Thanks to its exceptional adhesion and thermal insulation properties, F62 SPRAY plaster makes it possible to achieve REI 180 and REI 240 resistance classes with limited thicknesses (10–15 mm).
Mechanical application using a spraying machine ensures uniform coverage across the entire surface, effectively protecting joists and hollow clay blocks from structural collapse in the event of a fire.
In the dedicated section, it is possible to freely download all the required technical documentation:

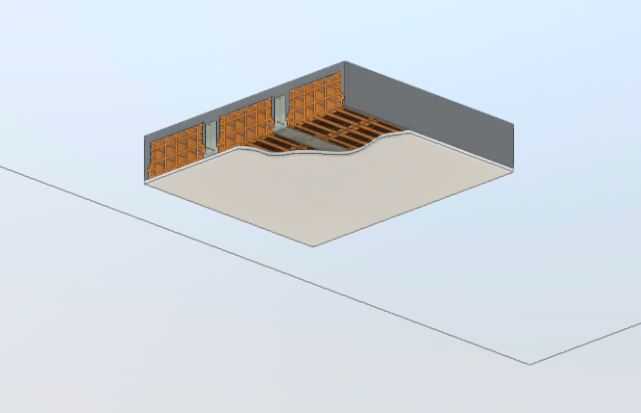

⦁ BIM Objects (Revit): ready-to-use models to integrate F62 SPRAY systems directly into the BIM workflow.
⦁ Detailed Technical Data Sheets: all performance data, installation methods, and certifications.
⦁ Catalogues and Specification Clauses: complete documentation for preparing bills of quantities and fire safety technical reports.
