Inspection manhole, 5000 Series Multi-Door - Inspection Cover - Aluminium

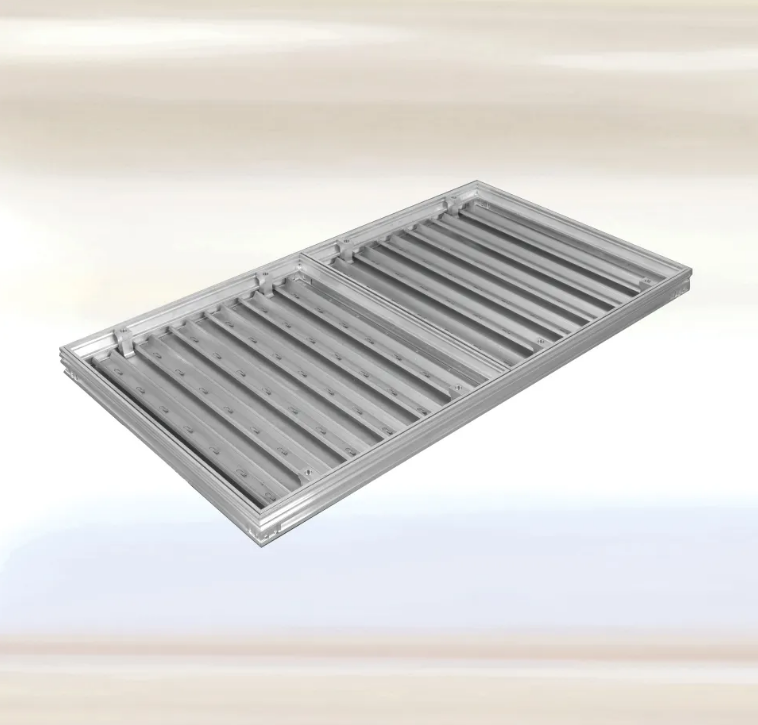

The Series 5000 multidoor version by FF Systems is intended for technical layouts where access is required through multiple doors, while keeping the fillable-tray approach typical of floor inspection systems.

Main technical features

Frame and tray are made of aluminum. The tray depth is 37 mm and the installation height is 50 mm. The access cover is equipped with three special gaskets along the entire perimeter. The frame is installed by casting at floor level; then the tray can be filled and inserted into the frame.

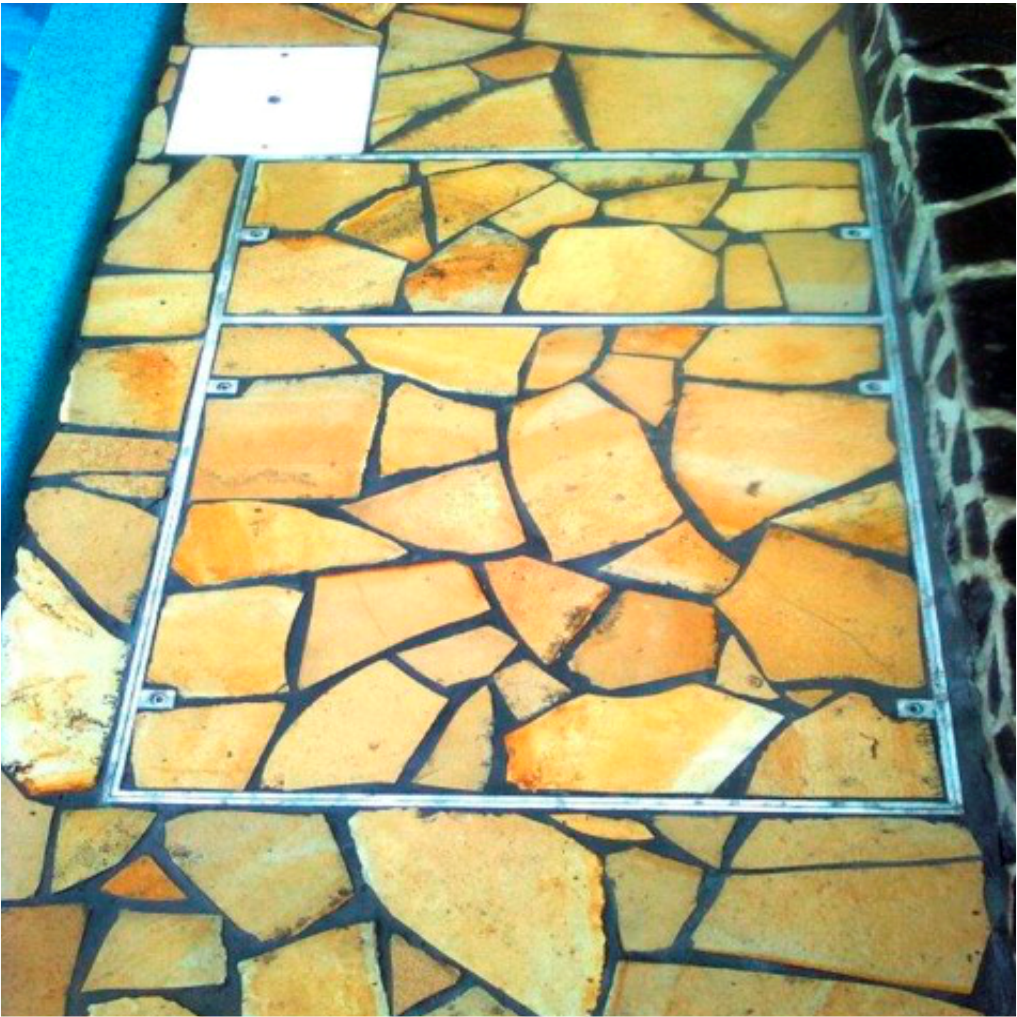

The closing system uses 4 tightening screws; removal is carried out with special lifting keys. Tray filling is possible with tiles, concrete, resin, granite, self-locking blocks, wood, hard floors, or other materials. It is intended for indoor and outdoor floor ducts.

Design advantages

⦁    Multidoor configuration for distributed access points
⦁    3 special gaskets around the perimeter
⦁    Clean look: almost invisible when installed
⦁    Easier opening thanks to the conical construction design

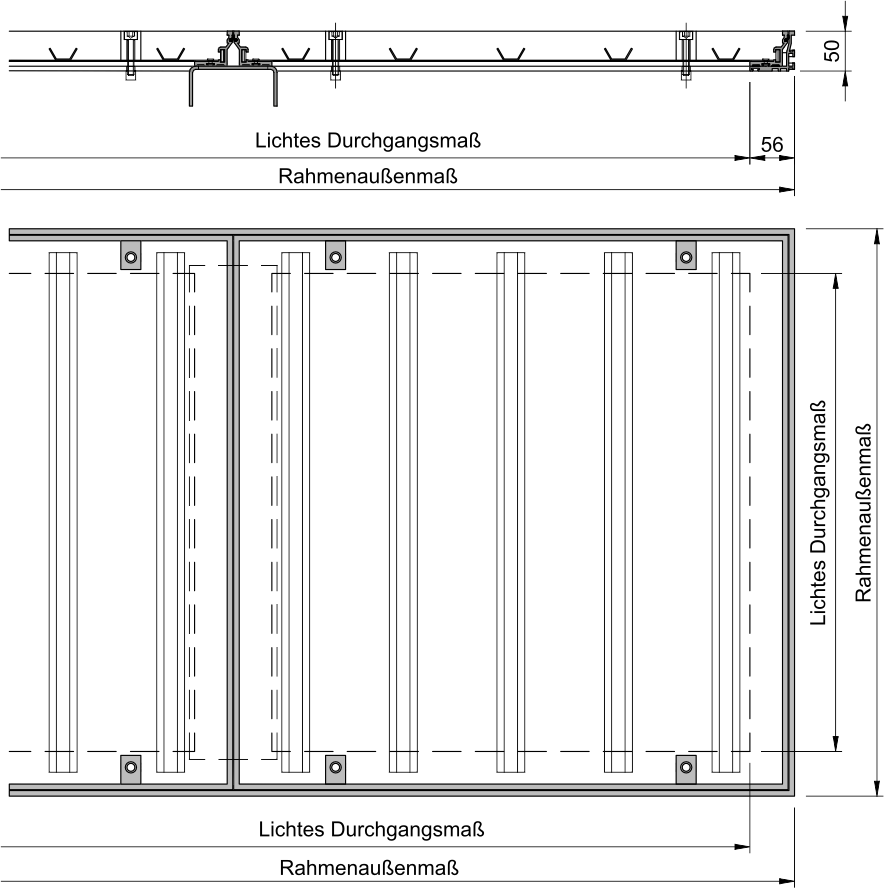

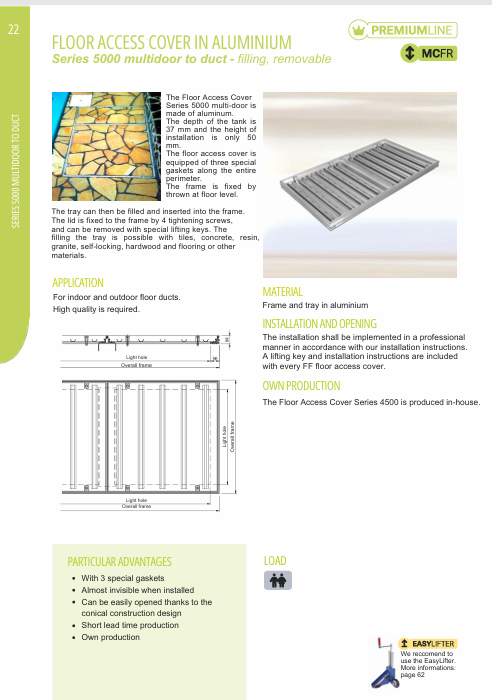

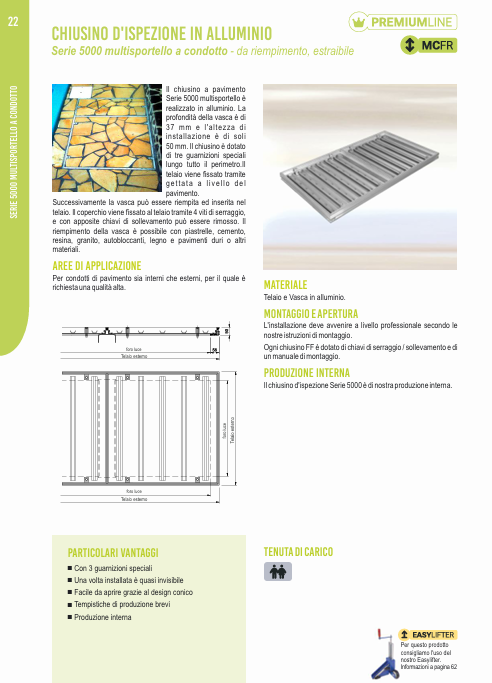

On Syncronia you can download the files you need for design work: images, catalogs, and the Series 5000 multidoor aluminium technical datasheets, with all the information useful to specify it in your project.
