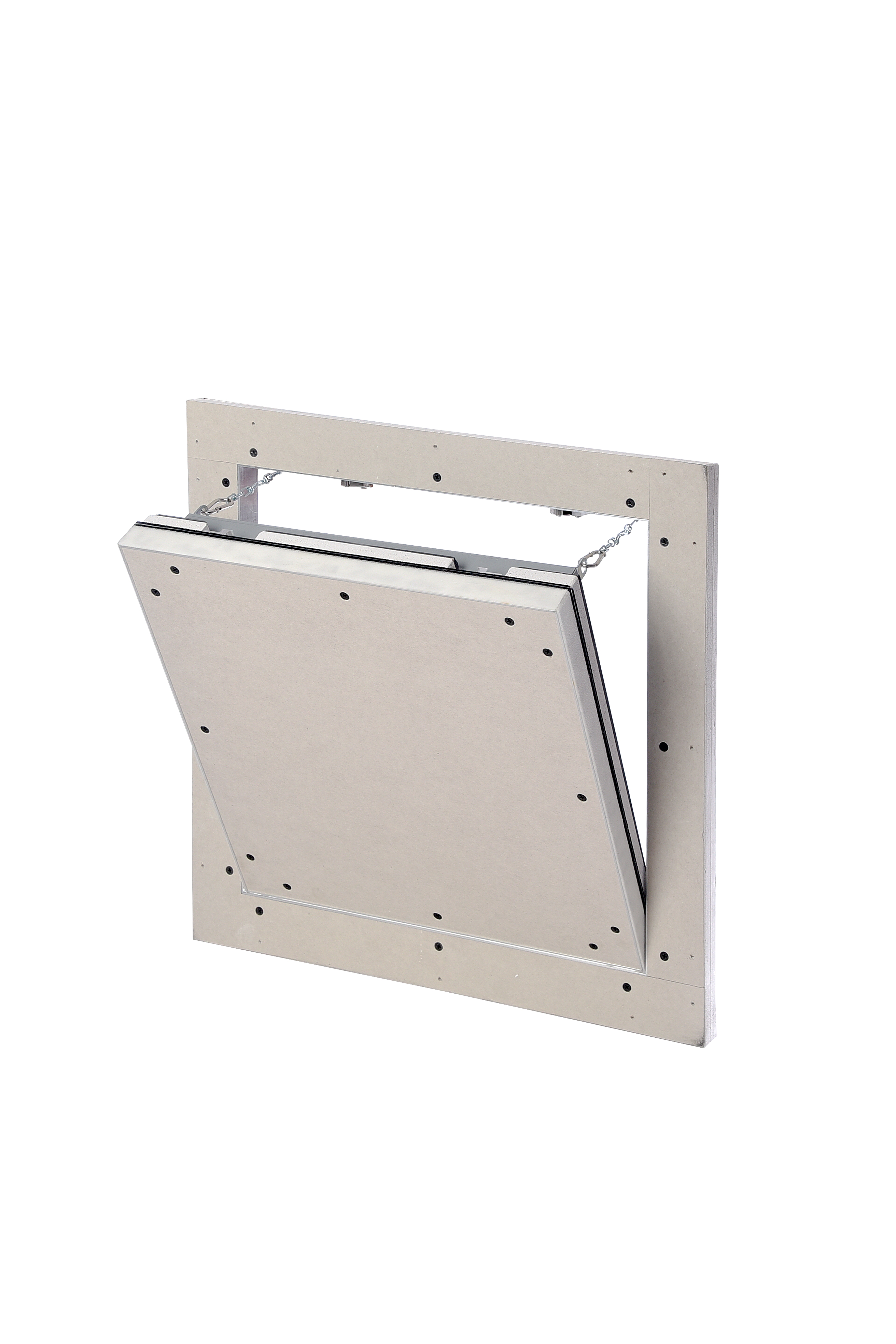

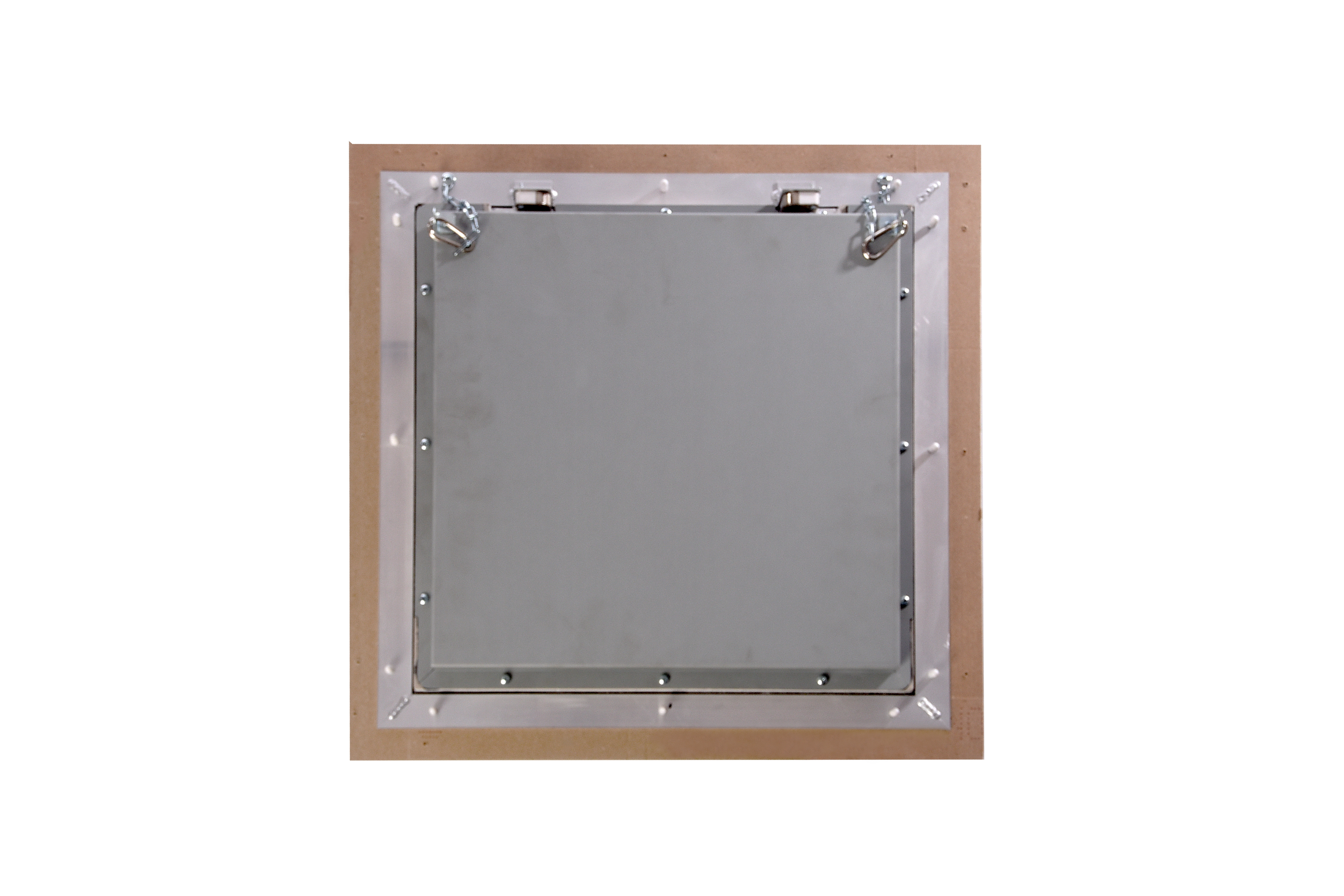

Acoustic Inspection Access Panel, BSA System EI60-EI90 – Acoustic Inspection Access Panel

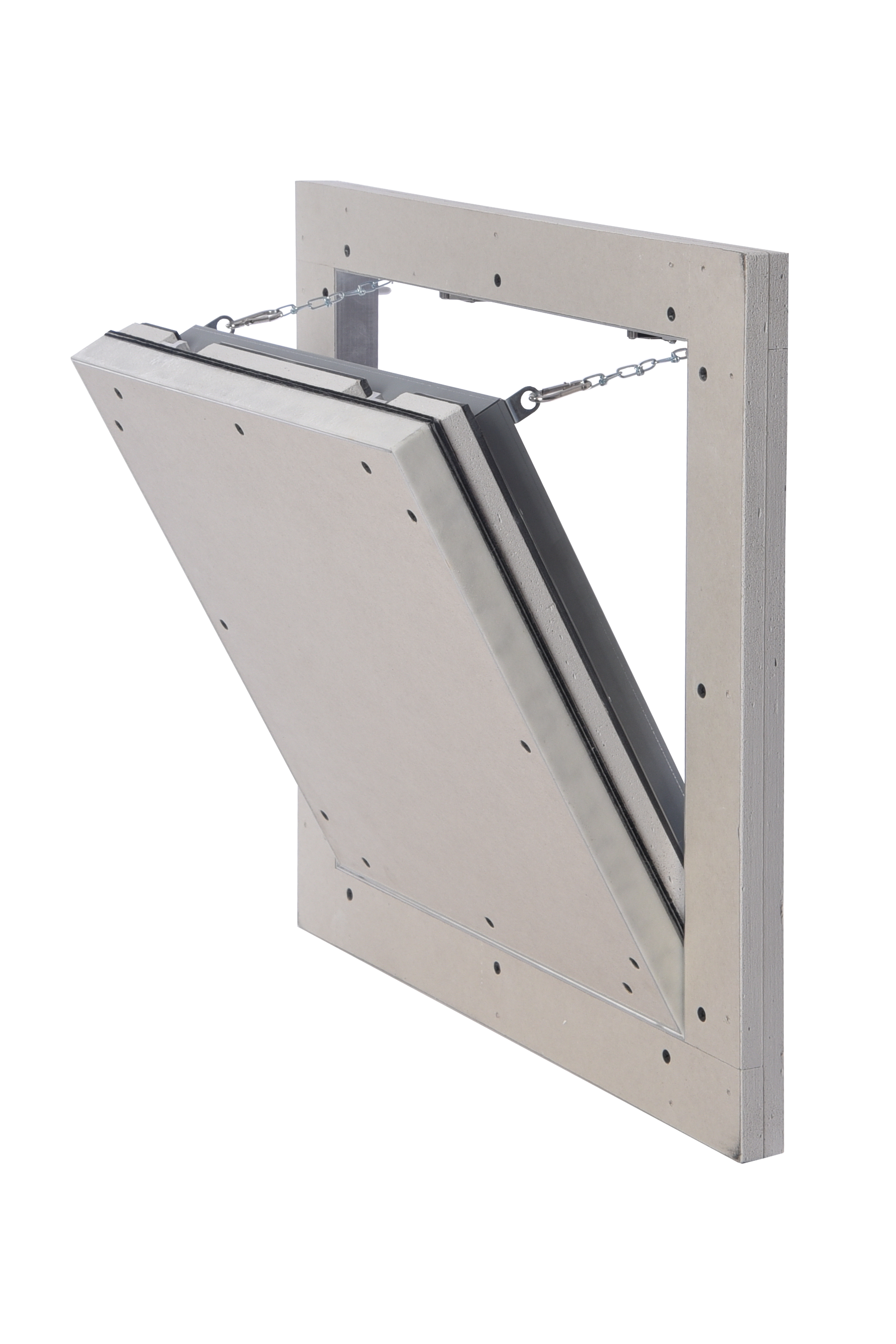

The BSA EI60–EI90 System is an advanced acoustic and fire-rated inspection hatch system that combines certified fire protection (EI60–EI90) with high acoustic performance and airtight sealing.

Technical Features

⦁    Aluminum frame with high-strength plasterboard panel (thickness 2 × 15 mm)
⦁    Fire resistance EI60–EI90, according to EN 13501-2
⦁    Resistance to hot and cold smoke leakage: Sa, S200
⦁    Sound insulation up to 42 dB
⦁    Airtight and dust-proof sealing, according to EN 12207
⦁    Invisible snap locks and removable hatch door

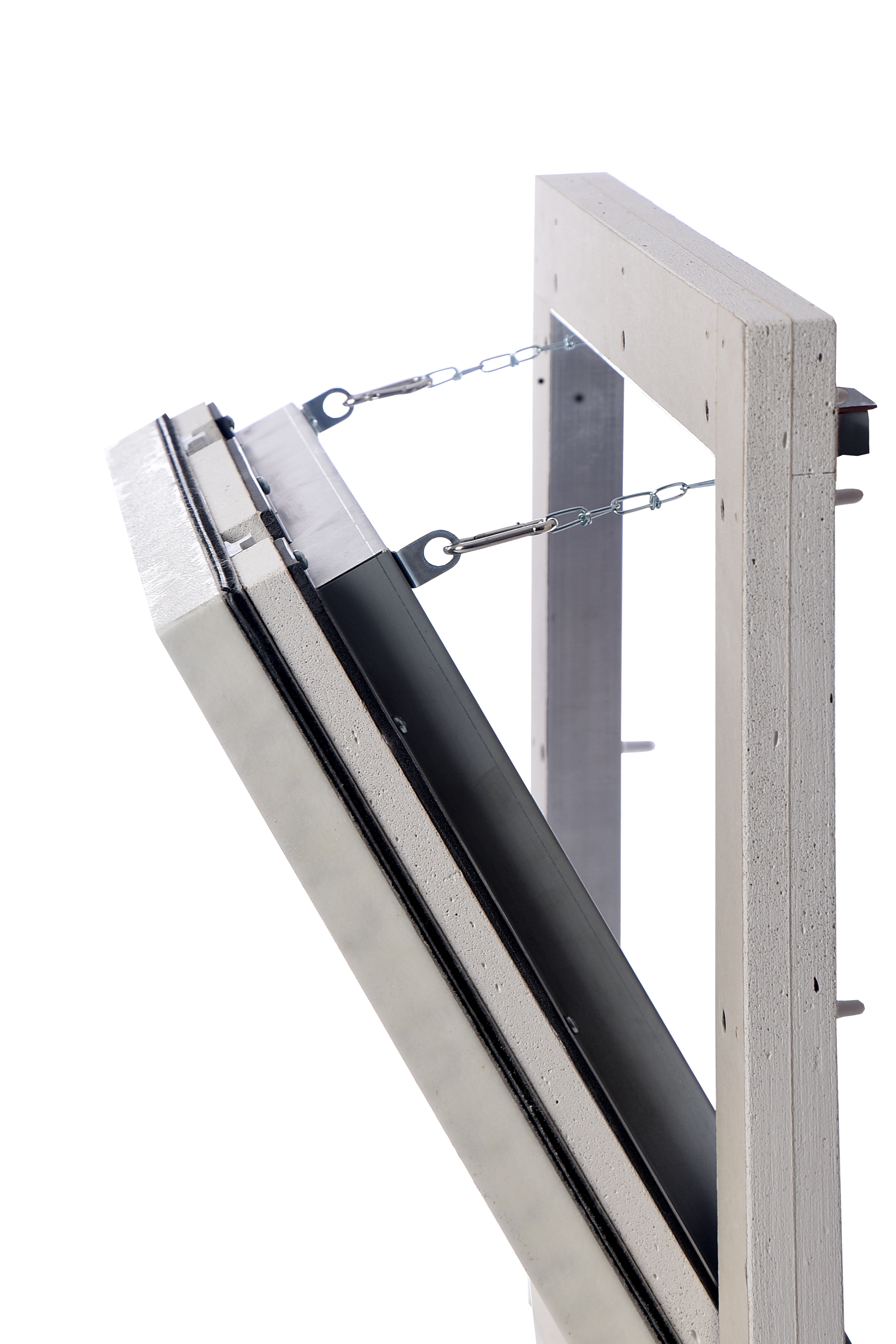

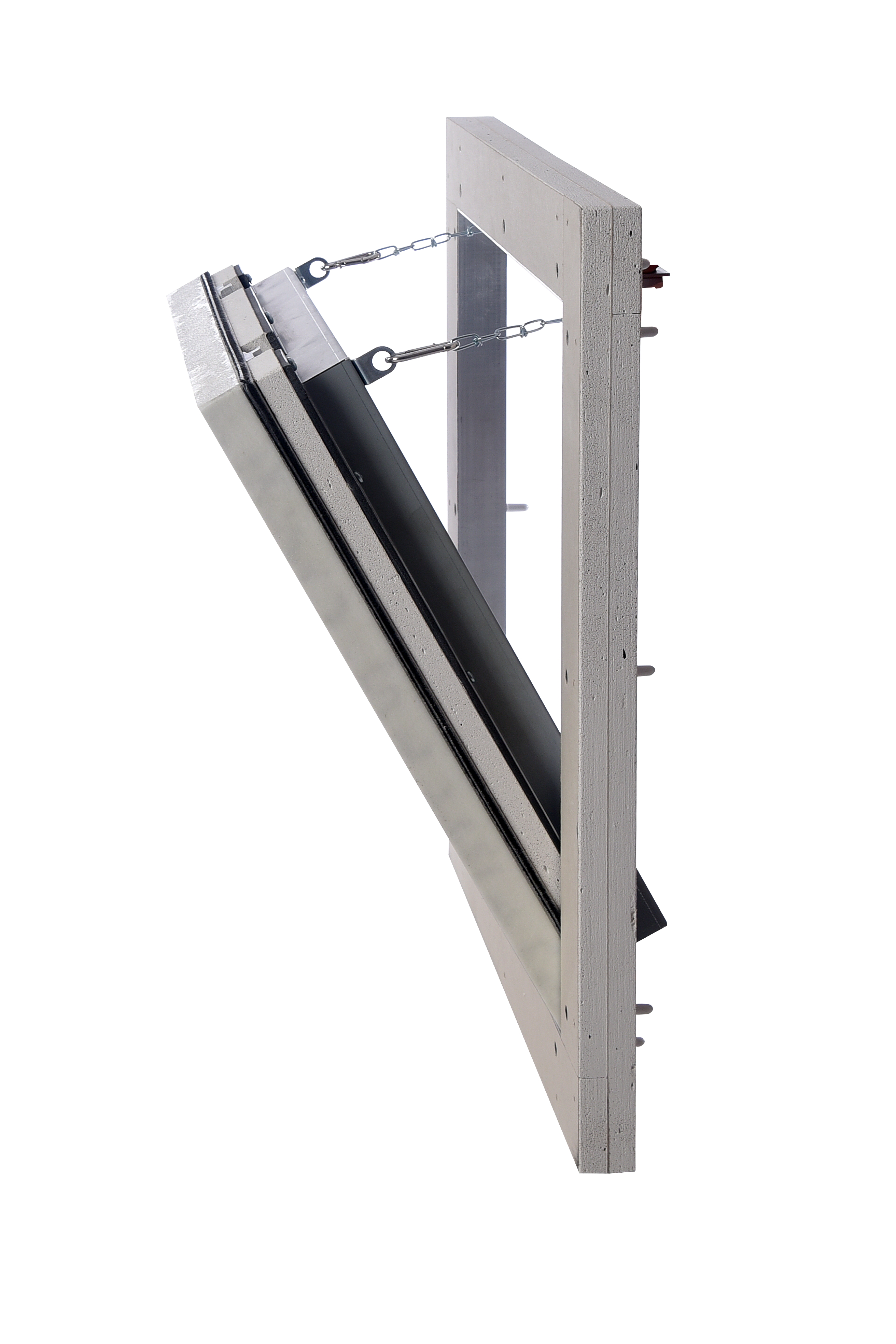

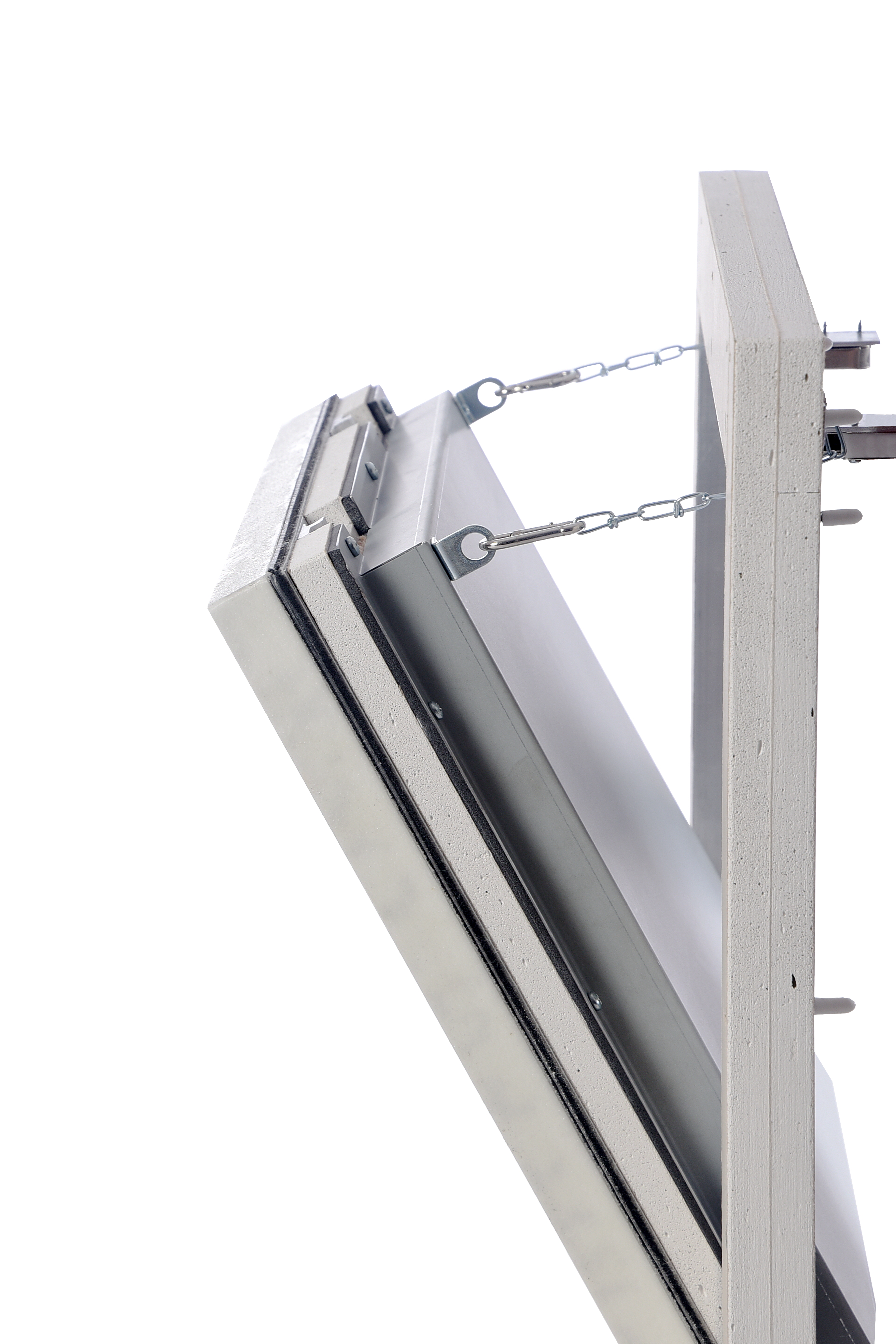

⦁    Safety cables with carabiner included

BSA is the ideal solution for environments regulated by fire safety standards, where protection, reliability, and inspection functionality must coexist.
