Ceiling inspection hatch, Self-supporting ceiling inspection hatch GB-EI 120 membrane plus

Previous productNext product

If you have used this product in your project. Click here to publish you project on SYNCRONIA!

Description

The fire reaction of this system is classified as A1 with fire resistance equal to EI 120 (a←b). The trapdoor is installed on a load-bearing membrane ceiling, made with boxed metal profiles filled with two Fireguard® sheets.

...Read more

The fire reaction of this system is classified as A1 with fire resistance equal to EI 120 (a←b). The trapdoor is installed on a load-bearing membrane ceiling, made with boxed metal profiles filled with two Fireguard® sheets.

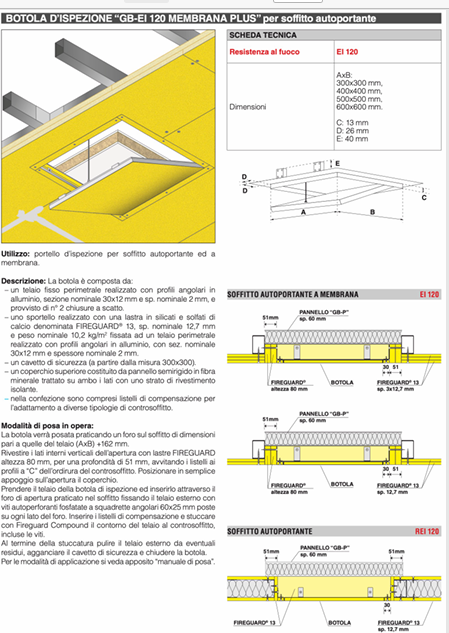

The product to be installed is the ‘GB-EI 120 MEMBRANA PLUS’ access panel, available in sizes 300x300 mm, 400x400 mm, 500x500 mm and 600x600 mm. It is fixed using metal brackets, while the final finish consists of filling the frame with Fireguard Compound filler.

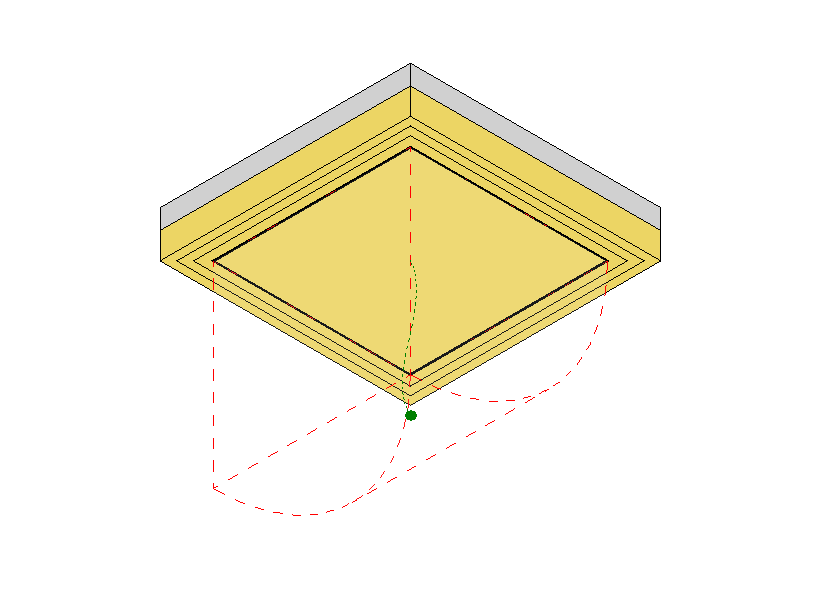

Download the technical design files free of charge, compatible with various software programmes. The following are available: CAD files in DWG format, BIM files, 3D SketchUp models, technical data sheets and technical catalogues.





Read less
