Floodlights, Mini one floodlight

Mini One Floodlight is an adjustable outdoor floodlight designed to precisely light details, plants, sculptures and small architectural features. In an outdoor lighting design project, it is useful when you need a compact, orientable point of light for accents without bulky volumes.

The Mini One collection by Platek starts from a small cube and develops a modular family: the same base can become a wall grazing solution, a ceiling version or a floodlight with bracket. Concealed attachments and no visible screws ensure visual continuity; the range also includes the bollard for paths and gardens and is available with 2 or 4 windows, or with blades of light.

Technical features

• Body in extruded primary aluminium
• Die-cast head and base in aluminium alloy EN 44300 with very low copper content
• No visible screws
• Galvanic anodizing + continuous two-step paint process (epoxy primer + polyester colour finish)
• Glass bonding with atmospheric-pressure plasma pre-treatment, silicone application and automated assembly for sealing
• IP66, IK08

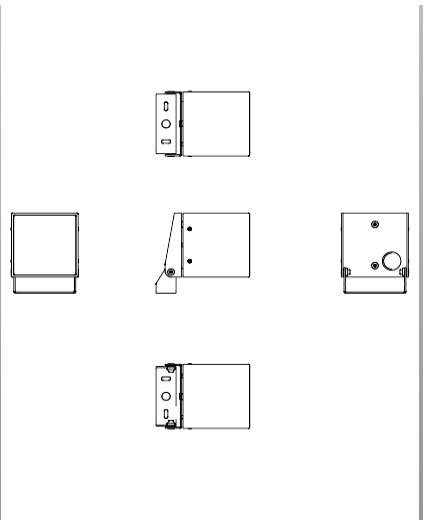

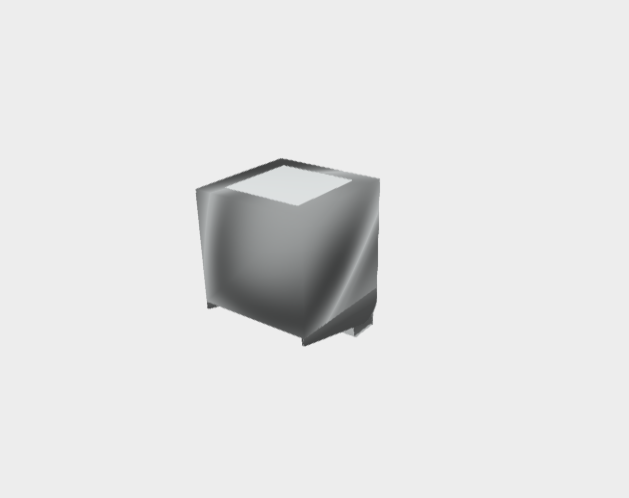

Download the free 3D and BIM models of the Mini One Floodlight by Platek and integrate it into your outdoor project. With the BIM download and the available materials (catalogues, datasheets, images) you can complete documentation and client presentations.
