Floor Access Cover, 7500 TH Series

Overview

Series 7500 TH is a thermal floor access cover designed for flush-to-floor integration while keeping technical access available. It fits projects requiring refined inspection detailing and orderly opening management.

Technical features

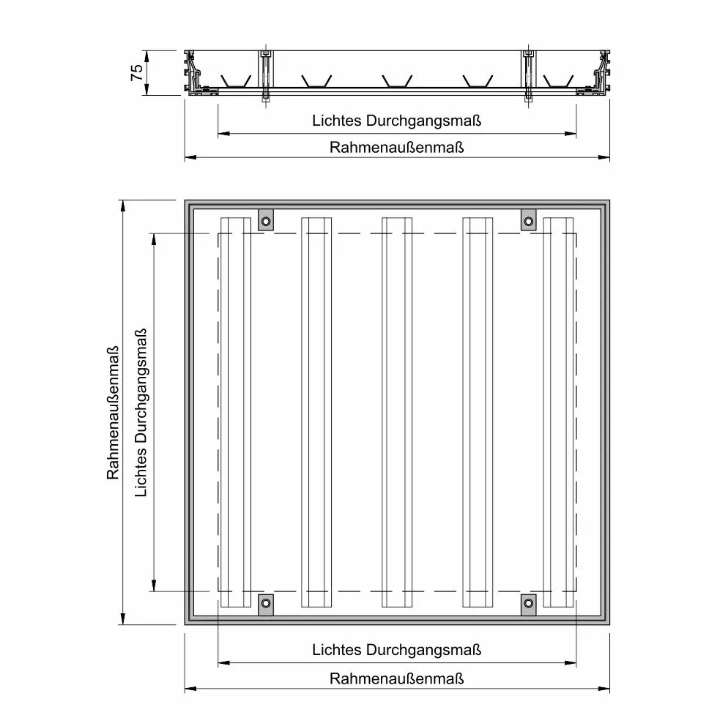

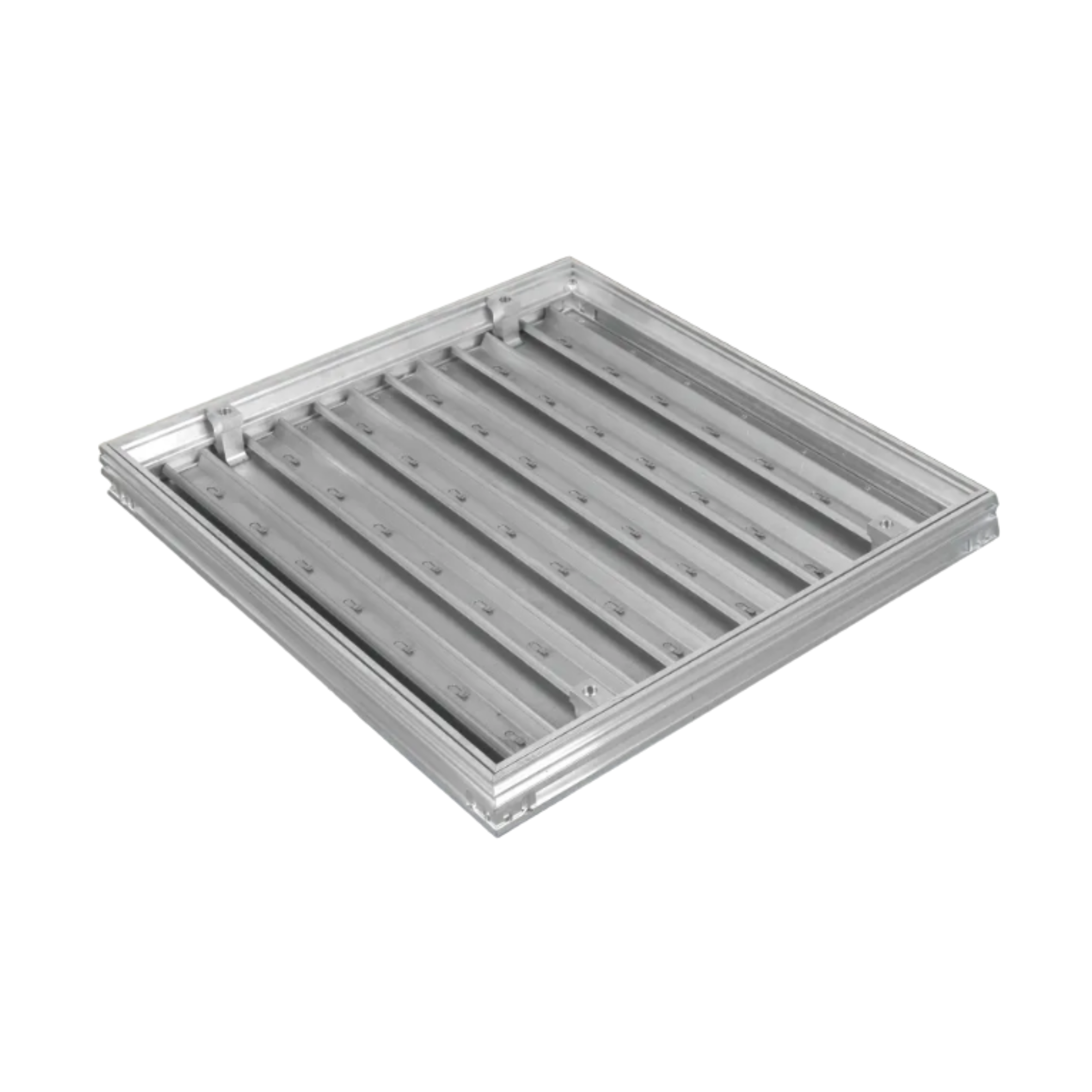

Frame and tray are made of aluminium. The depth of the tray is 62 mm and the installation height is only 75 mm. The floor access cover is equipped with three special gaskets along the entire perimeter. The frame is fixed by throwing at floor level. The tray can then be filled and inserted into the frame. The lid is fixed to the frame by 4 tightening screws, and can be removed with special lifting keys. Filling is possible with tiles, concrete, resin, granite, interlocking blocks, wood and other materials. It includes an 80 mm polyurethane plate.

Project advantages

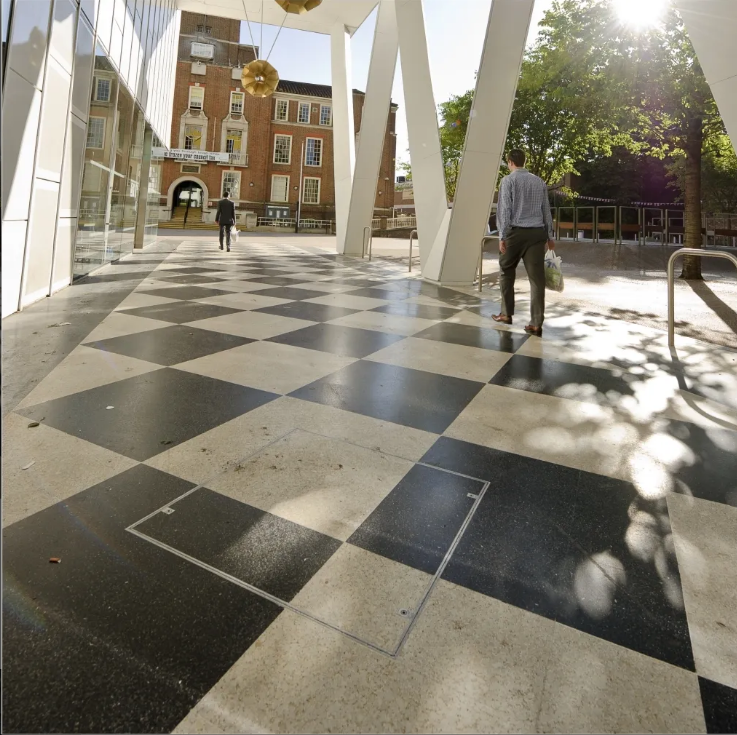

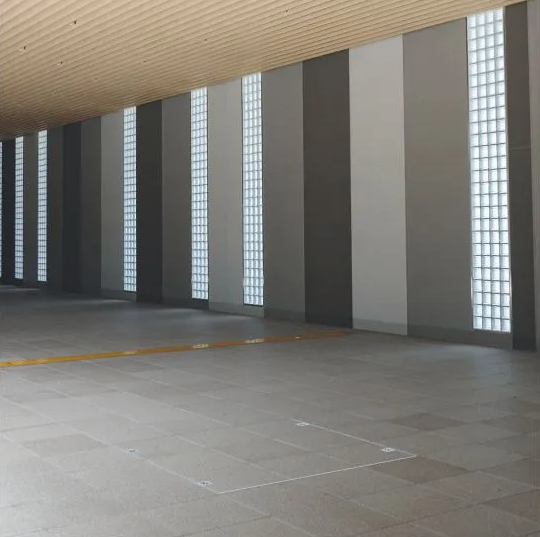

⦁    Almost invisible when installed after finishing.
⦁    Easier opening thanks to the conical construction design.
⦁    For indoor and outdoor floor ducts, where high quality is required.

Operational notes

Detail design should account for filling weight and inspection frequency.

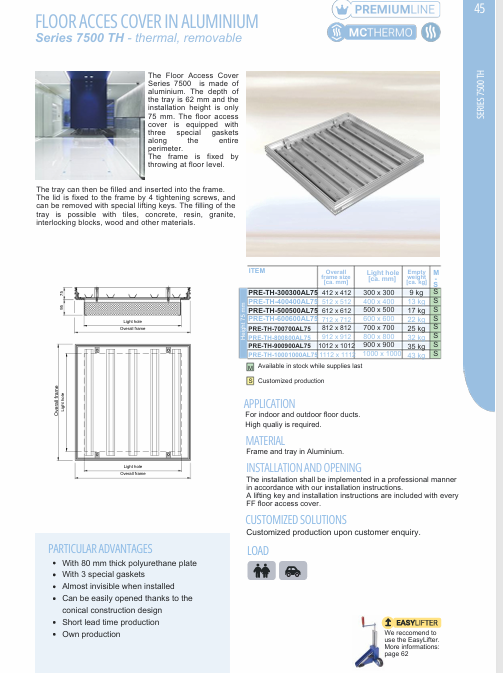

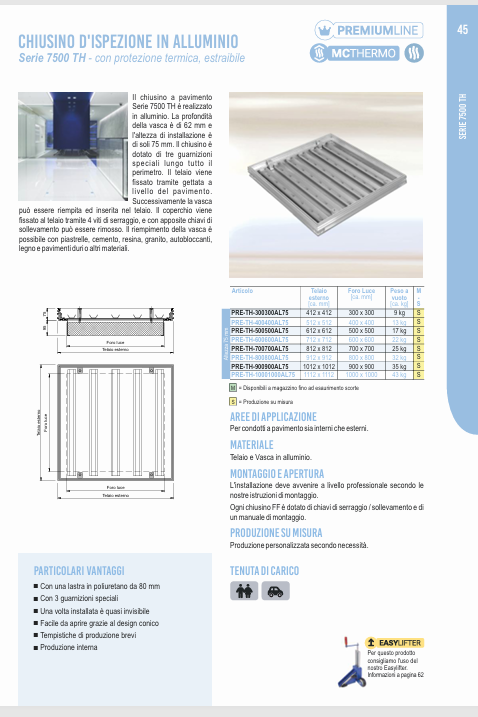

Download documentation on Syncronia

On Syncronia.com you can free download images, catalogues and technical data sheets download for Series 7500 TH, with documentation to integrate it into your project set.
